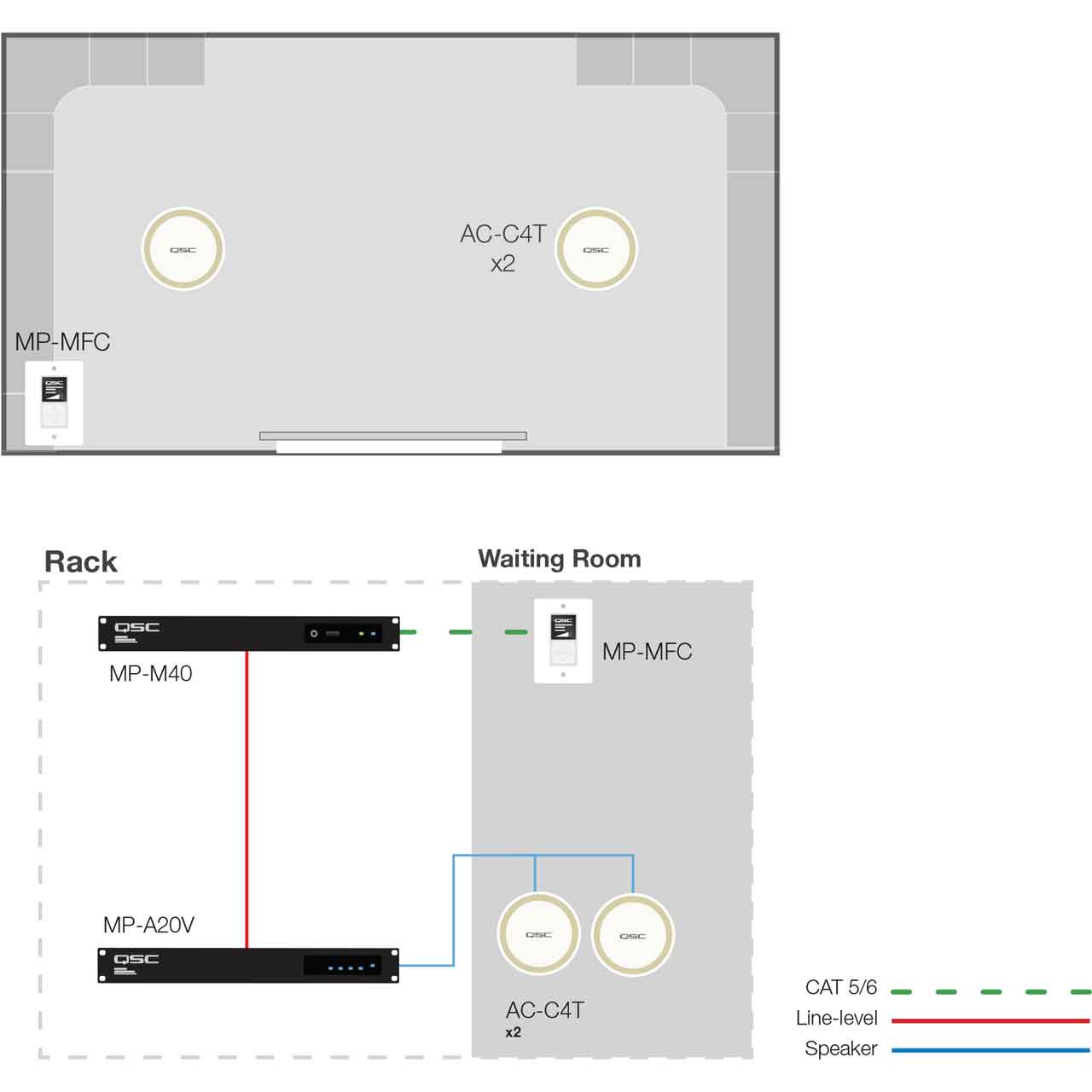

QSC Small Office / Waiting Room Bundle with AC-C4T Loudspeaker x 2/MP-M40 Mixer/MP-A20V Amplifier and MP-MFC Controller

BUSINESSKIT1 - Overview

• Features:

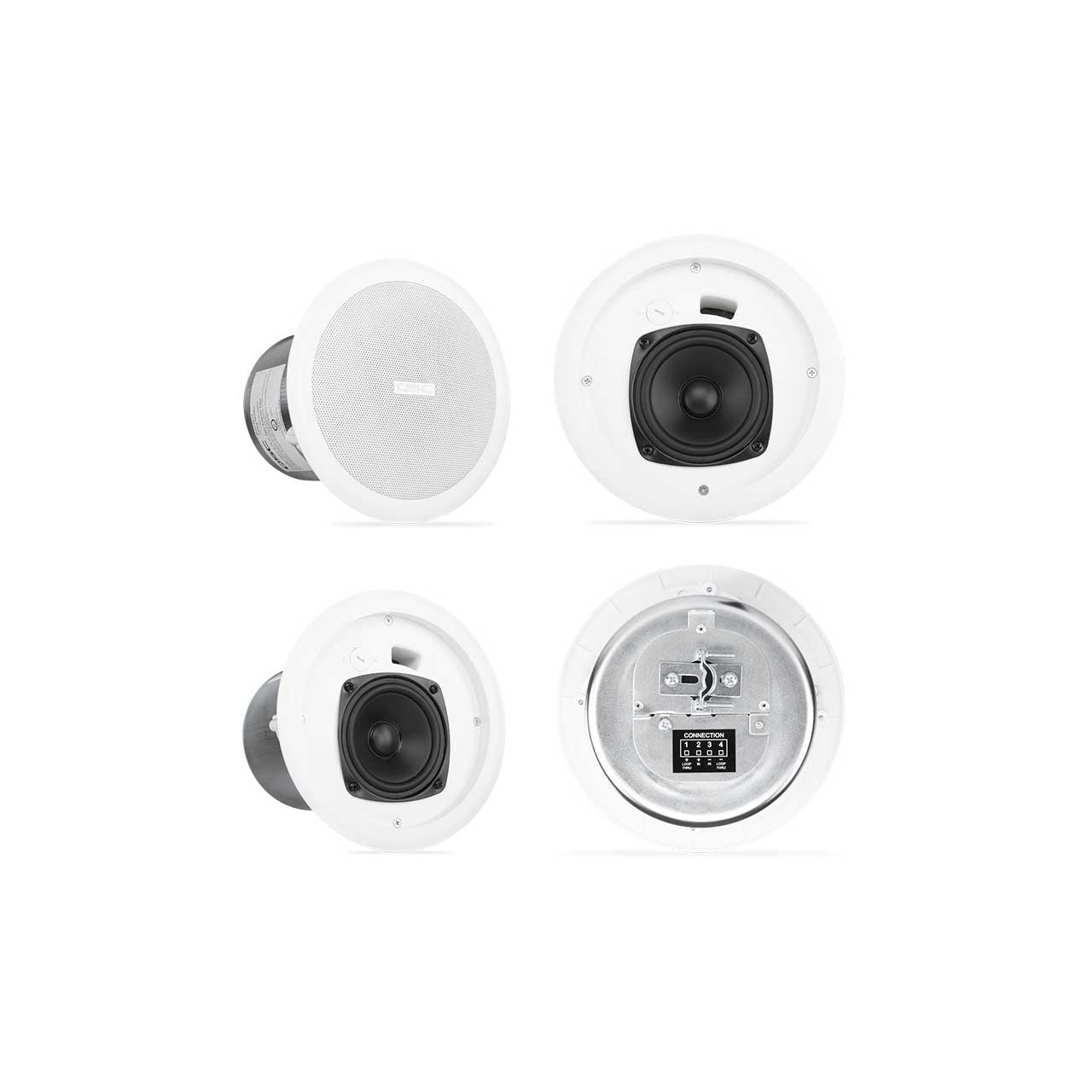

  • AC-C4T
  • High quality 4" full-range transducer provides exceptional clarity through the critical voice range.
  • Ported baffle for increased low frequency extension down to 70 Hz.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms.
  • White (RAL 9010) with UV inhibitors to match complementing QSC product families.

    MP-M40

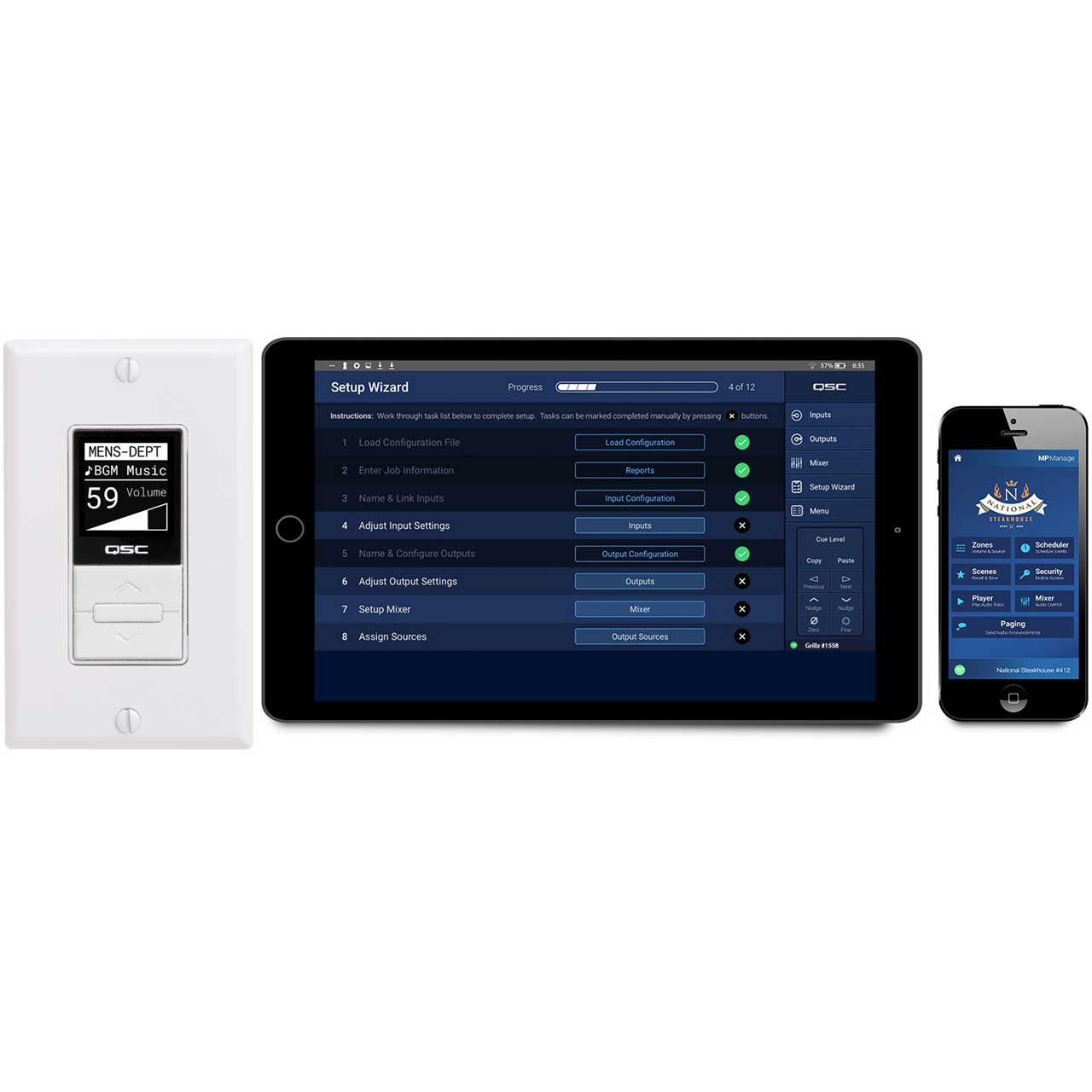

  • Easy configuration and design: MP Install app gives you an attractive graphic user environment with an intuitive workflow and controls that make it simple to manage all the inputs and outputs.
  • Workflow Wizard: Helps the installer keep track of tasks and easily navigate the mixer.
  • QSC loudspeaker voicings: Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.
  • Customized control level: Fine tune controls to allow as much or as little as the installation requires on the available MP-M Series control peripherals.
  • Wired/wireless control options:
  • Complimentary aesthetics: MP-M Series mixers match the appearance aesthetic of the QSC MP-A Series music and paging amplifiers for an installation that looks as good as it sounds.

    MP-A20V
  • FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
  • Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership
  • 1RU amplifier design for rack space savings
  • Load selector for driving 4 Ω, 8 Ω, 70 V or 100 V on each channel
  • Selectable 80 Hz highpass filter offered on each channel
  • Power saving features - Auto-standby (after 28 minutes with seamless auto-ramp when signal returns) and remote standby input
  • Amp status remote output
  • Rock-solid QSC amplifier dependability

    MP-MFC
  • For use with the MP-M paging and music mixer/processor only
  • Zone select, source select, scene recall, volume control
  • Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
  • Ability to daisy chain up to four MP-MFC controllers
  • Up to 250 m cable length (CAT5)
  • Up to eight MP-MFC controllers per MP-M Series mixer
  • Available in black or white
  • Available in NA and EU sizes


• Specifications:

  • AC-C4T
  • Effective frequency range: 70 Hz to 16 kHz
  • Rated noise power / voltage: 16 watts / 11.3 volts (rms)
  • Broad-band sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 140° (500 Hz to 5 kHz)
  • Maximum continuous SPL: 101 dB
  • Maximum peak SPL: 107 dB
  • Rated impedance: 8 ohms
  • Transformer taps: 70 V: 16, 8, 4, 2, 1 watts and 8-ohm bypass
  • Transducer: 4" Polypropylene cone with butyl rubber surround
  • Input connector type: Euroblock connector with parallel output terminals

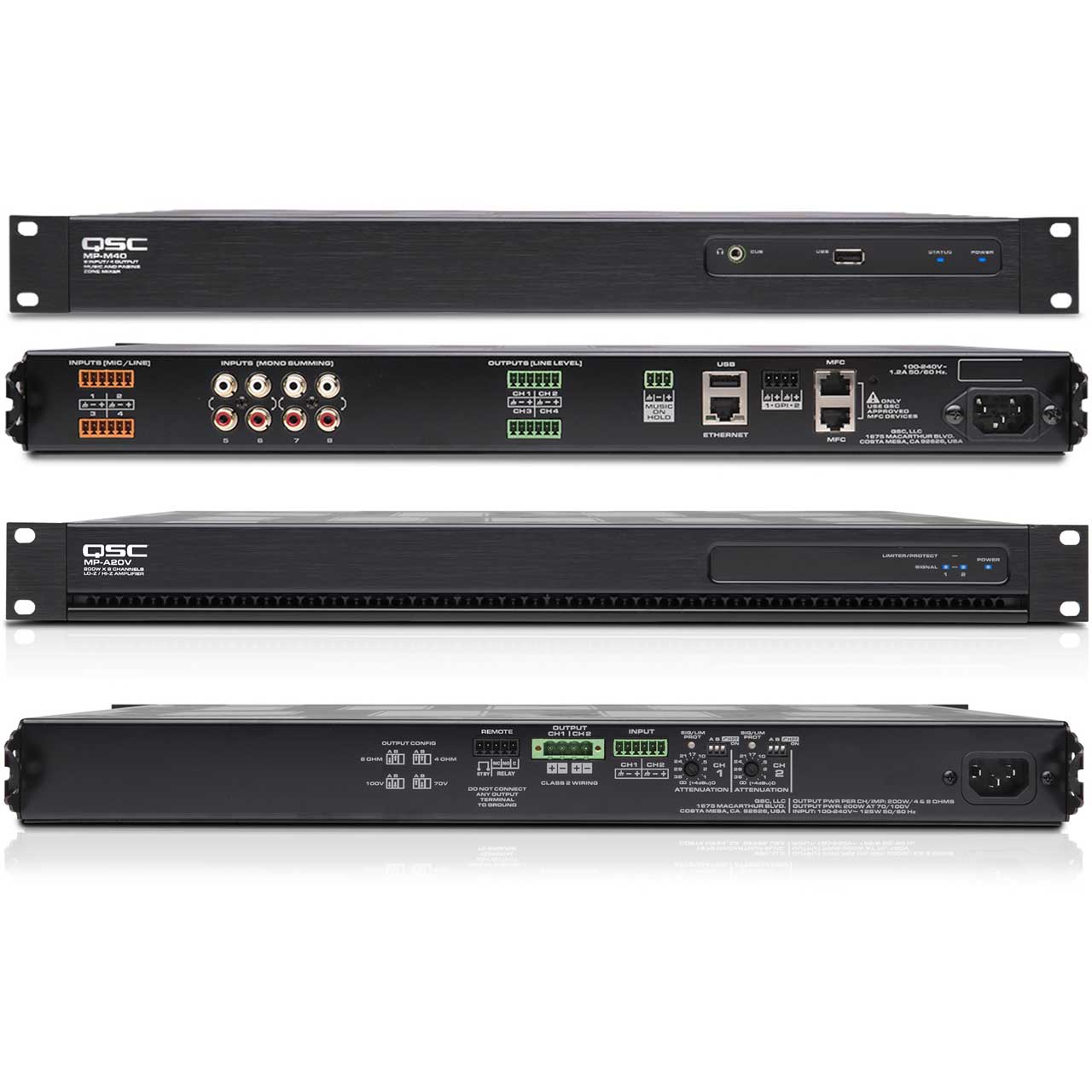

    MP-M40
  • Inputs Total: 8
  • Mic/Line: 4 (Euroblock)
  • RCA: 4 (mono-summed RCA pairs)
  • Outputs Total: 6
  • Line: 4 (Euroblock, balanced)
  • Music on Hold: 1 (Euroblock, transformer balanced)
  • Cue (phones): 1 (3.5 mm, stereo)
  • Input Processing: EQ: 4-band parametric EQ with high/low shelving option, variable
    24/octave HPF and LPF
  • Dynamics: Gate, choice of Auto Gain Control (AGC) or Compressor
  • Output Processing: EQ: 1/3 octave GEQ
  • Anti-feedback Filters: 12-band variable notch filters
  • Dynamics: Comp/limiter, ducker, loudness
  • Delay: 100 msec

    MP-A20V
  • Watts: 400
  • Channels: 2
  • Power (All Channels Driven):
    8Ω 4Ω - 200W
    70V - 200W
    100V - 200W
  • FlexAmp Technology: Allows each pair of amplifier channels to deliver up to 400W total power, in any ratio
  • Frequency Response @ 8Ω: 20Hz - 20kHz ± 0.5dB
  • Signal To Noise: >103dB
  • Input Sensitivity: 1.23V (+4dBu)
  • Gain @ 8Ω: 30.0dB
  • Output Circuitry: Class D

    MP-MFC
  • Controls: Three buttons (increment, decrement, and select)
  • Connectors: 2x RJ45
  • Display: 128 x 128 pixels, 27 (L) x 26 (W) mm viewing area
  • Available Colors: Black, white
  • Connection Max: Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length
  • Total: Up to 8 controllers per MP-M Series mixer
  • Dimensions (HWD): North American versions: 4.5-inch X 2.75-inch X 1.4-inch (11.4 cm X 7.0 cm X 3.5 cm)
  • Net Weight: All Versions: 0.2 lb (0.1 kg)

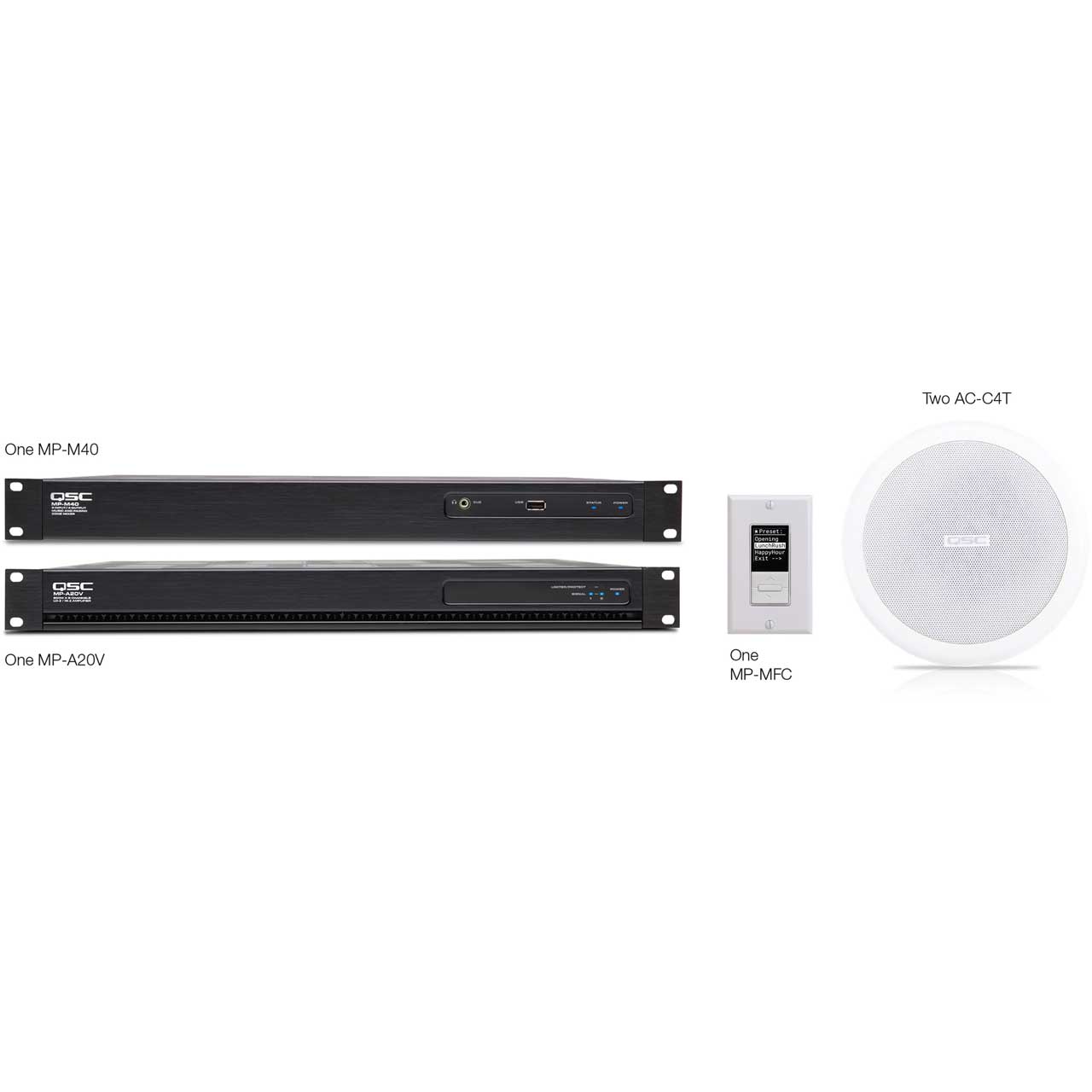

• Item Includes:

  • 2x AC-C4T Loudspeakers
  • 1x MP-M40 Mixer
  • 1x MP-A20V Amplifier
  • 1x MP-MFC Wall Mount Controller
