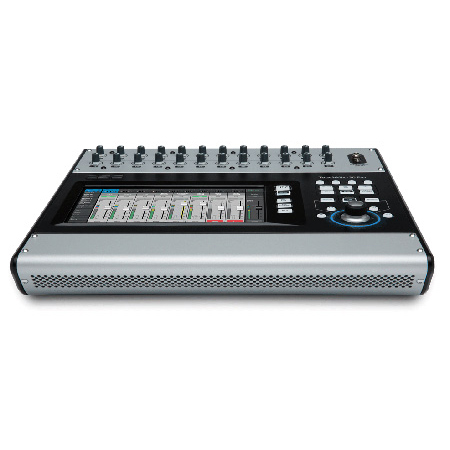

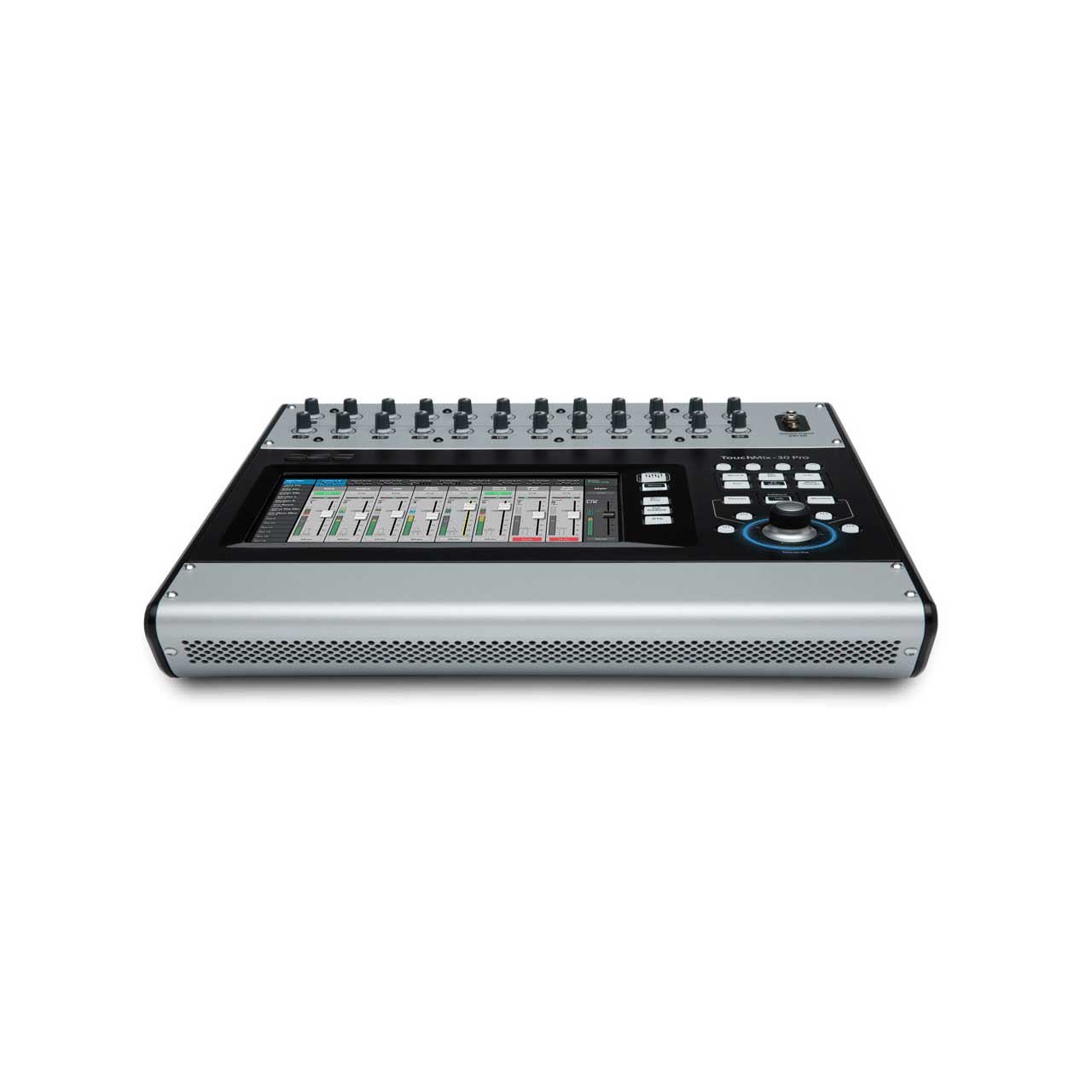

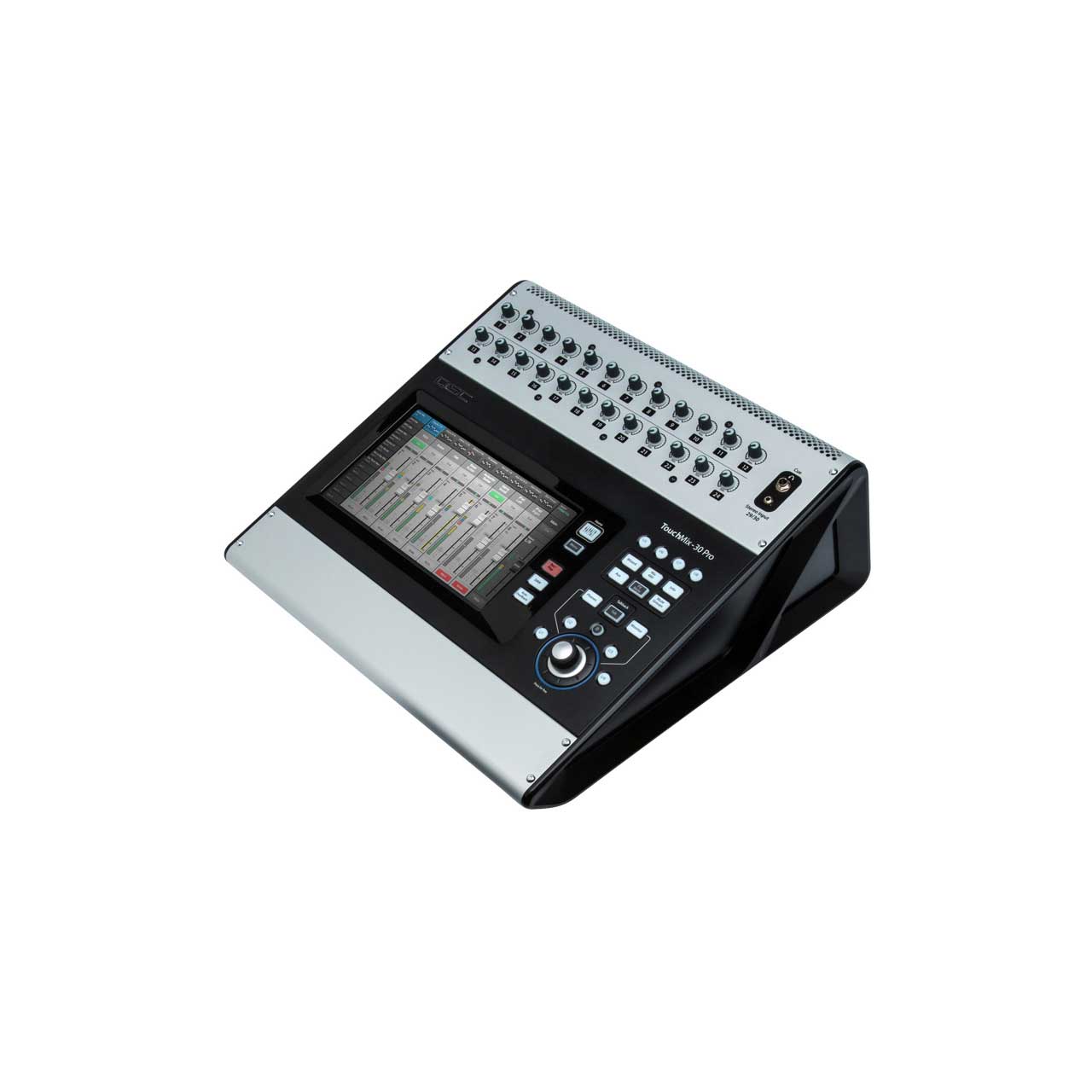

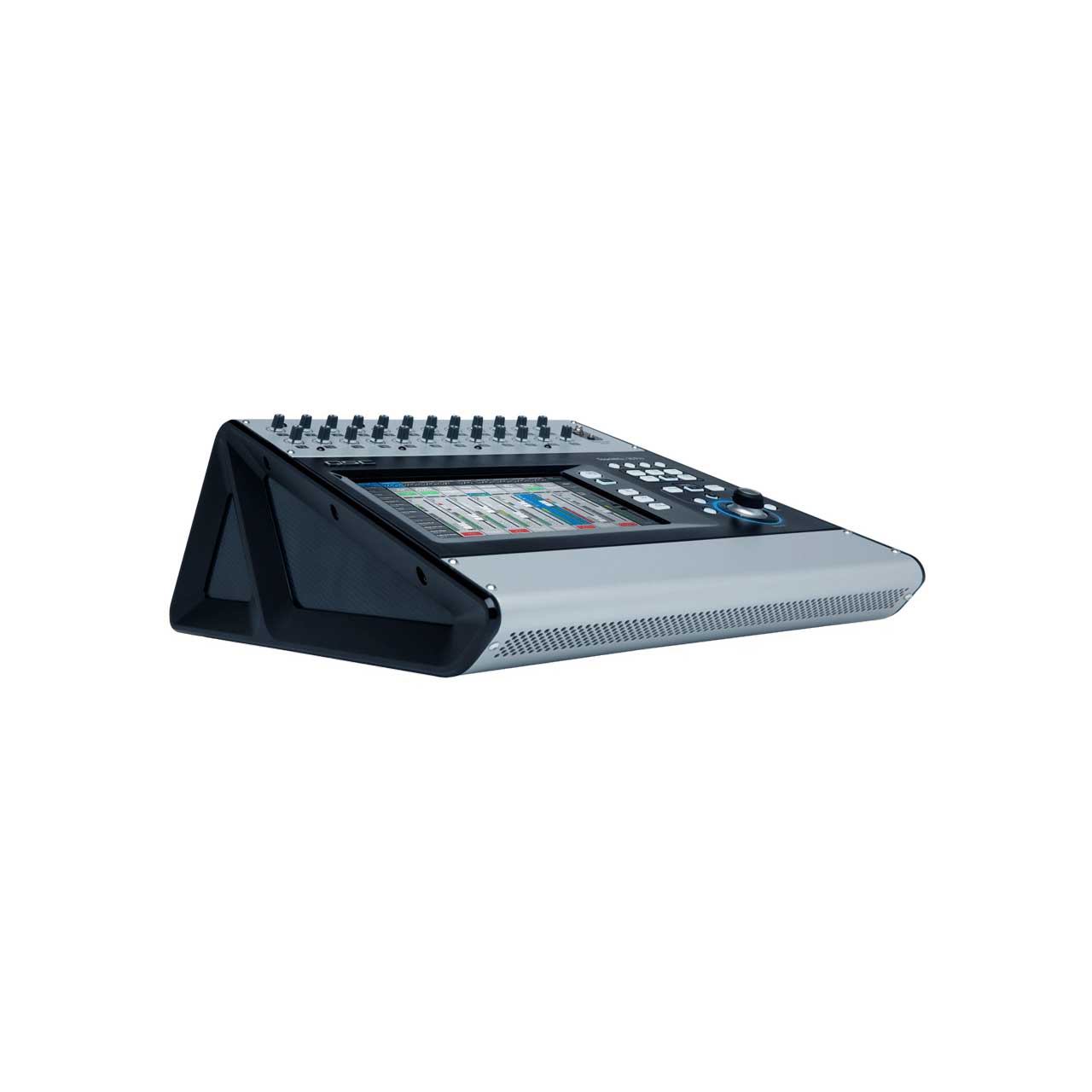

QSC TOUCHMIX-30 Pro 32 Channel Professional Compact Digital Mixer

TOUCHMIX-30 - Overview

• Features:

  • Large (10-inch) multi-touch touchscreen offers more on-screen information while also providing greater hands-on control
  • Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
  • Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
  • Copy and Paste function easily duplicates mixes, channels, EQ, dynamics and more.
  • Touch-and-route Patch Matrix for easy "multing" and rearrangement of inputs
  • Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter may be linked for stereo
  • 32-channel direct-to-hard drive record/playback capture and recall performances without the need for a computer
  • 32-Channel DAW interface with Mac computers allows for bidirectional I/O with popular workstation software
  • MP3 playback direct from USB
  • 24 class-A microphone preamps deliver pristine, studio-quality audio
  • Over 120 live instrument, microphone and other audio source presets created in live environments provide mix-ready channel settings
  • All outputs feature 1/3 octave graphic equalization and 6-band parametric EQ plus limiters, delay and 12-band notch filters


• Specifications:

  • Display: 10" (254 mm) diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch sensing
  • Inputs: 32 (24 mic/line, 6 line, 2 stereo USB)
  • Mic/Line: 24 (20 XLR, 4 XLR combo)
  • Line: 6 (balanced, 1/4" TRS + top panel 1/8" (3.5 mm) stereo)
  • Stereo USB: Stereo USB / MP3 playback
  • Talkback: 1 (XLR with 48 V)

    Input Channel Processing
  • EQ: 4-band Parametric EQ with Hi/Low Shelving option, variable 24 db/octave HPF and LPF
  • Dynamics: Gate, Compressor
  • Delay: Delay (100 msec max)
  • Automatic Microphone Mixer: Gain Sharing, 24 channels, two instances (requires firmware 1.3 or higher)

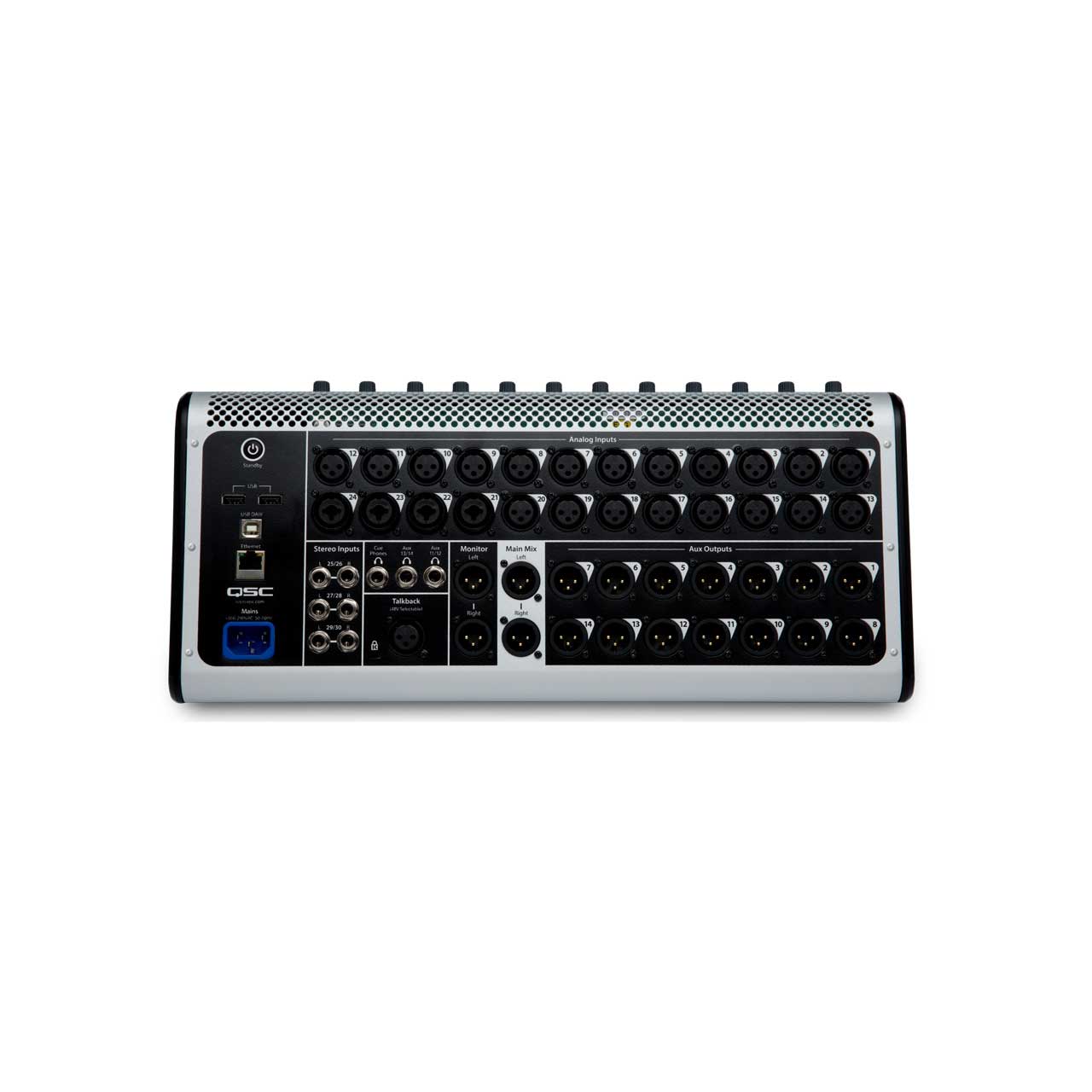

    Outputs
  • Total: 16
  • Main L/R: 2 (XLR, line-level)
  • Aux: 14 (XLR, line-level)
  • In-ear Monitor (Stereo): 2 (TRS, 16 ohm min. impedance, from Auxes 11/12 and 13/14)
  • Cue: 2 (Stereo, TRS, line or headphone, 16 ohm min. impedance)
  • Monitor L/R: 2 (Stereo, XLR)

    Output Channel Processing
  • EQ: 1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass Filters
  • Anti-Feedback Filters: 12-band Anti-Feedback Filters
  • Dynamics: Compressor / Limiter
  • Delay: 100 msec

    Recording / Playback
  • Multi-Track: 32 x 32 tracks direct to hard drive
  • DAW: 32 x 32 tracks Interface for macOSr (Core Audio) and Windowsr computers
  • MP3: Stereo USB / MP3 playback

    Groups
  • DCA: 8 (with Mutes)
  • Mutes: 8
  • Sub Groups: 8 (with 6-band Parametric EQ with High- and Low-Pass Filters, Limiter)


  • Cue: Selectable. AFL, PFL, Solo in Place


  • Real Time Analyzer (RTA): 2 (1/3 octave, assignable to channels or user selectable source)
  • Preset Memory: 99 User Scenes, 120 Factory Presets, 99 User Presets
  • Digital Connections: 2 USB A connector, 1 USB B connector, 1 RJ-45 (connection for Wi-Fi router)
  • Shipping Dimensions (HWD): 12 in X 23.7 in X 19.5 in
  • Mixer only Dimensions (HWD): 7.5 in X 16.9 in X 18.1 in
  • Shipping Weight: 25.2 lb (11.4 kg)
  • Mixer only Weight: 17.5 lb (7.9 kg)
  • Power Requirements: 85 W, 100-240 VAC, 50-60 Hz
  • Sampling Frequency: Selectable 44.1 kHz or 48 kHz
  • Internal Processing: 32-bit floating point
  • THD: <0.005%, +4 dBu; 20 Hz-20 kHz, unity gain, any input to any output
  • Frequency Response: 20 Hz-20 kHz +/-0.5 dB, any input to any output
  • Dynamic Range: 105 dB
  • Equivalent input Noise: -126 dBu
  • Residual Output Noise: -86 dBu
  • Crosstalk: -80 dB
  • S/N Ratio: -94 dB
  • Gain (Mic Inputs): 75 dB (60 dB analog, 15 dB digital)
  • Maximum input Level: +16 dB (XLR mic/line inputs), +26 dB ( TRS mic/line inputs), +24 dBu (TRS line inputs), 0 dBv (top panel 1/8" stereo input)
  • Maximum Output Level: +22 dBu (all line-level outputs)
  • Phantom Power: 48 v, mic and talkback inputs, individually switchable
  • Regulatory Approvals: UL, CE, FCC (Class B), RoHS


• Item Includes:

  • 1x TouchMix-30 Pro Mixer
  • 1x Power cable


• GTIN:

  0684284067326
