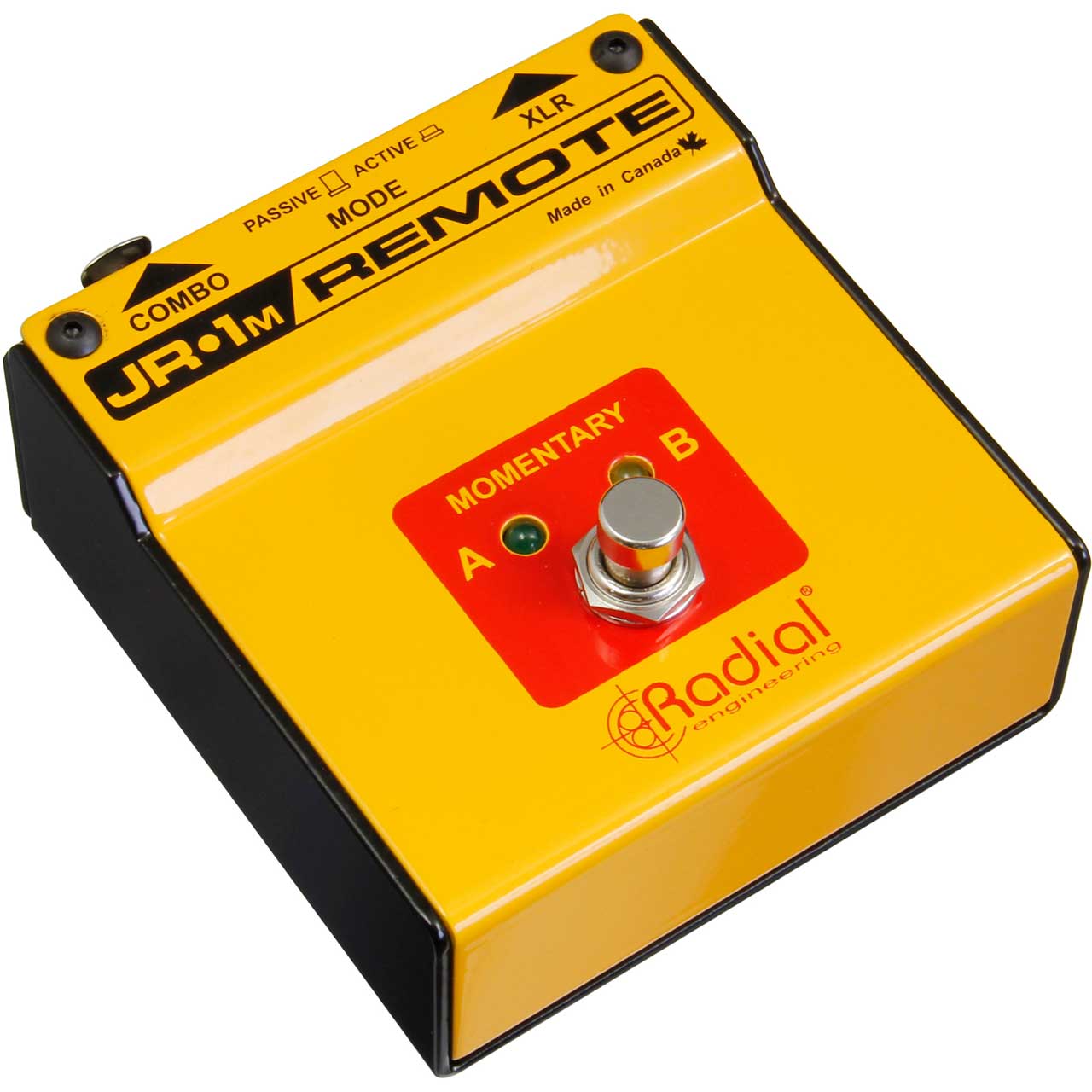

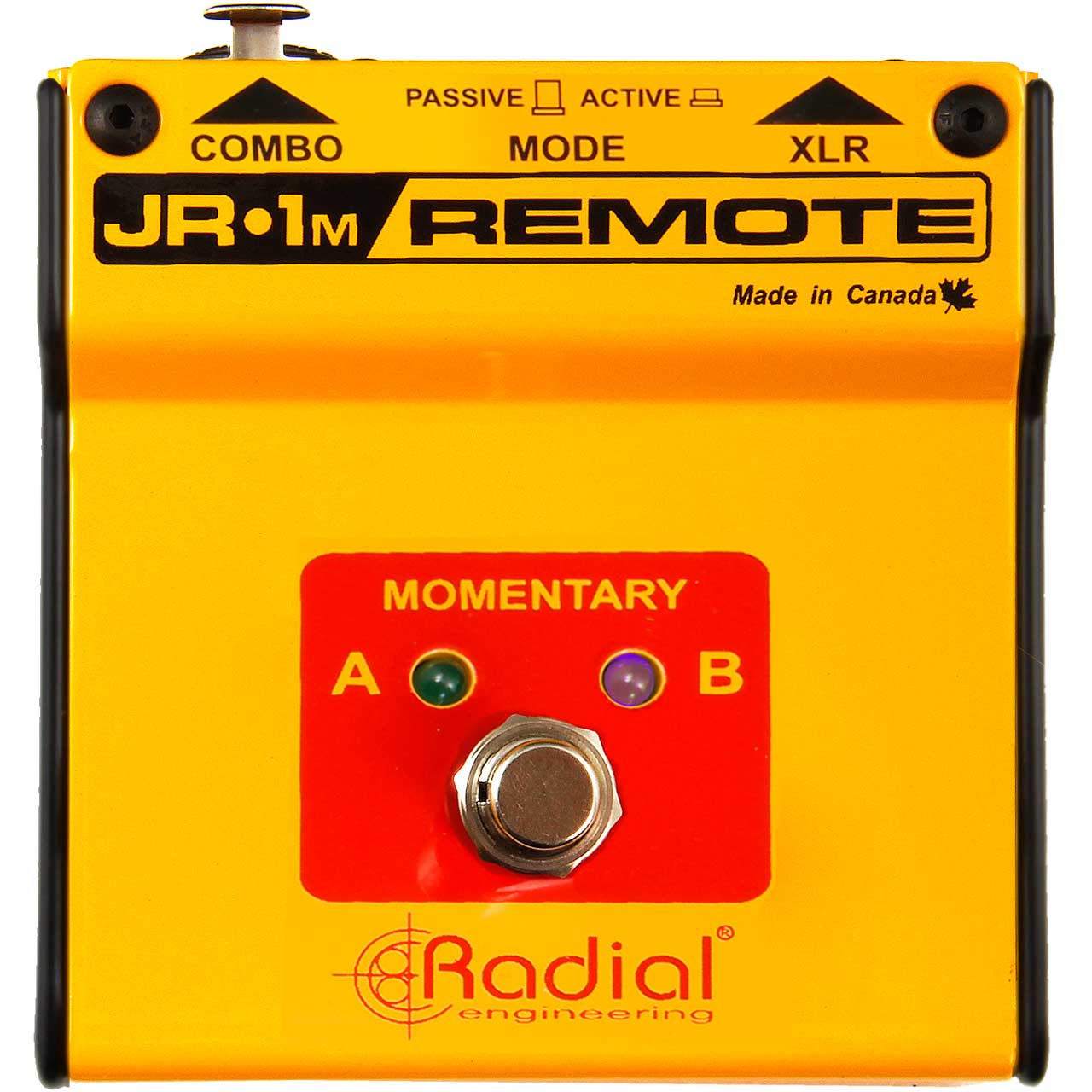

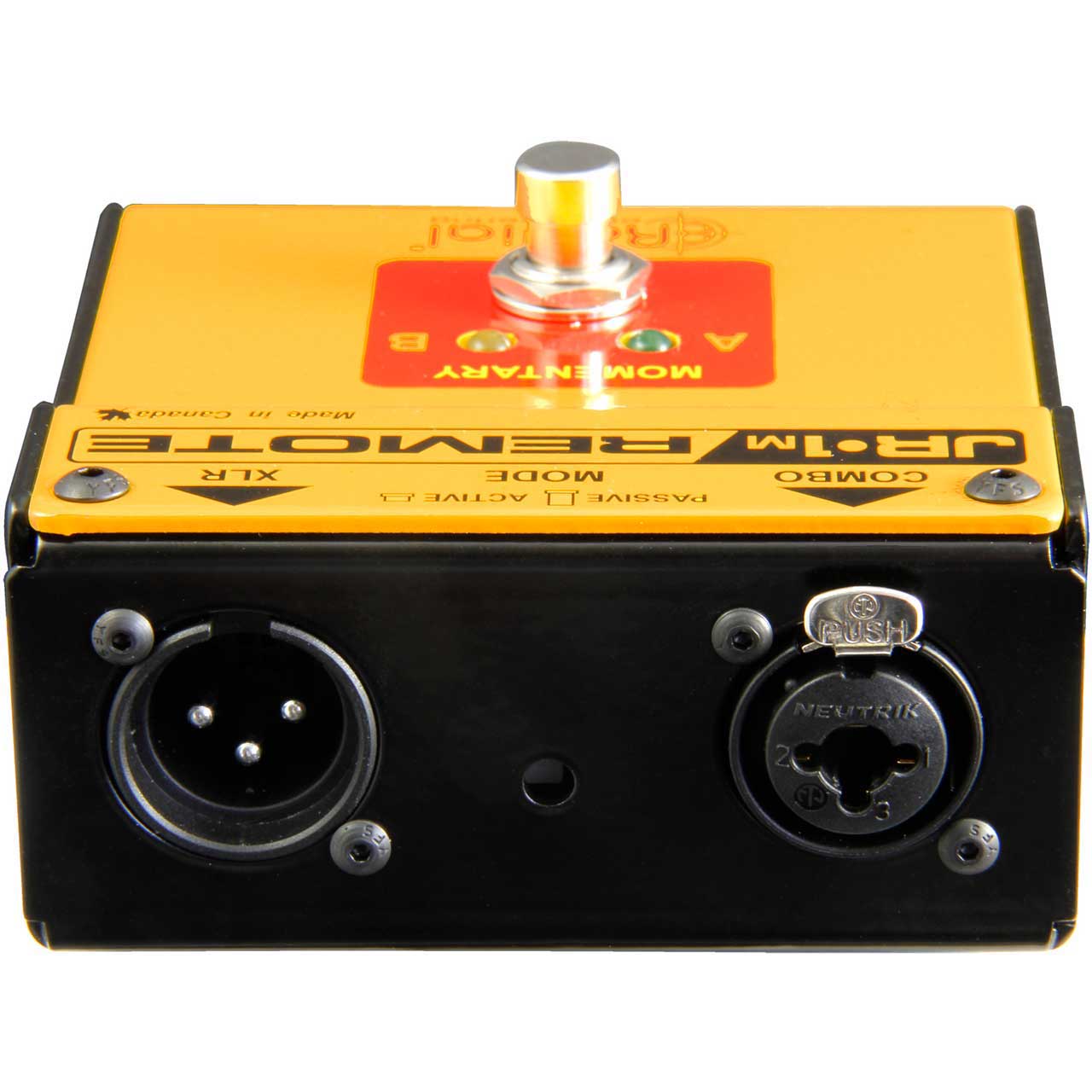

The Radial JR-1™ is a single action footswitch designed to remotely control a function such as selecting A or B outputs. As a passive device, it does not require any power to make it work. Instead, it employs a simple mechanical switch that shorts the positive with the ground using either 1/4" or XLR connections. The JR1 is available in a 'L' latching version that requires pushing on and pushing off the footswitch to sort and release the contact, or a `M' momentary version that shorts the contact when depressed, and releases as soon as the switch is released.
JR1-M Works with the following switchers:
Headbone VT - Amp Head Switcher
Relay Xo - Active Output Switcher
Studio-Q - Studio Talkback Controller
