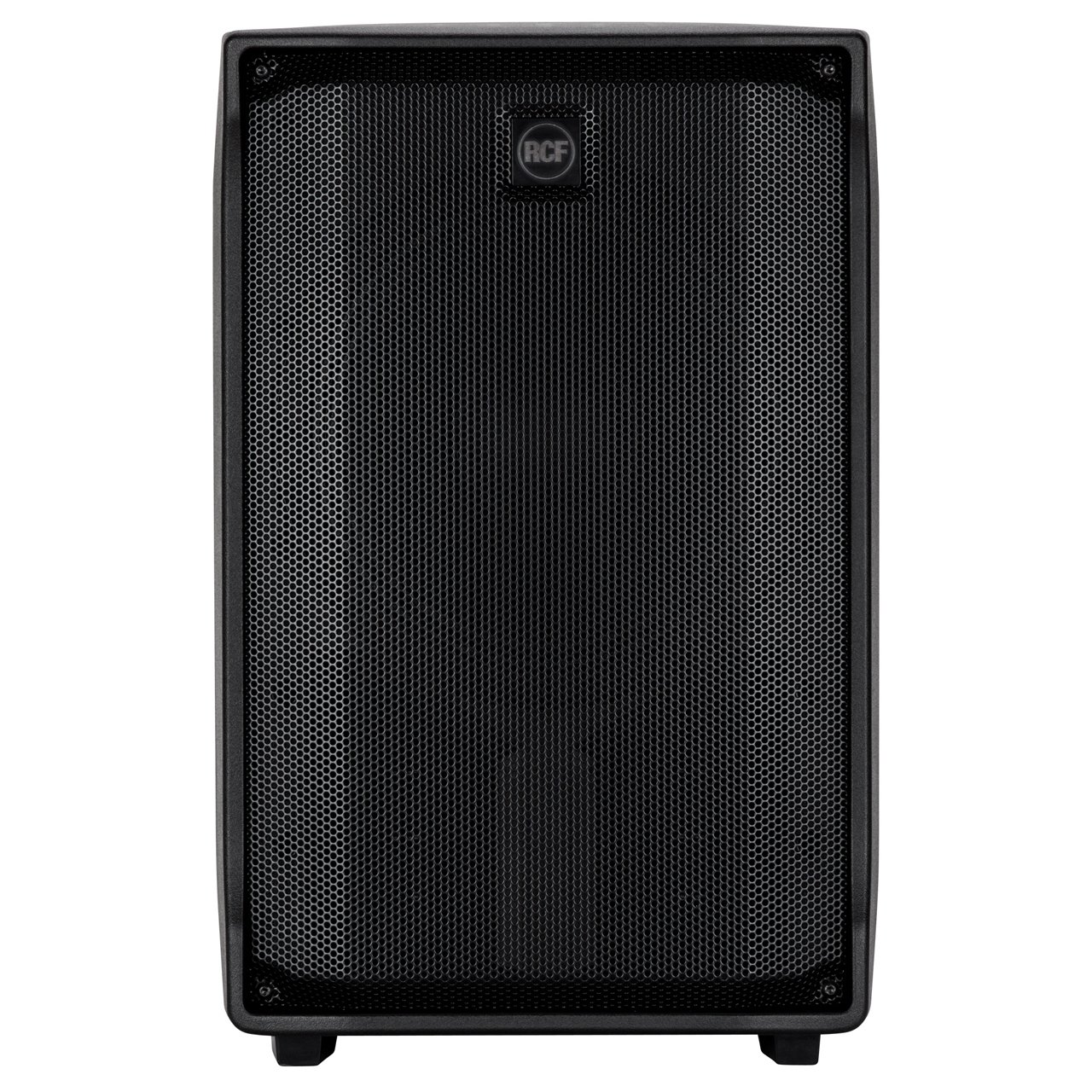

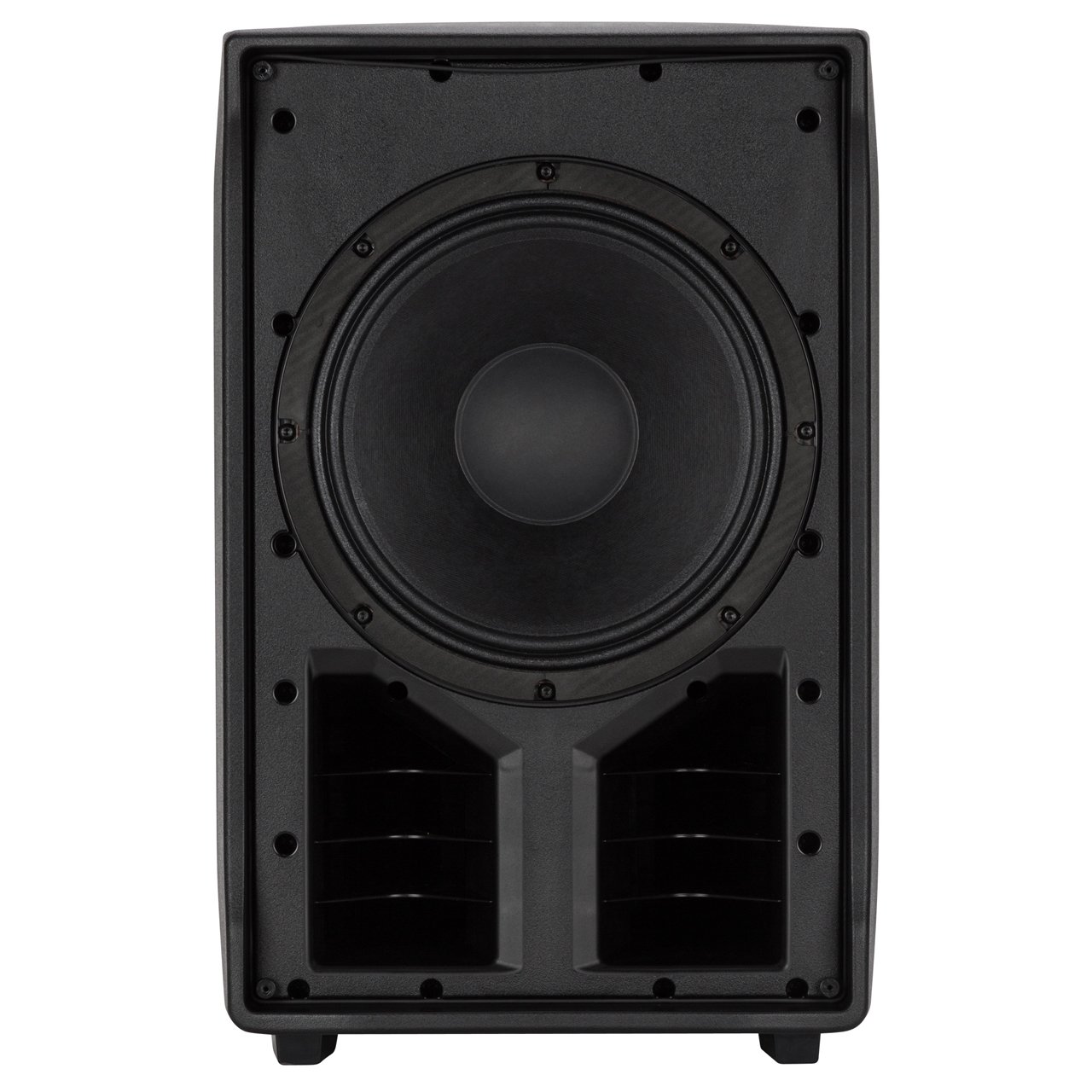

The RCF EVOX J8 is an active 12" 2-way 1400W portable line array PA system designed to deliver powerful sound projection for musicians, presenters, and DJs in clubs, parties, and live stage applications. Class-D amplification pumps 1400W peak (700W RMS) through a 12" high-excursion woofer and eight 2" full-range drivers, resulting in a frequency response of 40 Hz to 20 kHz. The system design produces a 120° horizontal by 30° vertical coverage pattern.

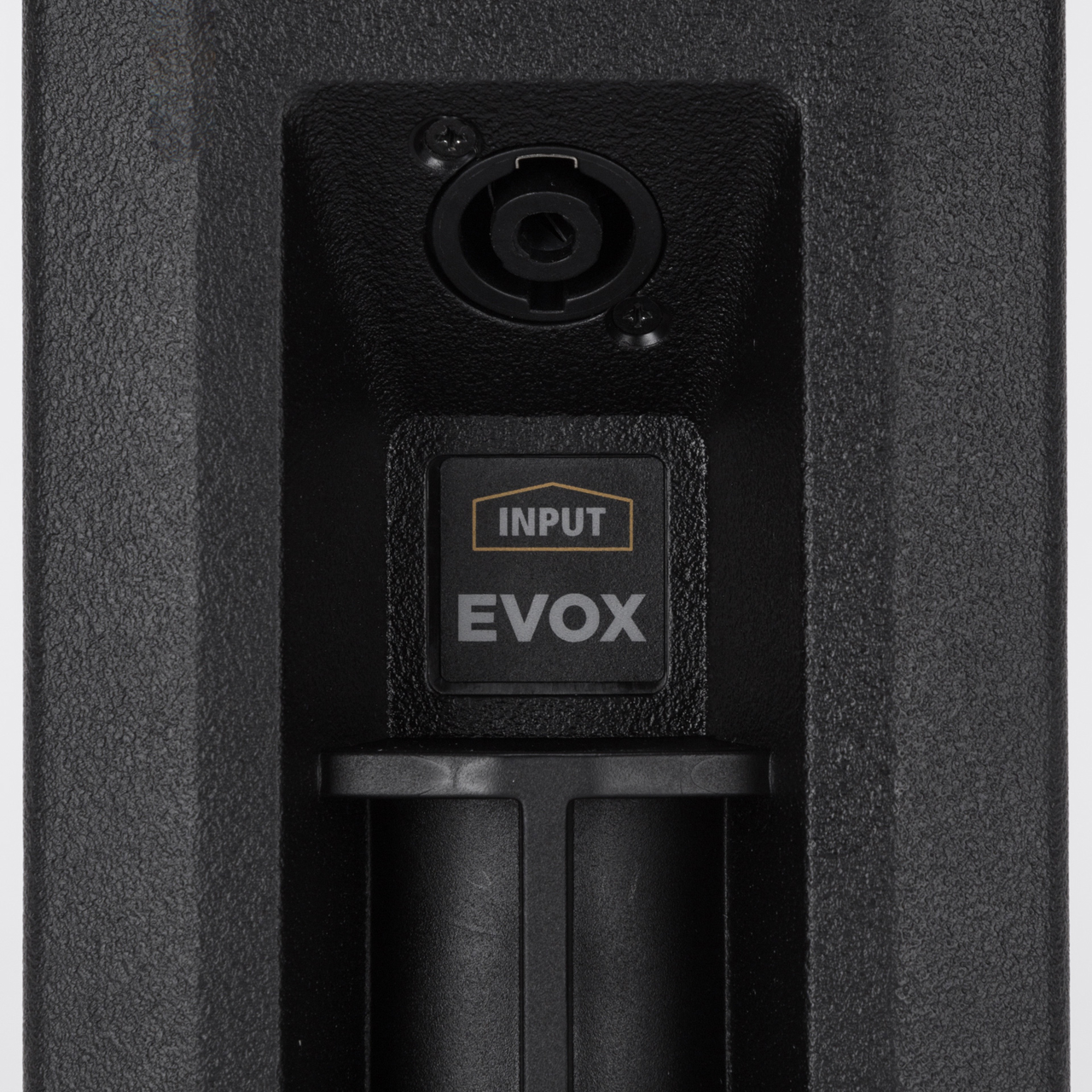

Connectivity includes XLR and 1/4" inputs and an XLR output. The subwoofer and satellite components interconnect via speakON. Switchable equalization presets and input sensitivity allow easy tonal optimization. Integrated DSP processing with FiRPHASE technology enhances clarity and transparency without inducing problematic latency.
The polypropylene composite cabinet minimizes weight and can be easily transported via the built-in carry handle. The adjustable pole mount offers simple height positioning of the satellite unit, which conveniently stores in the subwoofer enclosure. One speakON cable and a power cord are included with the EVOX J8.
Powerful Class D Amplifier
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure which not only stabilizes the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Ready to Play in a Few Simple Steps
PORTABILITY: In addition to the handle on top of the woofer's cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover's handles.

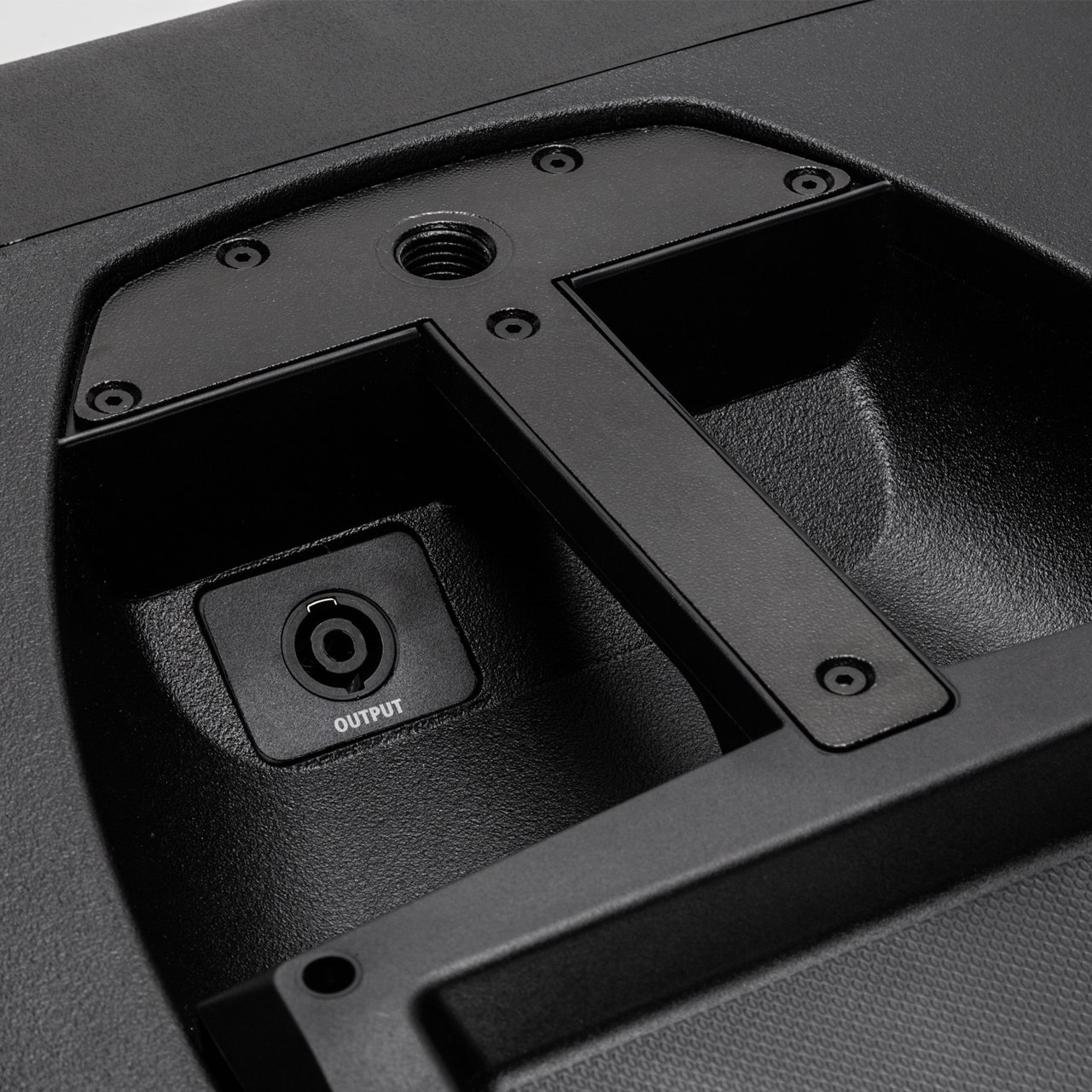

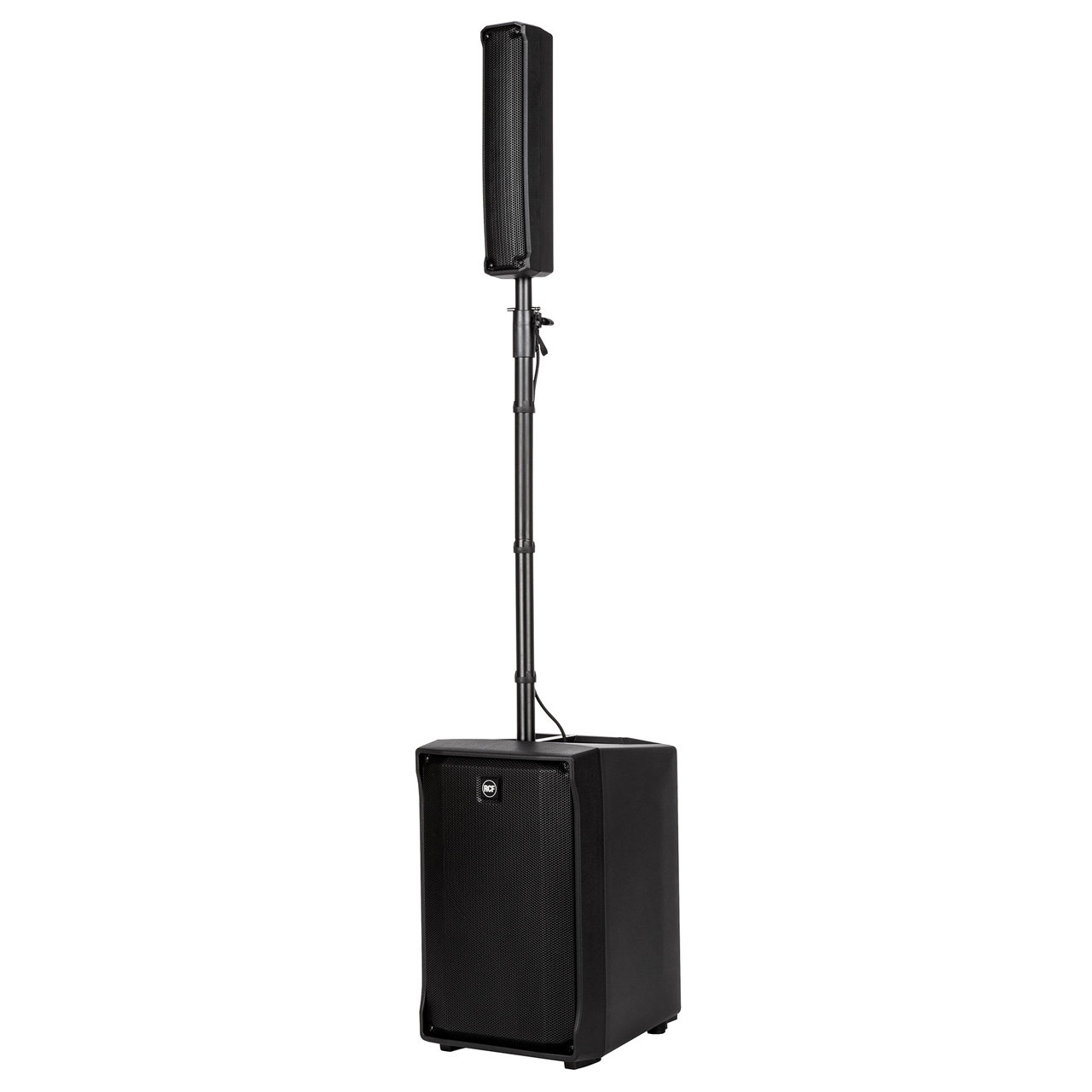

MOUNTING: Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it's done! An adjustable fastener allows the pole's length to be adapted.
