RDL AMS-TS1 Illuminated Touch-Activated Pushbutton with Integral Controller

ITEM #: RDL-AMS-TS1 MFG #: AMS-TS1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$229.14

Our Price:

$171.86

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AMS-TS1 - Overview

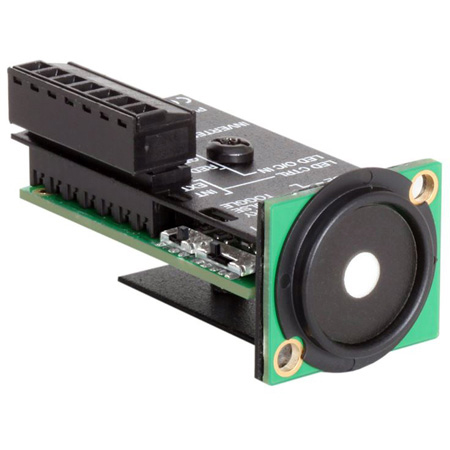

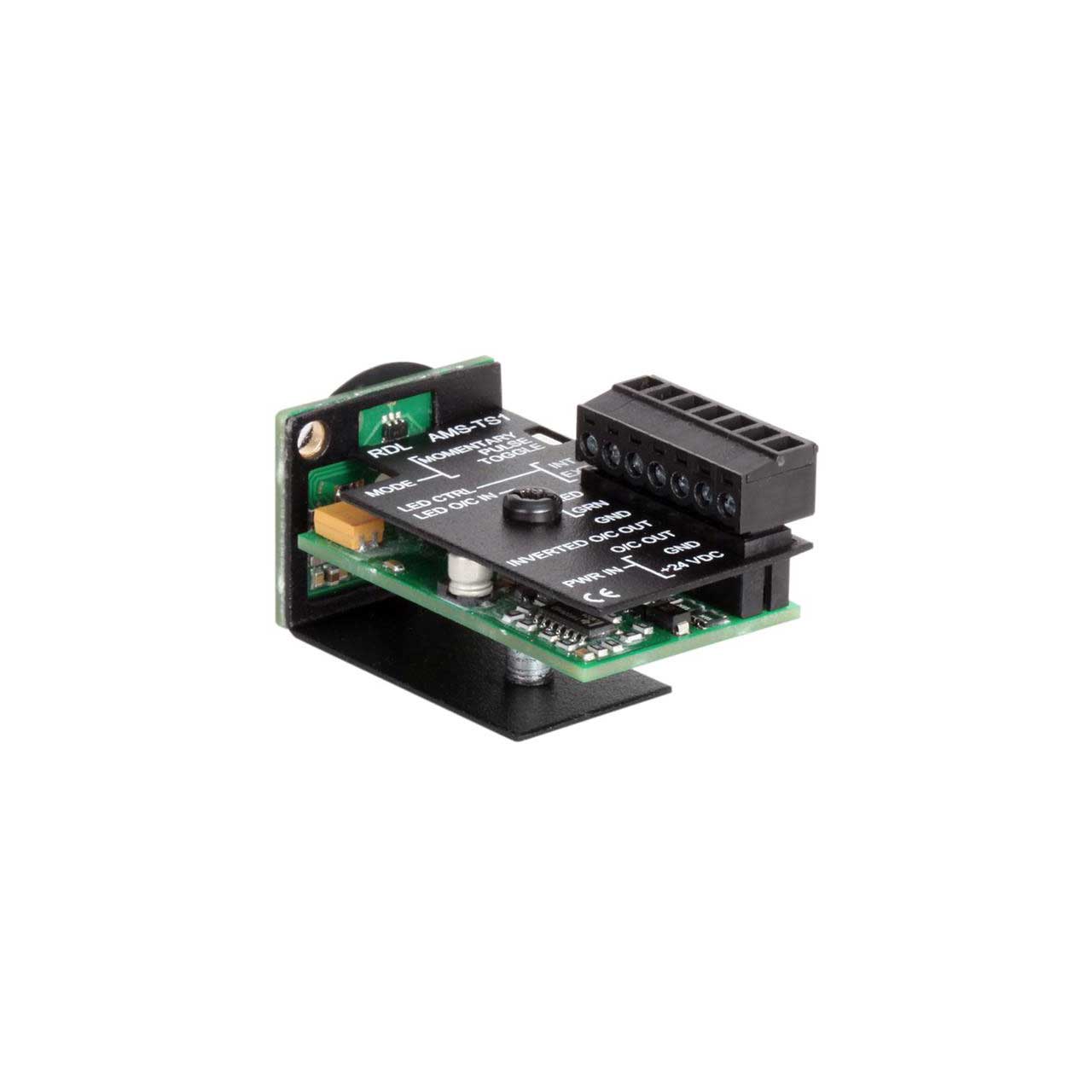

The AMS-TS1 is a touch activated electronic button with integral controller. It operates in one of three modes: Toggle (touch on, touch off), Momentary (active while touched, otherwise inactive), or Pulse (125 mS active pulse upon each touch). By default, the center of the button illuminates green when the output is active, red when the output is inactive.

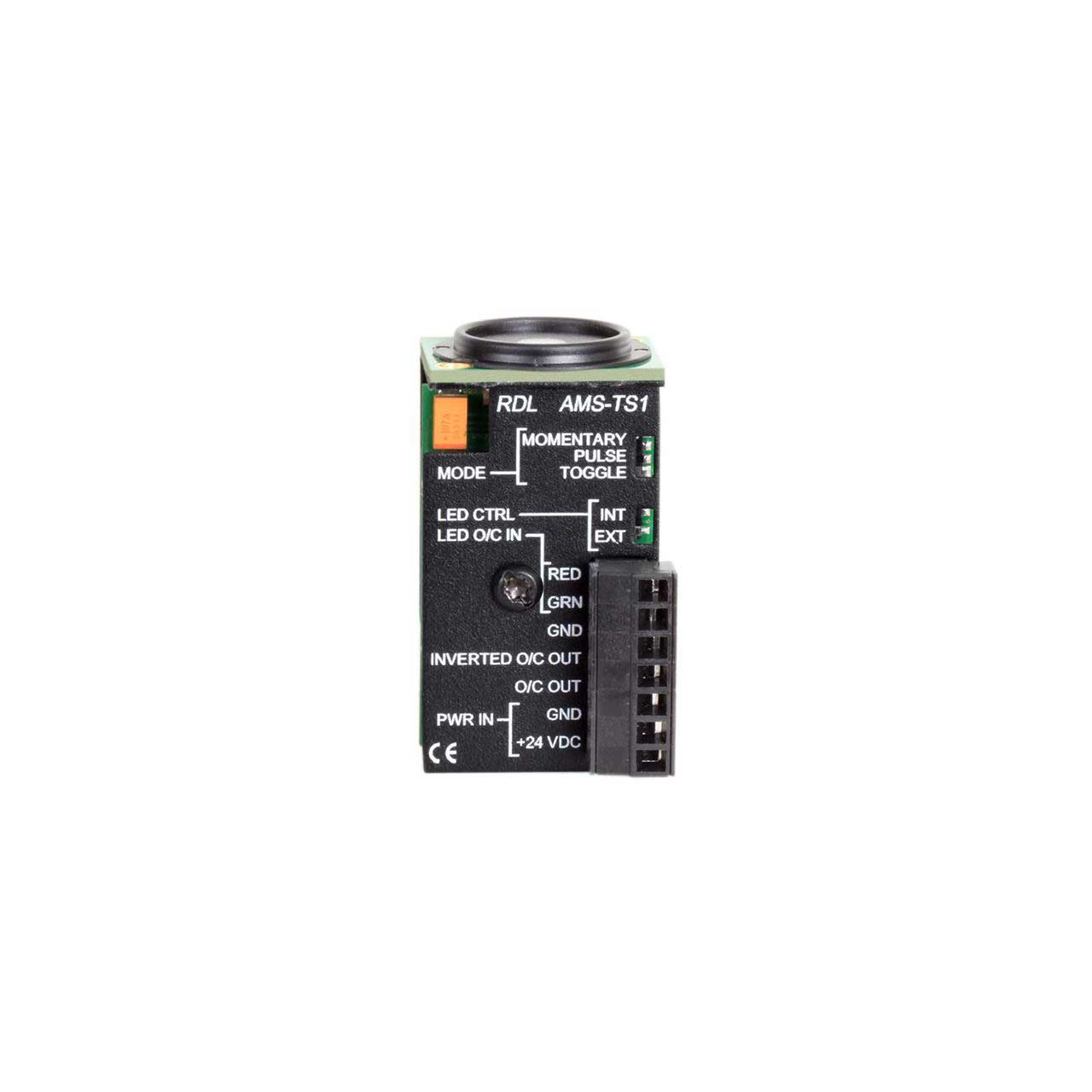

The button mode and internal/external indicator source are set by the installer. Two open collector outputs are provided. One is pulled to ground when the module output is active. The other is pulled to ground when the module output is inactive. The red and green indicators may be controlled by open collectors (or switches) on external RDL modules or other equipment.

The AMS-TS1 operates from ground-referenced 24 Vdc. The module is designed to mount behind the front panel of industry products that provide D-style cutouts.

  • Features:

    • Bicolor Illuminated Capacitive Touch Switch
    • Activated by Finger Contact of a User
    • Toggle, Momentary or Pulse Mode Operation
    • Integral Controller with Open Collector Outputs
    • Functions Without an External Controller
    • Indicator Color Controlled by Internal Circuitry or Remote Equipment
    • Green Indicator Illuminates when Output is Active
    • Red Indicator Illuminates when Output is Inactive
    • Mounts in D-Style Standard Cutouts
    • Mounts in all RDL AMS Mounting Frames

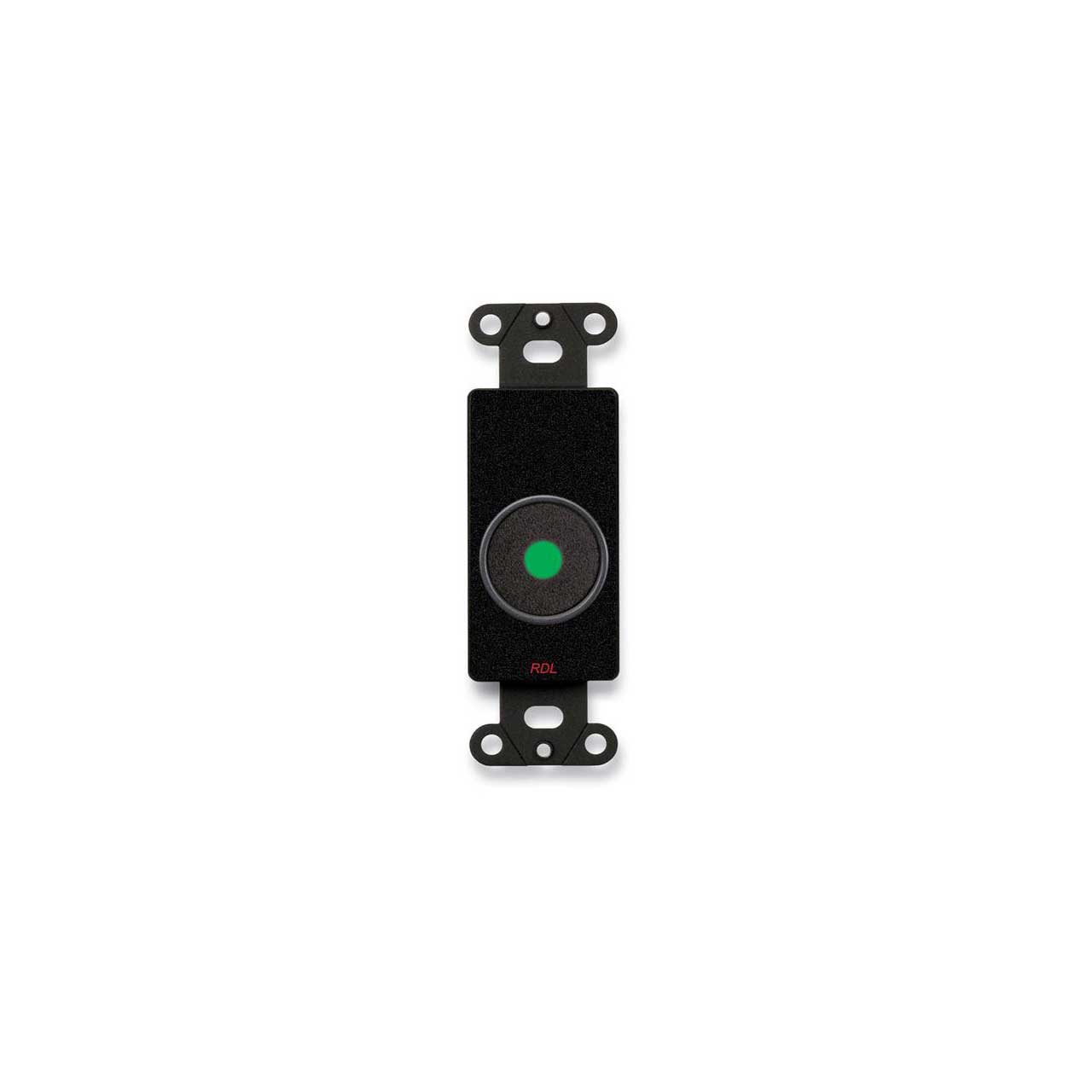

    • Mounts in RDL Decora-Style Wall Plates
    • Bezel Provides Professional Aesthetic Appearance

  • Specifications:

    • Control Output: SLAVE terminal open-collector @ 25 mA (2, normal and inverted)
    • Front-panel touch button modes: Toggle, Momentary or Pulse (switch-selectable)
    • Touch button illumination control: Internal or External (switch-selectable)
    • Touch button illumination colors (Internal control): Red (output inactive) or Green (output active)
    • Touch button illumination colors (External control): White (no selection), Red or Green
    • Touch button illumination external control: 1 mA pulled to ground; switching threshold voltage = 2.5 Vdc
    • Toggle mode output timing sequence: Button touch latches output active; Next button touch latches output inactive
    • Momentary mode output timing sequence: Output is active while button is continuously touched, then returns to inactive when button touch released
    • Pulse mode output timing sequence: Button touch sets output active for 125 mS (nominal) then output returns to inactive
    • Ambient Operating Environment: 0° C to 50° C
    • Power Requirement: Ground-referenced, 24 Vdc @ 30 mA
    • Mounting: AMS mounts; D-Style cutouts
    • Dimensions: Height: 1.23 in. 3.12 cm; Width: 1.24 in. 3.14 cm; Depth: 2.3 in. 5.84 cm
    • Package Type: Cardboard Box
    • Package Dimensions: 2 x 2 x 4 in.
    • Shipping Weight: 0.13 lbs.

  • GTIN:

    0813721019967
