DDB-BN2M - Overview

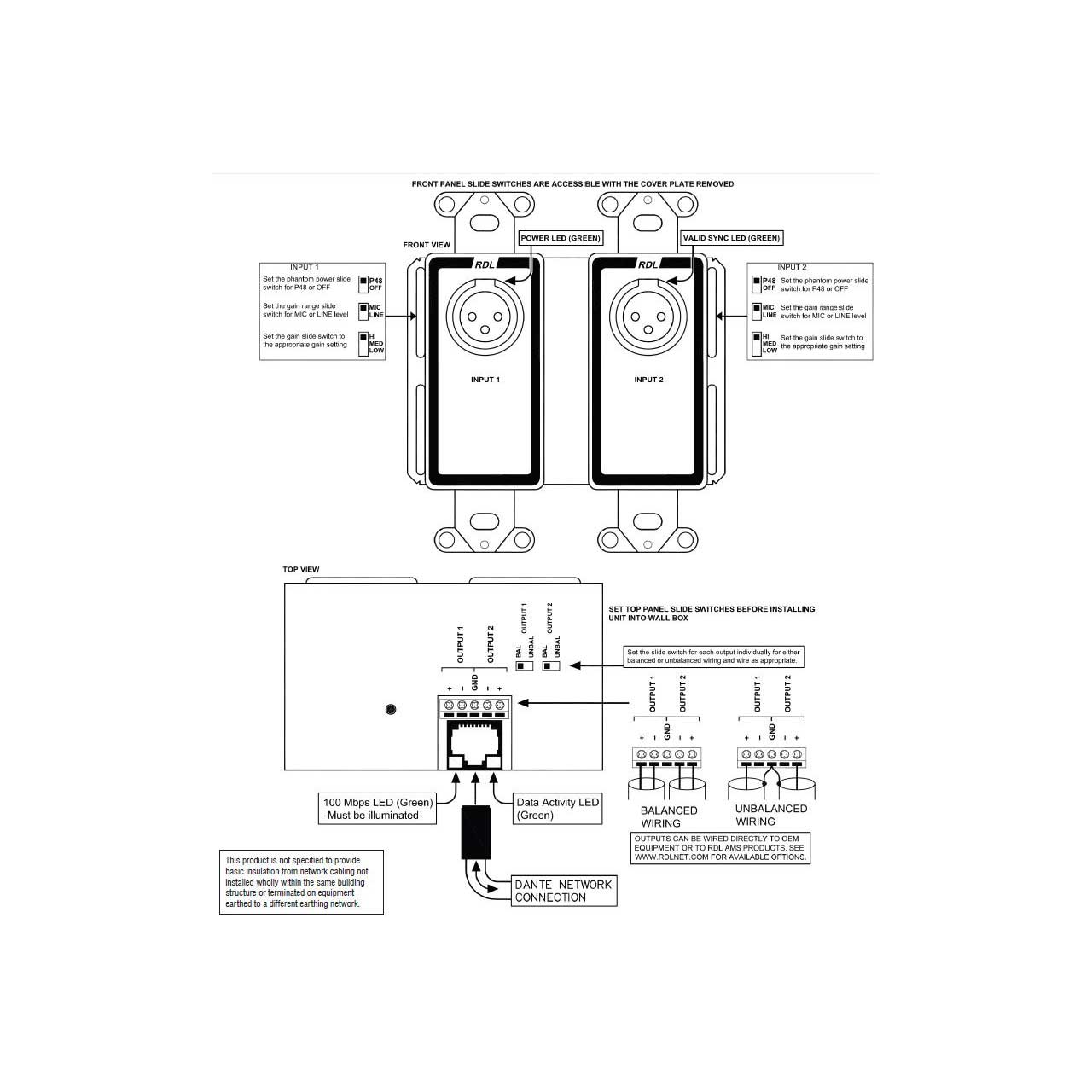

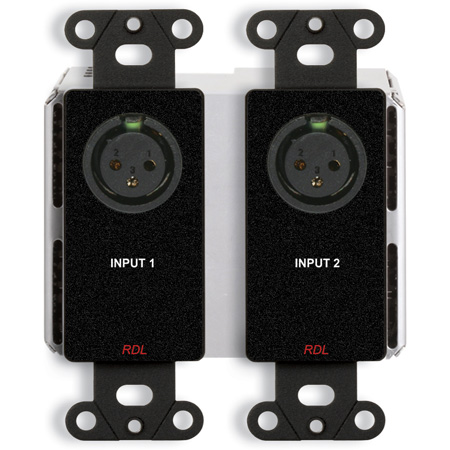

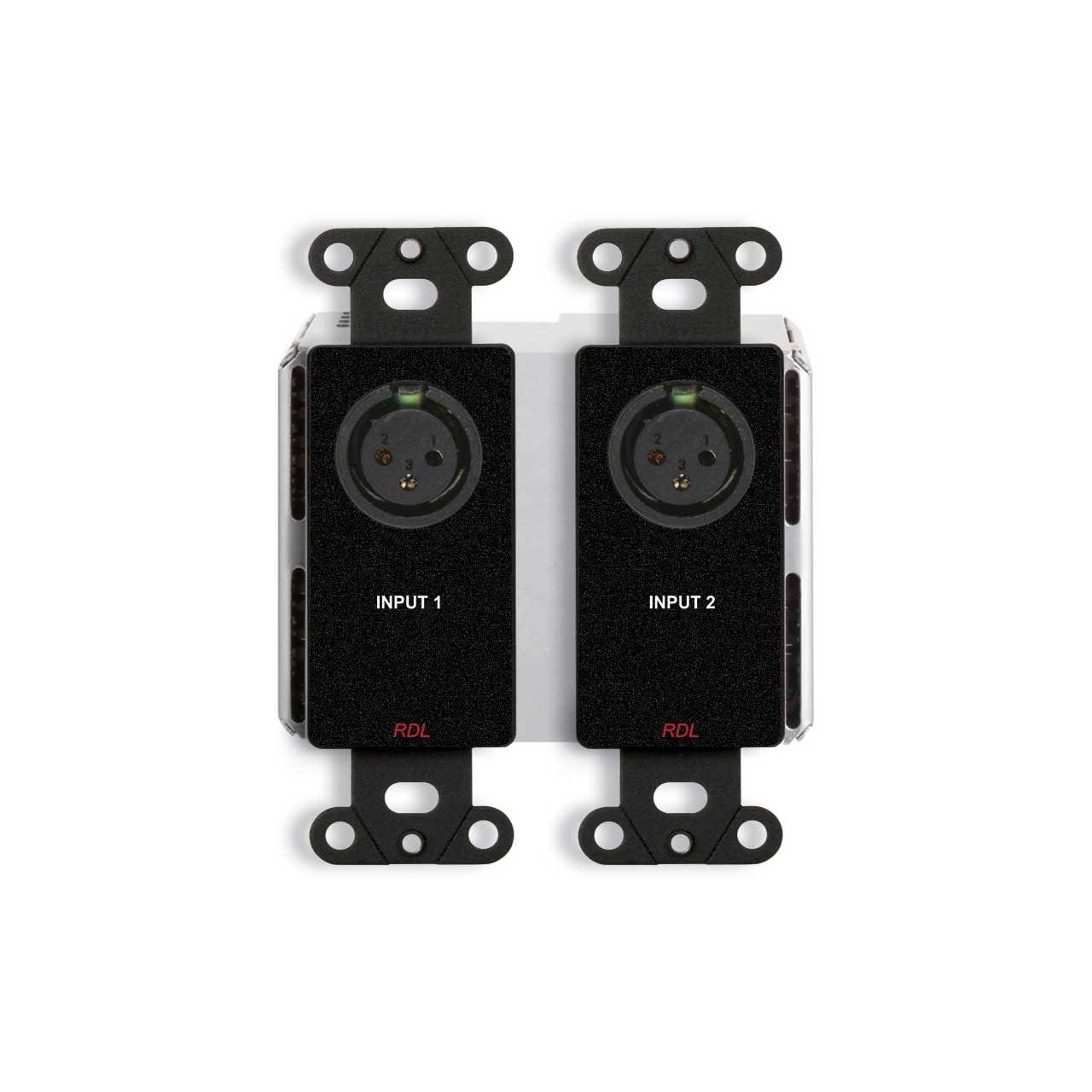

The DDB-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DDB-BN2M. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level.

The DDB-BN2M fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DDB-BN2M is PoE powered, and is available in multiple finishes with optional customized graphics.

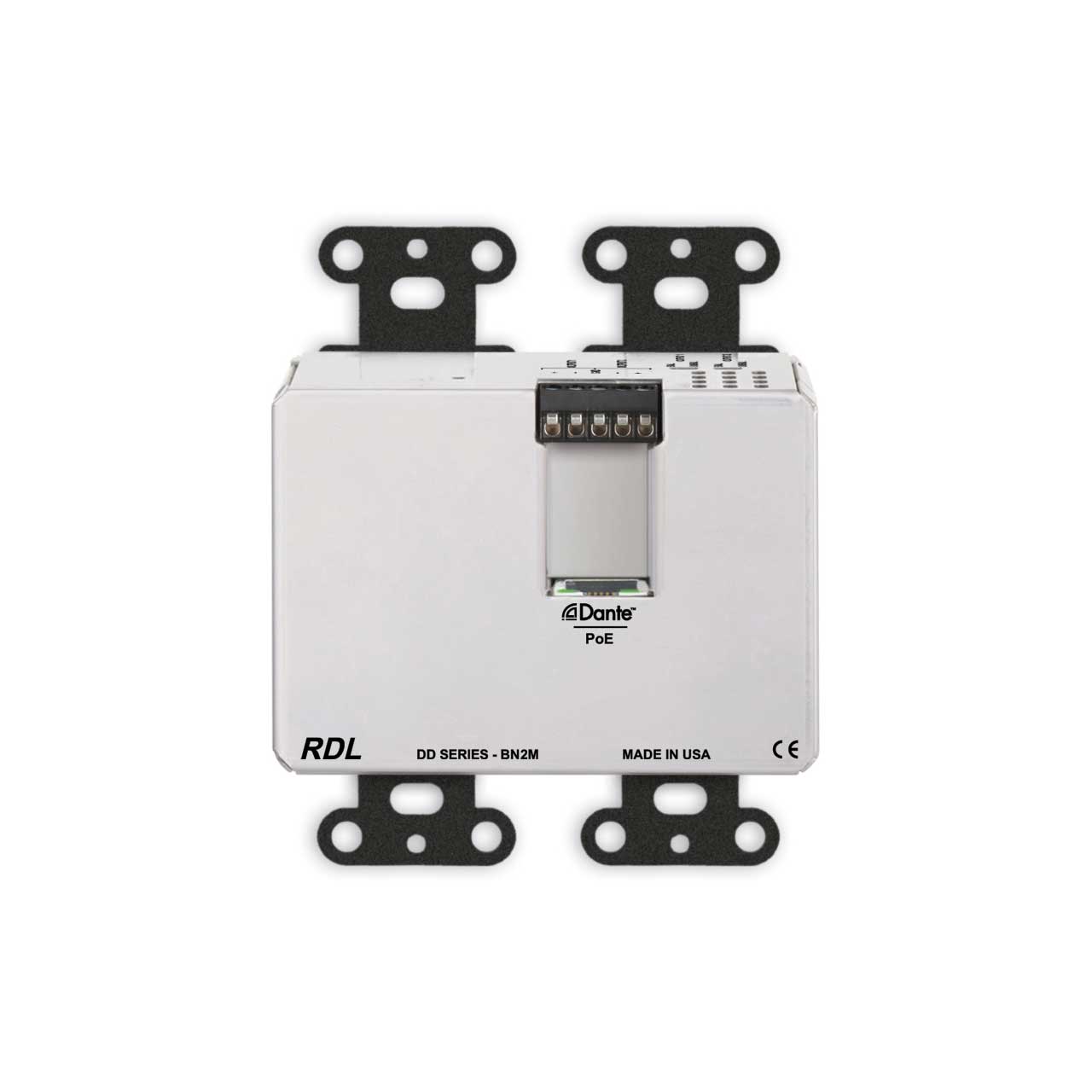

Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit.

The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DDB-BN2M. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DDB-BN2M in a triple gang box or may be mounted remotely in a single box.

The DDB-BN2M is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance,

  • Features:

    • Dante Network Interface for Two Audio Inputs and Two Audio Outputs
    • Inputs on Front-Panel XLR Jacks; Outputs on Rear-Panel Terminal Block
    • Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
    • Converts Two Dante Network Audio Signals to Line Level
    • Special Software Not Required for Module Setup
    • Studio Quality, Low-Noise Performance
    • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
    • Legendary RDL Analog Filtering Enhances Superb Audio Performance

  • Specifications:

    • Network Connector: RJ45 with Link and Speed indicators
    • Digital Audio Ethernet Protocol: Dante
    • Transmission Rate: 100 Mbps
    • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
    • Bit Depth Supported: 24 bits
    • Audio Operating Level: -20 dBFS = +4 dBu
    • Reference Level: 0 dBFS = +24 dBu

      Mic/Line Inputs to Network Interface
    • Inputs (2): XLR (female)
    • Gain: Mic: 40 dB (LO), 48 dB (MED), 62 dB (HI) / Line: Unity (LO), 8 dB (MED), 19 dB (HI)
    • Input Level (for +4 dBu/-20 dBFS): Mic: -36 dBu (LO), -44 dBu (MED), -58 dBu (HI) / Line: +4 dBu (LO), -8 dBu (MED), -15 dBu (HI)
    • Input Level (maximum): Mic: -16 dBu (LO), -24 dBu (MED), -38 dBu (HI) / Line: +24 dBu (LO), +12 dBu (MED), +5 dBu (HI)
    • Input Impedance: > 2.5 kΩ (MIC); > 5 kΩ (LINE)
    • Phantom Power: P48, 48 Vdc, switch-selectable
    • Standard for Phantom: IEC 61938: 2013
    • Selectors per input (3): Phantom, Mic/Line, Gain
    • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
    • Equivalent Input Noise: -130 dBu (62 dB gain); -132 dBu A-Weighted
    • Noise below -20 dBFS (20 to 20 kHz): Mic: < -72 dB (LO), < -72 dB (MED), < -68 dB (HI);  / Line: < -72 dB (LO), < -72 dB (MED), < -70 dB (HI)
    • THD+N: < 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.015% at 1 kHz (typ)
    • CMRR: > 65 dB (50 Hz to 120 Hz)
    • Crosstalk: Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain)

      Network to Line Outputs
    • Outputs (2): Balanced, detachable terminal block
    • Output Level (operating): +4 dBu (nominal) balanced; -10 dBV (nominal) unbalanced, switch-selectable
    • Output Level (maximum): +24 dBu balanced; +10 dBV unbalanced
    • Output Impedance: 150 Ω balanced; 2.5 kΩ unbalanced
    • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
    • THD+N: < 0.1%~THD: < 0.01% (1 kHz)
    • Noise: < -80 dB (below +4 dBu or -10 dBV); < -100 (below +24 dBu)
    • Crosstalk: Below Noise Floor (20 Hz to 20 kHz at operating level, output to output)
    • Headroom above +4 dBu or -10 dBV: 20 dB
    • Indicators (4): Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)

      General
    • Ambient Operating Environment: 0° C to 40° C; 30° C maximum recommended
    • Power Requirement: PoE Class 0, IEEE 802.3af
    • Specification Conditions: Gain/Level: ± 1 dB; Source termination: 150 Ω; A to D values measured in digital domain
    • Dimensions: 3.52" (8.94 cm) W; 4.11" (10.44 cm) H; 2.09" (5.31 cm) D
    • Package Type: Cardboard Box
    • Package Dimensions: 3.625 x 4.625 x 2.125 in.
    • Shipping Weight: 1.03 lbs.
    • WEEE weight: 0.875 lbs.
    • Tariff code: 8517.18.0050

  • GTIN:

    0813721016812
