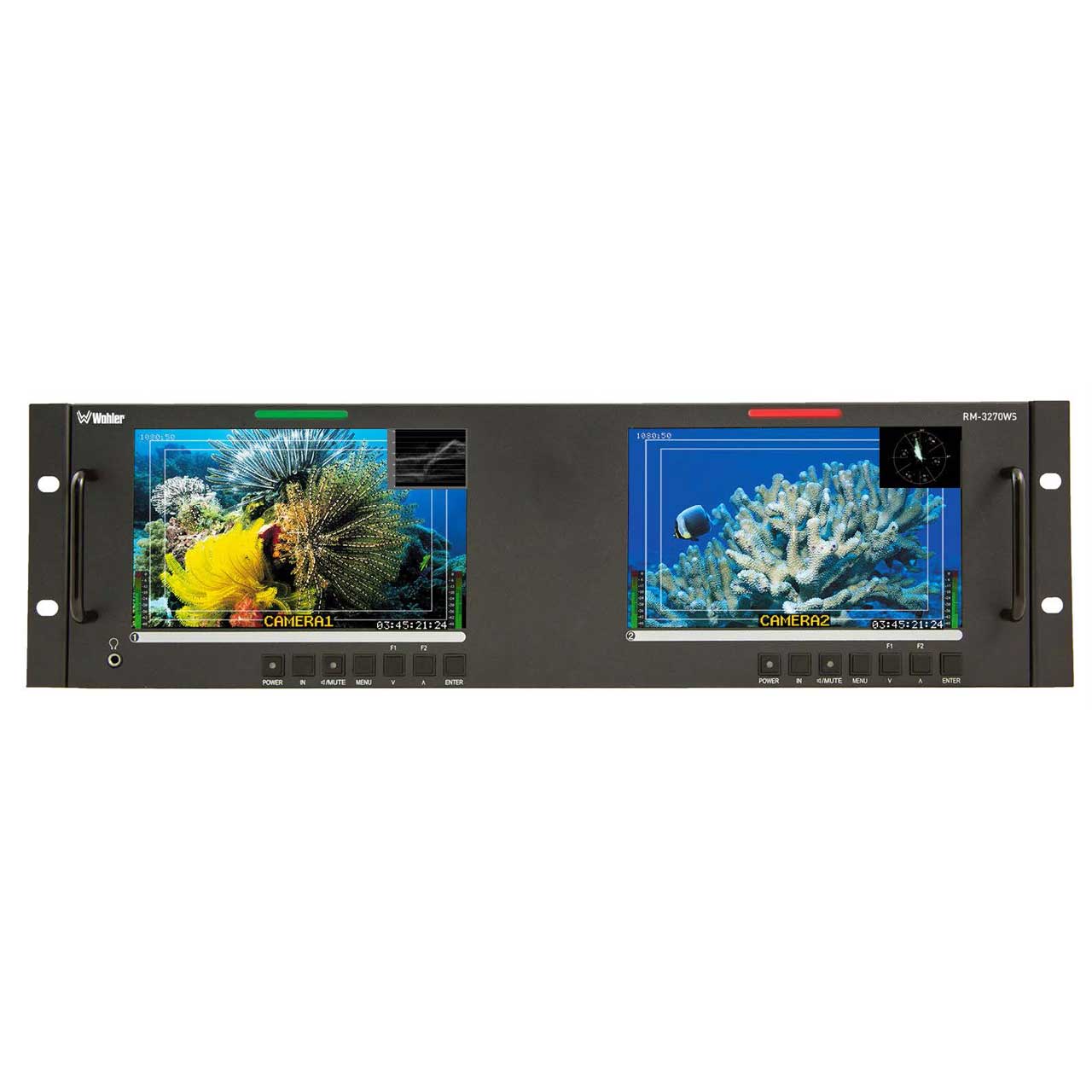

Wohler RM-3270WS-3G 3RU Dual 7-Inch Widescreen LCD Rackmount Video Monitor 3G-SDI with Embedded Audio

RM-3270WS-3G - Overview

• Specifications:

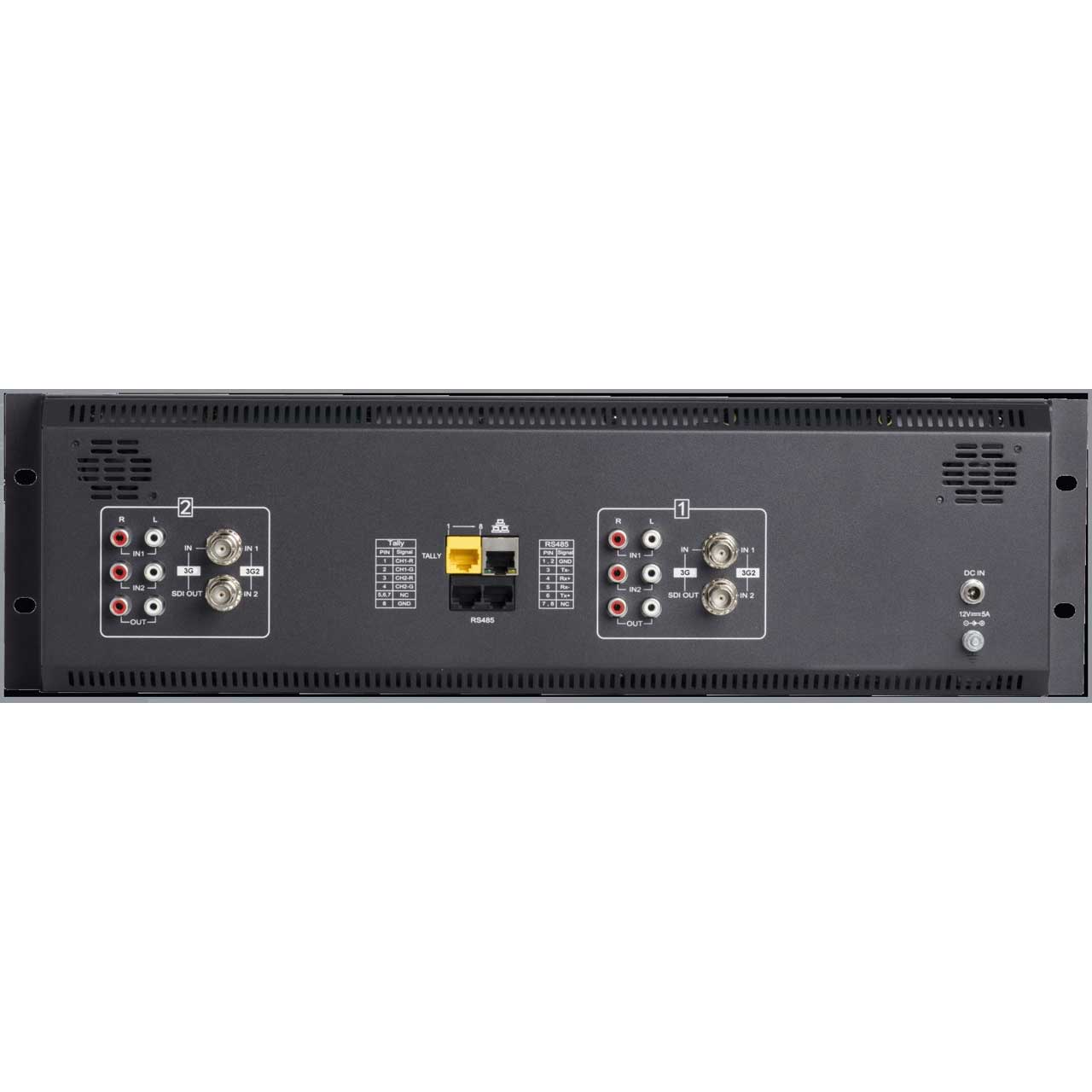

  • 3G/HD/SD-SDI Input: 2
  • 3G/HD/SD-SDI Output: 4 Reclocked on BNC
  • Analog Output: 2 on RCA
  • Data Ports: 2 RS-485 on RJ-45 for system software upgrades and dynamic IMD controls; 1 DB-9 for tally control; 1 Ethernet connector for software updates
  • Meter Dynamics: VU or PPM or both
  • Meter Scale: VU or PPM or both
  • Color Depth: 16.7M, 24-Bit
  • Contrast: 700:01:00
  • Diagonal Display Size: 7 Inch
  • Display Modes: LCD
  • Display Resolution (HxV): 1024 x 600
  • Display Type: LCD
  • Luminance: 350 cd/m^2
  • Native Aspect: 16:09
  • Number of screens: 2
  • Pixel Response: <25 ms
  • Viewing Angle: 135 (H) x 110 (V)
  • Level Meters: On-Screen for up to 16 Channels
  • Audio Channels (max): 16
  • Video Waveform: Yes
  • Tally Controls: Tally input connector (1x DB-9) and lights 2x.
  • UMD: 2 ea. RS485 (In & Out) for UMD, OSD, Tally
  • Front Panel Controls: Power; SDI-1/SDI-2 Selection; Mute; OSD Menu Controls; F1/Menu Up; F2/Menu-Down; Menu Selection Acceptance
  • Rack Height: 3RU
  • Dimension Width: 19.0"
  • Dimension Height: 5.25"
  • Dimension Depth: 3.0"
  • Speakers: Yes
  • Net Weight: 6.0 lbs
  • Shipping Weight: 9.0 lbs
  • Power Consumption: 10 Watts (3.8 Amps Max)
  • Power Supply: External 12VDC/3.8A, CE & UL approved.
  • Additional Options: Rack Mounted Mechanical Design with Vertical Tilt
