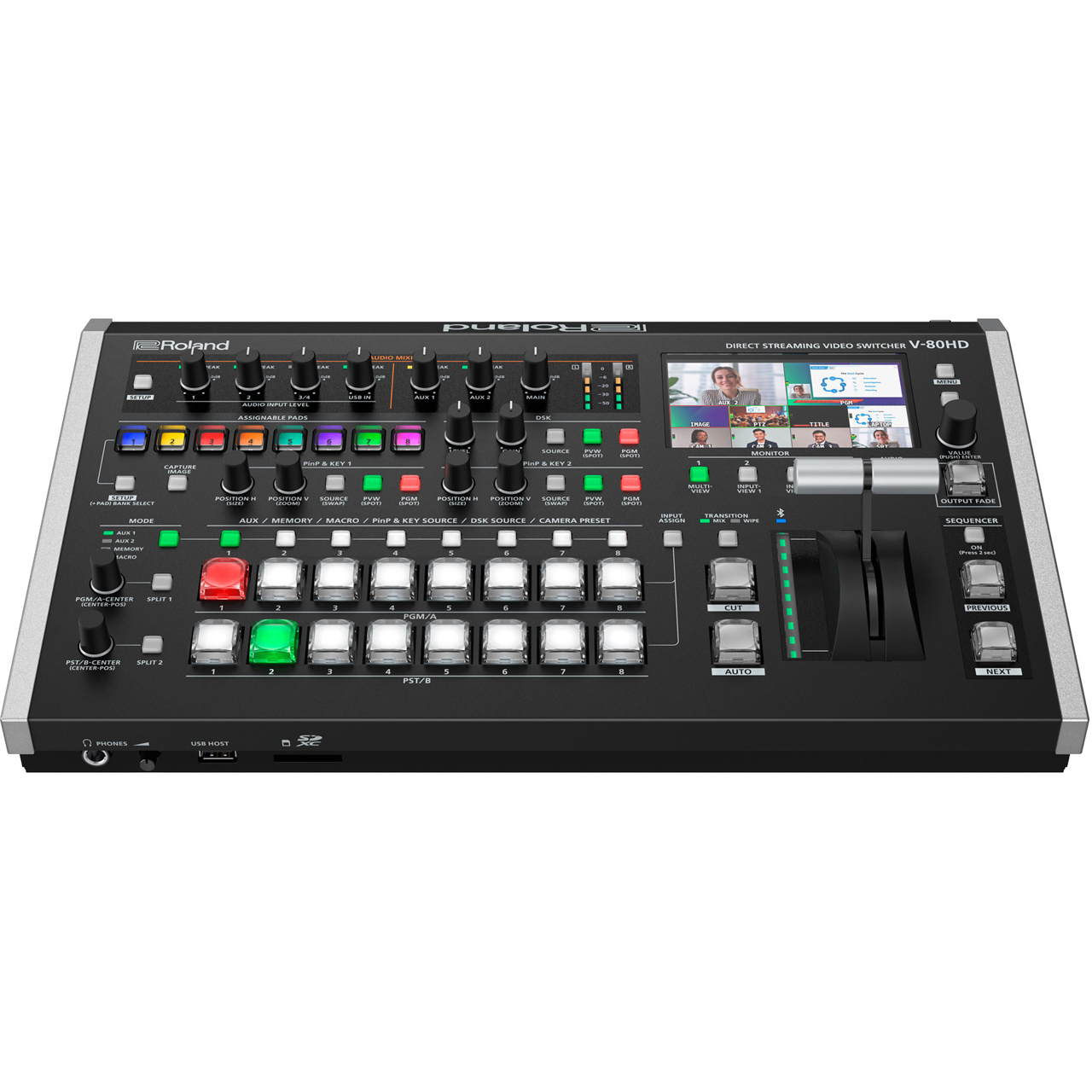

Roland V-80HD 8 Channel Direct Streaming Video Switcher with 3G SDI/HDMI/USB 3.0 and LAN

V-80HD - Overview

Professional Switching for Live Events, Web Streaming, and Studio Production

• Features:

  • Professional eight-channel switcher with a compact footprint and comprehensive features
  • Supports a variety of applications, including in-person events, conferences, web streaming, houses of worship, and studio production setups
  • Four 3G SDI inputs with frame rate converters
  • Four 1080p HDMI inputs, including two 4K inputs with HD downscalers and through outputs
  • Seven total outputs include SDI, HDMI, USB-C streaming, and LAN (RTMP/SRT)
  • Two 3G SDI and three HDMI outputs plus 10 assignable buses
  • 28-channel digital audio mixer and three output buses with effects and processing
  • Five-layer video effects engine, including two PinP windows with key composition and DSK
  • Easily create stunning titles and motion graphics with the companion Graphics Presenter software for Windows
  • 32-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
  • Powerful live production automation with sequencing, macros, and scene memories
  • Integrated PTZ camera control with simultaneous support for multiple brands and mixed protocols
  • Eight assignable pads for controlling up to 64 discreet functions
  • Extensive device control with Bluetooth, USB, RS-232, and LAN
  • Wireless and wired camera tally support
  • Remote control software available for iPad, macOS, and Windows


• Specifications:

  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
  • Number of Video Channels: 8 channels
  • Sample Rate: 24 bits, 48 kHz
  • Number of Audio Channels: 28 channels
  • Audio Player File format: WAV
  • Audio Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
  • Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
  • Other: Output fade, Test tone output

    Input Level
  • AUDIO IN 1, 2: -64 - +4 dBu (Maximum: +24 dBu)
  • AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)

    Input Impedance
  • AUDIO IN 1, 2: 8.4 kΩ
  • AUDIO IN 3/L, 4/R: 10 kΩ

    Output Level
  • AUDIO OUT 1, 2: +4 dBu (Maximum: +24 dBu)
  • PHONES: 92 mW + 92 mW (32Ω)

    Output Impedance
  • AUDIO OUT 1, 2: 600Ω
  • PHONES: 33Ω


  • Bluetooth: Ver 5.0
  • Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
  • Codec: SBC (Support to the content protection of the SCMS-T method)
  • Display: 4.3 inches TFT Color LCD: 480 x 272 dots
  • Power Supply: AC adaptor
  • Current Draw: 2.1 A
  • Power Consumption: 51 W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Dimensions: 15.625" x 10" x 4.0625" (396mm x 254mm x 103mm)
  • Weight (excluding AC adaptor): 7.75lbs (3.5kg)


• Item Includes:

  • 1x Startup Guide
  • 1x "USING THE UNIT SAFELY" Pamphlet
  • 1x AC adaptor
  • 1x Power cord


• Warranty:

  • Limited 3-Year


• GTIN:

  0761294520772
