One card for all your display conversion needs - A low-latency UHD SDI to HDMI converter card for openGear

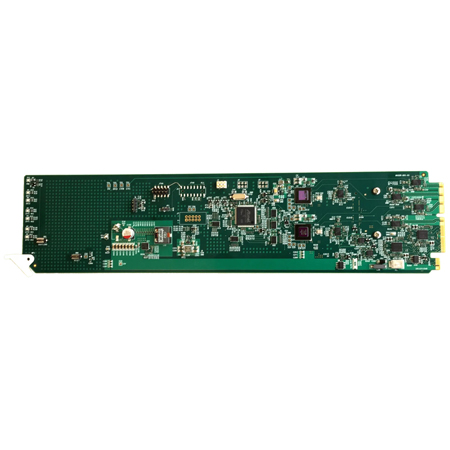

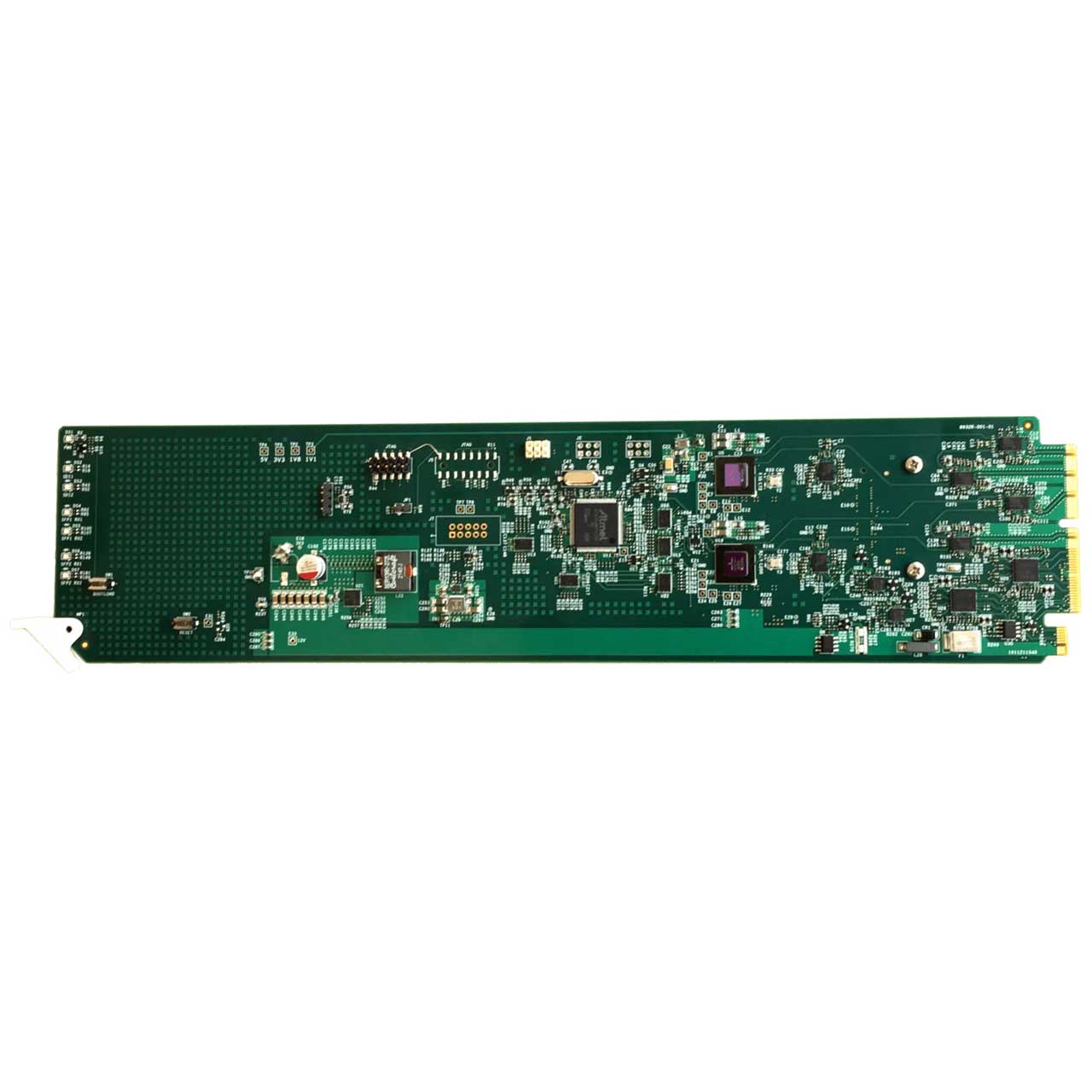

Ross SHC-8932-F is a robust, low-latency UHD SDI to HDMI converter card for openGear. It supports HD / 3G / 6G / 12G-SDI copper and fiber inputs with HDMI 2.0b outputs, complete with HDR10 metadata authoring and full framerate UHD resolution. The card includes other value-add features including redundant optics and audio shuffling, with full setup and monitoring through DashBoard.
SHC-8932-F is an ideal choice for driving studio displays and LED monitor walls, offering the flexibility of both copper and fiber interfaces. As an openGear solution, it is a high-density and robust addition to your infrastructure. It's also available and shipping now.

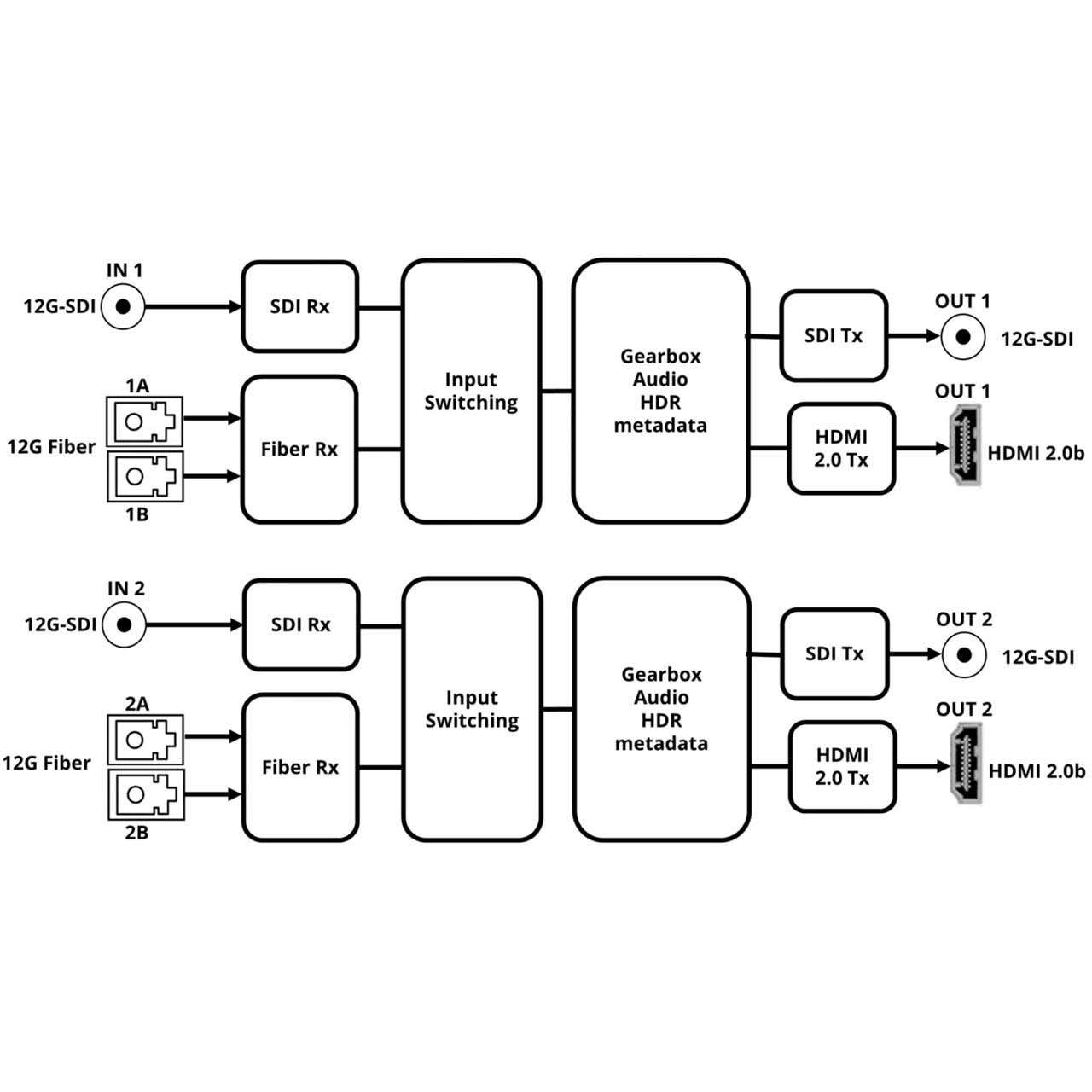

Easily convert from SDI to HDMI in your most demanding studio or display environments. A single card supports HD / 3G / 6G / 12G-SDI conversion from either traditional copper coax or fiber inputs. The output supports HDMI 2.0b with full support for full framerate UHD and can power most active long-reach HDMI cables. HDR is masterfully handled with seamless translation from ST352 metadata or manual override.
Reliable And Robust Opengear Platform

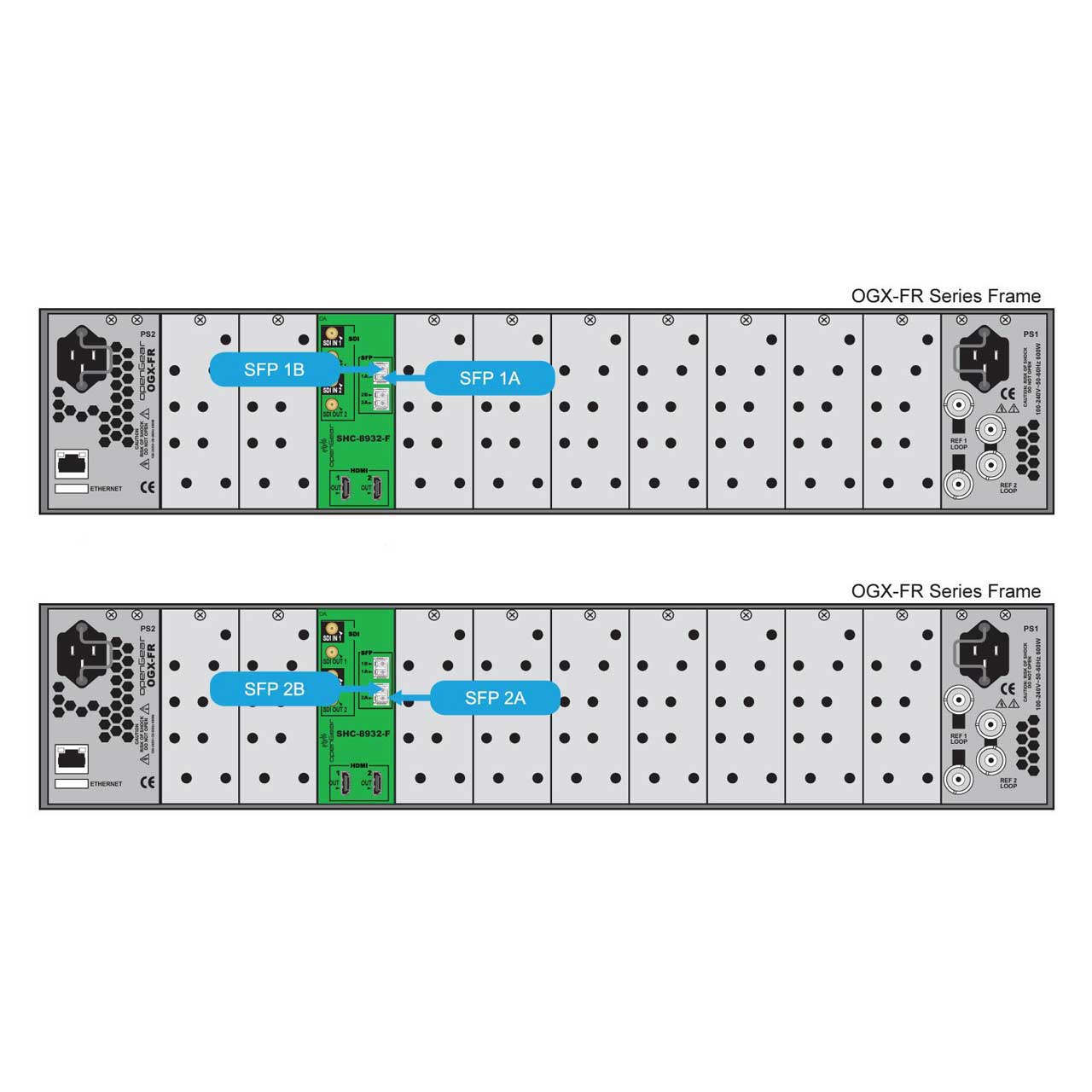

Built on the rock-solid openGear platform, SHC-8932-F offers reliability you can trust, plus added features like solid HDMI cable retainers ensure your platform is solid. It includes copper and redundant fiber inputs to protect against upstream link loss. This is one card to ensure your display won't go down.
A High-Density, Centralized Solution

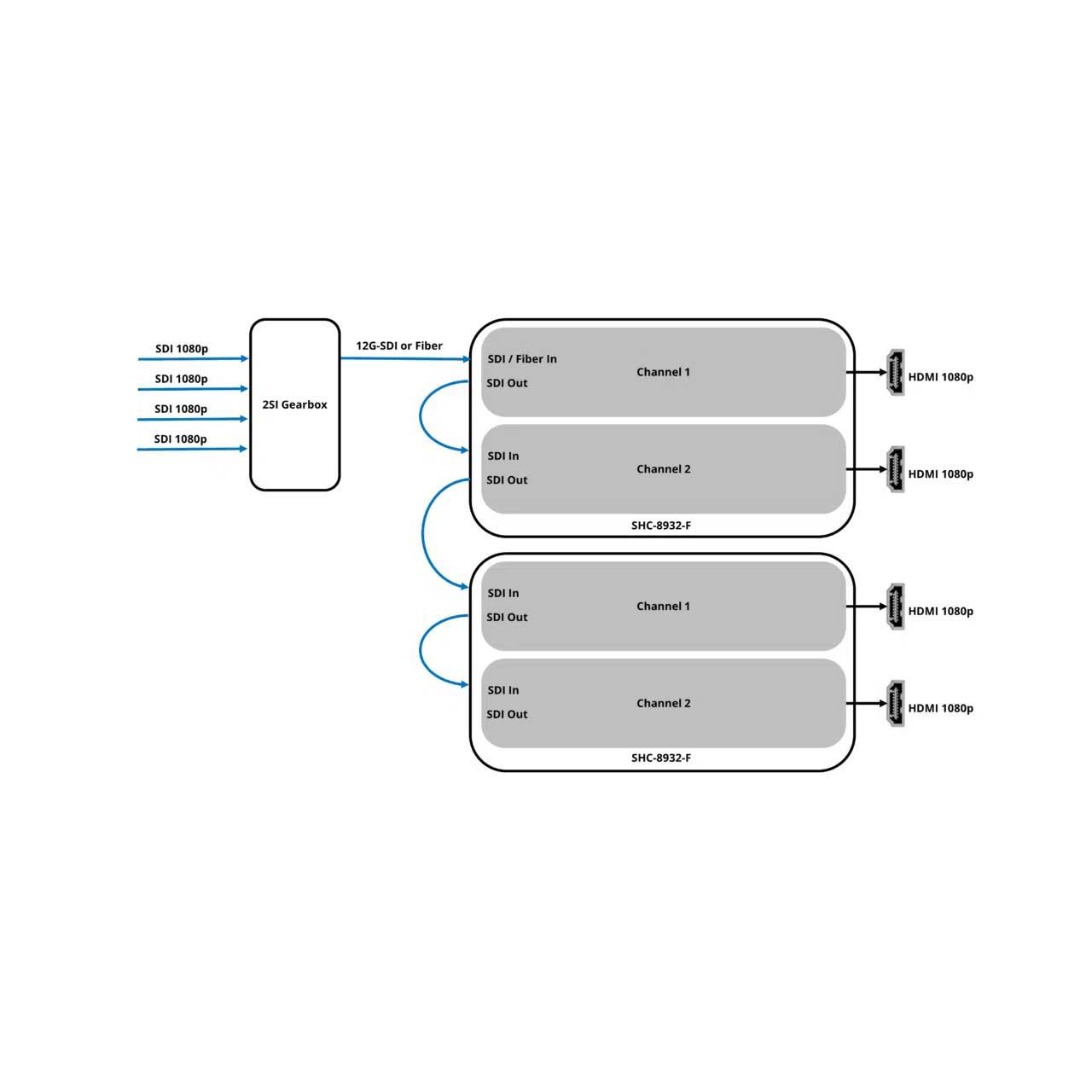

Installations with many displays can become a handful to configure, monitor and troubleshoot. SHC-8932-F is a high-density solution, supporting up to 20 displays in a single openGear frame. Configuration and monitoring is achieved through a centralized DashBoard control interface. Keep a handle on your display conversion without running around to separate boxes.
