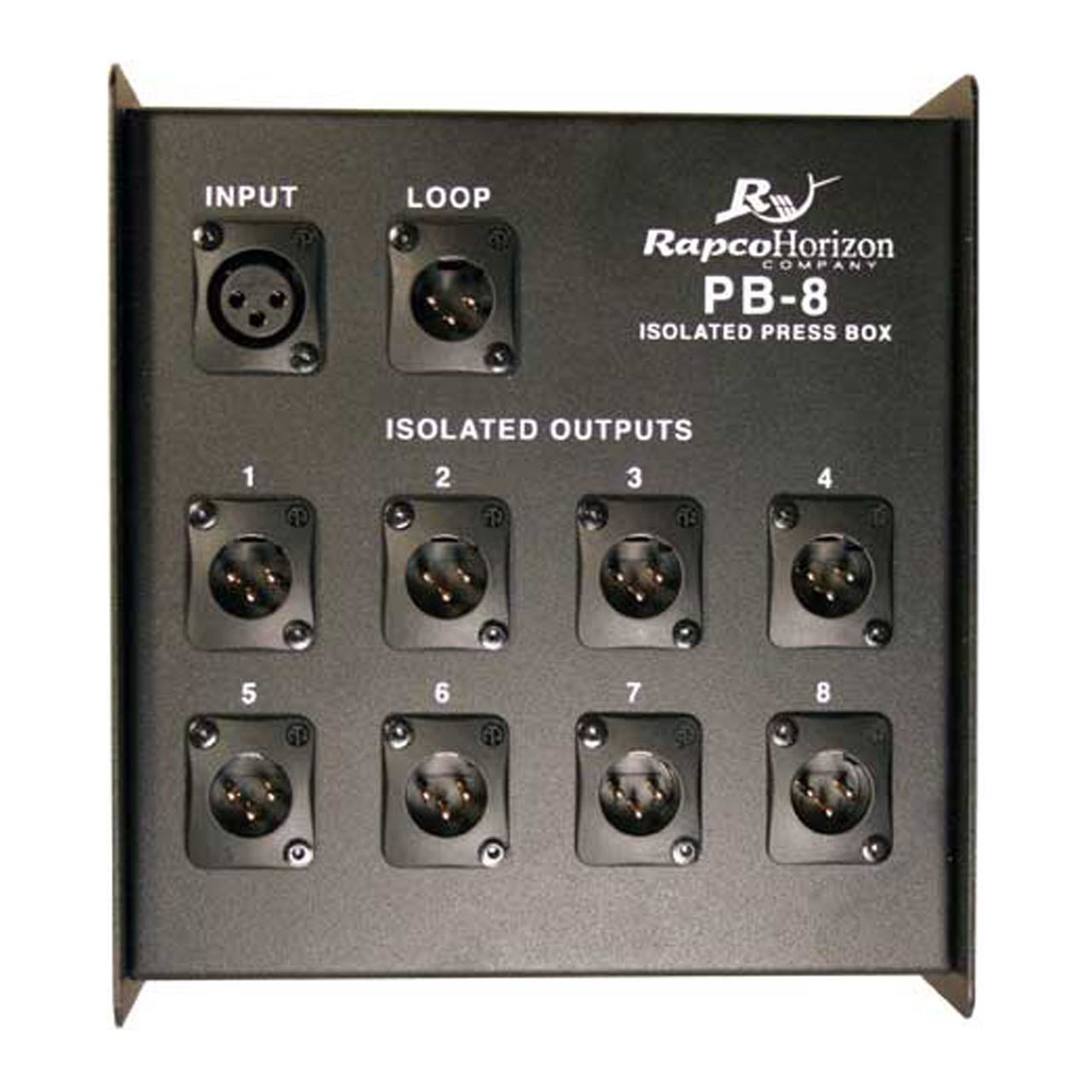

Rapco Horizon PB-8 Press Box

PB-8 - Overview

• Features:

  • The PB-8 press box is perfect for press conferences or any situation requiring a single mic signal to be "split" multiple times
  • Its features include a rugged steel box, a single XLR female mic level source input, a "loop" output (to go to a mixing console to interface with an external phantom power supply, or to "daisy chain" this unit to a second PB-8 for additional isolated outputs), and eight discrete isolated XLR male outputs
  • Due to the D.C. blocking characteristics of a transformer, the isolated outputs will not pass phantom power
  • The connectors are recessed to resist damage
  • Superior quality connectors
  • Individually tested for performance and quality


• Specifications:

  • Approximate size: 6 7/8"(w) x 7 5/8"(h) x 3"(d)
  • The following is a list of connectors on this item:
  • (1) XLRF Female panel mount
  • (9) XLRM Male panel mount
  • (8) HSIT Transformer


• Warranty:

  • Limited Lifetime Warranty


• GTIN:

  0799384241504
