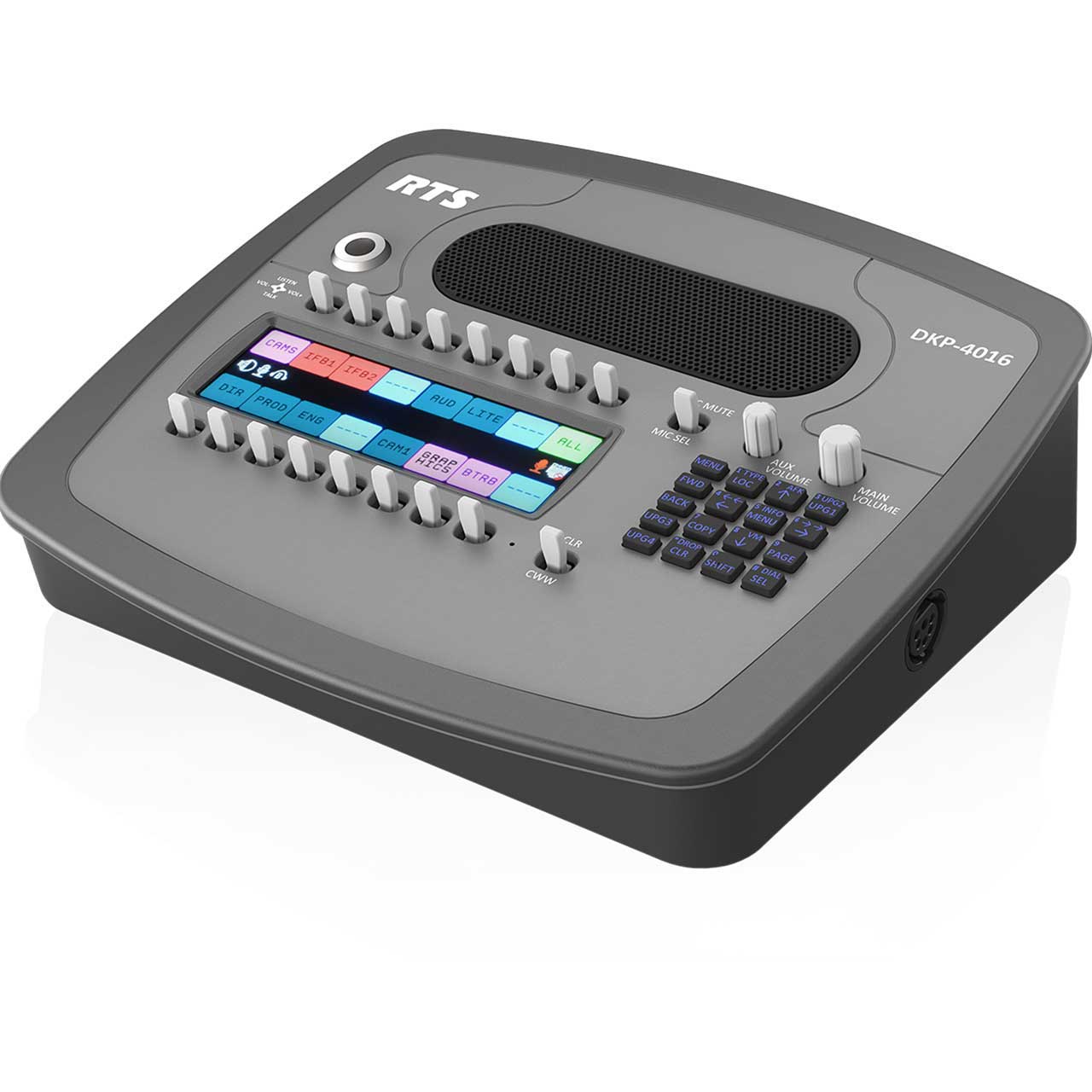

RTS DKP-4016 OMNEO 16-Key IP Intercom Keypanel with HD Color Display - Desktop

ITEM #: RTS-DKP-4016 MFG #: F.01U.301.543

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


F.01U.301.543 - Overview

The RTS DKP-4016 is a Desktop / Wall-Mount 16-Position HD Color Display Keypanel

  • Features:

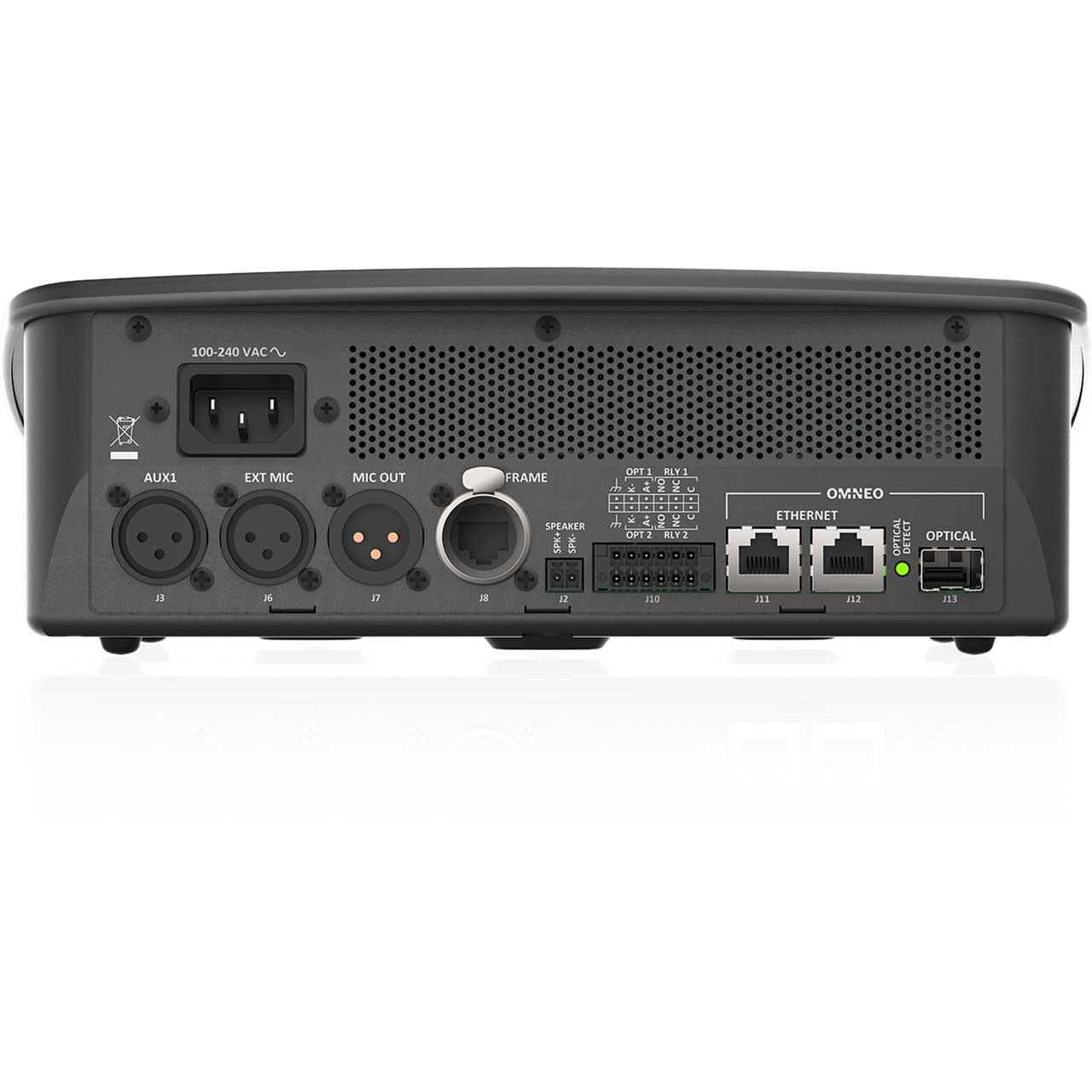

    • Backward compatible with older technologies such as analog audio in USOC and 568-B connector formats.
    • All previous options hardware connectors (RC, GPI, and Ancillary items) are now standard.

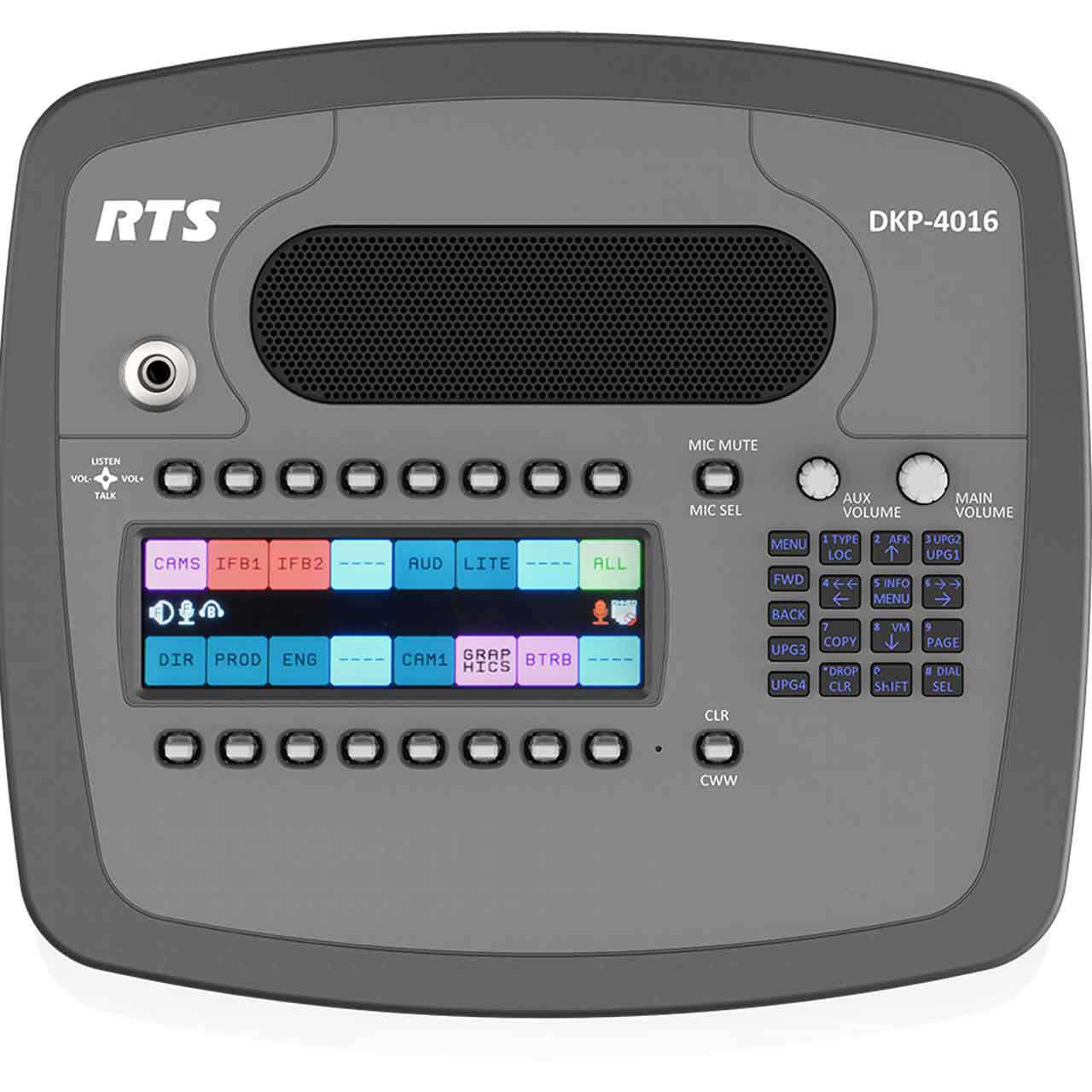

    • New wide-angle high-definition display.
    • Enhanced navigation menus optimized for ease of use.

  • Specifications:

    • LCD Display
    • Active Area: 120.10mm (wide) x 35.86mm (high)
    • Dot Resolution: 576 x 172 pixels
    • Color Resolution: 16-bit (64K)RGB color
    • View Angle: 80 degrees (typical; all directions)

      Power Supply
    • Type: Internal
    • AC Input: 100-240VAC 50/60Hz

      General Purpose Inputs and Outputs
    • Outputs
    • Type (relays): SPDT
    • Contact Rating: 1AMP @ 30VDC

      Inputs
    • Type: Optically Coupled
    • Input Voltage: 5-18 VDC on A+, * A+ is internally pulled to 5VDC. Connect K- to to activate.
    • Type: Balanced
    • Typical Input Level: +8dBu
    • Typical Input Impedance: >10kO
    • Maximum Input Level: +20dBu
    • Supported Bandwidth: 100Hz to 20KHz

      Aux
    • Type: Balanced
    • Typical Input Level: +8dBu
    • Typical Input Impedance: >20 k O
    • Maximum Input Level: >+20 dBu
    • Supported Bandwidth: >100 Hz to 20 kHz

      Front Panel Mic
    • Type: Electret
    • Typical Input Level: -42dBu
    • Typical Input Impedance: 1kO
    • Maximum Input Level: -25dBu

      Rear Panel Mic
    • Type: Electret
    • Typical Input Level: -42dBu
    • Typical Input Impedance: 1kO
    • Maximum Input Level: -25dBu

      Front and Rear Headset Mic - Electret
    • Typical Input Level: -42dBu
    • Typical Input Impedance: 1kO
    • Maximum Input Level: -25dBu

      Front and Rear Headset Mic - Dynamic
    • Typical Input Level: -50dBu
    • Typical Input Impedance: 600O
    • Maximum Input Level: -25dBu

      Outputs
    • Matrix
    • Type: Balanced
    • Typical Output Level: +8dBu
    • THD+N%: <0.20%
    • Typical Output Impedance: 600O
    • Maximum Output Level: +20dBu
    • Frequency Response: 100Hz to 20KHz

      MIC/LINE Out
    • Type: Balanced
    • Typical Output Level: +8dBu
    • THD+N%: <0.20%
    • Typical Output Impedance: 600O
    • Maximum Output Level: +20dBu
    • Frequency Response: 100Hz to 20KHz

      Headset - Front, Rear, Left, Right
    • Maximum Output Power: 125mW for 32O load
    • Earphone Impedance: 16O and above
    • THD+N%: <0.20%
    • Frequency Response: 100Hz to 20KHz

      Speaker - Rear
    • Maximum Output Power: 5W for 8O load
    • Speaker Impedance: 4O and 8O
    • THD+N%: <0.20%
    • Frequency Response: 100Hz to 20KHz

      Digital
    • OMNEO Channels
    • Typical OMNEO Latency: 1ms
    • Frequency Response: 20Hz - 20KHz

      Environmental
    • Dimensions: 3.60 in. H x 10.63 in. W x 9.35 in. D
    • Weight: 3.70 Lb
    • Power Supply: 0.53lb (.24kg)

      Power Consumption
    • Nominal: 22 Watts
    • Maximum: 39 Watts
    • Maximum Volt Amp: 63 VA
