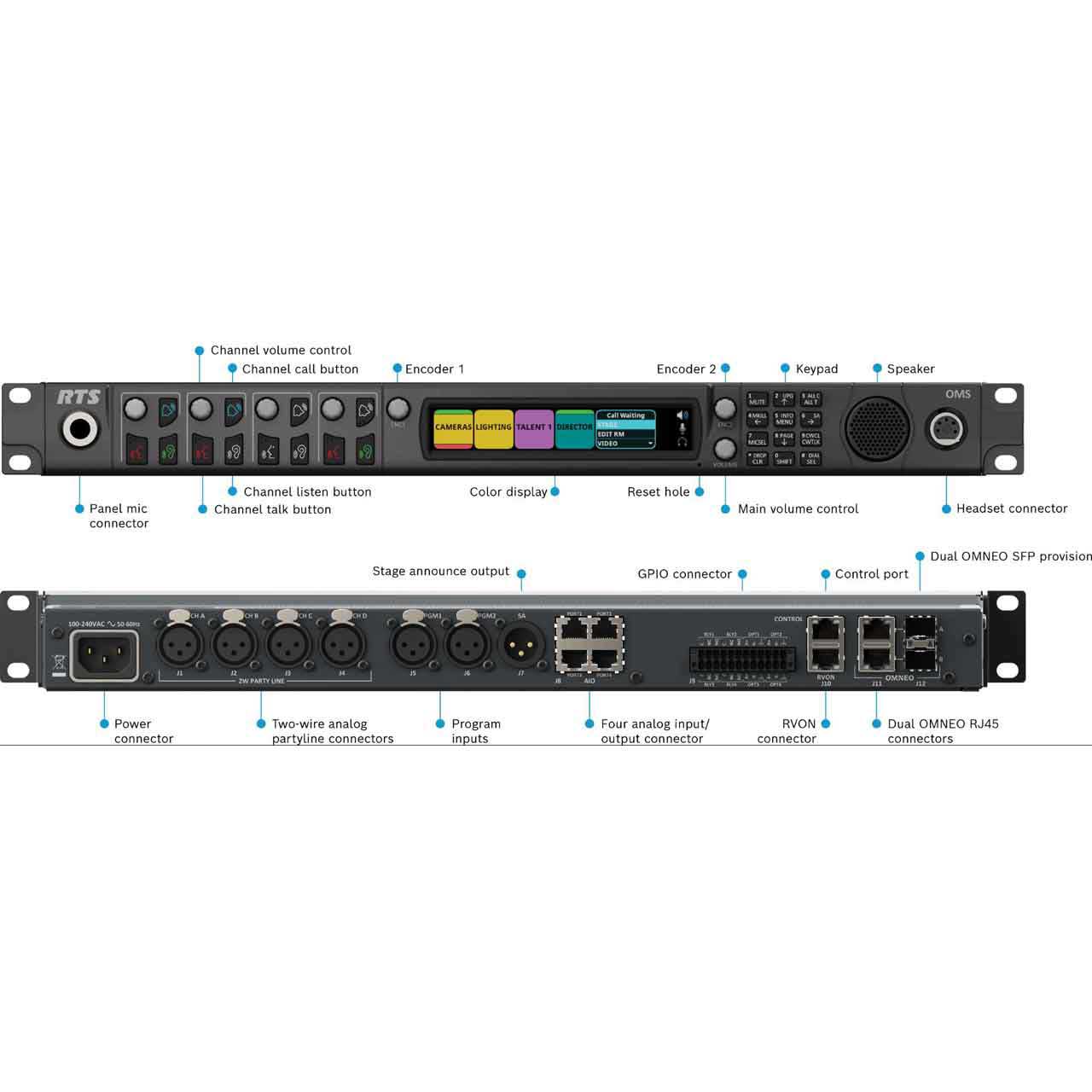

RTS OMS OMNEO Main Station Intermediate Digital Partyline Intercom Base - 4-Pin Male

ITEM #: RTS-OMS-IDIG-4M MFG #: F.01U.384.601

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
RTS Intercoms
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$6,624.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

F.01U.384.601 - Overview

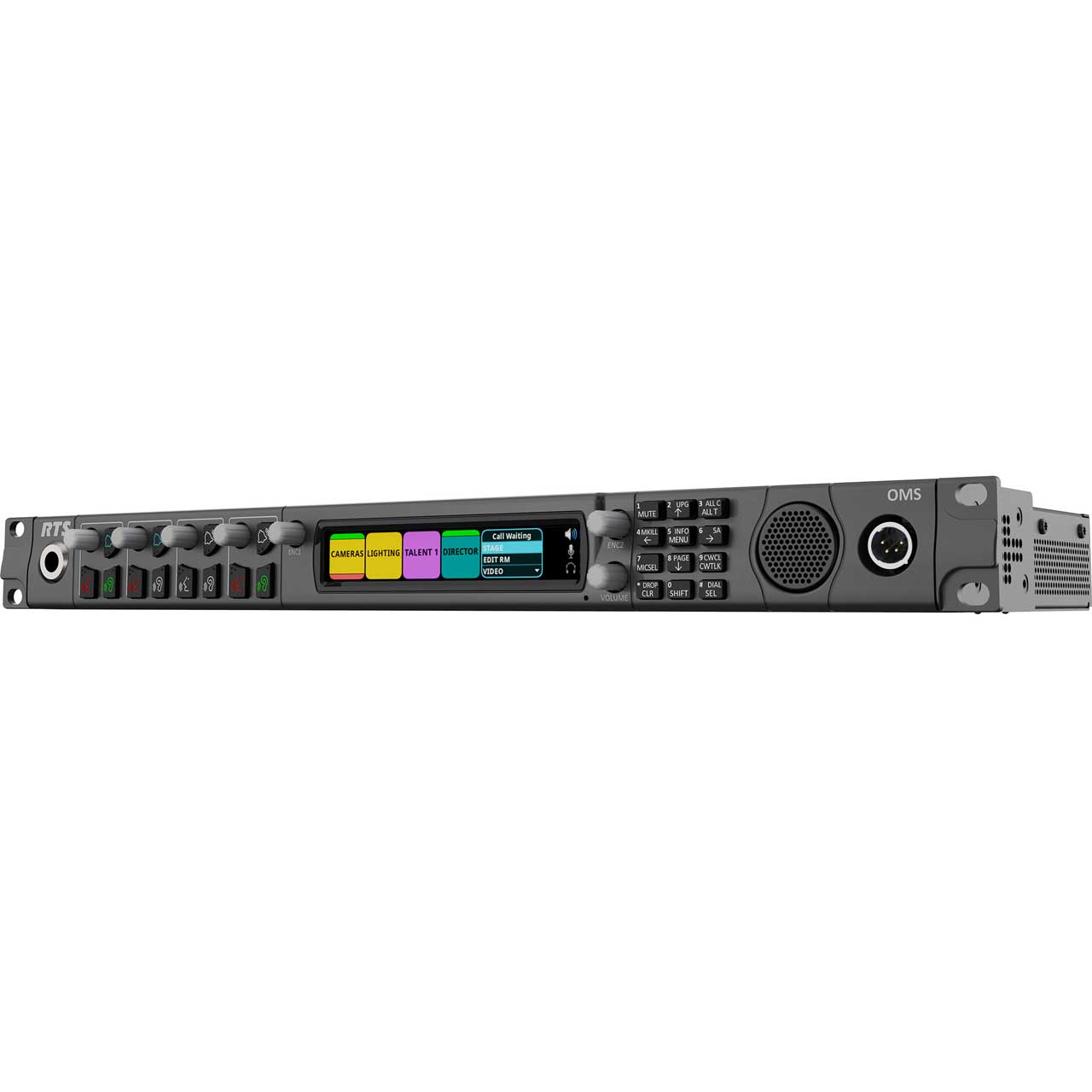

The RTS OMNEO MAIN STATION (OMS) Intermediate Digital Partyline with 4-Pin Male headset connector is the core component of the RTS Digital Partyline intercom system. It supports 20 OMNEO devices, ROAMEO support, 4 ports of analog 2-Wire, 2 program inputs, 1 stage announce, 4 GPI/ 4 Relays, 16 conferences, 4 ports of analog 4-wire AIO ports, 8 tielines, 4 keypanel capacity as well as Fiber support. This communications multi-tool is designed to bridge all standards and formats interconnecting both wired/wireless and IP/digital/analog devices. Full TCP/IP connectivity is supported for a wide range of customers including theaters, houses of worship, broadcast, AV rental, industrial facilities and entertainment/event venues.

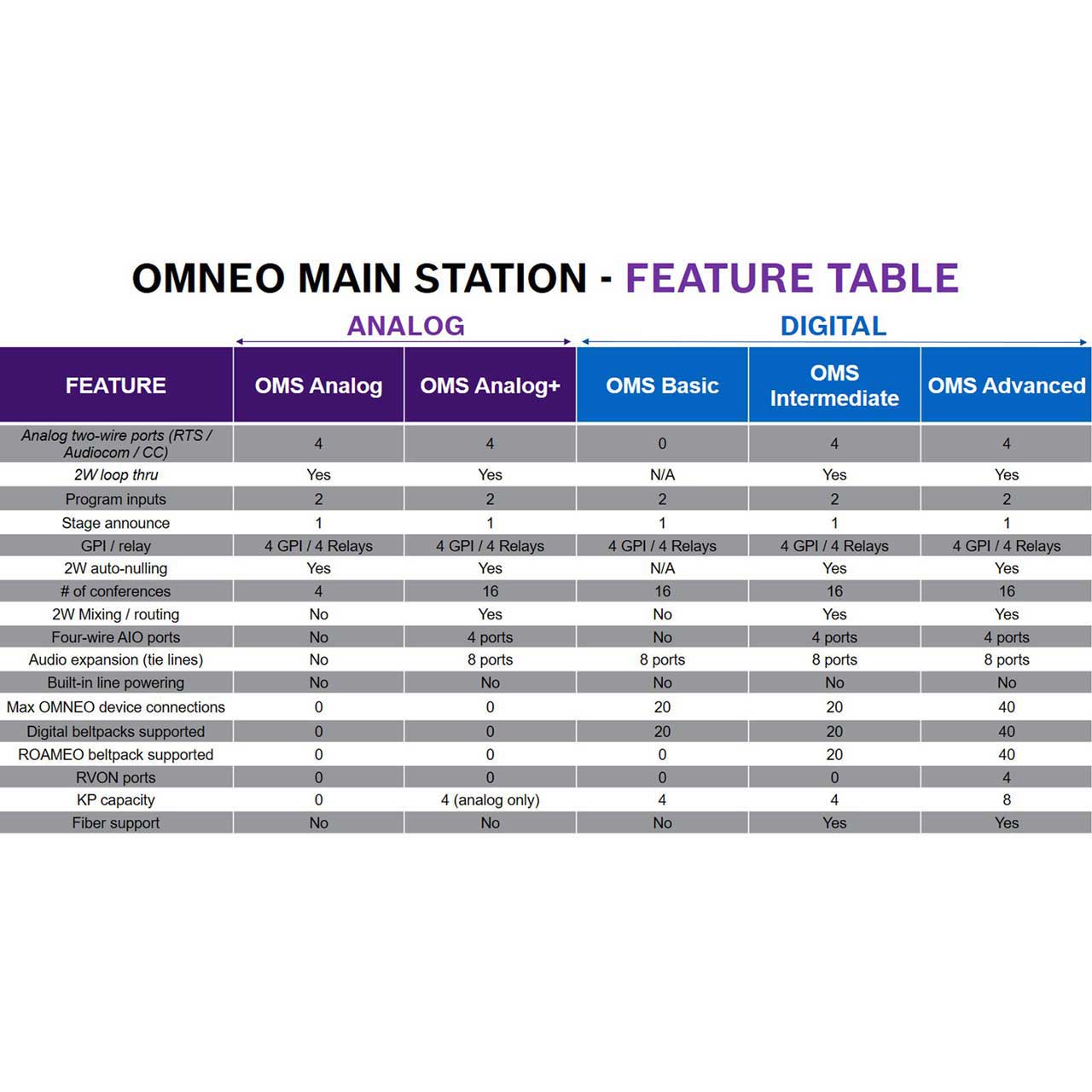

Whereas current systems on the market offer analog-only, digital-only, proprietary or non-Dante-compatible products, OMS encapsulates a hybrid IP/digital/analog partyline intercom main station available in five licensed configurations to suit the user’s budget and application requirements: Advanced, Intermediate and Basic digital (each with OMNEO); Analog Plus and Analog (main station options for analog-only partyline systems).

OMNEO IP TECHNOLOGY
Incorporating Dante (audio transport), AES70 (device control) and more, OMNEO allows OMS to interconnect with RTS Digital Matrix products (including ADAM, ADAM-M, ODIN, KP series keypanels and ROAMEO DECT wireless) and forthcoming new members of the RTS Digital Partyline family. OMS can therefore provide a path from legacy equipment to the latest technology, allowing users to migrate to the flexibility of an IP infrastructure without the complexity of a matrix system - all while protecting the investment value of their existing analog partyline hardware.

  • Features:

    • Supports 20 OMNEO Devices, ROAMEO Support, 4 Ports of Analog 2-Wire, 2 Program Inputs, 1 Stage Announce, 4 GPI/ 4 Relays, 16 Conferences, 4 Ports of Analog 4-Wire AIO Ports, 8 Tielines, 4 Keypanel Capacity as well as Fiber Support
    • Auto nulling capability (echo cancellation) available on 2-Wire interfaces.
    • Supports up to 8 keypanels (any mix of analog/OMNEO/RVON) depending upon product licensing. (Maximum 4 analog)
    • Includes stage announce output and additional OMNEO expansion audio ports reserved for connecting and networking with other OMS units. These expansion ports allow additional system capacity and partyline capability as part of a distributed system.


  • Specifications:

    • Power Type: Locking IEC 320 C14 style connector
    • AC Input: 100 VAC – 240 VAC, 60/50 Hz, 0.46 A / 0.24 A
    • Maximum Power Consumption: 30 W (based on 120 VAC)
    • Environmental: Operating Temperature: 32° F – 113° F (0° C – 45° C)
    • Storage Temperature: -4° F - 158° F (-20° C - 70° C)
    • Dimensions: 19" w/ rack ears (17.56" w/o rack ears) W x 1.7" H x 7.72" D (including connectors)
    • Dimensions: (482.6 mm w/ rack ears [446.1 mm w/o rack ears] W x 43.7 mm H x 196.1 mm D [including connectors])
    • Weight: OMS chassis: 5.29 lbs (2.4 kg)

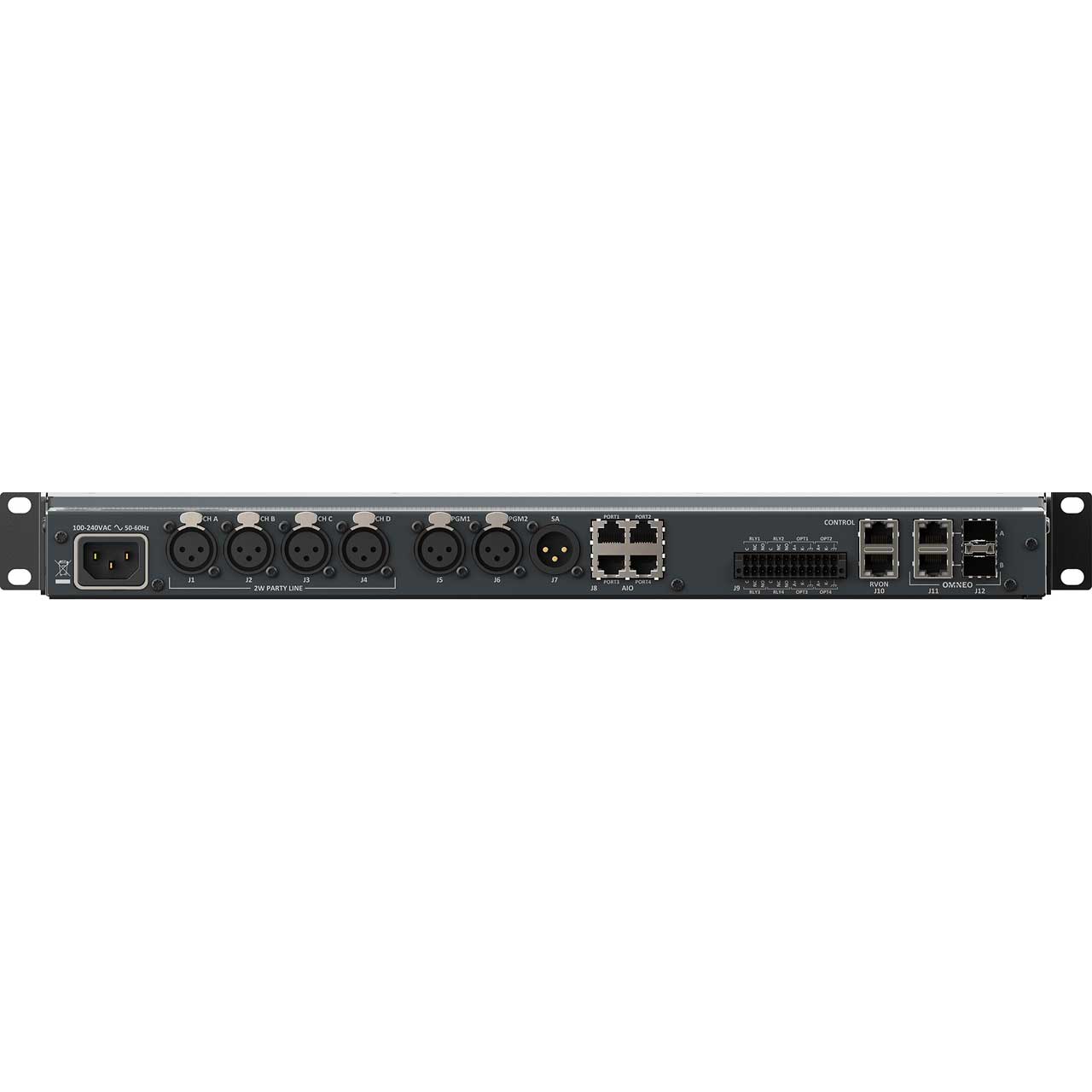

      AIO 4-Wire Analog
    • Connectors: 4 RJ-45 connectors
    • Signal Format: Differential RX/TX audio with differential RS-485 control data
    • Wiring Scheme: Both 568B & USOC supported
    • A/D and D/A Resolution: 24 bits
    • Max Input Level (balanced): +20 dBu w/o clipping
    • Digital Input Gain: Programmable (-20 dB - +20 dB)
    • Input Frequency Response: +1 dB/-3 dB from 100 Hz - +20 kHz
    • THD+N (8dBu input, unity gain): 0.025% non-weighted@1 kHz
    • <0.075% non-weighted, 100 Hz - +20 kHz
    • Nominal Input Impedance: >22 kΏ
    • Nominal Output Level: 8 dBu
    • Digital Output Gain: Programmable (-20 dB - +20 dB)
    • Maximum Output Level (balanced): 20 dBu w/o clipping
    • Output Frequency Response: +1 dB / -3 dB from 100 Hz - +20 kHz
    • Output Noise Floor: <-65 dBu
    • Crosstalk Isolation: >80 dB
    • PGM1 & PGM2: 3-pin XLR-F
    • Signal Format: Differential RX/TX audio
    • A/D Resolution: 24 bits
    • Max Input Level (balanced): +20 dBu w/o clipping
    • Digital Input Gain: Programmable (-20 dB - +20 dB)
    • Input Frequency Response: +1 dB/-3 dB from 100 Hz - +20 kHz
    • THD+N (8dBu input, unity gain): 0.025% non-weighted@1 kHz
    • <0.075% non-weighted, 100 Hz - +20 kHz
    • Nominal Input Impedance: >22 kΏ
    • Nominal Output Level: 8 dBu
    • Digital Output Gain: Programmable (-20 dB - +20 dB)
    • SA (Stage Announce): 3-pin XLR-M
    • Signal Format: Differential RX/TX audio
    • D/A Resolution: 24 bits
    • Max Input Level (balanced): +20 dBu w/o clipping
    • Digital Input Gain: Programmable (-20 dB - +20 dB)
    • Maximum Output Level (balanced): 20 dBu w/o clipping
    • Output Frequency Response: +1 dB / -3 dB from 100 Hz - +20 kHz
    • Output Noise Floor: <-65 dBu
    • Crosstalk Isolation: >80 dB

      2-Wire Party Line Analog
    • Connector: four 3-pin female XLR connectors
    • Modes/Port supported: RTS CH1, RTS CH2
    • Audiocom (4 channel)
    • Clear-Com (4 channel)
    • 4W/2W Echo Return Loss: >45 dB
    • Unbalanced Operation (RTS/Clear-Com):
    • Expected Termination Impedance: 200 Ώ
    • Noise Contribution: <-70 dBu
    • THD+N (w/ nominal input): <0.5%, 200 Hz - 7.3 kHz
    • Bridging Impedance: >10 kΏ
    • CALL Signaling: 20 kHz (RTS mode)
    • 12 VDC (Clear-Com mode)
    • MIC KILL Signaling: 24 kHz (RTS mode)

      Balanced Operation (Audiocom)
    • Expected Termination Impedance: 300 Ώ
    • Noise Contribution: <-70 dBu
    • THD+N (with nominal input): <0.5%, 200 Hz - 7.3 kHz
    • Bridging Impedance: >10 kΏ
    • CALL Signaling: 20 kHz (Audiocom mode)
    • MIC KILL Signaling: 24 kHz (Audiocom mode)

      General Purpose Input/Output Ports
    • Relays (4 Relays)
    • Type: SPDT
    • Contacts: Common (C)
    • Normally Closed (NC)
    • Normally Open (NO)
    • Contact Rating: 1A @ 48 VDC
    • Inputs (4 Inputs):
    • Type: Optically Coupled
    • Input Voltage: 5 VDC - 12 VDC on A+
    • Note: A+ is internally pulled to +5 VDC. Connect Kto chassis ground to activate.

      Control Port
    • Connector: RJ-45
    • Format: IEEE 802.3 compliant
    • Speed: 10/100/1000 Mbps
    • LEDs: Speed and Link/Activity

      OMNEO Port (primary and secondary)
    • Maximum Capacity: 48 Full-duplex ports
    • Copper Connector Type: RJ-45
    • Format: IEEE 802.3 compliant
    • Copper Ethernet Speed: 100/1000 Mbps
    • LEDs: Speed and Link/Activity
    • Fiber Connector Type: Small Form
    • Factor Pluggable (SFP)
    • Multimode: Finisar FTLF8519P3BNL
    • 500m / 2.125Gbps
    • Single Mode: Finisar FTLF1421P1BTL
    • 15km / 2.67Gbps
    • Fiber Speed: 100/1000Mbps
    • LEDs: Speed and Link/Activity
    • LED Indicator: Optical Signal Present
    • Note: SFF-8472 fiber diagnostics supported


  • Warranty:

    • 3 Years


  • GTIN:

    0800549970501
