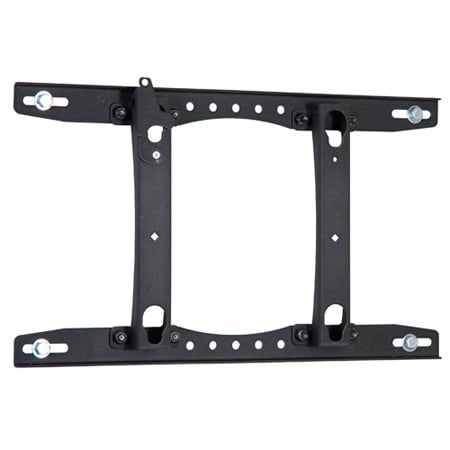

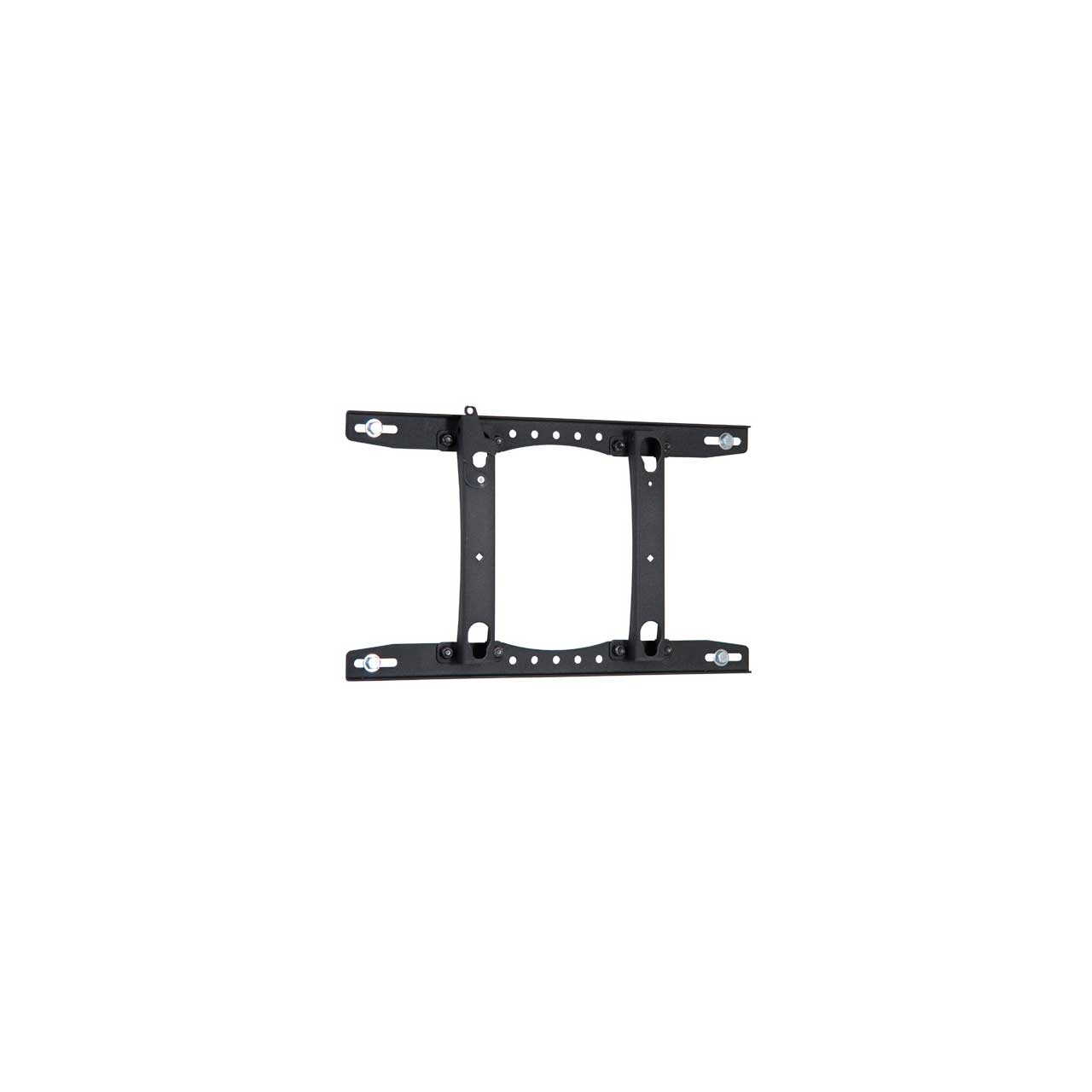

Chief - MSR6000 Medium Fixed Wall Mount

MSR6000 - Overview

• Features:

  • Ultra low-profile design
  • Integrated lateral shift up to 4" on a single stud and 1.5" on 16" centers
  • Q-Latch Mounting System simplifies installation and provides quick connect/disconnect
  • Expanded wall plate opening provides cable access and reduces risk of outlet interference
  • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
  • Integrated security with the addition of a padlock
  • Provides cable access through sides of the mount
  • Multiple mounting options including single stud at five different positions and 16" center stud mounting


• Specifications:

  • Certifications: UL Listed
  • Color: Black
  • Lateral Shift: 3" (76.2mm)
  • Minimum Depth: 1.15" (29mm)
  • Orientation: Landscape, Portrait
  • Overall Dimensions (H x W x D):
  • 10.9" x 18.5" x 1.3" (276 x 470 x 32mm)
  • Shipping Weight: 12.00 lbs
  • Typical Screen Sizes: 30 - 55"
  • undefined: Steel stud mounting possible with series PAC115 and using 2 studs only
  • Wall Stud Compatibility (inches):
  • Single Stud, 16
  • Weight Capacity: 125 lbs (56.7kg)


• GTIN:

  0841872058016
