Samson SW77R00 CR-77 Diversity Receiver with AC500 Power Supply

ITEM #: SAM-SW77R00 MFG #: SW77R00

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SAM-SW77R00

SW77R00 - Overview

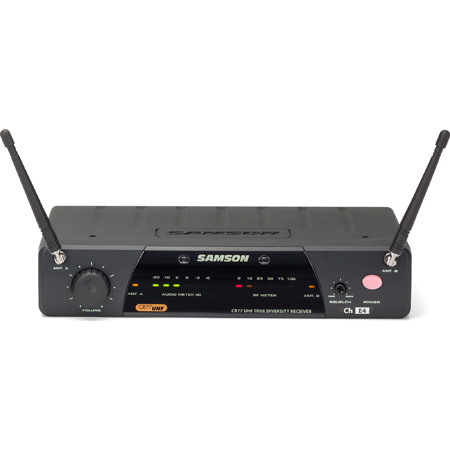

The SW77R00 Diversity Receiver with AC500 Power Supply from Samson is a wireless, true diversity half-rack mountable and tabletop receiver with 1/4-wave antennas. It can be used when paired with an AH7 headset transmitter and microphone (sold separately) to capture audio for instructors and active performers in fitness applications.

The CR77 wireless receiver features multi-segment audio and RF level LED meters, a volume and squelch control, and is built with balanced XLR and unbalanced 1/4" output connectors. It has a 300' range of operation and is light enough to throw in your bag, or permanently install with the optional rackmount kit (sold separately). In addition, a mic/line level output switch sets the output level attenuation of the balanced output to line or mic level.

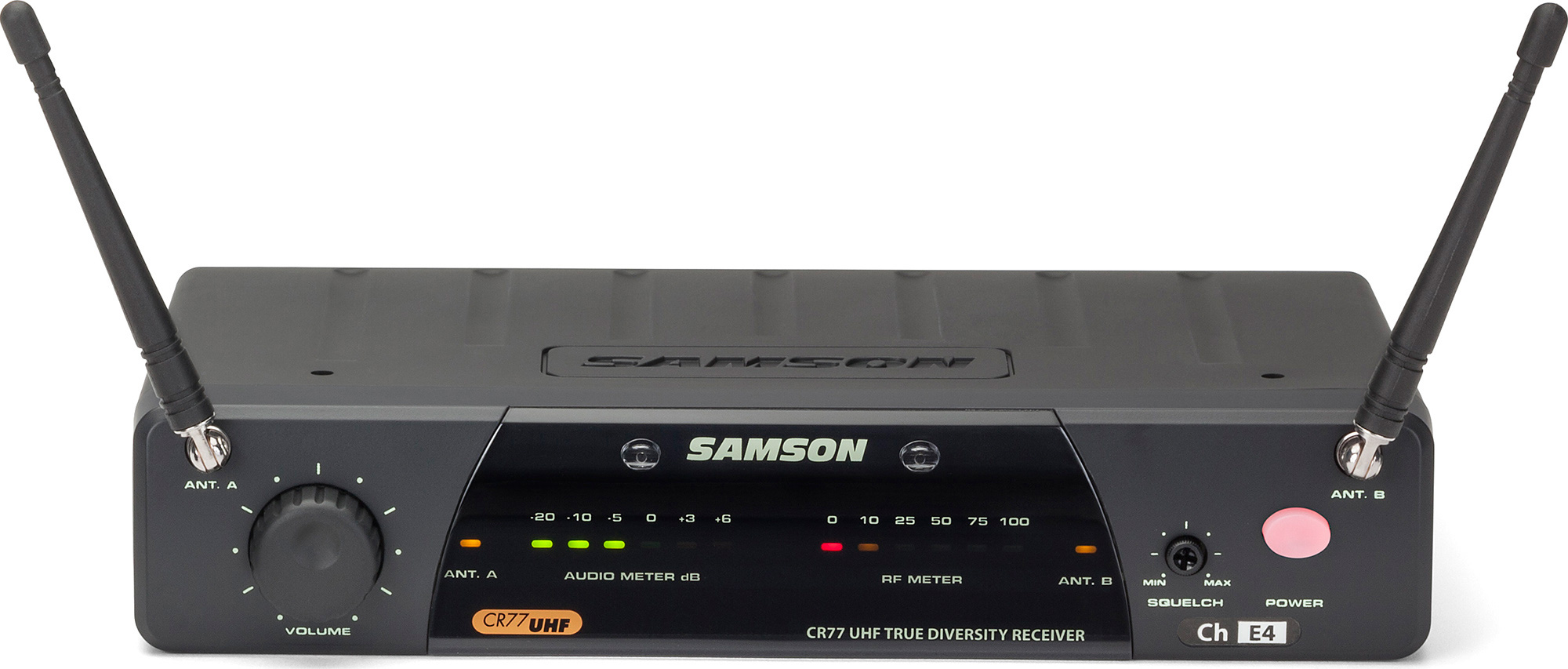

  • Features:

    • Antennas (A and B)
    • The antenna mountings allow full rotation for optimum placement.

      Volume Control
    • Sets the level of the audio signal being output through both the balanced and unbalanced output jacks on the rear panel.

      Audio Meter
    • This display indicates the strength of the incoming audio signal.

      Squelch Control
    • Determines the maximum range of the CR77 before audio signal dropout.

      A/B Antenna Indicators
    • When signal is being received, one of these will be lit green, showing you whether the (left) "A" or (right) "B" antenna is currently being used.

      RF Meter (Radio Frequency)
    • This display indicates the strength of the incoming radio signal

      Power Switch
    • Turns the CR77 power on and off. When the receiver is on, the internal power LED is lit.

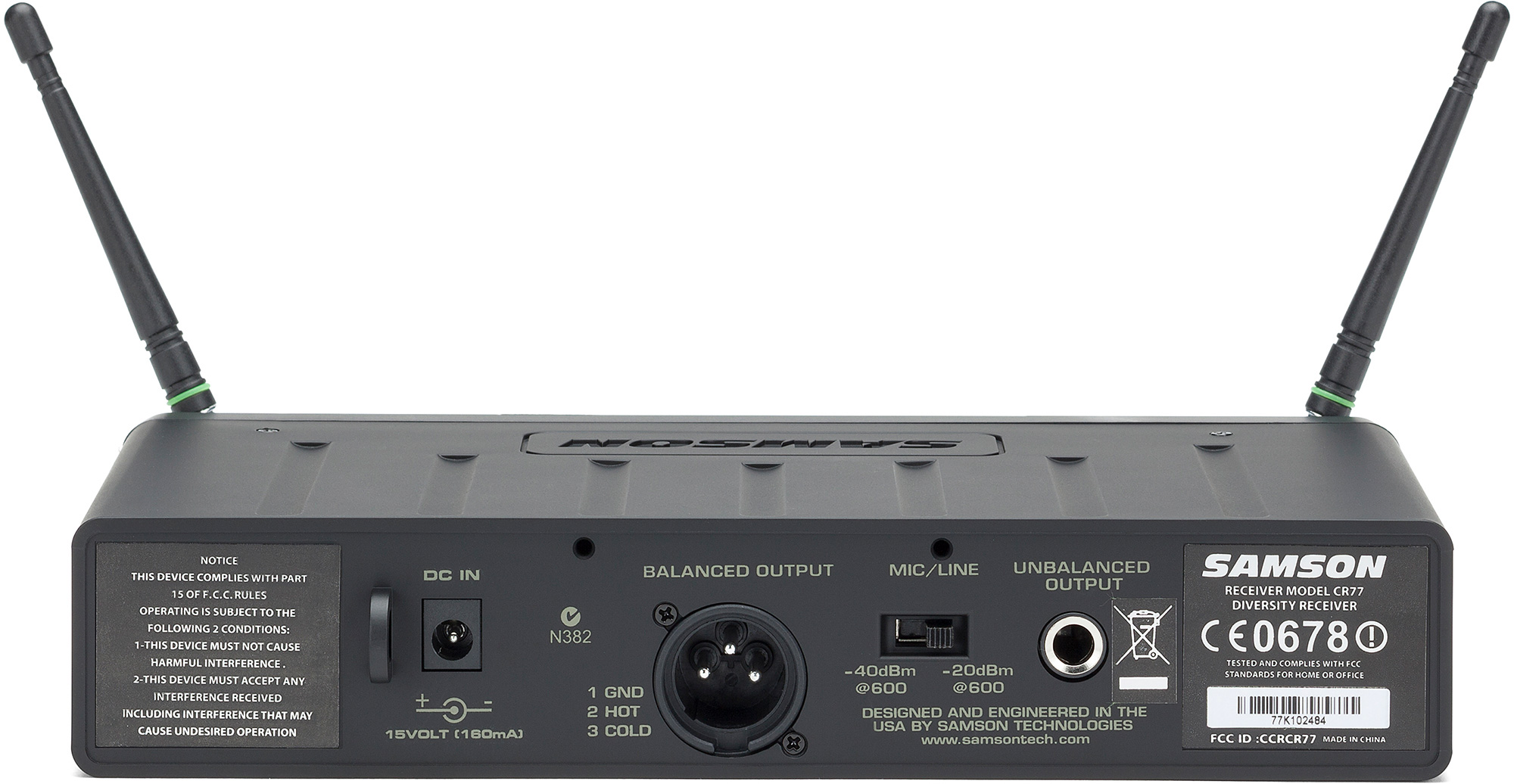

      DC Input
    • Connect the supplied power adapter.

      Unbalanced Output
    • Features an unbalanced high-impedance 1/4" jack when connecting the CR77 to consumer (-10 dBV) audio equipment.

      Balanced Output
    • Use this electronically balanced low-impedance (600 Ohm) XLR jack when connecting the CR77 to professional (+4 dBu) audio equipment.

      Mic/Line Switch
    • Sets the audio output level attenuation of the balanced output to -20 dBm (line level) or -40 dBm (mic level).

  • Specifications:

    • System:
    • Wireless Transmission: Digital UHF
    • Number of RF Channels: 1
    • Diversity: True Diversity
    • Max Operating Range: 300' / 91.4 m (Line of Sight)
    • Max Systems per Setup: 6

      Receiver:
    • Form Factor: Tabletop
    • Mounting Options: Rackmount (with Optional Hardware)
    • Rackmount Size: 1 RU (1/2 Rack)
    • Antenna: 2 x 1/4 Wave Telescopic, Fixed
    • Number of Audio Channels: 1
    • Audio I/O:
      1 x XLR 3-Pin Male Balanced Line Output
      1 x 1/4" TS Male Unbalanced Line Output
    • Audio Output Level:
      1/4" Output: 0 dBV
      XLR Output: 20 dBV
      XLR Output: 40 dBV
    • Impedance:
      1/4" Output: 5 Kilohms
      XLR Output: 600 Ohms
    • Power Requirements: AC/DC Power Adapter
    • AC/DC Power Adapter: 12 VDC (Included)
    • Display & Indicators: 1 x Backlit LED (Data Transmission)
    • Housing: Metal

  • GTIN:

    0809164220343
