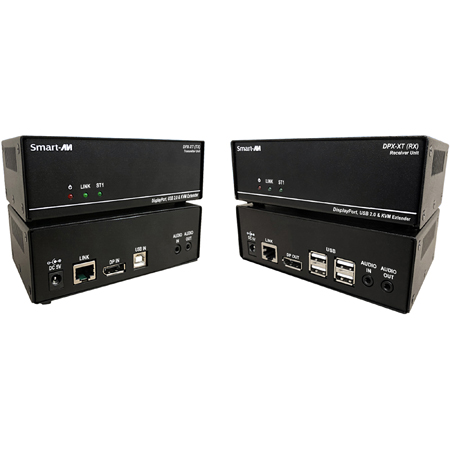

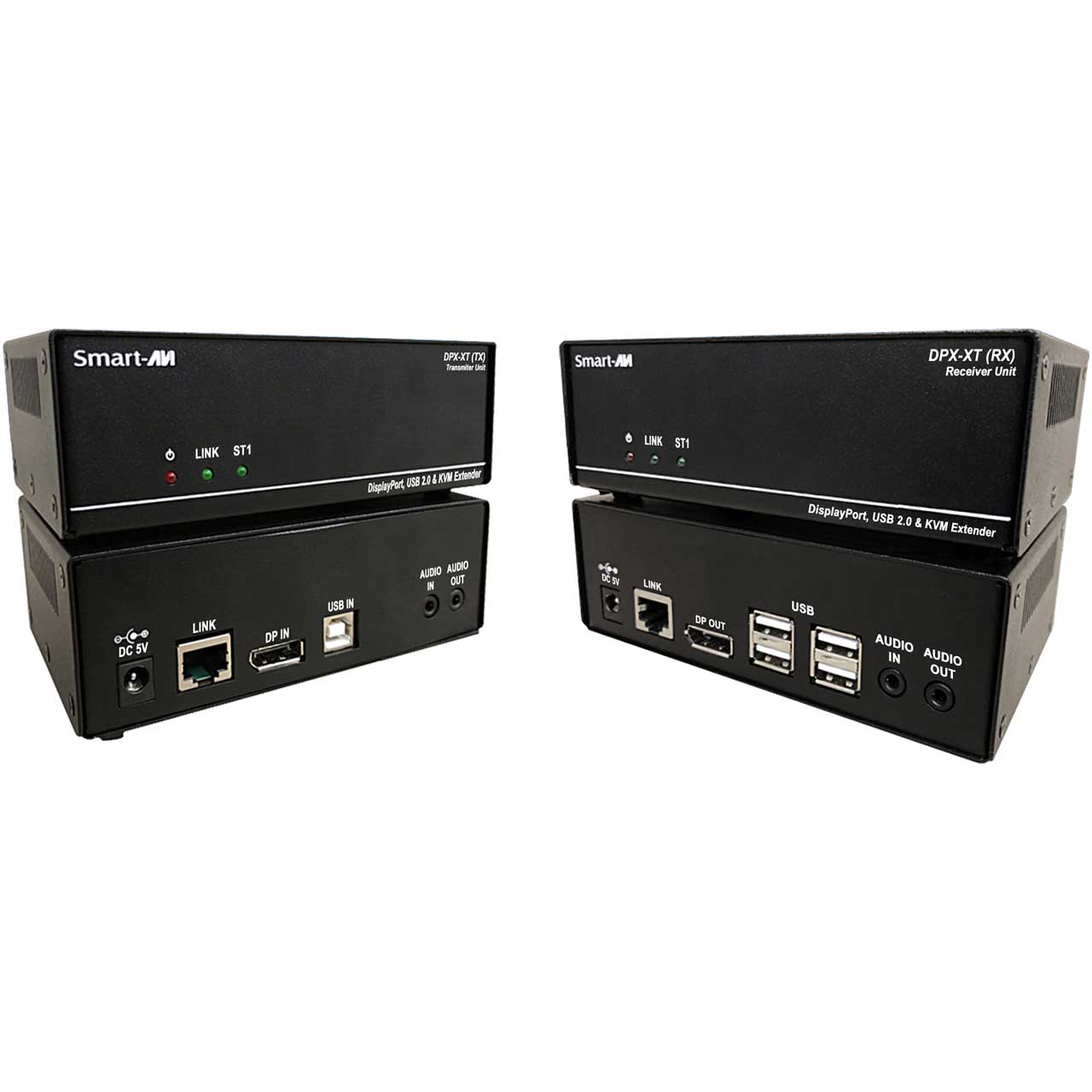

Smart-AVI DPX-XT-S 4K 30Hz DisplayPort - Transparent USB and Audio KVM Extender - up to 330 feet (100m) via CAT 5e/6/6a

DPX-XT-S - Overview

• Features:

  • Extends DisplayPort 1.1 and 1.2, USB 2.0 and audio up to 330 ft (100 m) from the source
  • Supports up to 3840x2160 digital video resolution @ 30Hz
  • Uncrompressed Video
  • Supports keyboard and mouse USB 1.1
  • USB 2.0 Transparent

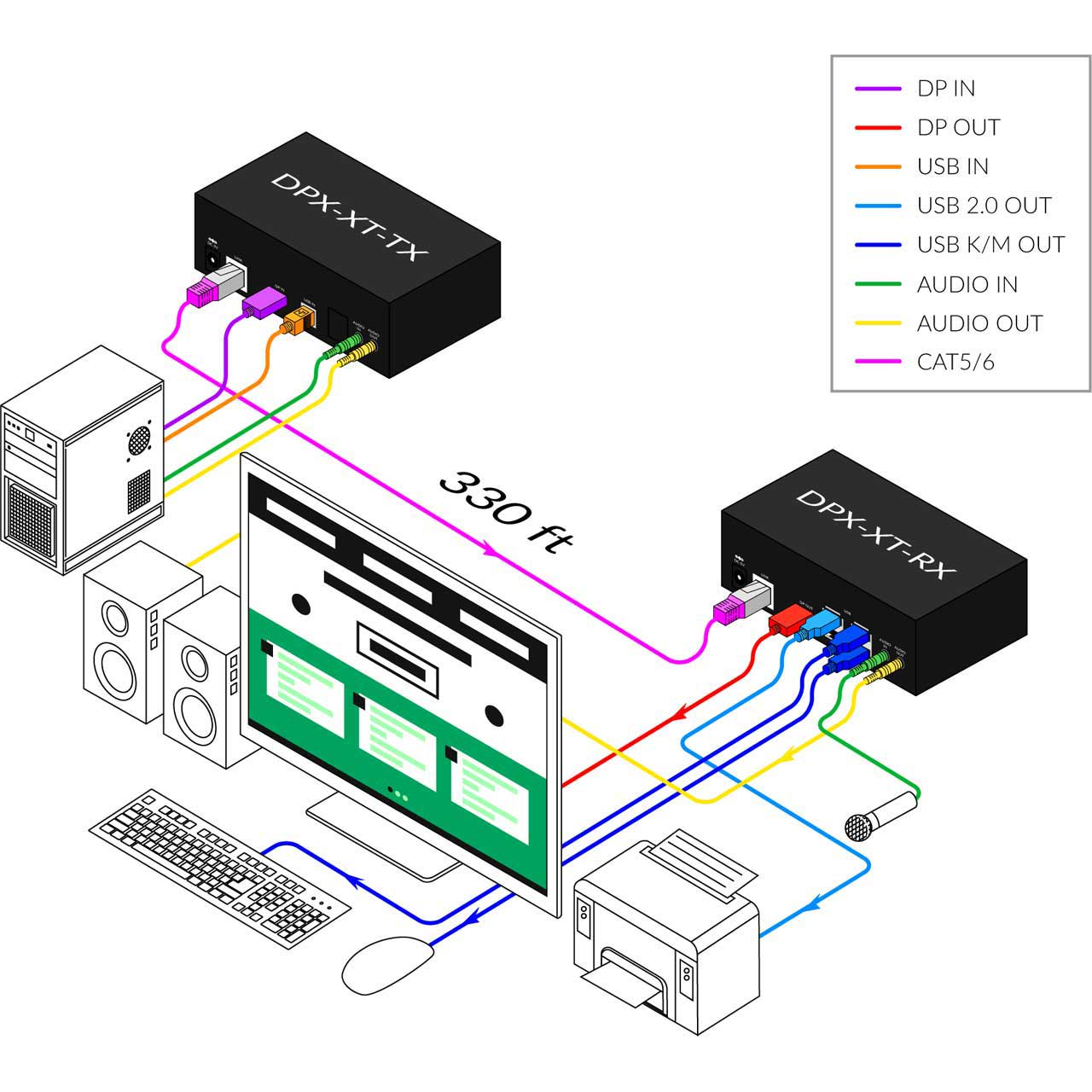

  • Carries DP, USB 2.0 and Audio Over a Single CAT 5e/6/6a
  • DisplayPort Auxiliary Bypass
  • Plug-and-Play Ready


• Specifications:

  • Video
  • Format: DisplayPort 1.1 and 1.2
  • Maximum Pixel Clock: 275 MHz

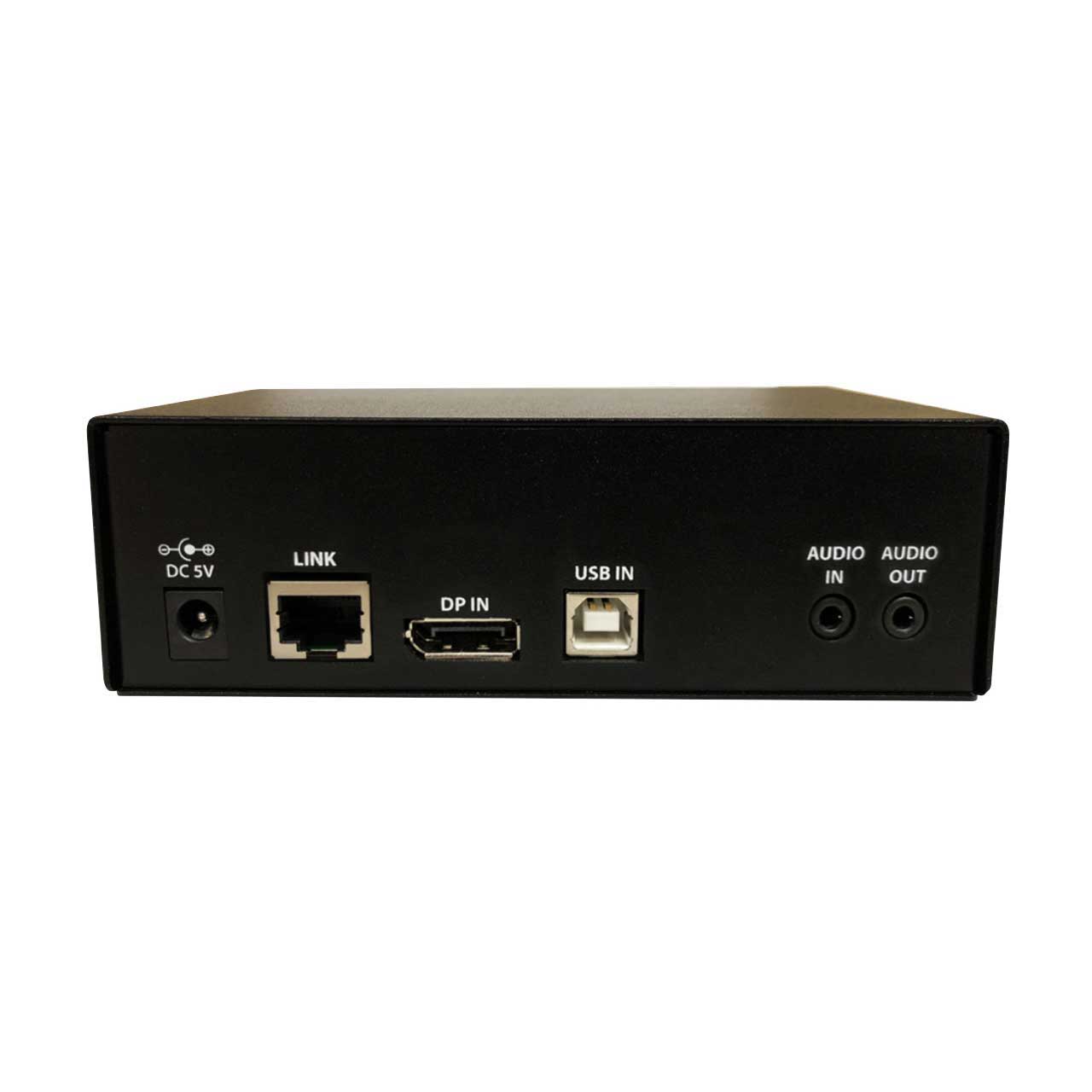

  • Input Interface (TX): (1) DP female

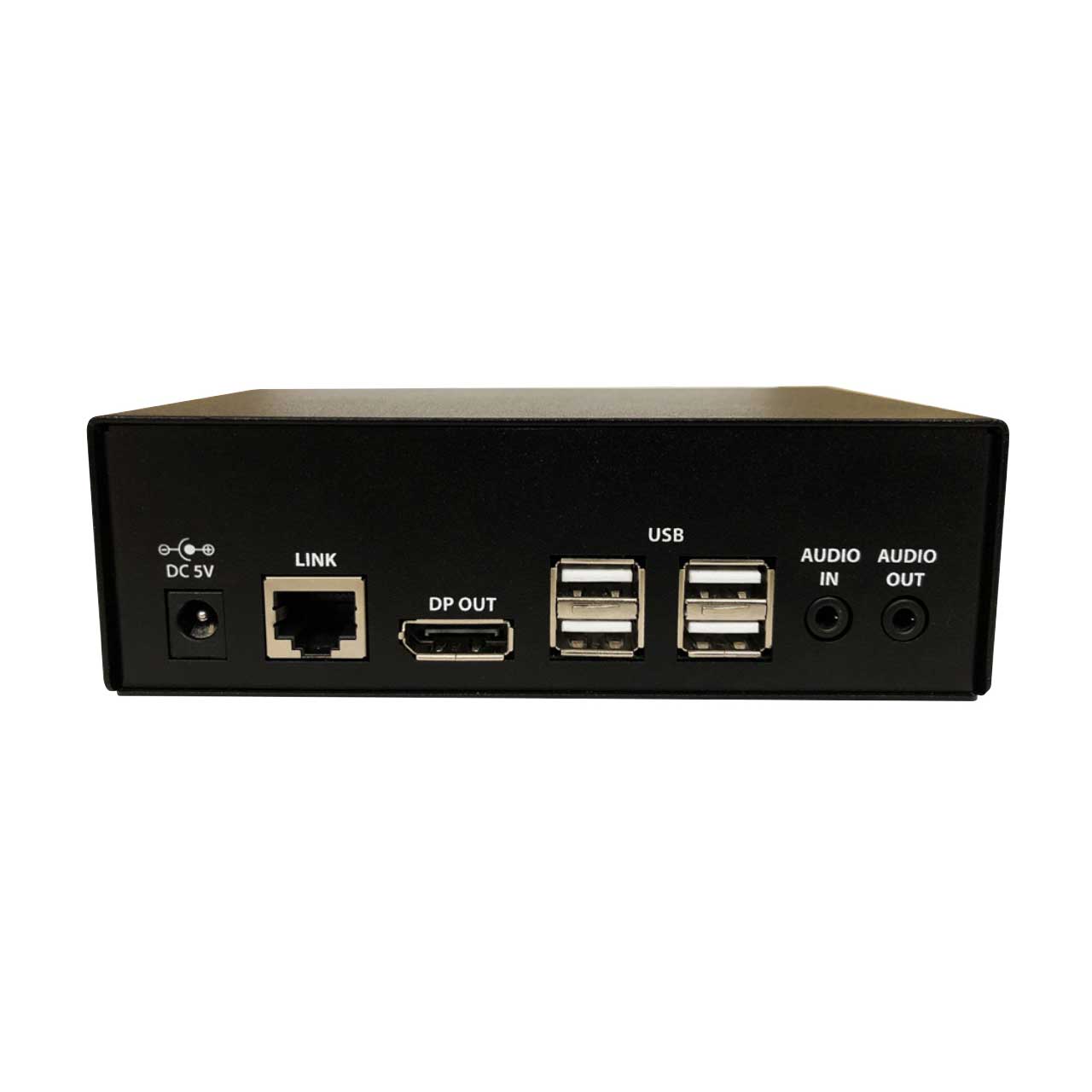

  • Output Interface (RX): (1) DP female
  • Resolution: Up to 3840 x 2160 @ 30 Hz
  • DDC: via AUX
  • Input Equalization: Automatic
  • Input Cable Length: Up to 15 ft.
  • Output Cable Length: Up to 15 ft.

    USB
  • Signal Type: USB 1.1 and USB 2.0
  • Input Interface (TX): (1) USB Type B (Female)
  • Output Interface (RX): (4) USB Type A (Female)

    Audio
  • Frequency: 30KHz to 80KHz
  • Input Interface (TX): (1) 3.5mm (Female)
  • Output Interface (RX): (1) 3.5mm (Female)

    Other
  • Power: External 100-240 VAC/5VDC3A @ 20 W
  • Dimensions: 5.5" W x 1 7/8" H x 3 1/4" D
  • Weight: 1.0lb per TX/RX unit
  • Operating Temperature: 32-131°F
  • Storage Temperature: -4-185 °F
  • Humidity: Up to 95%


• Item Includes:

  • 1x Smart-AVI DPX-XT-S 4K 30Hz DisplayPort - Transparent USB and Audio KVM Extender - up to 330 feet (100m) via CAT 5e/6/6a
