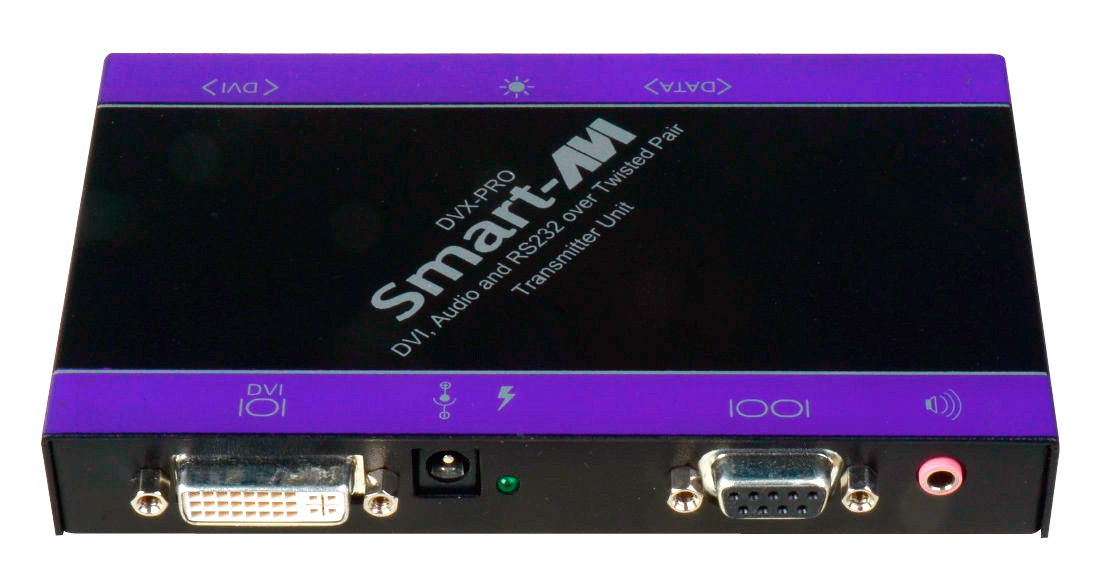

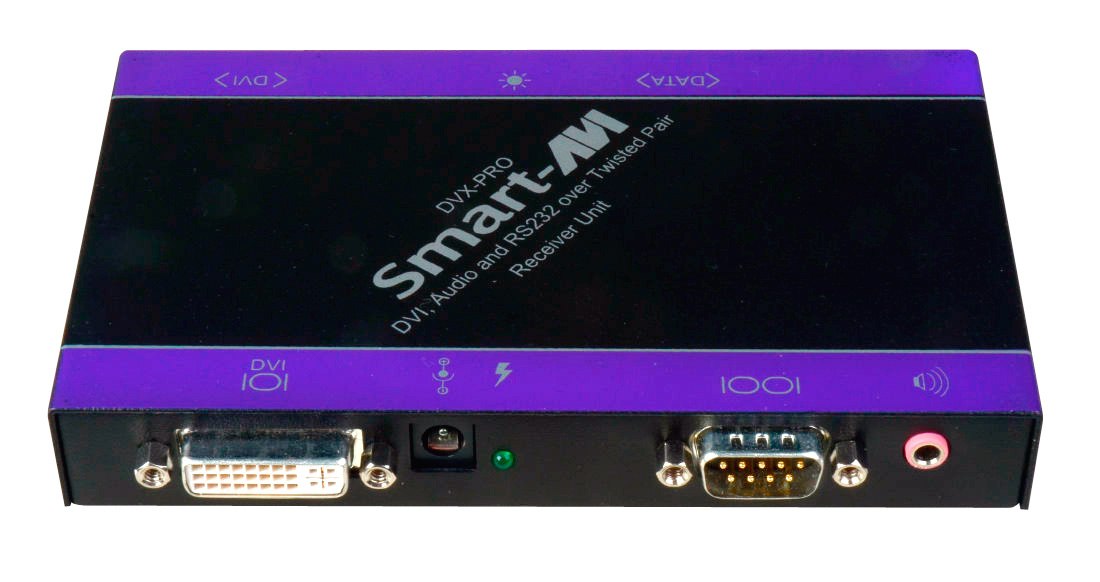

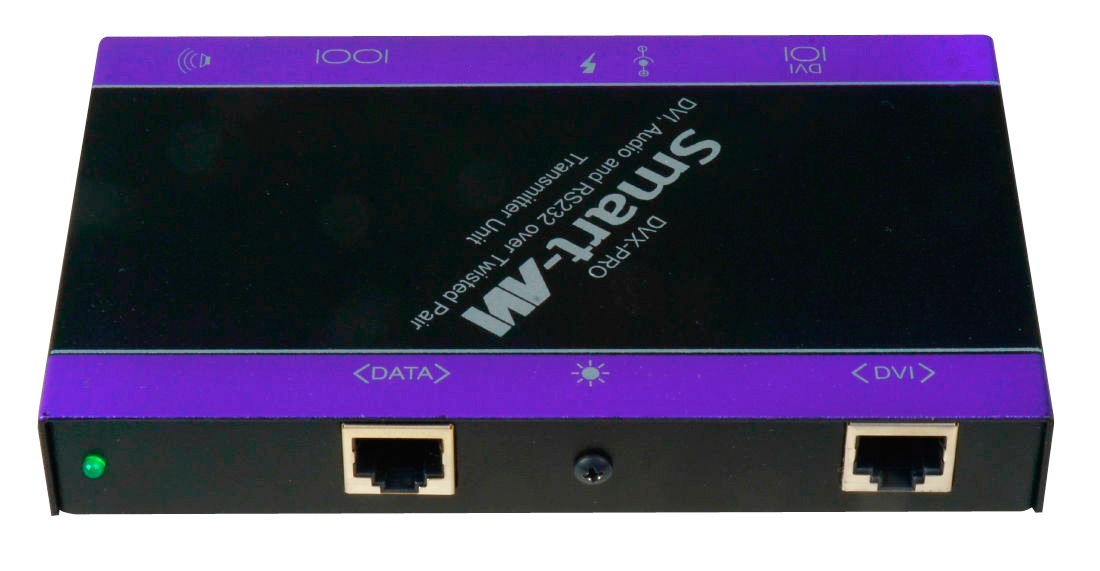

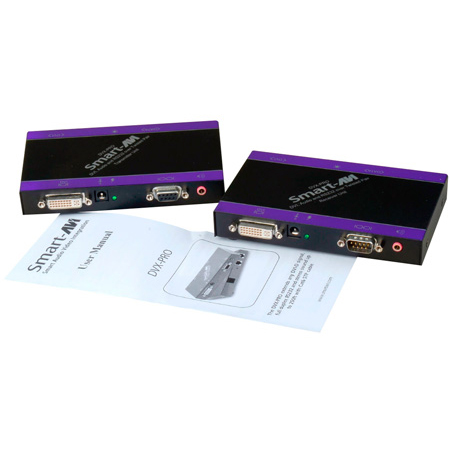

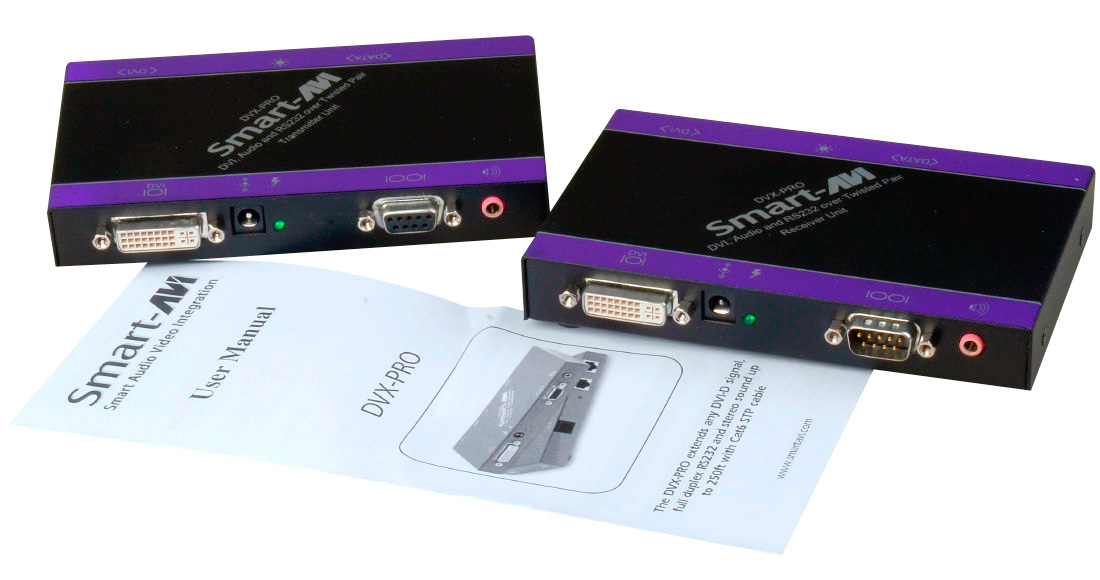

SmartAVI DVX-PRO DVI-D & RS232 Over Cat5 Extender Tx/Rx Kit

ITEM #: SAVI-DVXPRO MFG #: DVX-PRO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SAVI-DVXPRO

DVX-PRO - Overview

Extend any DVI-D signal, full duplex RS232 and stereo sound up to 250ft with Cat5 cable.

  • Features:

    • Top Image Quality at all Resolutions.
    • Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance.
    • User selectable: DCC-Information used from the remotely located Monitor, from the locally located Monitor or from an internal DDC Table.
    • Basic device to remotely locate Touch Screen and Sound.
    • Full duplex RS232 up to 150kbps.
    • Maximum Screen Resolution on all distances: 250 ft w/ STP Cat5e.
    • Compatible with all operating systems.
    • Compatible with all major Touch Screen and Tablet.


  • Specifications:

    • Protocol: Full duplex, transparent to all baud rate
    • Resolution: 1920x1200 @ 60Hz
    • Audio Signal Type: Stereo Audio
    • Audio Bandwidth: 15MHz, 0dB
    • Audio Impedance: 100 Ohm
    • Audio Connector: 3.5mm mini jack, Femal
    • RS232 Tx: DB9Female
    • RS232 Rx: DB9 Male
    • Power Supply: 5VDC
    • Size: (L) 6.125" x (W) 6.25" x (H) .825"
    • Weight: 0.40 lbs
