Smart AVI HDR-8X8-PLUS-S 4K Resolution 8x8 HDMI Matrix Switch with IR Remote Includes: (HDR-8X8-Plus SRC-2A & PS5VD4A)

ITEM #: SAVI-HDR-8X8-PLS MFG #: HDR-8X8-PLUS-S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Smart-AVI
Free Shipping with $49 Minimum Order

Our Price:

$1,899.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

HDR-8X8-PLUS-S - Overview

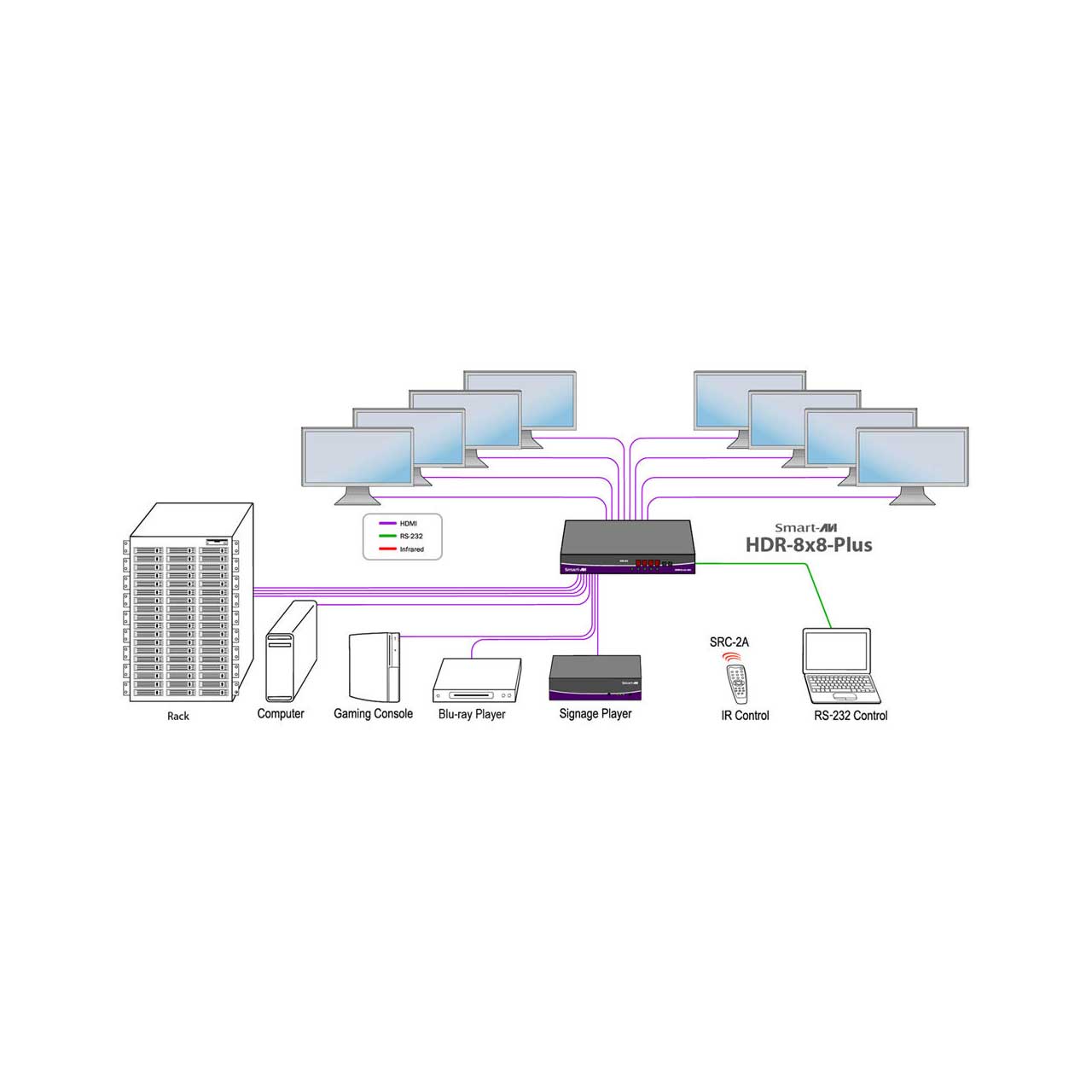

With the Smart-AVI HDR-8x8-Plus, users can independently route eight video inputs to eight displays using the latest in 4K (3840x2160 at 30Hz) HDMI video technology. The HDR-8x8-Plus has eight outputs that offer the flexibility to distribute HD audio and video signals across multiple displays, eliminating the tedium of disconnecting and reconnecting HDMIs to a single display. Controlling the matrix switch is simple with the front-panel buttons and the RS-232 port. Even use the TCP/ IP controls to manage the unit from a web browser. The perfect multi-switch solution for your home theatre system, the HDR- 8x8-Plus is compatible with computers, live HD TV feeds, Blu-ray players, gaming consoles, video cameras and more.

  • Features:

    • 4K Input/Output (3840x2160 at 30Hz)
    • 8x8 Non-Blocking, HDMI Matrix Switch
    • Distribute any eight inputs to any eight HDMI output displays
    • EDID Learning Mode
    • Supports RS-232 Control
    • HDCP and HDMI 1.4 Compliant
    • SmartAVI PC Software
    • Integrated TCP/IP Controller


  • Specifications:

    • Video
    • Format: HDMI 1.4
    • DVI Compliance: Single-link DVI-D 1.1 with Adapter
    • HDCP Compliance: 1.0/1.1
    • Video Bandwidth: Single-link 340MHz [10.2Gbps]
    • Resolution: Up to 3840x2160 @30Hz
    • Input Interface: 8x HDMI [7.1ch audio & video]
    • Output Interface: 8x HDMI [7.1ch audio & video]
    • Connector: HDMI Type-A (19-pin female)
    • Maximum Cable Length: 20ft

      Control
    • Front Panel: Tact Switch
    • PC: RS-232 Control
    • TCP/IP Control: via Web Browser

      Other
    • Power Supply: External 100V - 240V AC/12V DC 4A
    • Max Consumption: 20W
    • Dimensions: 17.20" x 8.31" x 1.75" (436.9mm x 211mm x 44.5mm)
    • Mass: 2800g
    • Approvals: UL, CE, ROHS Compliant
    • Operating Temp.: 32°F - +95°F
    • Storage Temp.: -4°F - 185°F
    • Humidity: Up to 95%


  • GTIN:

    0813280021555
