Smart-AVI HFX-UX-RX HDMI/USB 2.0/Audio Receiver via LC-LC Single Mode Fiber - Up to 6.2 Miles

ITEM #: SAVI-HFX-UX-RX MFG #: HFX-UX-RX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$950.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HFX-UX-RX - Overview

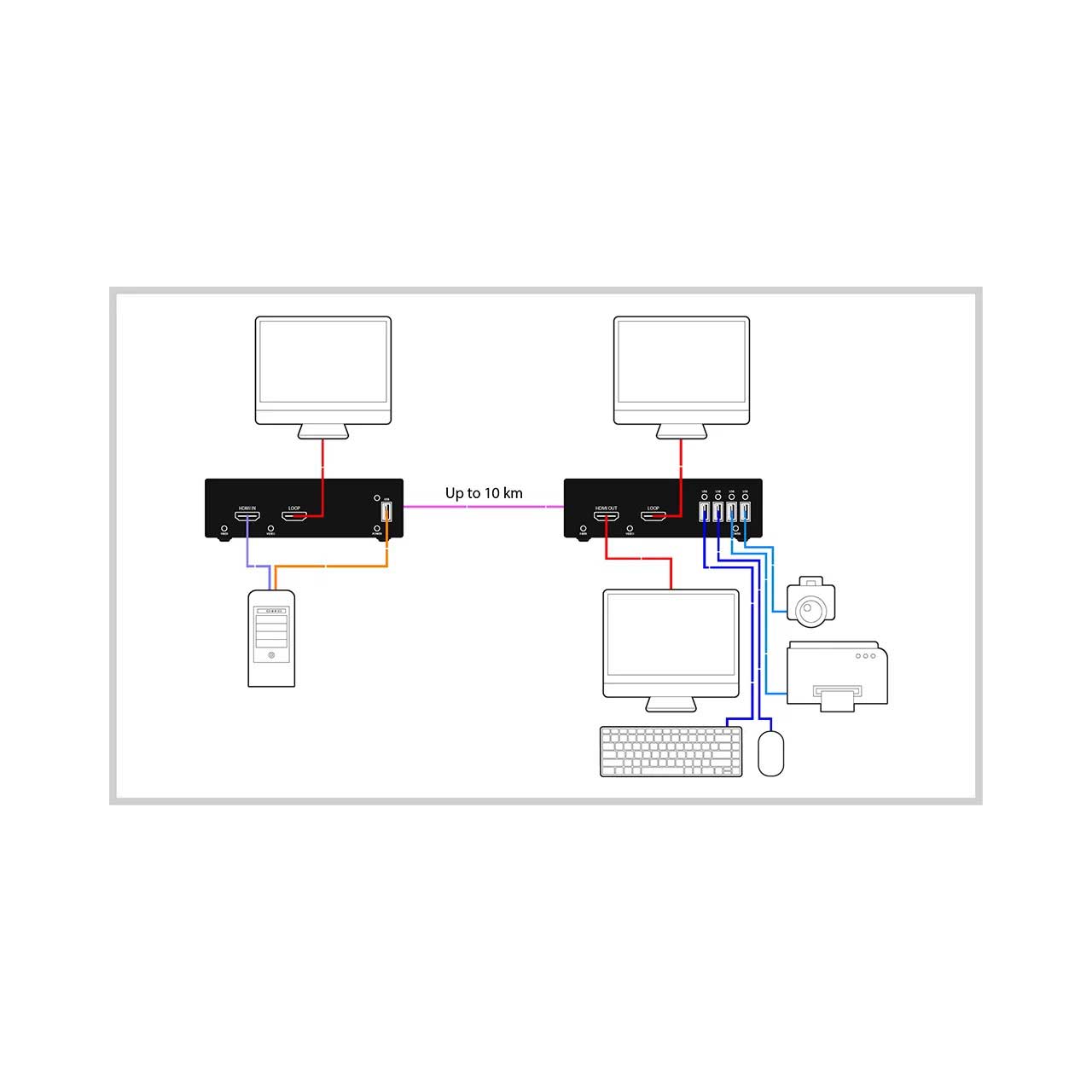

The Smart-AVI HFX-UX-RX is a Single Head HDMI 2.0 (3840 x 2160), USB 2.0, USB keyboard-mouse, sending signals up to 10 km (6.2 miles) away over a single conventional and inexpensive single fiber cable. This new technology is superior to older HDMI extenders that require a special single fiber shielded cable to go a short distance.

The HFX-UX is the first extender on the market to feature 3840 x 2160, USB 2.0 and full KVM extension on one cohesive system and is optimized for Full HD monitors with crystal-clear picture; excellent for detail driven work.

The HFX-UX extends keyboard-mouse signals for remote workflow management and offers uninterrupted emulation from the user's transmitter unit. This uninterrupted emulation prevents accidental disconnection or deactivation issues during mission critical operations. The HFX-UX's unparalleled KVM extension technology makes it the perfect solution for extending servers in applications ranging from data processing to interactive conferencing.

Applications:
Digital Signage
Security
PC Networking
Conference Center Systems
Point of Sale
Camera Surveillance
Video Phone
Control Room Systems
Recording Studio
PC KVM Extension

  • Features:

    • Extends HDMI up to 10 km (6.2 miles) in the Single Mode
    • Supports up to 3840 x 2160 digital video resolution @ 60 Hz
    • USB Keyboard and Mouse extension
    • Uncompressed Video
    • External power adapter for transmitter and receiver unit
    • Compatible with Windows, Mac and Linux Operating Systems
    • Transparent USB 2.0 extension

  • Specifications:

    • Video
    • Format: HDMI2.0
    • Video Resolution:
      - Resolution: high definition 3840 x 2160
      - Color Depth: 24-bit color depth
      - Latency: less than 1 ms
    • Video Bandwidth: Single-link 340 MHz (10.2 Gbps)
    • Input Interface: (1) HDMI 19-pins (female)
    • Output Interface: (1) HDMI 19-pins (female)
    • Max Output Distance: Up to 20 f
    • Equalization: Automatic
    • Input TMDS Signal: 1.2 Volts [peak-to-peak]
    • Input DDC Signal: 5 Volts [peak-to-peak, TTL]
    • Data Rate: 1.65 Gbps per color

      Audio
    • Format: Stereo
    • Input Interface: 3.5 mm Jack Socket (female)
    • Output Interface: 3.5 mm Jack Socket (female)

      USB

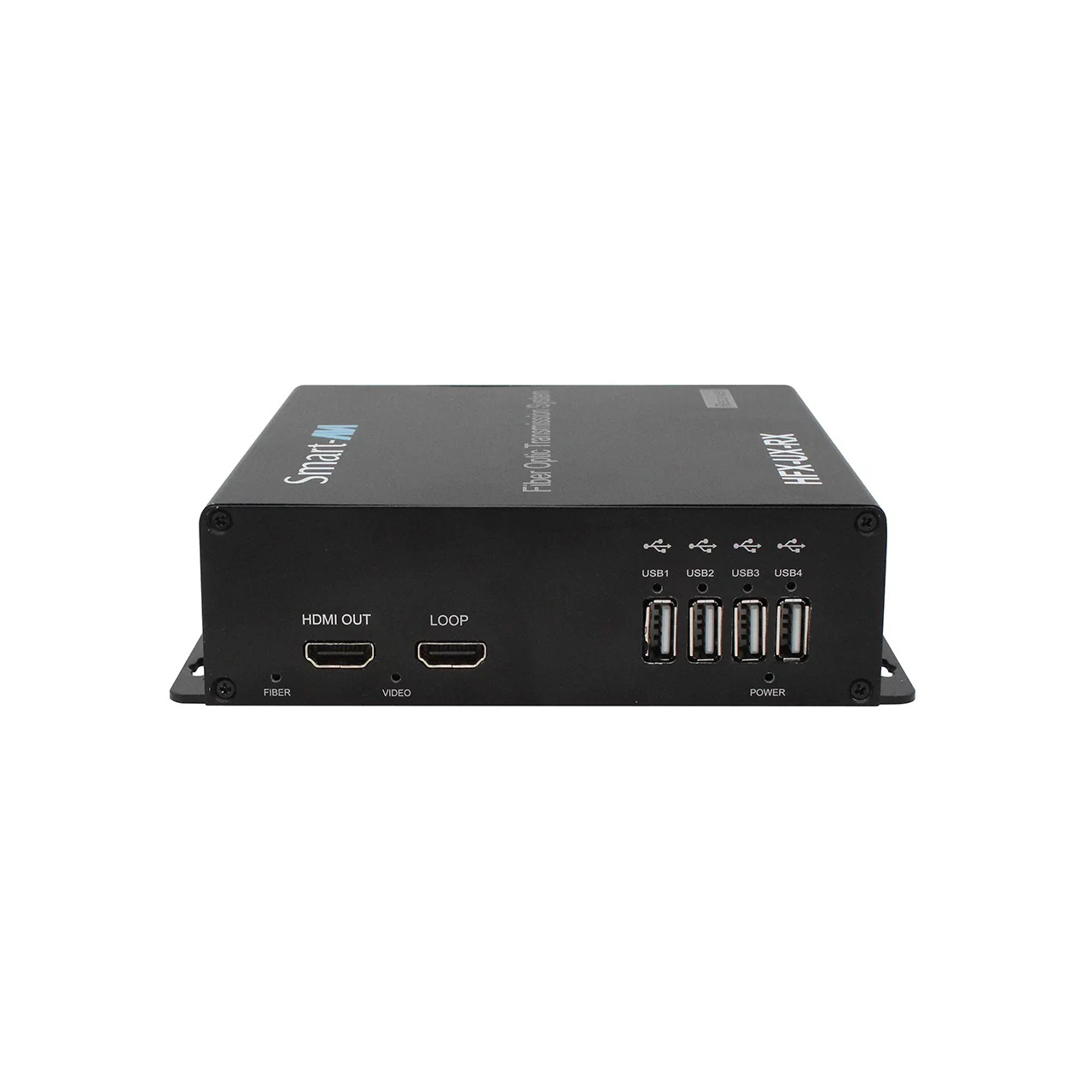

    • Output Interface (RX): (2) USB 1.1 Type A for KM Devices; / (2) USB 2.0 Type A Transparent
    • Keyboard and Mouse: Keyboard and mouse emulation

      System

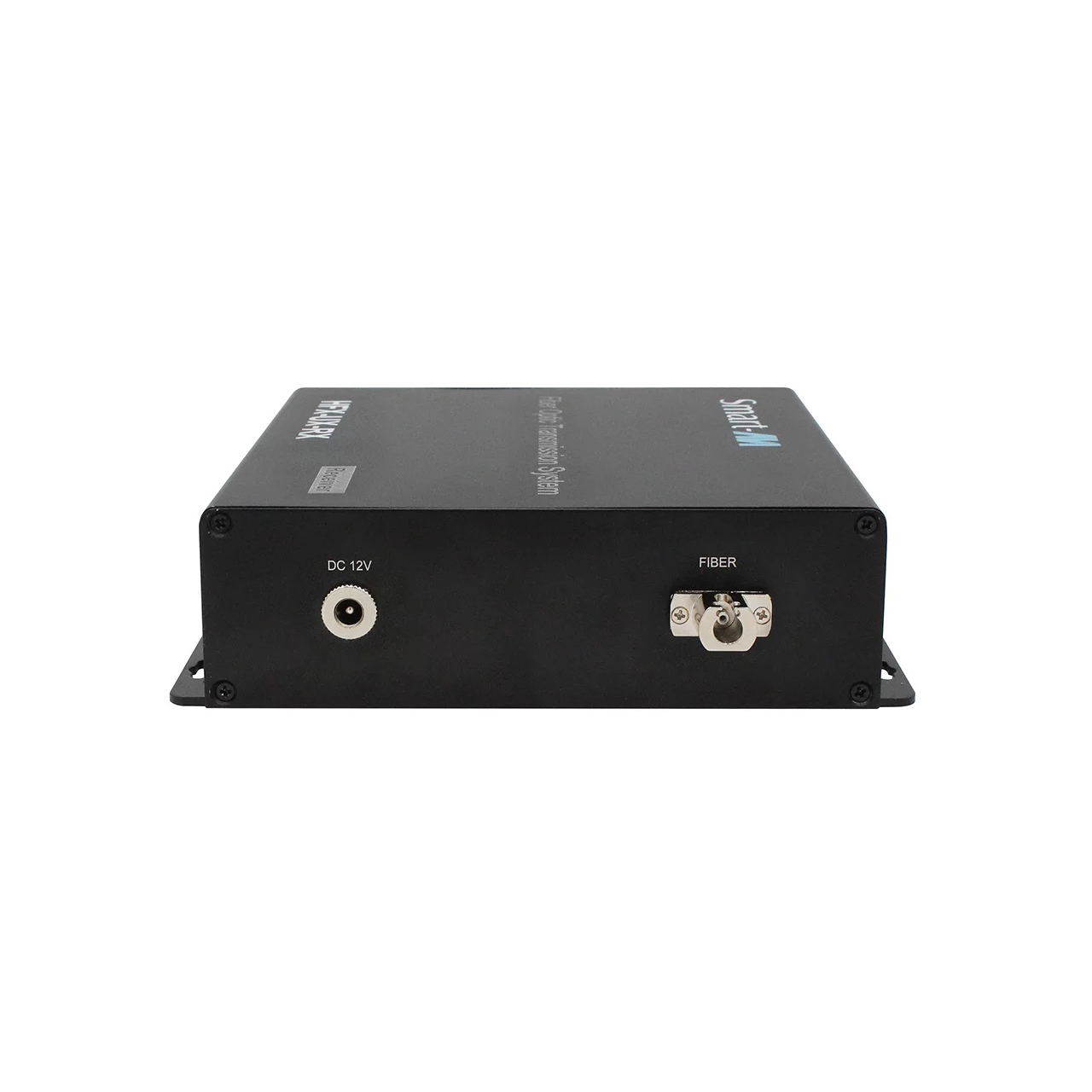

    • Extension Type: Fiber (LC-LC Single)
    • Cable Requirements: Single Fiber
    • Maximum Length: Single mode: 10 km (6.2 miles)
    • Multi mode: 500 m (1640 feet)

      Other
    • Power: 100-240 VAC/ 12VDC @ 3A/15W
    • Dimensions(WxHxD): 7.8 x 1.15 x 3.65 In (198.12 x 29.21 x 92.71 mm)
    • Weight: 1 lb (.45 kg) (.5 (.23 kg) lbs per unit)
    • Approvals: UL, CE, ROHS Compliant
    • Operating Temperature: +32 to +104°F (0 to +40°C)
    • Storage Temperature: -4 to 140°F (-20 to +60°C)
    • Operating Humidity: 20% to 80% (non condensing)
    • Storage Humidity: Up to 95% (No Condensation)
    • Compliance EMC: FCC (Class A), CE (Class A), ICES-003
    • Environmental Compliance: RoHS2 (CE)

  • Item Includes:

    • 1x HFX-UX-RX Unit
    • 1x Power Adapter
    • 1x User Manual

  • Warranty:

    • 1 Year Warranty
