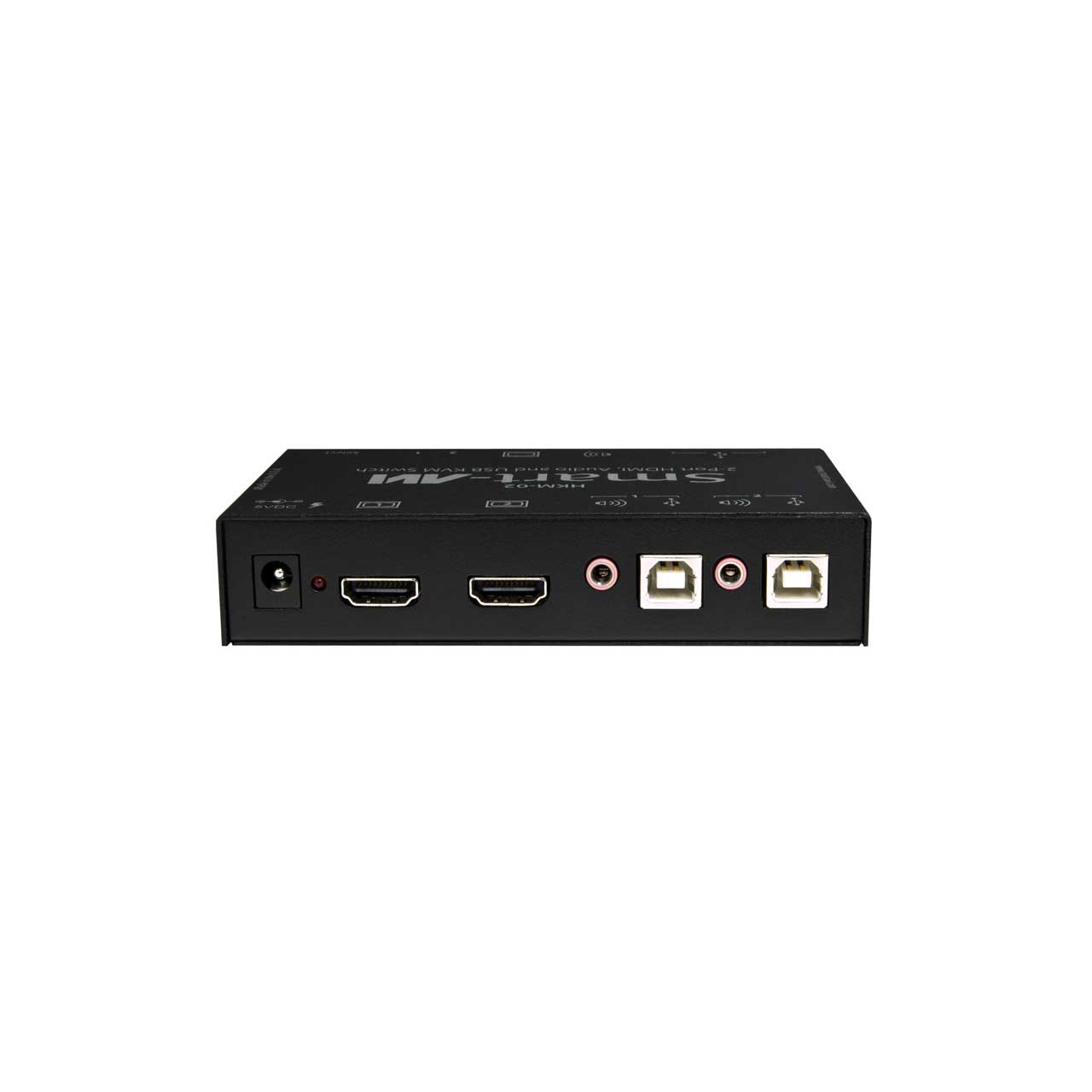

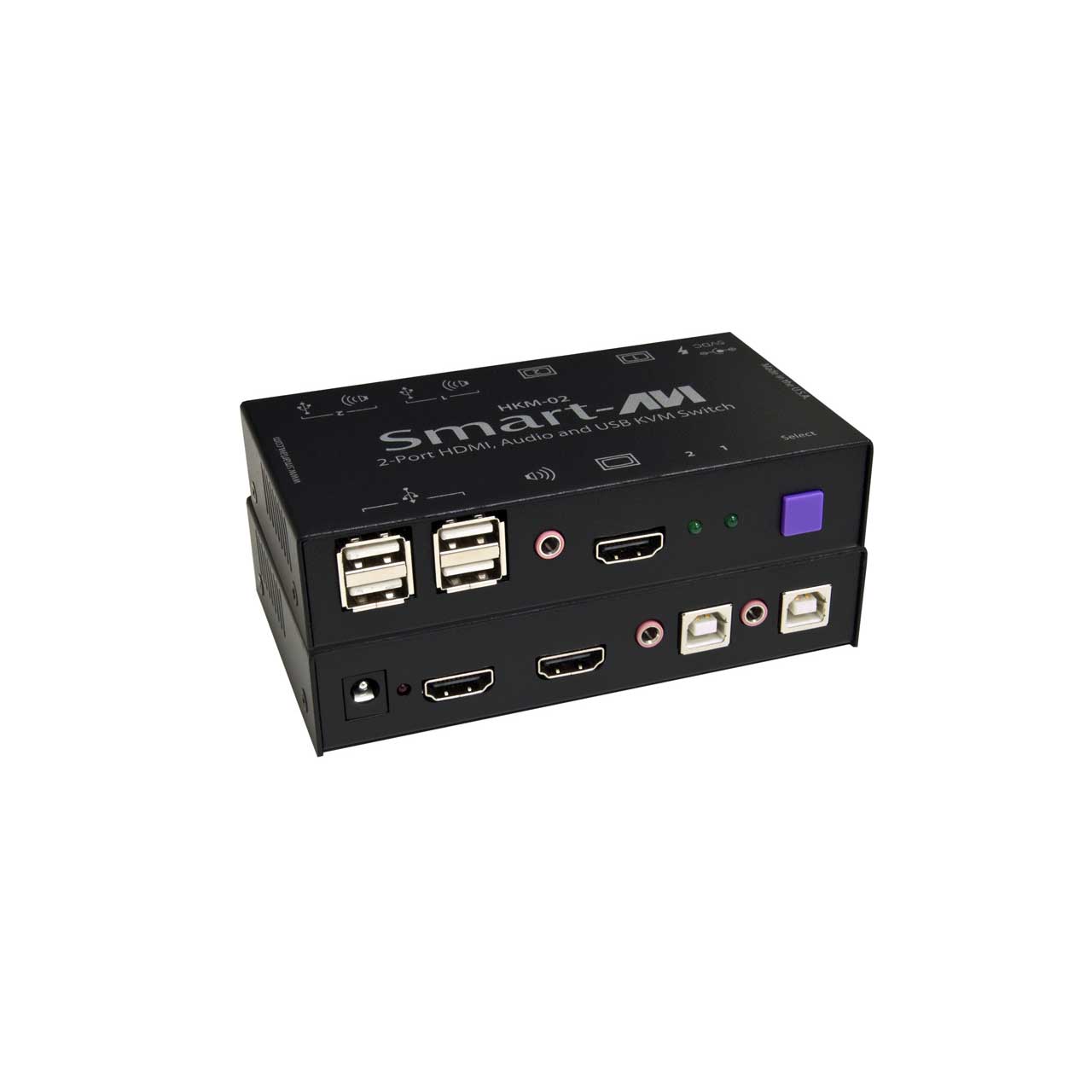

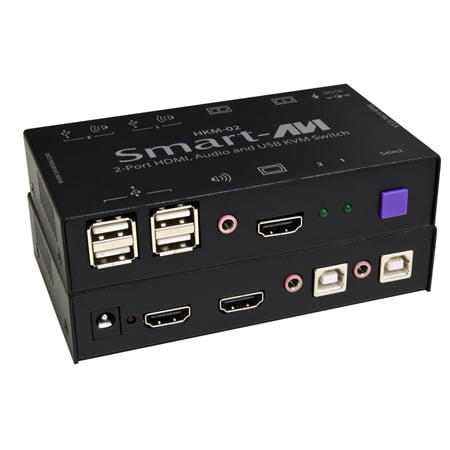

Smart AVI HKM-02S 2-Port HDMI with Stereo Audio USB 2.0/1.1 Switch

HKM-02S - Overview

• Features:

  • Compatible with Mac, PC, Linux and Sun
  • Supports High Definition HDMI
  • Supports USB keyboard and mouse
  • Balanced stereo audio output

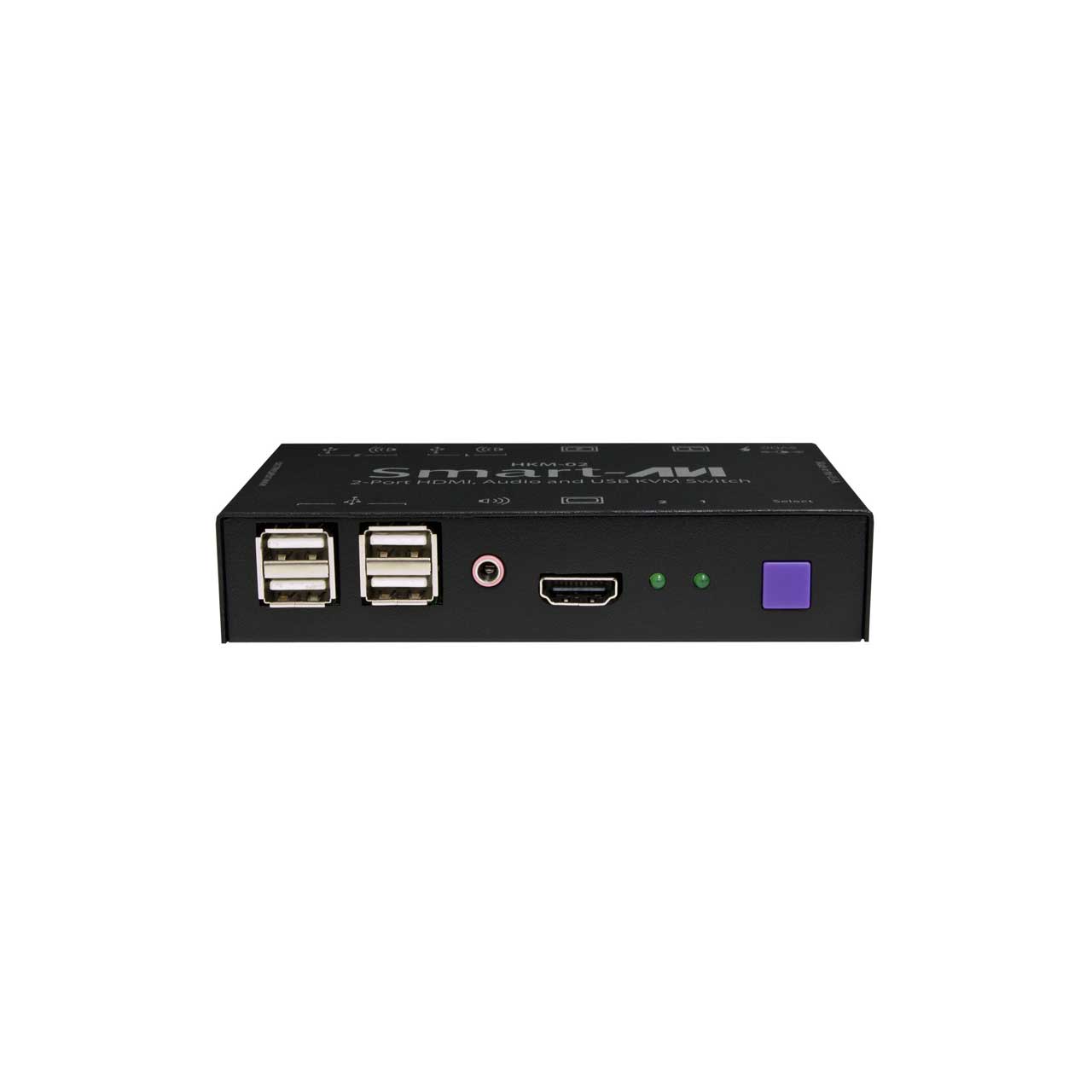

  • Front panel tactile switch with LED indicator
  • Supports Auto-scan mode for simple discovery


• Specifications:

  • VIDEO
  • Format HDMI 1.3b [Deep Color, xvYcc color space supported]
  • DVI Compliance Single-link DVI-D 2.0
  • HDCP Compliance 1.0/2.0
  • Video Bandwidth Single-link 340MHz [10.2Gbps]
  • Resolution 480i,480p,720i,720p,1080i,1080p
  • Input Interface (2) HDMI[7.1ch audio & video]
  • Output Interface (1) HDMI[7.1ch audio & video]
  • Connector Type A[19-pin female]
  • Maximum Distance 25 ft.


  • AUDIO
  • Frequency Response 20 Hz to 20 KHz
  • Impedance 600 ohm
  • Nominal Level 0-1.0 V
  • Common Mode Rejection at 60dB
  • Input Interface (4) 3.5 mm Stereo Audio
  • Output Interface (1) 3.5 mm Stereo Audio


  • USB
  • Signaling USB 2.0, 1.1, and 1.0
  • Input Interface (2) USB Type B
  • Output Interface (2) USB Type A


  • CONTROL
  • Front Panel Tact Switch


  • OTHER
  • PowerExternal 100-240 VAC 5VDC2A @10W
  • Dimensions 5"W x 1.25"H x 2.875"D
  • Weight 0.8 lbs.
  • Approvals UL, CE, ROHS Compliant
  • Operating Temp. 32-131°F (0-55 °C)
  • Storage Temp. -4-185 °F (-20-85 °C)
  • Humidity Up to 95%
