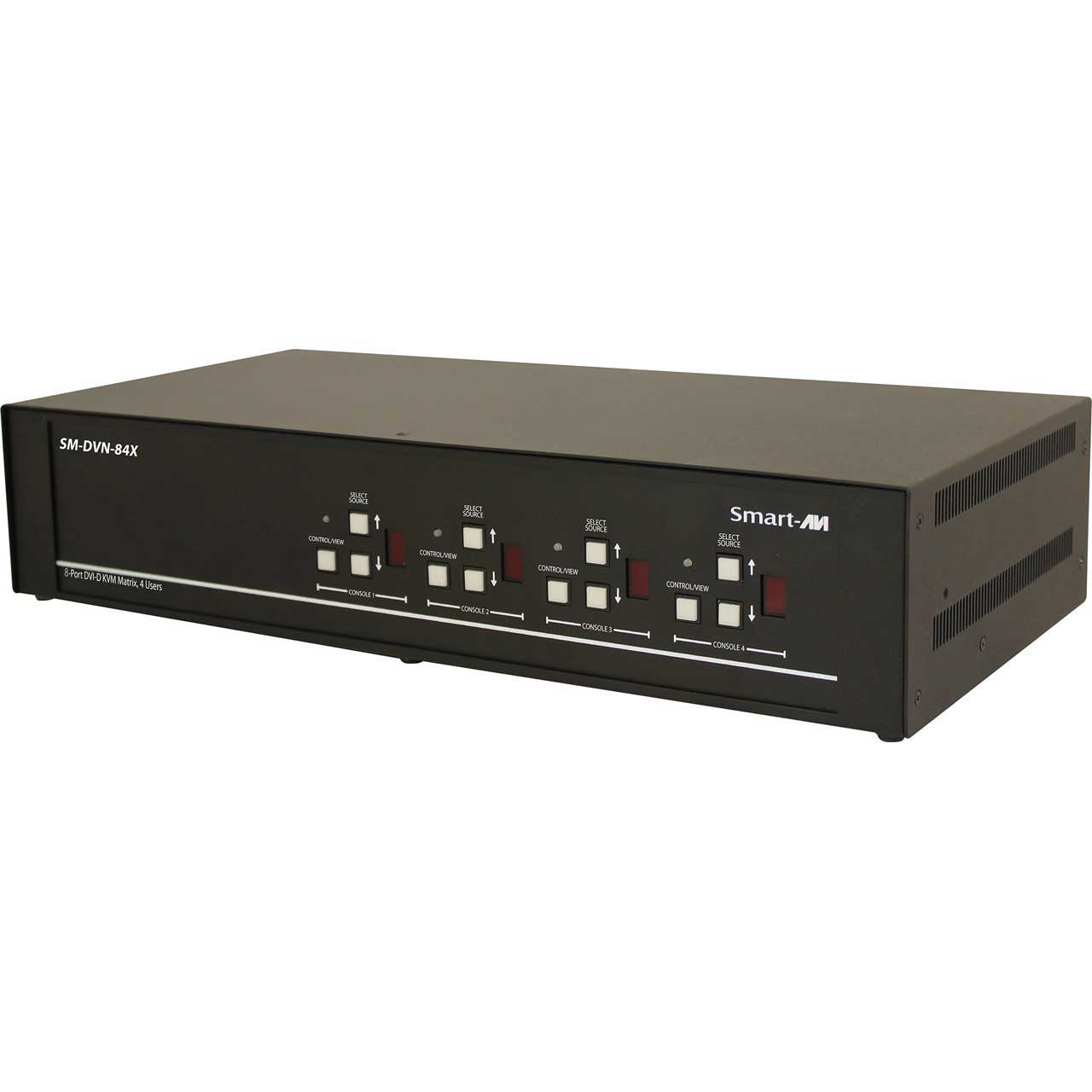

Smart AVI SM-DVN-84X DVI-D Matrix KVM Switch with Audio and USB 2.0 Support (4 Users) - 8 Port

SM-DVN-84X - Overview

• Features:

  • DVI-D Dual Link Video Connectors; can mix DVI Dual-Link and DVI Single-Link Computers
  • HDMI support using active adapters or cables
  • Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc.
  • Supports resolutions up to 2560 x 1600 @ 60Hz
  • Zero pixel loss with TMDS signal correction
  • Supports USB keyboard and mouse
  • Supports additional USB 2.0 devices like printers, scanners, web cameras and more
  • Rack mountable in a standard 19 inch rack
  • Flash upgradeable firmware
  • Stereo Audio support

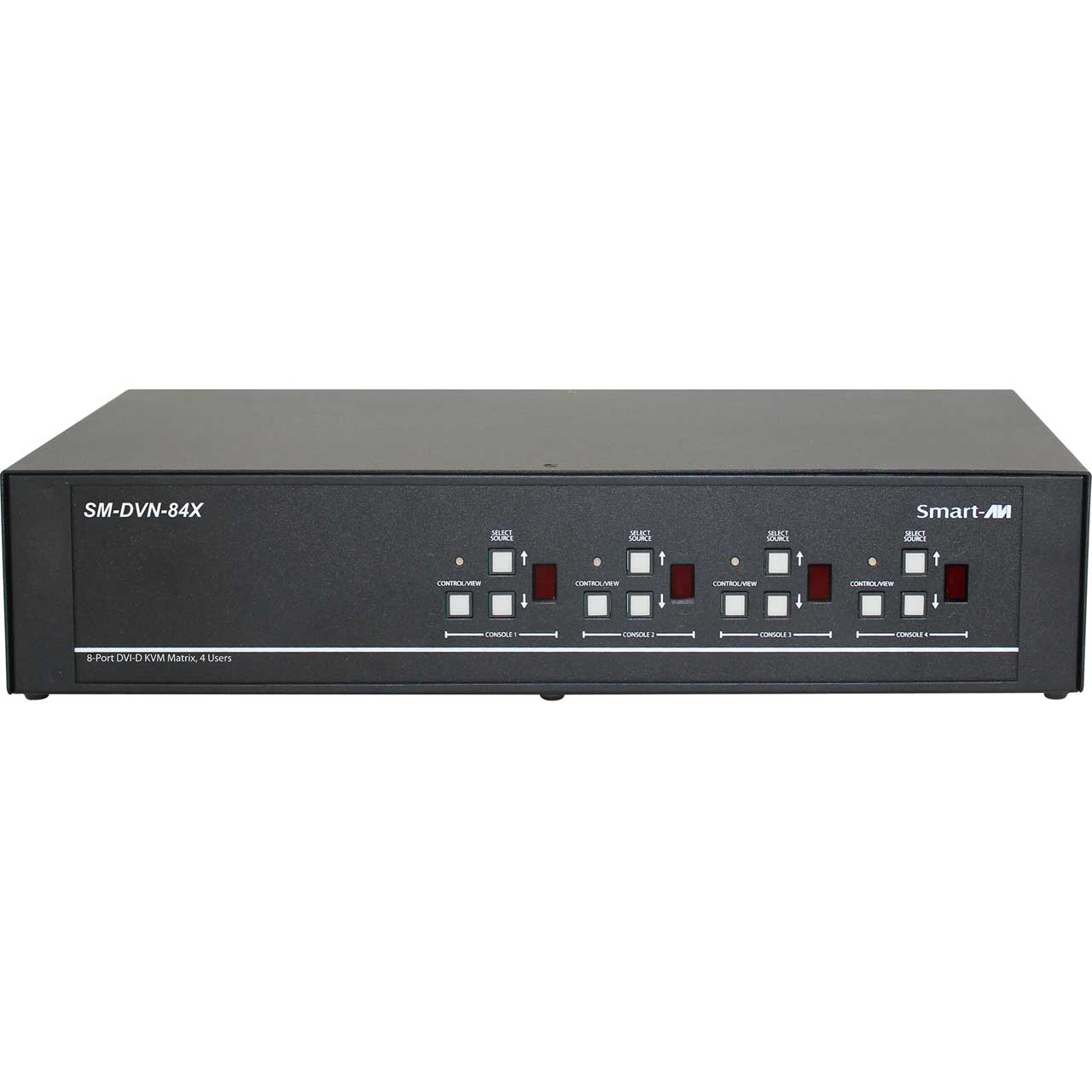

  • Front panel keys for manual port selection
  • Hot-key commands for quick port selection
  • RS-232 for remote control

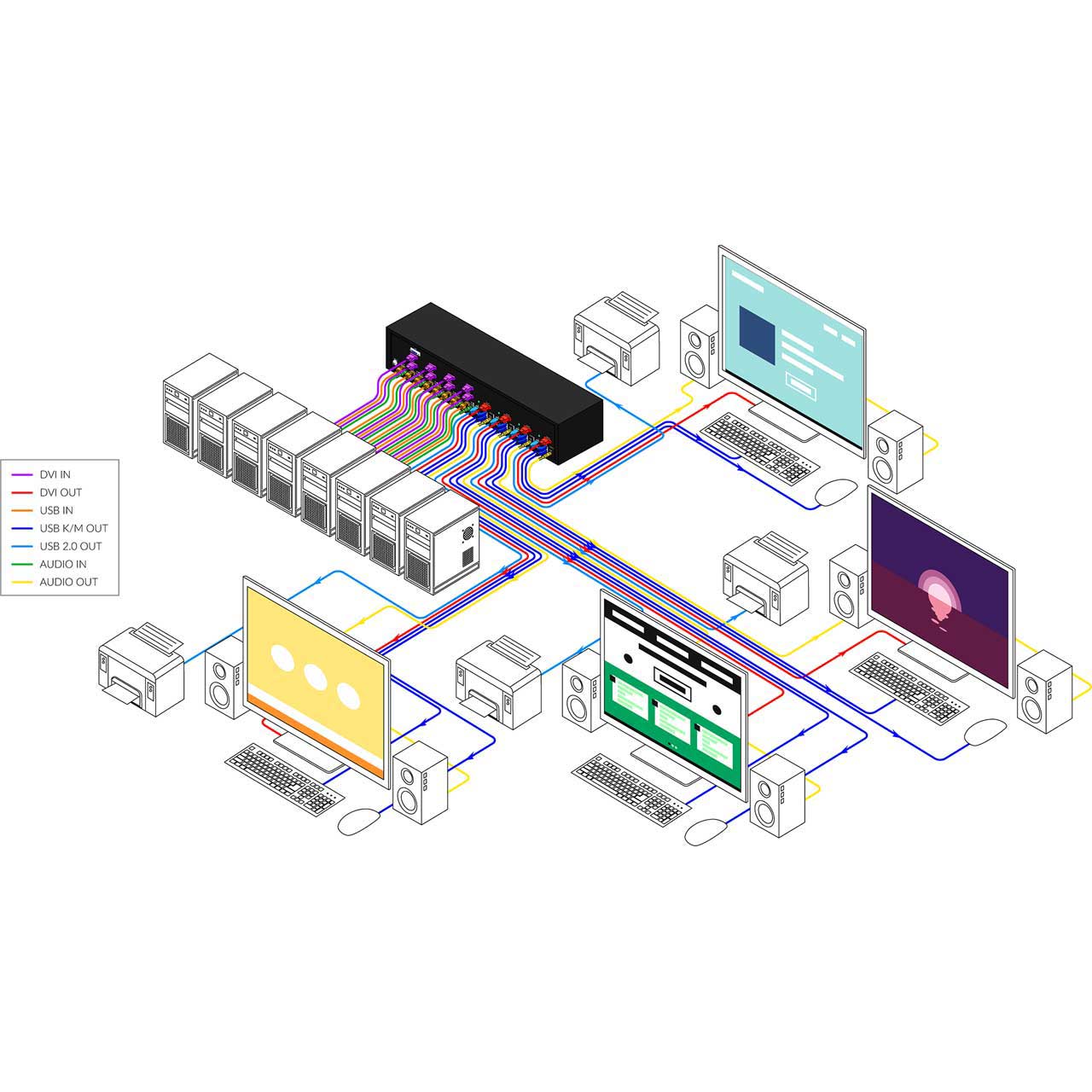

  • Independent (asynchronous) switching of KVM and peripheral USB/audio ports. Users can listen to audio from one computer while working on a different computer, or scan a document and save it on another computer
  • Complete keyboard emulation for error free booting


• Specifications:

  • Video:
  • Format: DVI Dual Link; DVI Single-Link
  • Maximum Pixel Clock: 165 MHz
  • Input Interface: (16) DVI-D 29-pin
  • Output Interface: (2) DVI-D 29-pin
  • Resolution: DVI Dual-Link: 2560 x 1600; DVI Single-Link: 1920 x 1200
  • Color Mode: 24-bit
  • DDC: 5 volts p-p (TTL)
  • Input Equalization: Automatic
  • Input Cable Length: Up to 20 ft.
  • Output Cable Length: Up to 20 ft.
  • Data Rate: 1.65 Gbps per color
  • Console Monitors: Supports both digital and analog monitors

    Audio:
  • Input Interface: (8) 3.5 mm Stereo Audio
  • Output Interface: (1) 3.5 mm Stereo Audio
  • Impedance: 600 Ohm
  • Frequency Response: 20 Hz to 20 kHz
  • Nominal Level: 0-1.0 V
  • Common Mode: Rejection at 60 dB

    Software Compatibility:
  • Operating Systems: Operates with virtually any OS including Windows, DOS, Linux, Unix, Sun, Mac, etc.

    USB:
  • Signal Type: USB 2.0, 1.1, and 1.0 w/ internal hub
  • Input Interface: (8) USB Type B
  • Output Interface: (2) USB 1.1 Type A for KVM Devices; (2) USB 2.0 Type A Transparent

    Control:
  • Front Panel: Push Buttons with LED Indicators
  • RS-232: Via Control @ 9600 bps
  • Hot Keys: Via Keyboard

    Other:
  • Power: External, 100-240 VAC/12VDC3A @ 36W
  • Dimensions: 17.0" W x 2.7" H x 8.69"" D
  • Weight: 6.9 lbs
  • Approvals: UL, CE, ROHS Compliant
  • Operating Temperature: +32 to +104°F (0 to +40°C)
  • Storage Temperature: -4 to 140°F (-20 to +60°C)
  • Humidity: Up to 80% (No Condensation)
  • Emulation: Keyboard and Mouse


• Item Includes:

  • 1x SM-DVN-84X KVM Switch
  • 1x PS12VD2A 12V DC 2A Power Adapter
  • 1x Quick Start Guide
