Sennheiser L 6000 19in 1RU Rack Charger - Up to 4 LM 6060/6061/6062/ 6070 Charging Modules - Modules Not Included

ITEM #: SENN-L600-US MFG #: 507302

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Sennheiser
Free Shipping with $49 Minimum Order

List Price:

$1,299.00

Our Price:

$1,099.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

507302 - Overview

Practical. Central. Intelligent.

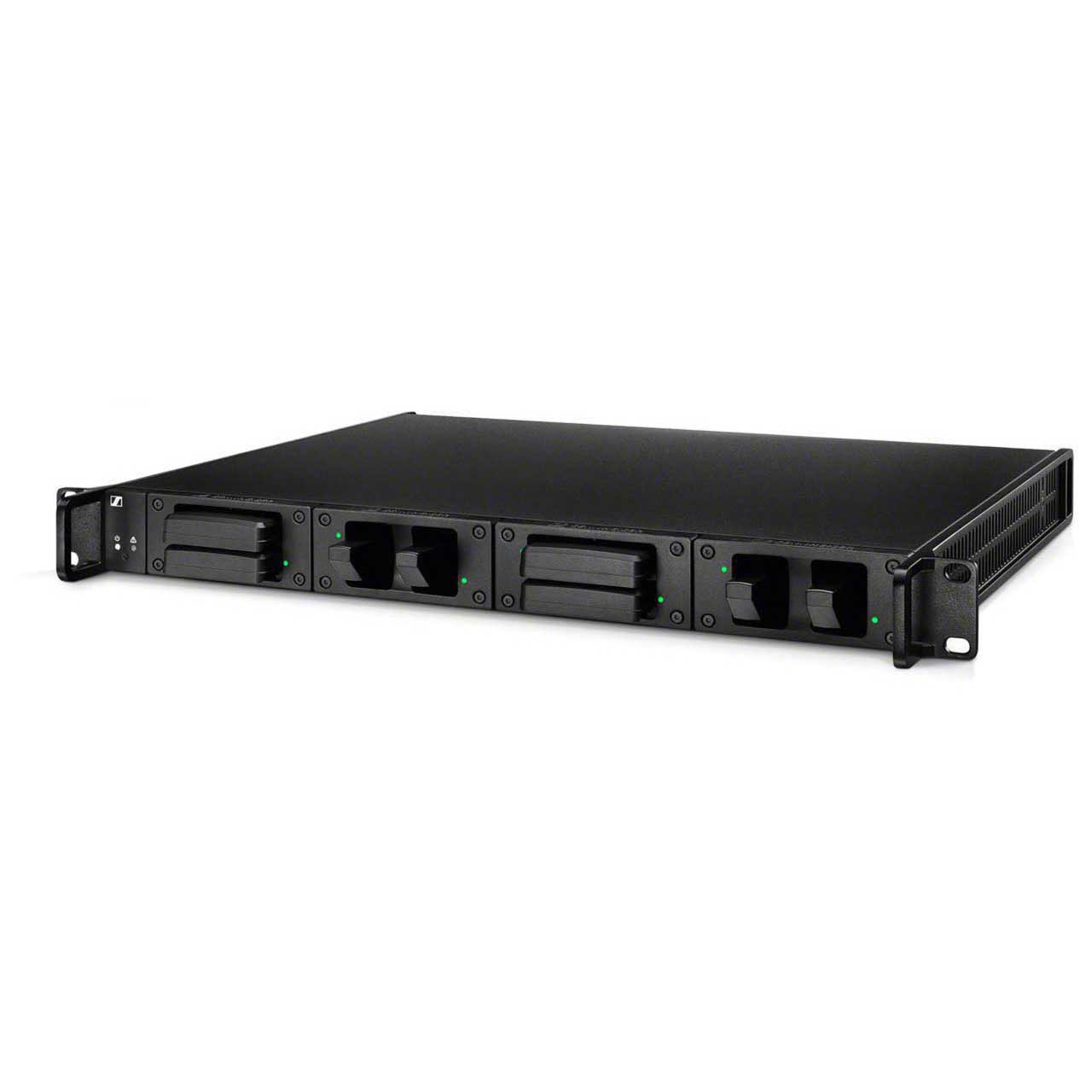

The Sennheiser L 6000 is a 19" 1RU charging station that delivers power centrally and directly in the rack. Up to four freely selectable charging modules can fit into this charging station and can accommodate two bodypack or two handheld transmitter battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61, BA 62 or BA 70). Three-color LEDs give a quick overview of the charging status. The intelligent control system prevents heat build-up and also offers a mode that optimally charges the batteries for extended storage periods.

The L 6000 charging station has a modular construction and is futureproof: Charging stations for future battery pack types can simply be retrofitted.

Extensive details regarding temperature, remaining charging time, run times, charging cycles and battery quality can be retrieved via the Wireless Systems Manager (WSM).

PLEASE NOTE: This unit does not come with charging modules. LM 6060, LM 6061, LM 6062 & SENN-LM6070 charging modules are sold separately.

  • Features:

    • 19" charging station in 1RU
    • Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)
    • Quick overview of charging status with three-color LEDs
    • Intelligent charging control with four fans for optimum cooling
    • Storage mode keeps battery packs in optimum charge condition for longer storage periods
    • Integrates into the Wireless Systems Manager


  • Specifications:

    • Charging Capacity: Up to 8 accupacks (BA 60, BA 61 and BA 62) across 4 exchangeable charging modules (LM 6060, LM 6061 and LM 6062)
    • Charging Times at 68°F (20°C):
      BA 60:
      80%: approx. 1:15 h (approx. 4:45 h operating time)
      Full: approx. 2:30 h
      BA 61:
      80%: approx. 1:45 h (approx. 5:00 h operating time)
      Full: approx. 3:15 h
      BA 62:
      80%: approx. 1:15 h (approx. 9:30 h operating time)
      Full: approx. 2:45 h
    • Charging Temperature Range:
      Charging: 32°F - 122°F (0°C - 50°C)
      Ambient: 14°F - 122°F (-10°C - 50°C)
    • Operating Relative Humidity: Max. 90% @ 104°F (40°C)
    • Charging Status Display: Multi-colored
    • Network: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
    • Power Supply: 100 - 240V ~, 50/60Hz
    • Maximum Power Consumption: 85W
    • Minimum Power Consumption: 1W
    • Charging Current: 2A
    • Average Discharge Current: 0.15A
    • Charging Voltage: 4.2V
    • Power Plug: 3-pin, protection class I (In accordance with IEC/EN 60320-1)
    • Dimensions (HxWxD with mounting elements): 1.75" x 19" x 14.69" (44mm x 483mm x 373mm)
    • Weight: 11.25lbs (5.1kg)
      **Water Protection Code: The product must not be exposed to dripping and splashing (IP2X)


  • Item Includes:

    • L 6000 Charging Station
    • Power cable
    • 4x dummy covers w/ screws
    • 4x rubber feet
    • 2x stickers
    • Quick Guide
    • Safety Guide


  • GTIN:

    0615104281110
