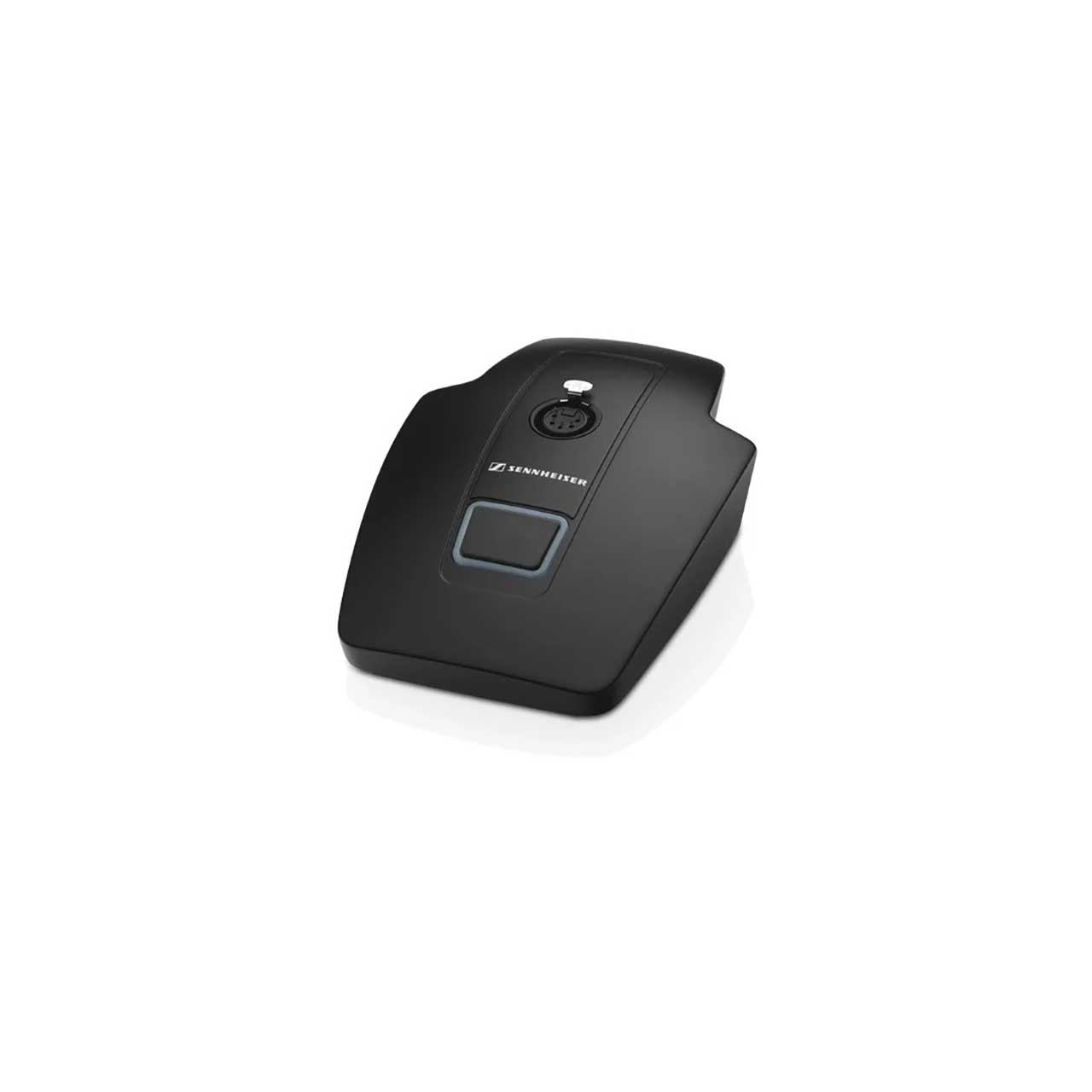

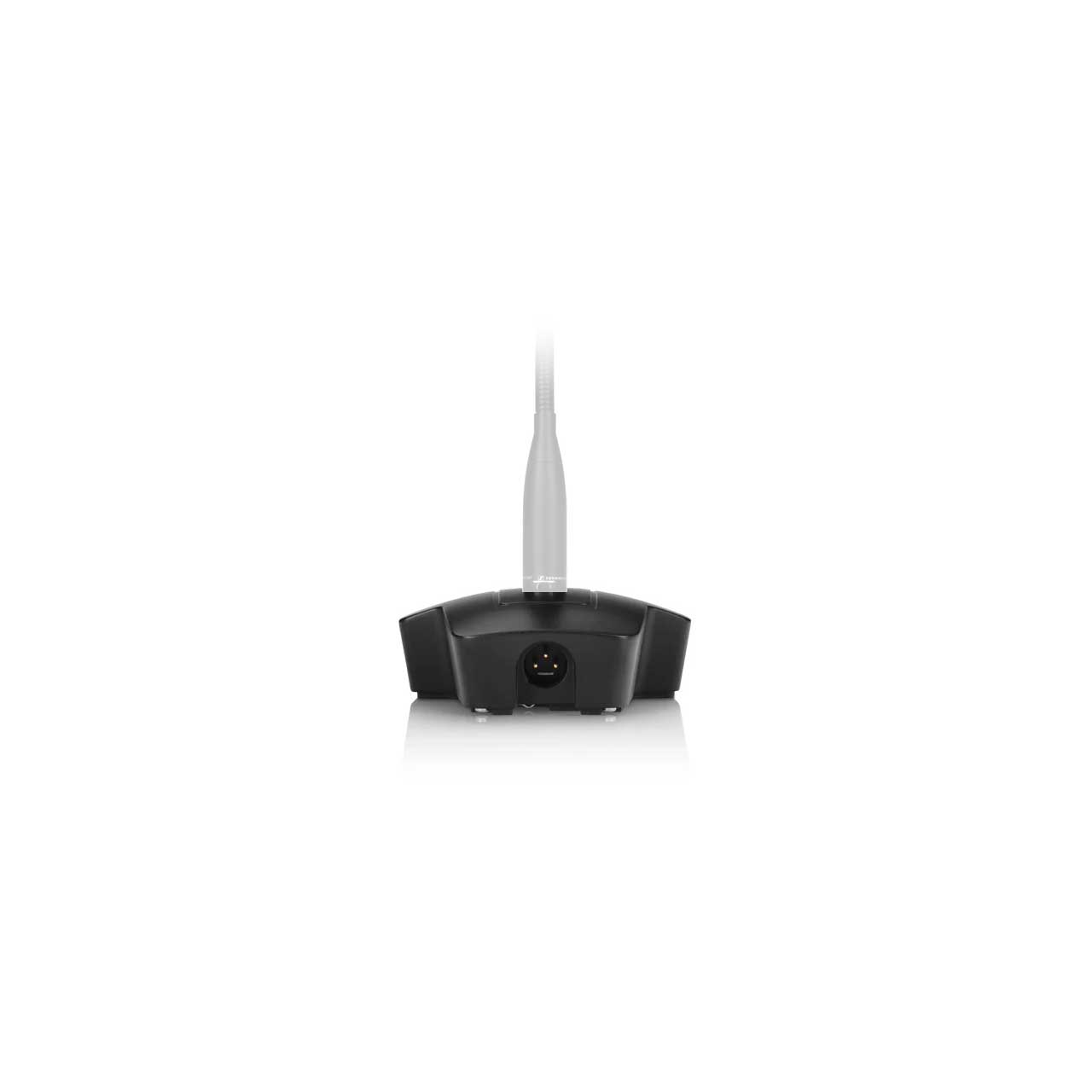

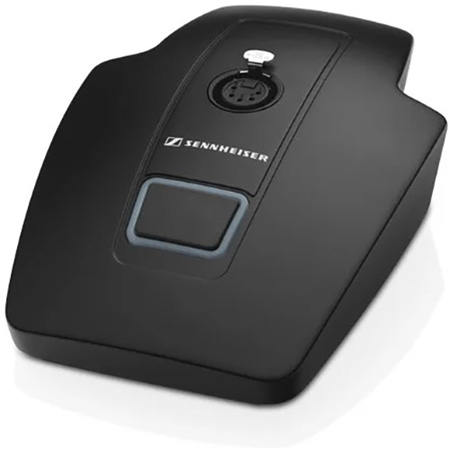

Sennheiser MAT 153-S B Table Stand for MEG 14-40-L II - Sensor with LED Ring - TTL Logic - 24-48 V Phantom - Black

MAT 153-S B - Overview

• Features:

  • Wired Table Stand
  • For 5-Pin XLR Gooseneck Mic
  • Mic Button with Red/Green Light Ring
  • TTL Logic Output


• Specifications:

  • Connectors:
  • Mic In: 5-Pin XLR Female
  • Mic Out: 3-Pin XLR Male
  • Logic: Clip Contact for Logic In (External LED Control), Ground, and Logic Out
    (Switch Signal)
  • Current Consumption: 3.7 mA

    Input/Output Voltage:
  • Logic Out: High-Level Output Voltage >2.4 V, Low-Level Output Voltage <0.4 V
  • Logic In: High-Level Input Voltage >2.0 V, Low-Level Input Voltage <0.8 V


  • LED Status Indicator: Light Ring: Red/Green


• Item Includes:

  • 1x MAT 153-S-B Table Stand


• GTIN:

  0615104230668
