Save big on the costs of expensive XLR audio snakes and pair-down 4 cable channels into a single low profile run with the Sescom 4X2M2F-CATBX. This brilliantly simple stage box allows you to convert 4 XLR channels to single RJ45 connection allowing balanced mic level, AES/EBU digital or DMX signals to be run over a single CAT5, CAT5e, CAT6 or CAT7 cable.

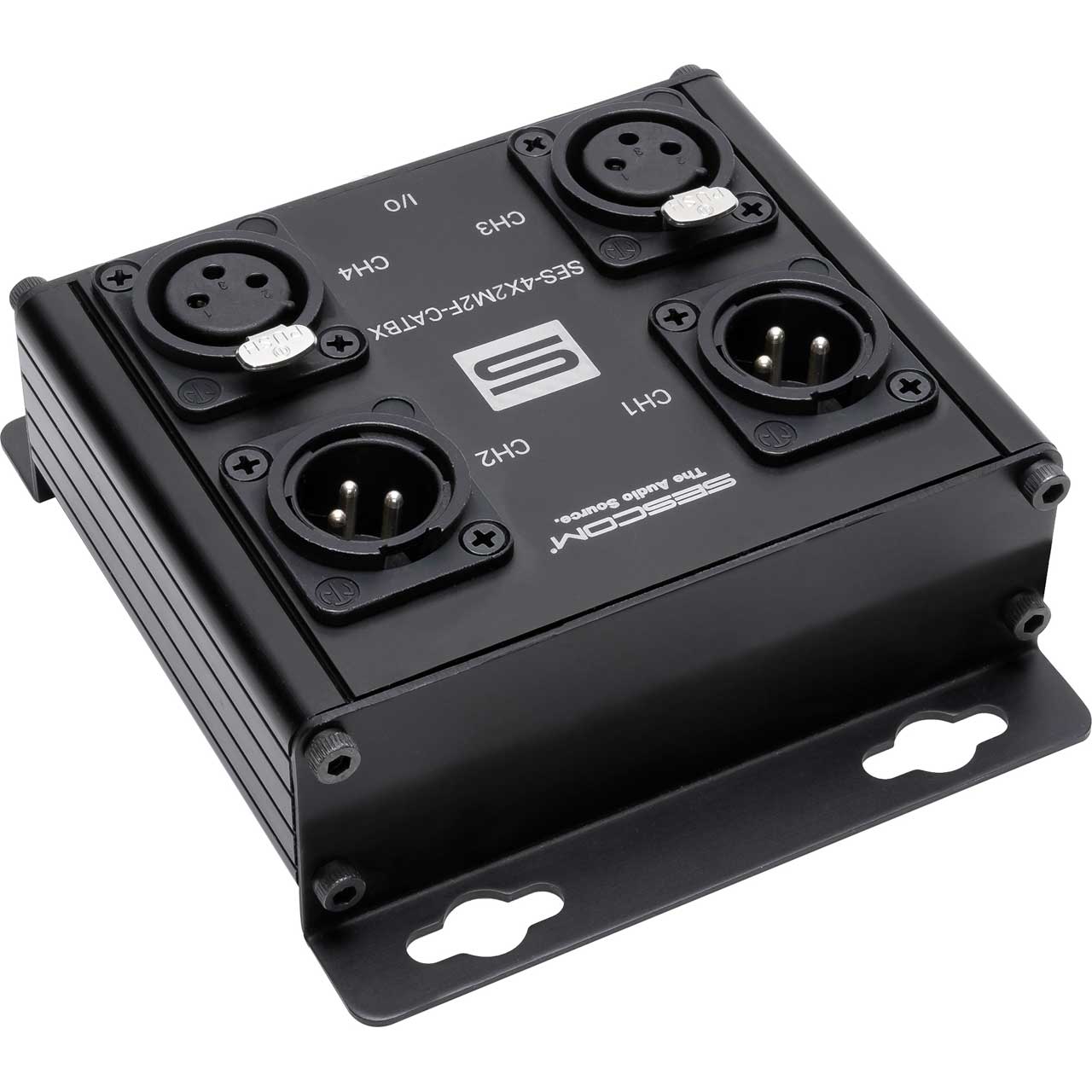

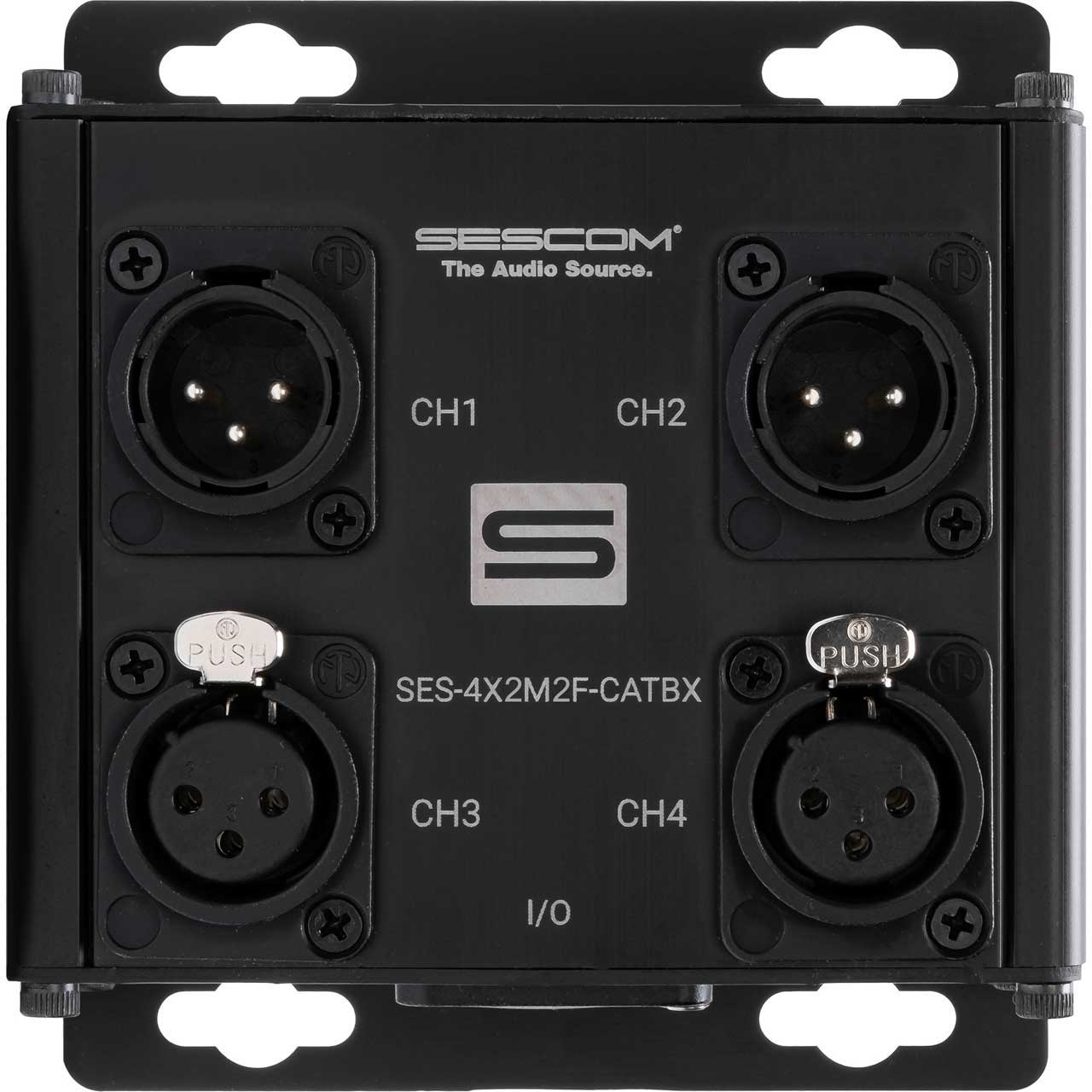

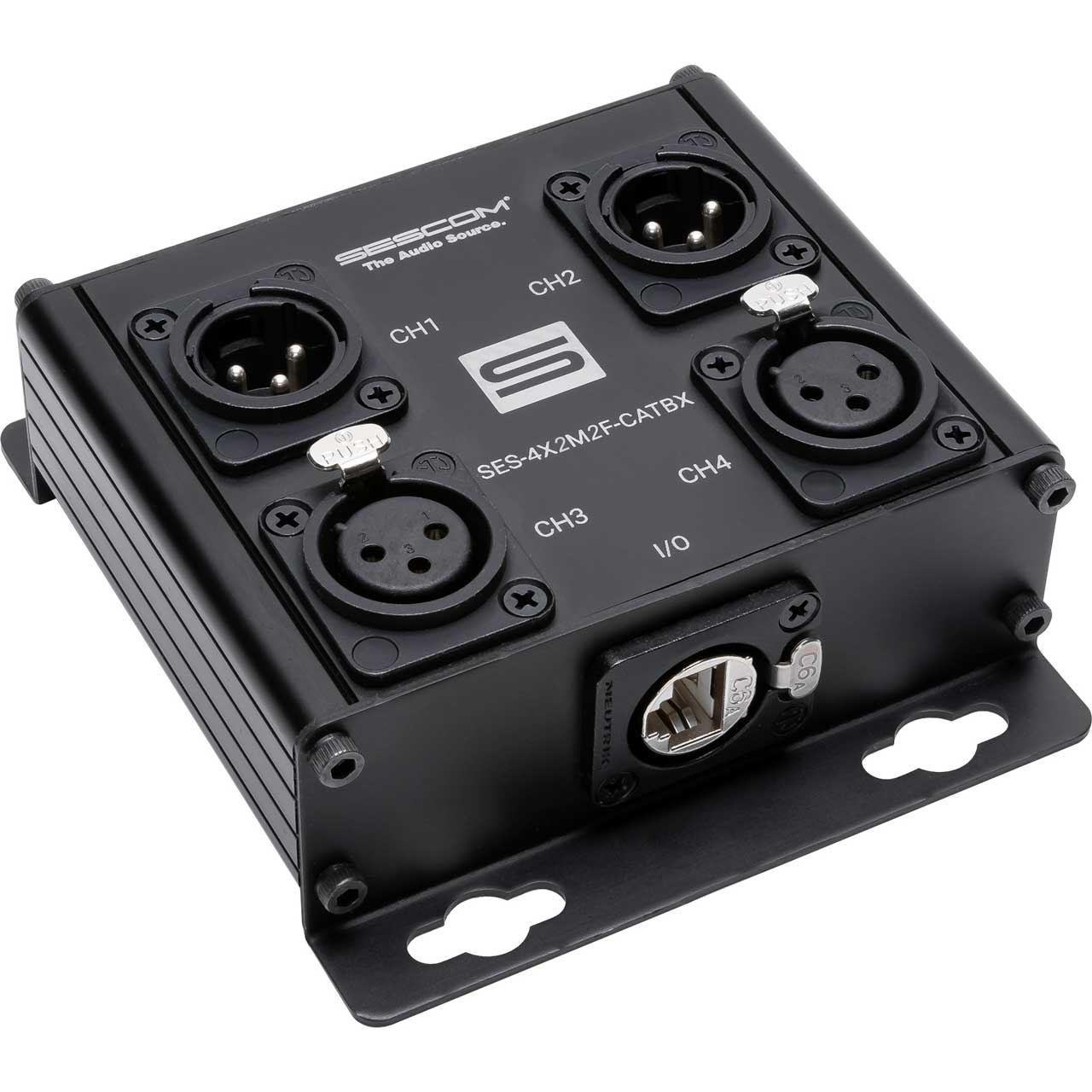

Run only the channels you need and even take advantage of the Sescom 4X2M2F-CATBX versatility by mixing multiple signals types in the same setup. The 4X2M2F-CATBX features two (2) male and two(2) female 3-pin XLRs in a rugged stage box wired to a single Neutrik etherCON RJ45 jack. Because it's passive, it's compatible with analog or digital mixers, consoles, breakouts boxes and more. Pair the system to a Jackreel connectorized RJ45 cable reel and you have a fast field deploy system for gigs, live events and any remote production. Multiple stage boxes can be daisy chained to allow the same channels to be dropped in multiple locations.
4-channel versions will support phantom power ONLY if shielded category cable is used.
This unit, SES-4X2M2F-CATBX, can be paired with: SES-4X2F2M-CATBX or SES-4XLR2F2M-CAT.
