Sescom DT12 Female Audio Patch Panel with 12 parallel XLR channels

ITEM #: SES-DT12FXMF-P MFG #: SES-DT12FXMF-P

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$997.49

Our Price:

$881.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SES-DT12FXMF-P - Overview

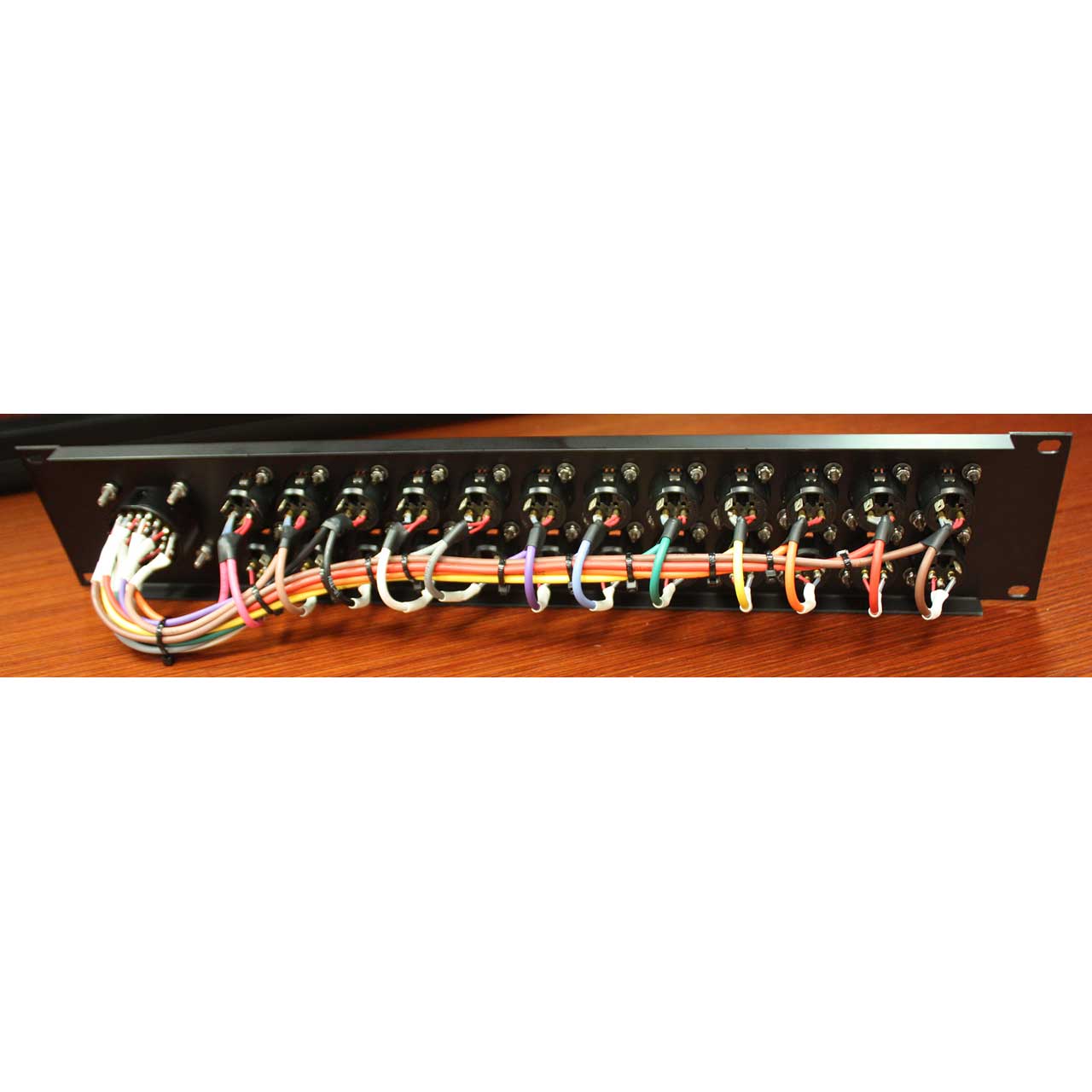

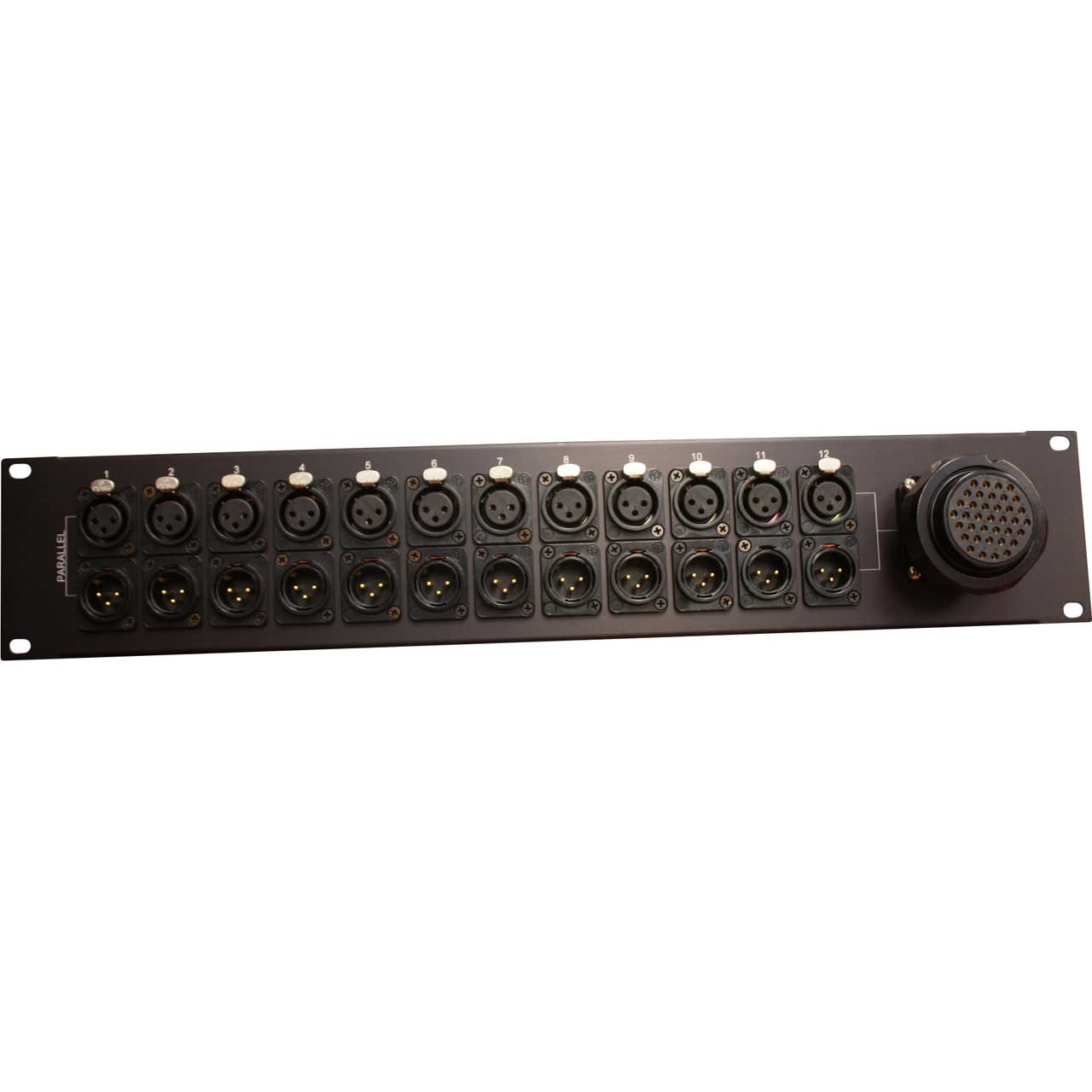

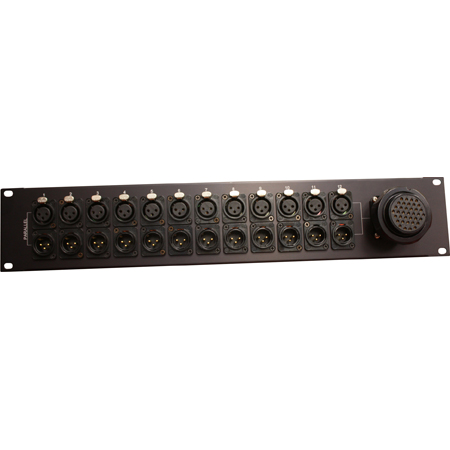

The Sescom DT12FXMF-P is the perfect panel for outside broadcast trucks and live event head-ends whenever you need to breakout a DT12 cable run to a 12-channel 3-pin XLR audio interconnect.This pre-wired panel has a DT12 Female Chassis Mount and is parallel wired offering both 12 male and 12 female XLR connectors. The cable backbone has 22AWG conductors, is CMR rated and has individually shielded and jacketed pairs. Female XLRs are on the top row and male XLRs are on the bottom row.

  • Features:

    • 2RU Size
    • Industry Standard DT12 Connectors
    • High Quality Neutrik Connectors

  • Specifications:

    • Neutrik Connectors:
    • Robust "D" Metal Shell
    • Panel Cutout
    • Contact Resistance: ≤ 5 mΩ
    • Rated Voltage: < 50 V
    • Insertion & Withdrawal Force: ≤ 20 N
      Panel:
    • Black Anodized Aluminum
    • 19” x 3.5” x 3”

  • Warranty:

    • 1 Year
