Sescom DT12 Male Breakout Cable to 12 Female XLR- 25 Foot

ITEM #: SES-DT12MXF-025 MFG #: SES-DT12MXF-025

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$760.49

Our Price:

$745.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SES-DT12MXF-025 - Overview

A Sescom DT12 cable offers the peace of mind you're installing a professional, hand-crafted cable ready to be used in the most challenging or even the most mundane environments. Sescom's complete line of exceptionally rugged cable assemblies are designed to support live event sound and outside broadcast sports.

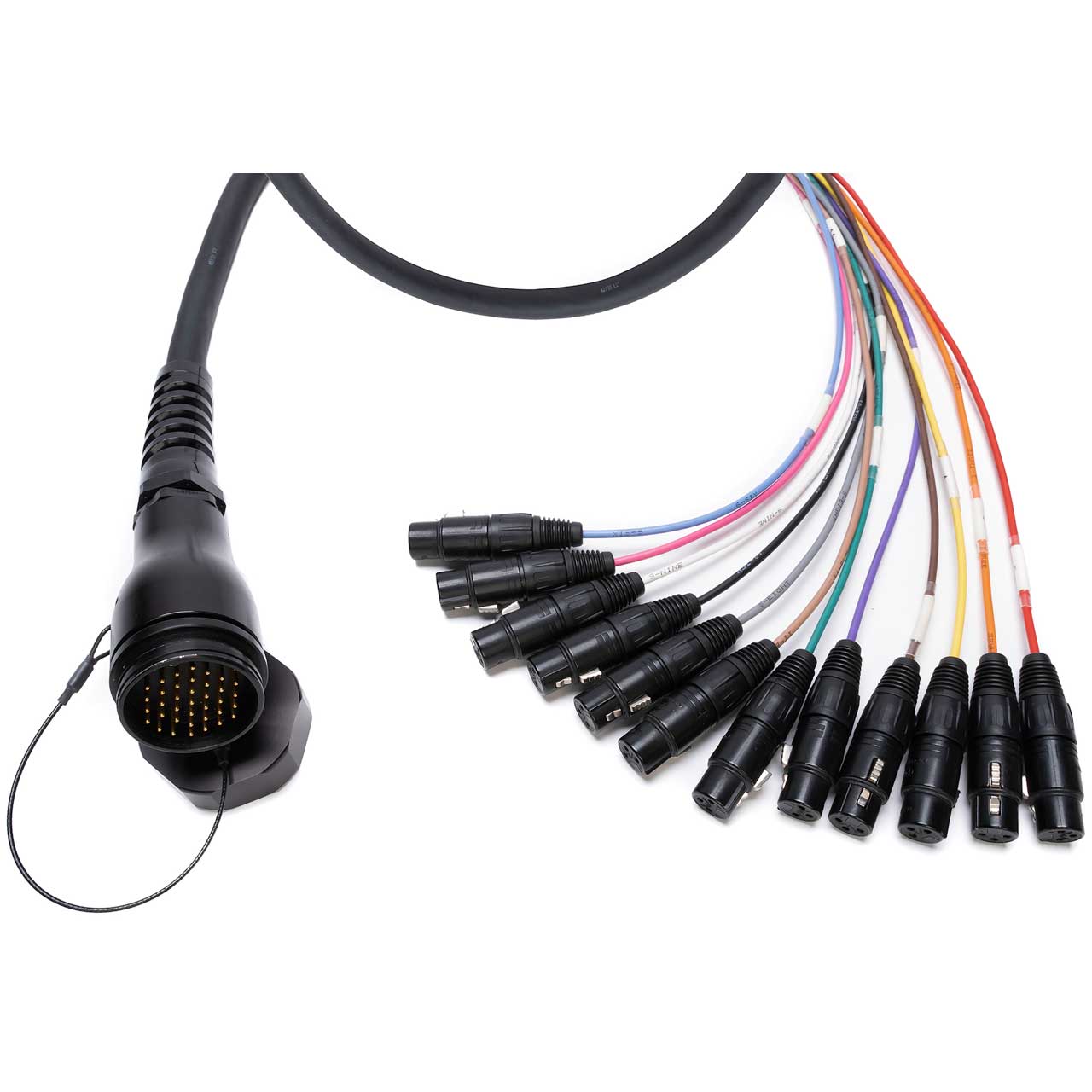

The DT12MXF series cable is a DT12 Male multipin to 12 channel XLR female breakout cable. Each channel is individually shielded for superior isolation and low crosstalk. The XLR ends are Neutrik black and gold connectors. The all metal DT12 multipin connectors offer stainless steel threads for panel and cable coupling as well as gold plated contacts. The cable features 12 individually shielded and jacketed pairs with an overall TPE jacket to simplify the run.

  • Features:

    • High Quality Neutrik XLRs
    • Rugged Multichannel DT12 Connector with Protective Cap
    • Rugged Zinc Diecast Shell
    • Boot with Rubber Gland Gives High Protection Against Bending Stresses
    • RoHS Compliant Cabling

  • Specifications:

    • Neutrik NC3FX-B:
    • Contact Resistance: ≤ 3 mΩ
    • Rated Voltage: < 50 V
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion & Withdrawal Force: ≤ 20
      Cable:
    • Material: Annealed Tinned Copper
    • Cable Shield: Aluminum
    • Conductor Count: 12 Pairs
    • AWG & Stranding: 22 AWG 7 Strand Class B
    • Insulation Material: Polypropylene

  • Warranty:

    • 1 Year
