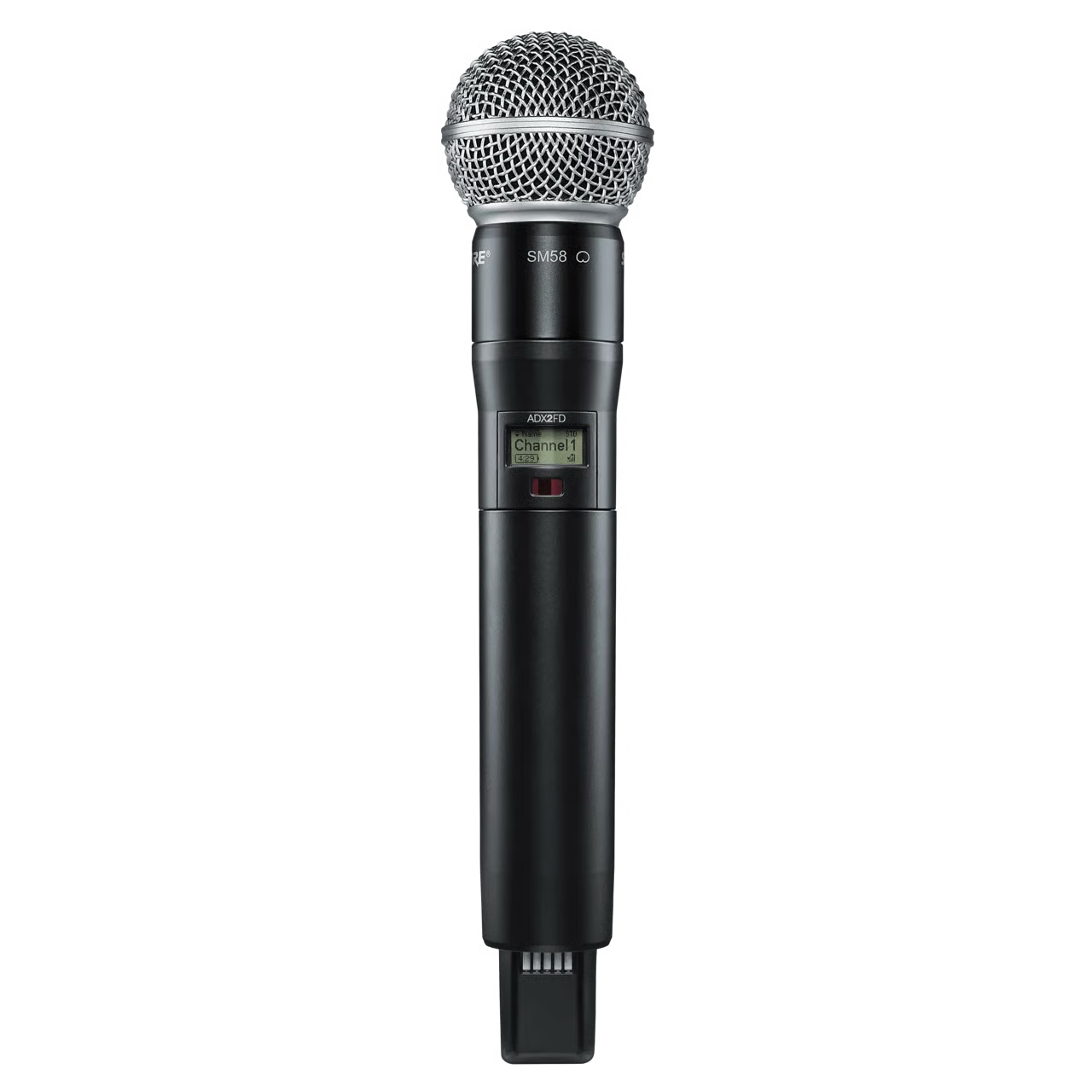

Shure ADX2FD/SM58 Axient Digital Handheld Transmitter with SM58 Cardiod Dynamic Capsule - Frequency X55 - 941-960 MHz

ADX2FD/SM58=-X55 - Overview

• Features:

  • Ability to transmit RF signal on two discrete carriers
  • Optional 50mW High Power mode for driving increased power on a single frequency
  • Durable, moisture-resistant, lightweight metal case in black finish
  • Up to 6.5 hours of runtime with SB920A rechargeable battery when transmitting on two RF carriers (up to 9 hours battery life when transmitting on a single RF carrier)
  • External contacts for docked charging with optional fully covered radome
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission


• Specifications:

  • Gain Offset Range: -12dB - 21dB (in 3dB steps)
  • Battery Type: SB920A Rechargeable Lithium-Ion
  • Battery Run Time @ 10mW:
    - Single-Carrier Mode: up to 9 hours
    - Frequency Diversity: up to 6.5 hours
  • Dimensions (LxDia.): 10.0" x 2.0" (254mm x 51mm)
  • Weight: 11.9oz (338g) without battery
  • Housing: Cast Aluminum

    Audio Input
  • Configuration: Unbalanced
  • Maximum Input Level @1kHz at 1% THD: 145dB SPL, typical (SM58)

    RF Output
  • Antenna Type: Integrated Dual-Band Helical
  • Occupied Bandwidth: <200kHz
  • Channel-to-Channel Spacing:
    - Standard Mode: 350kHz
    - High-Density Mode: 125kHz
  • Modulation Type: Shure Axient Digital Propietary
  • Power Single Carrier Mode: 2mW, 10mW, 20mW, 50mW
  • Frequency Diversity Mode: 2x 20mW

    SHOWLINK
  • Network Type: IEEE 802.15.4
  • Antenna Type: ZigBee Dual Conformal
  • Frequency Range: 2.40GHz - 2.4835GHz (24 Channels)
  • RF Output: Power Varies By Region: 10dBm (ERP)


• Item Includes:

  • 1x SB920A Shure Rechargeable Battery
  • 1x Zipper Bag
  • 1x Threaded Adapter
  • 1x Swivel Adapter, black
