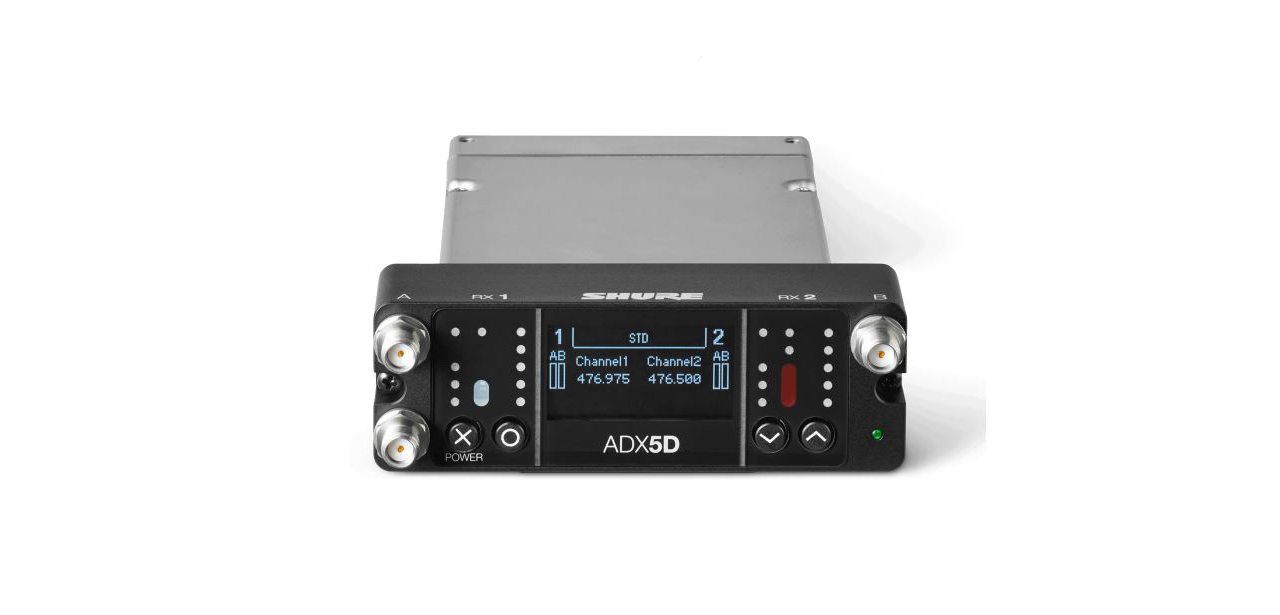

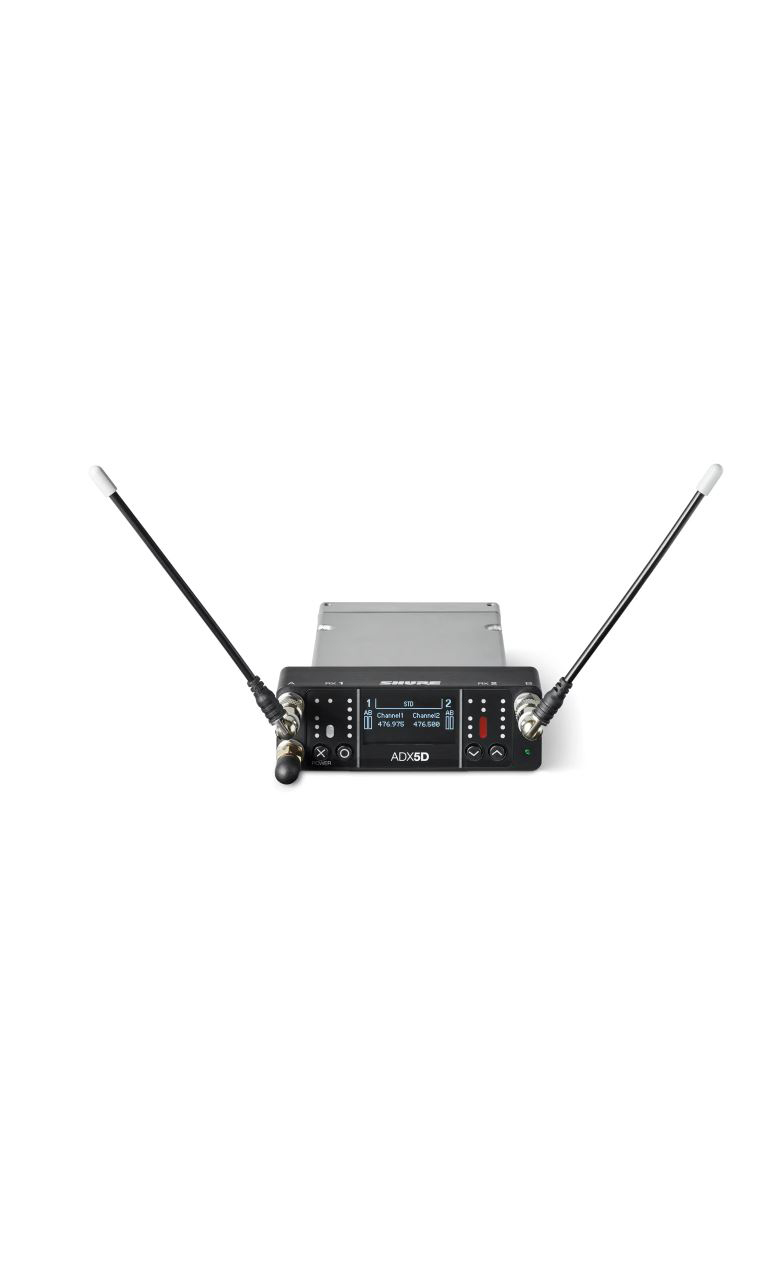

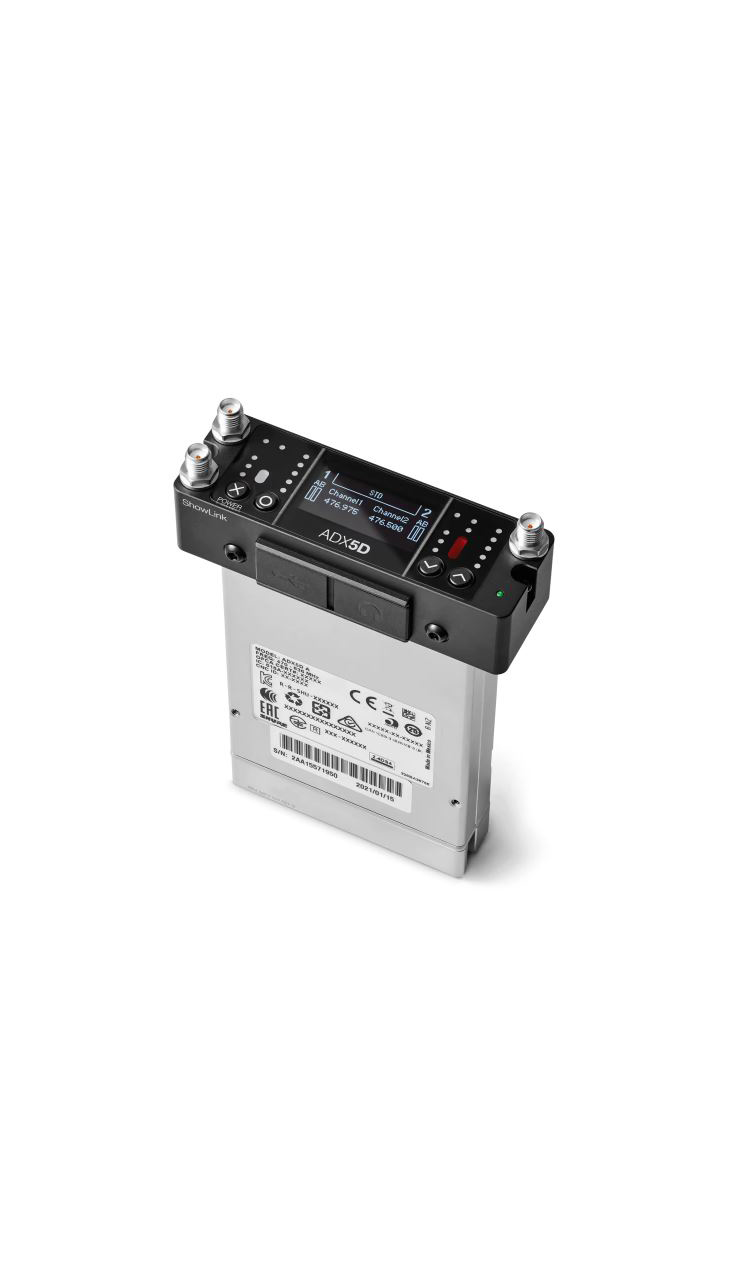

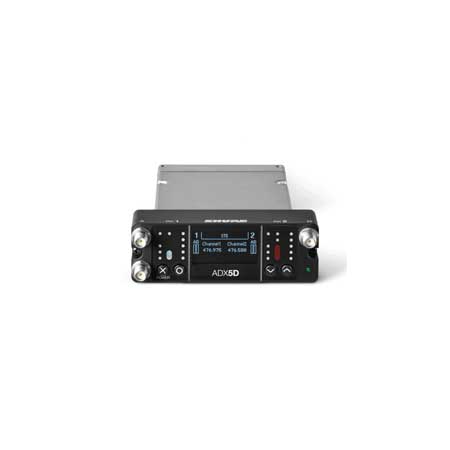

Shure ADX5DUS=-C Axient Digital Dual-Channel Portable Wireless Receiver - 925MHz - 960MHz

ITEM #: SH-ADX5DUS-C MFG #: ADX5DUS=-C

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,125.00

Our Price:

$2,500.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ADX5DUS=-C - Overview

You make your living on a sound stage, in a sports arena, or wherever "on location" takes you. You depend on your wireless system to handle each and every situation with ease. Compatible with all AD series and ADX series transmitters, the Shure Axient Digital ADX5DUS-C dual-channel wireless microphone receiver delivers superior RF performance, spectral efficiency, and transparent audio quality in a portable, slot-in receiver design. Sound and performance that the touring industry has adopted as industry standard is now available to audio professionals in film and broadcast. Wireless pinnacle. Now portable.


The dual-channel ADX5D portable wireless receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environment. As an Axient Digital ADX Series wireless receiver, the ADX5D features ShowLink Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment. Robust RF. Impeccable audio. Axient Digital quality and performance. All in a portable, slot-in receiver design. Premium portable wireless.

  • Features:

    • Dual-channel slot-in portable wireless receiver
    • Impeccable audio quality
    • Wide tuning range up to 184 MHz (region dependent)
    • High spectral efficiency due to advanced digital modulation scheme offers more wireless channels in available RF space
    • High Density (HD) mode provides even higher spectral efficiency (application dependent)
    • True digital diversity reception per channel for drop-out resistance and excellent range
    • Networked control with Wireless Workbenchr software and ShurePlus Channels app
    • 5-segment Channel Quality meters display per-channel RF link quality
    • ADX series receiver with ShowLink Direct Mode allows remote control of Axient Digital transmitters without the need of external equipment
    • Third-party integration and control from select portable mixers and recorders for RF scan and deployment, audio gain adjustments, transmitter battery life monitoring, and more
    • Party Dial feature enables users to quickly switch between RF channels from a pre-selected group of frequencies
    • Optimized Menu Structure places the most commonly used features within a few clicks of each other
    • Enhanced Shortcut Menu provides rapid access to only a few critical features and menus
    • Aux 3.5mm audio output provide connection to headphones or to a balanced line-level input
    • Accessory Mount with cold shoe adapter (sold separately)
    • Removable antennas with standard SMA connectors
    • High-resolution OLED display
    • USB-C port for firmware upgrades
    • Streamline user interface
    • Low latency, down to 2 milliseconds

  • Specifications:

    • UHF
    • RF Carrier Frequency Range: 925MHz - 960MHz
    • Working Range:
      - SD Mode: 246ft (75m)
      - HD Mode: 131ft (40m)
    • Spurious Rejection: >80dB
    • Connector Type: SMA (Shell=Ground, Center=Signal)
    • Impedance: 50Ω

      Audio Output
    • Gain Adjustment Range: -18dB - 42dB, in 1dB steps
    • Impedance: 66Ω
    • Full Scale Output: 9dBV, 200kΩ load
    • Phantom Power Protection: Yes
    • Audio Frequency Response: 20Hz - 20kHz
    • Dynamic Range: 129dB
    • Total Harmonic: Distortion 0.0006% at -6dBFS, 1kHz
    • System Audio Polarity: Positive Pressure on Diaphragm produces positive voltage on Audio + with respect to Audio -.
    • Analog Output Latency:
      - SD Mode: 2.08ms
      - HD Mode: 2.96ms

      USB Input
    • Connector Type: USB-C
    • USB Protocol: USB 2.0
    • USB Role: Peripheral (upstream-facing port)
    • USB Power Delivery: None

      Power
    • DC Power Requirements: 6V - 18V DC
    • Thermal Power Dissipation
      - Max: 4.8W (78BTU/hr)
      - Nominal: 4.2W (51BTU/hr)
      - Min: 2.3W (XBTU/hr)

      Mechanical
    • Dimensions (HxWxD): 1.1" x 3.4" x 4.25" (29mm x 88mm x 108mm)
    • Weight: 0.53lbs (0.24kg)
    • Housing: Machined Aluminum

  • Item Includes:

    • 1x Shure ADX5D
    • 1x USB-A to USB-C cable
    • 2x UHF Antenna
    • 1x ShowLink (2.4GHz) antenna

  • Warranty:

    • 2 Year Limited Warranty
