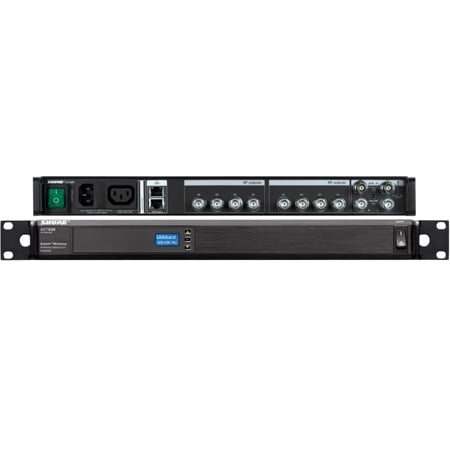

Shure AXT630 Axient Antenna Distribution System

ITEM #: SH-AXT630 MFG #: AXT630

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,054.00

Our Price:

$1,643.00

Availability: In Stock
iAvailability Description Popup


AXT630 - Overview

Shure AXT630 Antenna Distribution Systems send the RF signal from a single pair of antennas to multiple receivers. Ultra-linear amplification and adjustable attenuation optimize performance in difficult RF environments. Selectable input filters match the available frequency bands of transmitters, providing extra protection from strong out-of-band signals. BNC antenna output pairs distribute band-filtered signal to up to 4 receivers. A pair of wideband cascade ports supplies a wideband RF signal to Spectrum Managers or additional antenna distribution amplifiers. Networking enables Wireless Workbenchr 6 system control of filtering ranges and attenuation. To maximize use of available RF spectrum, two models of the Antenna Distribution System are available. The AXT630 covers a frequency range of 470-698 MHz and the AXT631 covers a frequency range of 606-814 MHz.

  • Features:

    • Selectable input filtering provides system-wide protection against strong out-of-band signals
    • Wideband filtering option covers multiple bands
    • Up to 15 dB of selectable RF attenuation for signal-to-noise optimization
    • Front panel interface and Wireless Workbench 6 software control provide easy setup and control of filtering, antenna power, and attenuation
    • BNC outputs: 4 antenna output pairs
    • Wideband RF cascade port with selectable 3 dB make-up gain for connecting wideband devices
    • Ethernet Networking: 2 PoE enabled Ethernet ports
    • IEC power ports enable daisy-chaining of AC power

  • Specifications:

    • RF Input
    • Connector Type: BNC
    • Configuration: Unbalanced, active
    • Band Filters AXT630:
      Wideband: 470-698 MHz
      Band G1: 470-530 MHz
      Band H4: 518-578 MHz
      Band J5: 578-638 MHz
      Band L3: 638-698 MHz
    • Impedance: 50Ω
    • Bias Voltage: 12 V DC, 150 mA (300 mA maximum)
    • RF Frequency Range: AXT 630: 470-698 MHz

      Distribution Output
    • Connector Type: BNC (4 pairs)
    • Configuration: Unbalanced, active
    • Impedance: 50Ω
    • Gain Adjustment Range Cascade Enabled: -15 dB to 0 dB (In 1 dB steps)
    • Cascade Disabled: -12 dB to +3 dB (In 1 dB steps)
    • Output Intercept Point: >25 dBm, typical

      Cascade Output
    • Connector Type: BNC (1 pair)
    • Configuration: Unbalanced, wideband
    • Impedance: 50Ω
    • Insertion Loss: <5 dB

      Networking
    • Power Over Ethernet (PoE): 50 V DC, Class 1
    • Network Interface: Dual Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address

      General
    • Dimensions (HxWxD): 1.7 x 19 x 14.4" (44 x 483 x 366mm)
    • Weight: 10.1Lbs (4.6kg)
    • Housing: Steel; Extruded aluminum
    • Operating Temperature Range: -18°C (0°F) to 63°C (145°F)
    • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
    • Power Requirements: 100 to 240 V AC, 50-60 Hz
    • Current Drain: 1.0 A RMS (referenced at 120 V AC)

  • Item Includes:

    • 2-foot Coaxial Antenna Cable (RG-58) (12) UA802
    • IEC AC Power Cable (1) 95A9128
    • IEC AC Extension Cable (1) 95A9129
    • Shielded 3-foot Ethernet Cable (1) C803
    • Shielded 8-inch Ethernet Jumper Cable (1) C8006
    • Hardware Kit (1) 90XN1371
    • 22-inch Coaxial Cable (1) 95B9023
    • 33-inch Coaxial Cable* (1) 95C9023

  • GTIN:

    0042406185370
