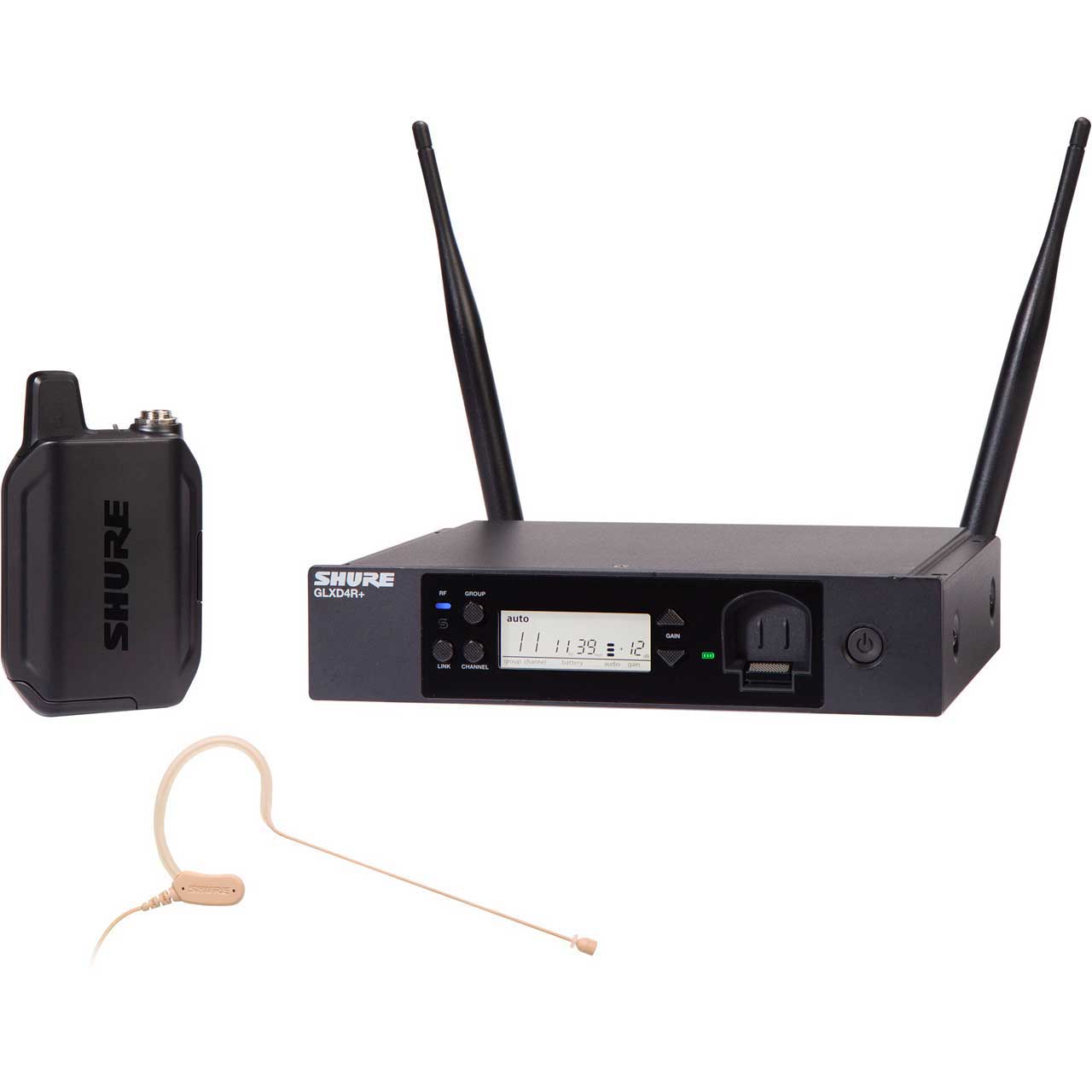

Shure GLXD14R+/MX53 Digital Wireless Rack System with MX153 Headset Microphone & SB904 Li-Ion Battery - Z3 2.4 & 5.8GHz

GLXD14R+/MX53-Z3 - Overview

• Features:

  • Dual Band Wireless Technology provides reliable operation in 2.4GHz and 5.8GHz.
  • Automatic Frequency Management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears.
  • Smart Rechargeability. with up to 12 hours of runtime, lithium-ion rechargeable battery shows remaining time in hours and minutes.
  • Multiple Receiver Options including Guitar Pedal, Tabletop and Half-rack.


• Specifications:

  • System Specifications
  • Compatibility: with Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions. Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
  • System Operating Range: Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions. Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
  • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8GHz)
  • Audio Frequency Response: Note: Dependent on microphone type
  • Dynamic Range: 120 dB, A-weighted
  • RF Sensitivity: -88 dBm, typical
  • Total Harmonic Distortion: 0.07%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: 0° to 135°F
  • Storage Temperature Range: -20° to 165°F
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35mm output.
  • Battery Life: Up to 12 hours

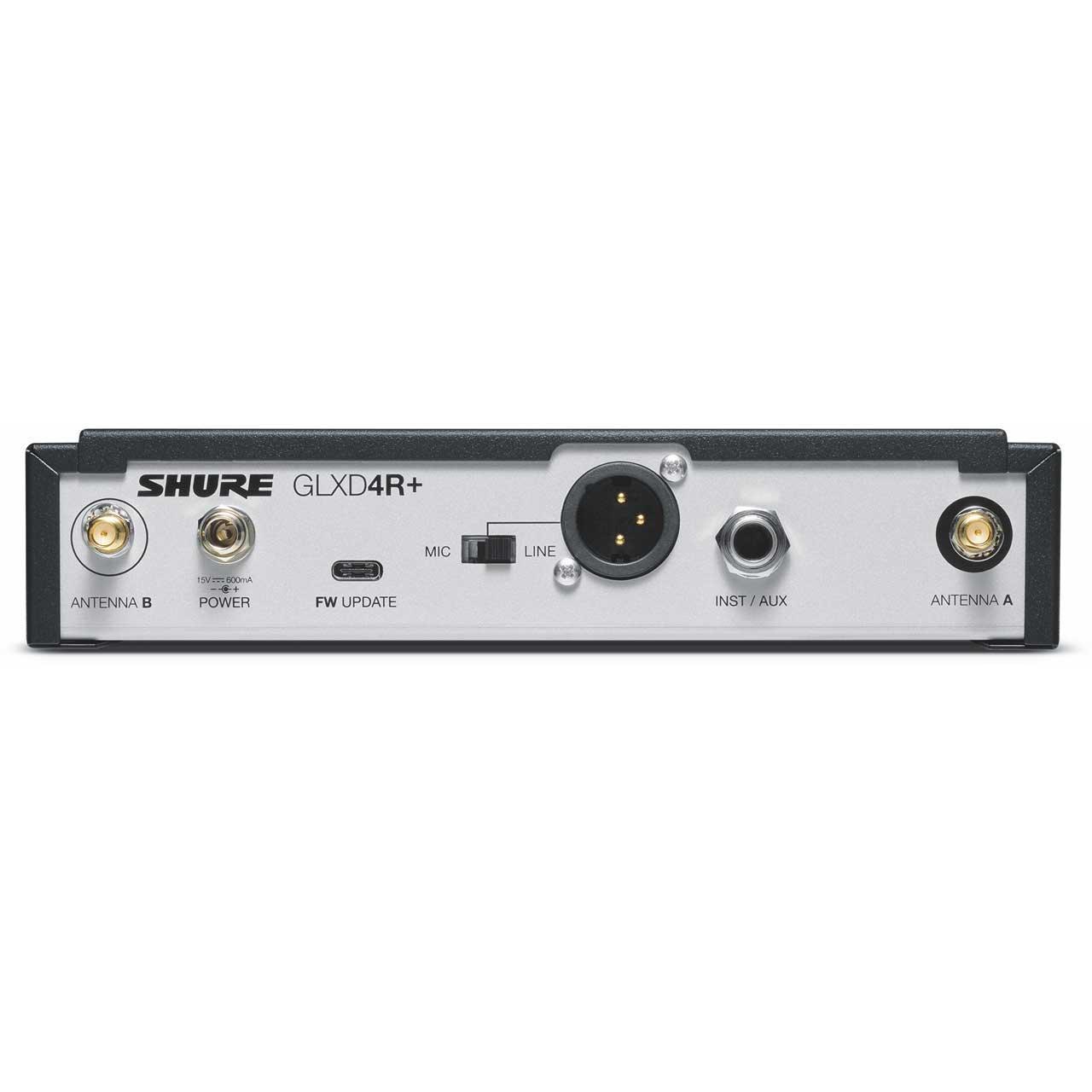

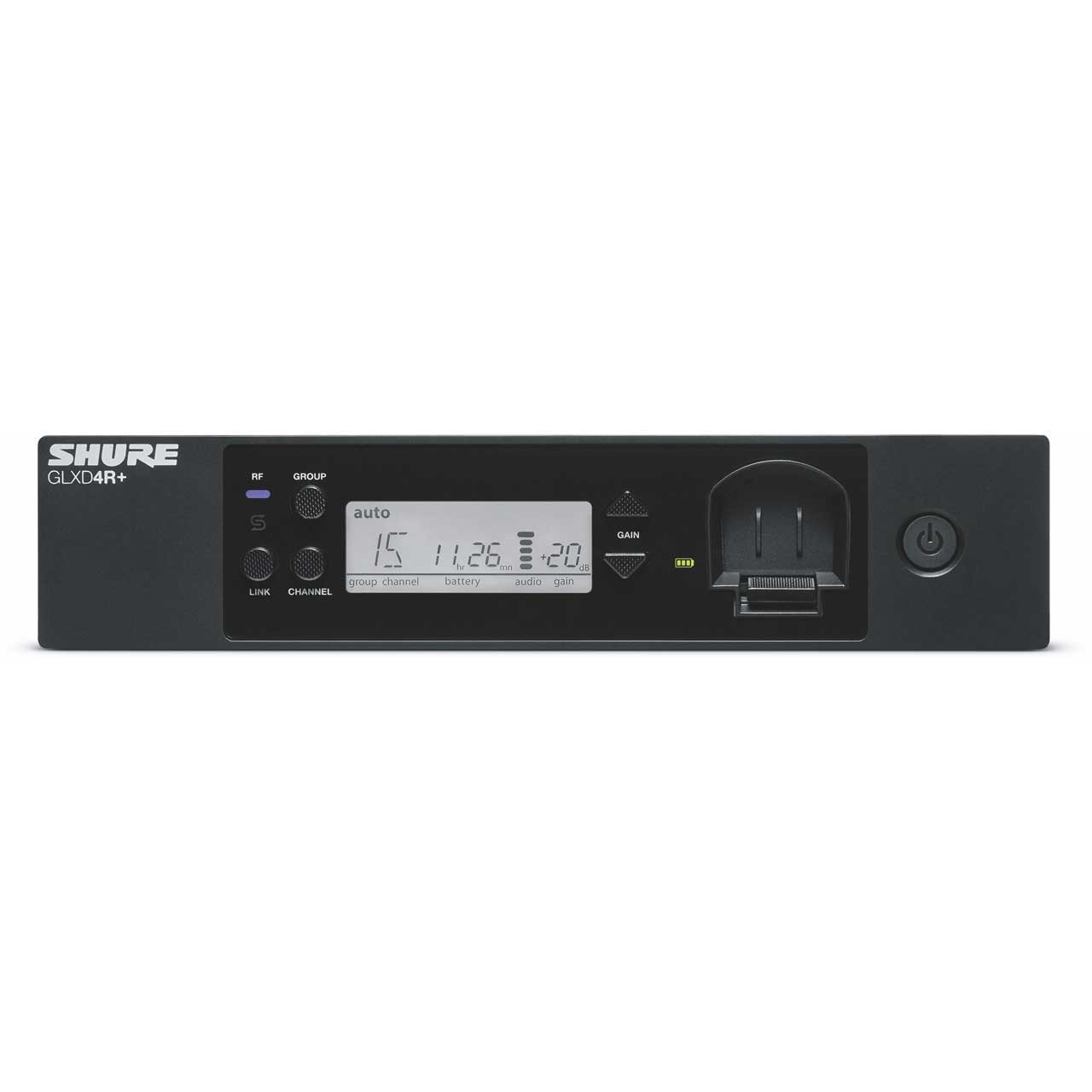

    GLXD4R+ Dual Band Rack Receiver
  • Dimensions (Without Antenna): 7.7 x 6.4 x 1.6" (196.8 x 162.97 x 41.8mm)
  • Weight: 30.5 oz (866 g) without batteries
  • Housing: Steel
  • Power Requirements: 14.5 V - 17 V, 600mA
  • Spurious Rejection: >35 dB, typical
  • Gain Adjustment Range: ?18 to 42 dB in 1 dB steps
  • Phantom Power Protection: Yes
  • Audio Output
  • Configuration: XLR Output Balanced | 6.35mm (1/4") output Impedance balanced
  • Impedance: XLR Output 100Ω | 6.35mm (1/4") output 100Ω (50Ω, Unbalanced)
  • Full-Scale Output: XLR LINE setting= +18 dBV, MIC setting= ?12 dBV | 6.35mm (1/4") +12 dBV
  • Pin Assignments: XLR Output 1=ground, 2=hot, 3=cold | 6.35mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
  • Mic/Line Switch: 30 dB Pad
  • Receiver Antenna Input
  • Impedance: 50Ω
  • Antenna Type: Dual Band 1/2 WaveSleeve Dipole
  • Maximum Input Level: ?20 dBm

    MX153
  • Transducer Type: Electret Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 to 20,000 Hz
  • Output Impedance: N/A
  • Sensitivity (open circuit voltage, @ 1 kHz, typical): -41 dBV/Pa[1] (9 mV/Pa)
  • Maximum SPL (1 kHz at 1% THD[2]): 2500Ω load: 107 dB SPL, 1000Ω load: 107 dB SPL
  • Signal-To-Noise Ratio[3]: 60 dB
  • Dynamic Range @ 1 kHz: 2500Ω load: 73 dB, 1000Ω load: 73 dB
  • Self Noise (equivalent SPL, A-weighted, typica)l: 34 dB
  • Common Mode Rejection (20 to 20,000 Hz): N/A
  • Operating Temperature: 0° to 135°F
  • Polarity: Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
  • Power Requirements: +1-5 V DC (500µA max.)
  • Weight: 0.04Lbs


• Item Includes:

  • 1x GLXD14R+ Wireless Headset System
  • 1x MX53 Microphone
  • 1x SB904 Li-Ion Battery
  • 1x Power Supply
  • 2x 22-In RSMA Cable
  • 2x Antennas
  • 1x Hardware Kit
  • 2x Bulkhead Adapter
  • 1x Zippered Bag


• Warranty:

  • 2 Year


• GTIN:

  0042406695862
