Shure MX202WP-A/C Microflex Overhead Condenser Mic Cardioid w/ Plate Mount Preamp - Screw Terminals - Bright White

ITEM #: SH-MX202WP-A/C MFG #: MX202WP-A/C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$326.00

Our Price:

$233.00

Availability: In Stock
iAvailability Description Popup


MX202WP-A/C - Overview

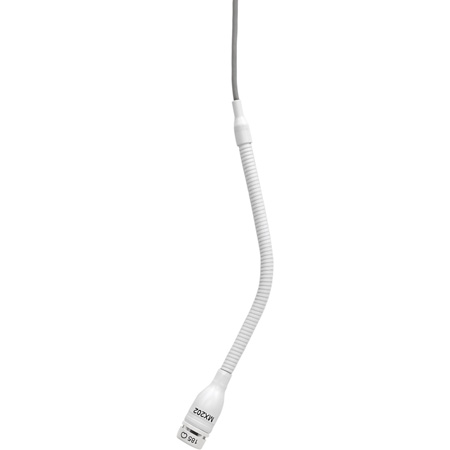

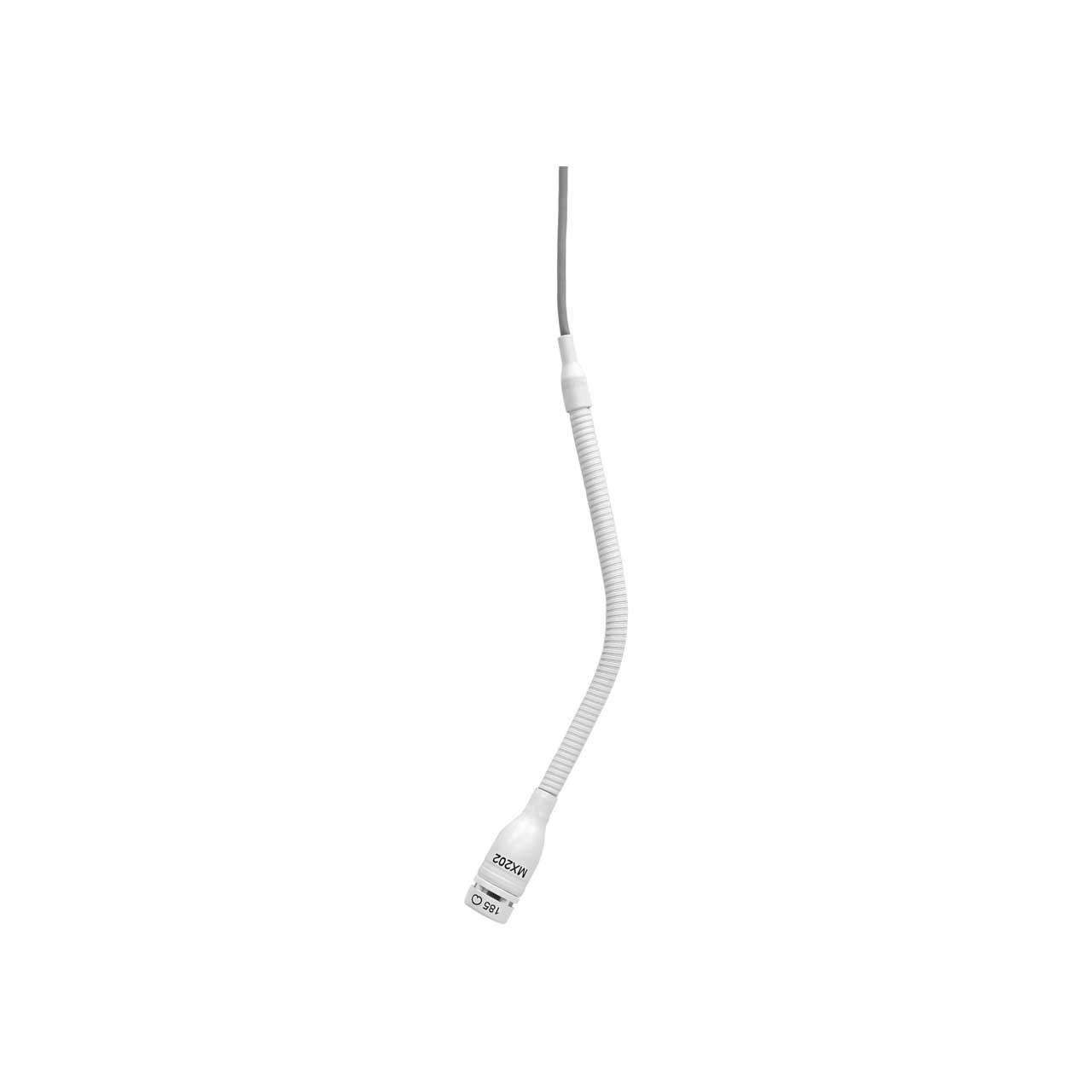

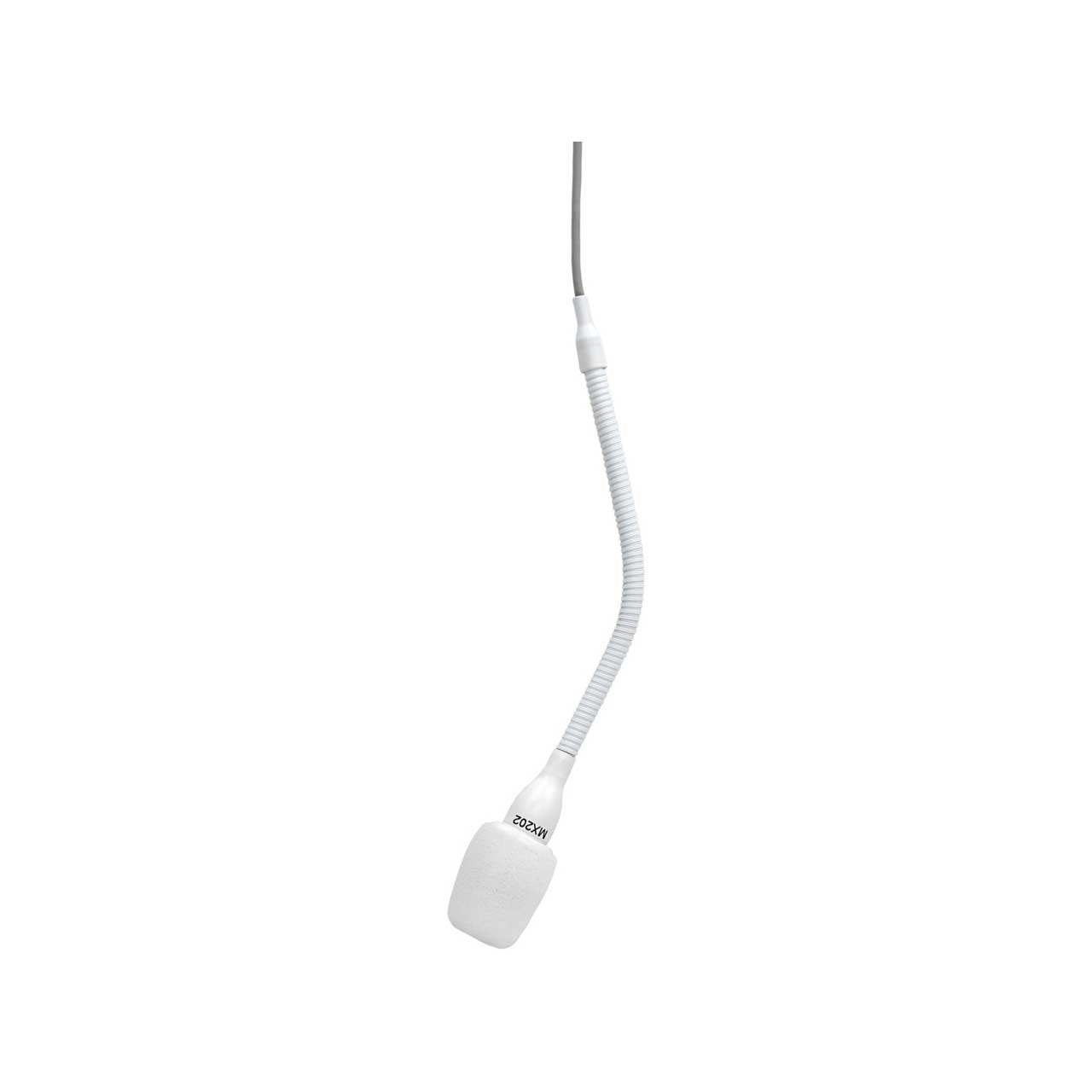

Cardioid Microflex Overhead Microphone - Bright White

The Shure MX202 overhead microphone delivers clear, accurate audio with interchangeable cartridges and an unobtrusive, bright white or black design. It's hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. The Microflex Overhead condenser microphones capture Shure quality sound in a compact, adjustable package. Each model features one of the three interchangeable condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable. The preamp options available offer easy installation in ceilings or microphone stands, and when combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with a minimum of RF interference or electromagnetic hum. The new Microflex Overheads feature interchangeable cardioid, supercardioid and omnidirectional condenser cartridges that fit every model in the Microflex product line for enhanced convenience and consistent sound.

  • Features:

    • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum.
    • Interchangeable cartridges that provide an optimal polar pattern choice for each application.
    • Balanced, transformerless output for increased immunity to noise over long cable runs.
    • Supplied stand-mount adapter for portable applications (in-line preamplifier versions only).
    • Bright-white finish that blends unobtrusively with most surroundings.
    • Preamp options available offer easy installation in ceilings or microphone stands.
    • When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum.

  • Specifications:

    • Type: Electret Condenser.
    • Frequency Response: 50-17000 Hz.
    • Polar Pattern: Cardioid.
    • Output Impedance: 180 Ohm.
    • Output Configuration: Active Balanced.
    • Sensitivity: -35 dBV/Pa (18 mV).
    • Maximum SPL: 124 dB.
    • Self Noise: 28 dB SPL.
    • Signal-to-Noise Ratio: 66 dB.
    • Dynamic Range: 1 kilo ohm load, @ 1 kHz 96 dB.
    • Common Mode Rejection: 10 Hz to 100 kHz, 45 dB, minimum.
    • Clipping Level: at 1% THD -6 dBV (0.5 V).
    • Polarity: 3-pin XLR Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
    • Environmental Conditions: Operating Temperature -18-57°C (0-135°F).
    • Storage Temperature: -29-74°C (-20-165°F) .
    • Relative Humidity: 0-95%.
    • Power Requirements: Phantom Power, 11-52 V DC, 2.0 mA
    • Note: Yellowing of any plastic material can be caused from cigarette smoke, ultra violet rays, and other chemical interactions. Once plastic has yellowed, there typically is no cleaning method that will restore the whiteness.

  • Item Includes:

    • White Snap-Fit Windscreen
    • Preamplifier Kit, Plate Mounted, White
    • Stand Adaptor

  • GTIN:

    0042406051552
