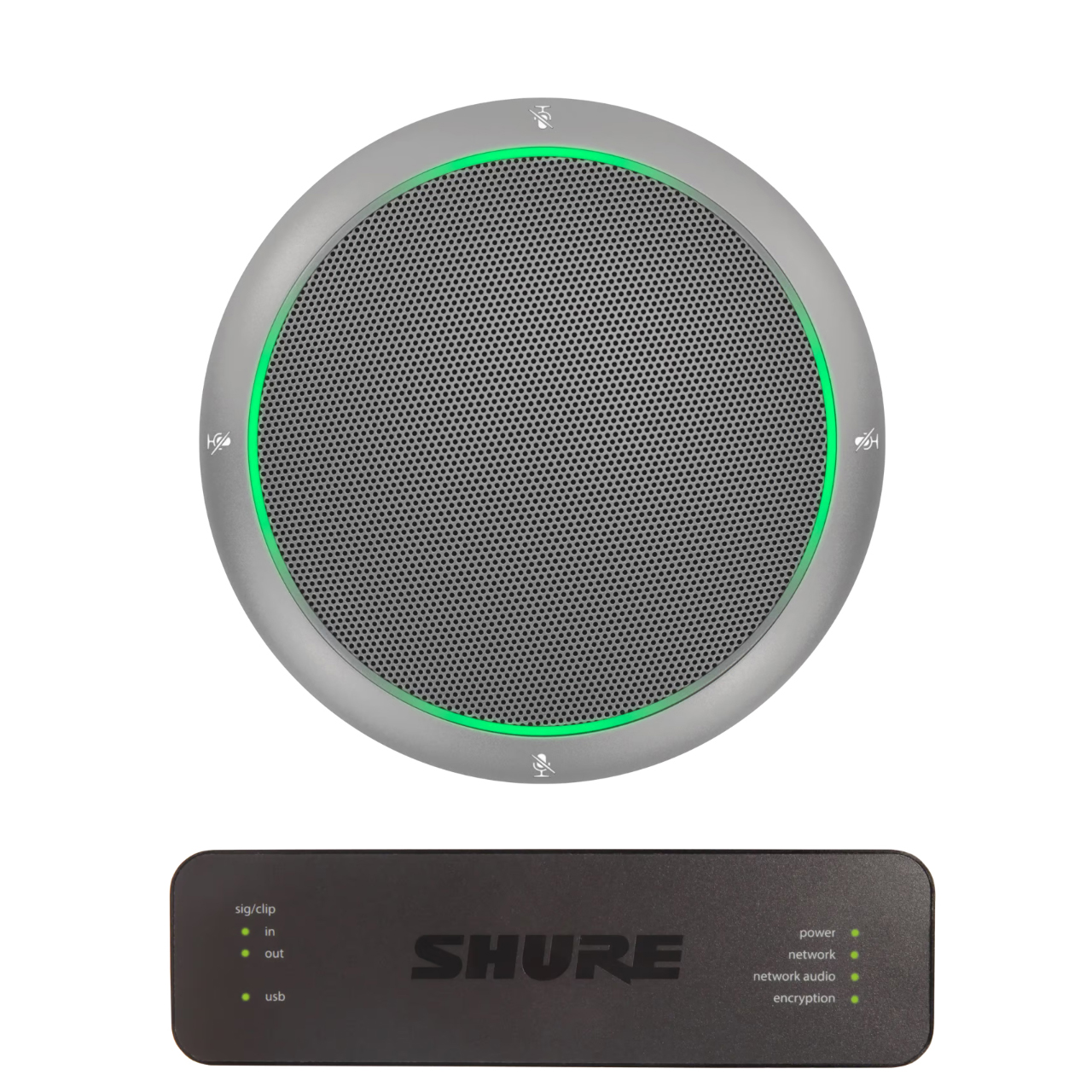

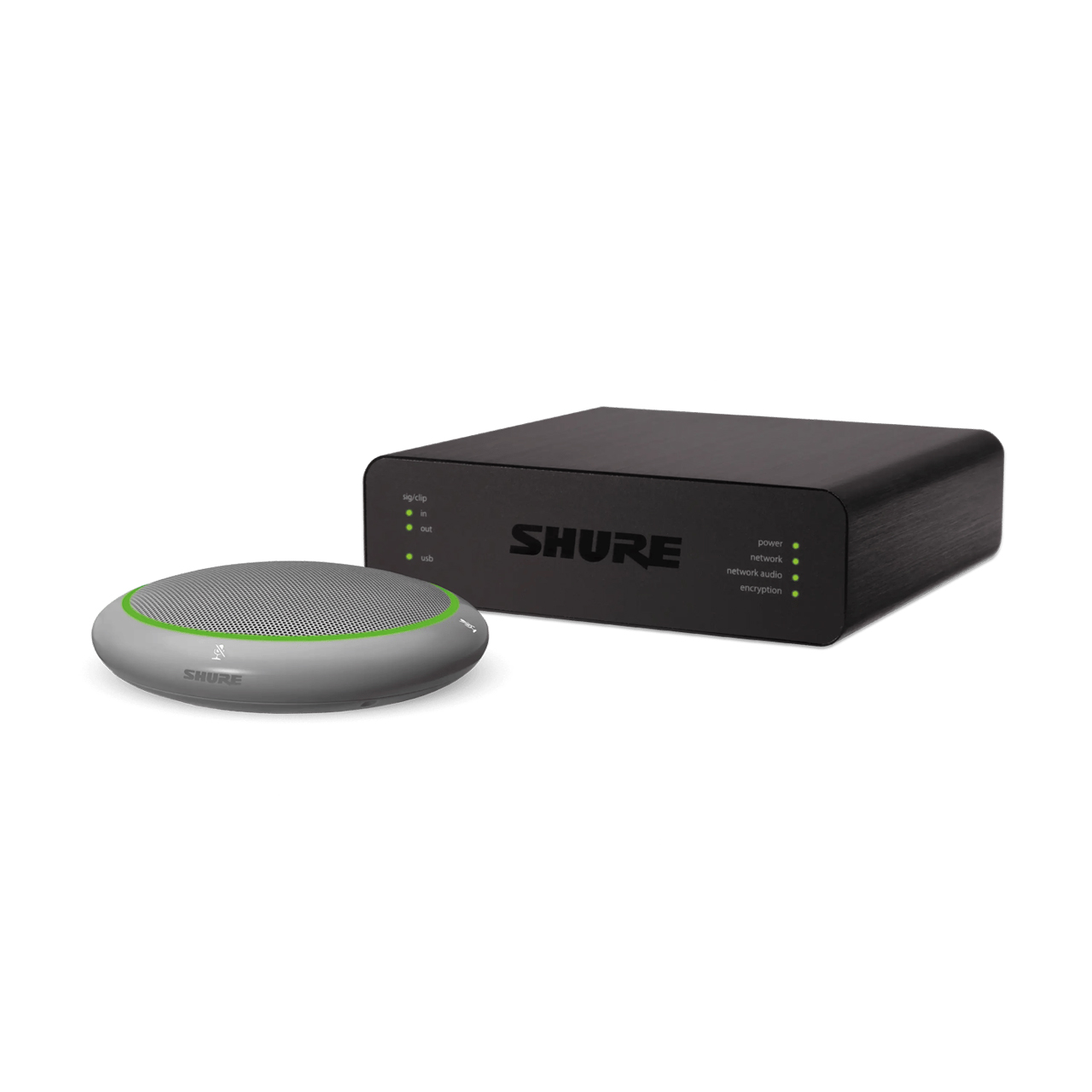

Shure MXA310 Microflex Advance AV Conferencing Bundle with Table Array Mic/USB Audio Network Interface - Aluminum

MXA310AL-USB-P - Overview

• Features:

  • Steerable Coverage of 4 separate polar patterns
  • Toroid polar pattern that rejects overhead HVAC and fan
  • Dante (4 in / 2 out)
  • Analog audio (1 block in / 1 block out) to room AV conferencing system
  • USB (1 in /out) connection to PC-based AV conferencing application
  • Shure Network Audio Encryption


• Specifications:

  • MXA310 Specs
  • Polar Pattern: All channels independently adjustable - Cardioid, hypercardioid, supercardioid, toroid, omnidirectional, bidirectional
  • Connector Type: RJ45
  • Power Requirements: Power over Ethernet (PoE), Class 0
  • Power Consumption: 4W, maximum
  • Weight: 0.8 lbs
  • Dimensions: 1.4 x 5.3 x 5.3 in
  • Control Software: Shure Designer or web application
  • Operating Temperature Range: 20°F to 104°F
  • Storage Temperature Range: -20°F to 165°F

    Audio
  • Microphone Elements: 4 EMC
  • Frequency Response: 100 to 20,000 Hz
  • AES67 or Dante Digital Output: 5 total channels (4 independent transmit channels, 1 automix output). Sampling Rate 48 kHz. Bit Depth: 24
  • Sensitivity: at 1 kHz -15 dB Gain Setting, -21 dBFS/Pa
  • Maximum SPL: 1 kHz at 1% THD, -15 dB Gain Setting, 115.2 dB SPL
  • Signal-to-Noise Ratio: Ref. 94 dBSPL at 1 kHz, -15 dB Gain Setting - Cardioid: 75 dB / Toroid: 67 dB
  • Latency: Does not include Dante latency <1 ms
  • Self Noise: -15 dB Gain Setting - Cardioid: 19.2 dB SPL-A / Toroid: 26.8 dB SPL-A
  • Dynamic Range: -15 dB Gain Setting - Cardioid: 96 dB / Toroid: 90 dB SPL
  • Built-in Digital Signal Processing: Per Channel: Equalizer (4-band parametric), mute, gain (140 dB range), System: Automatic mixing, low-cut filter (-12 dB/octave @ 150 Hz)

    Networking
  • Cable Requirements: Cat 5e or higher (shielded cable recommended)

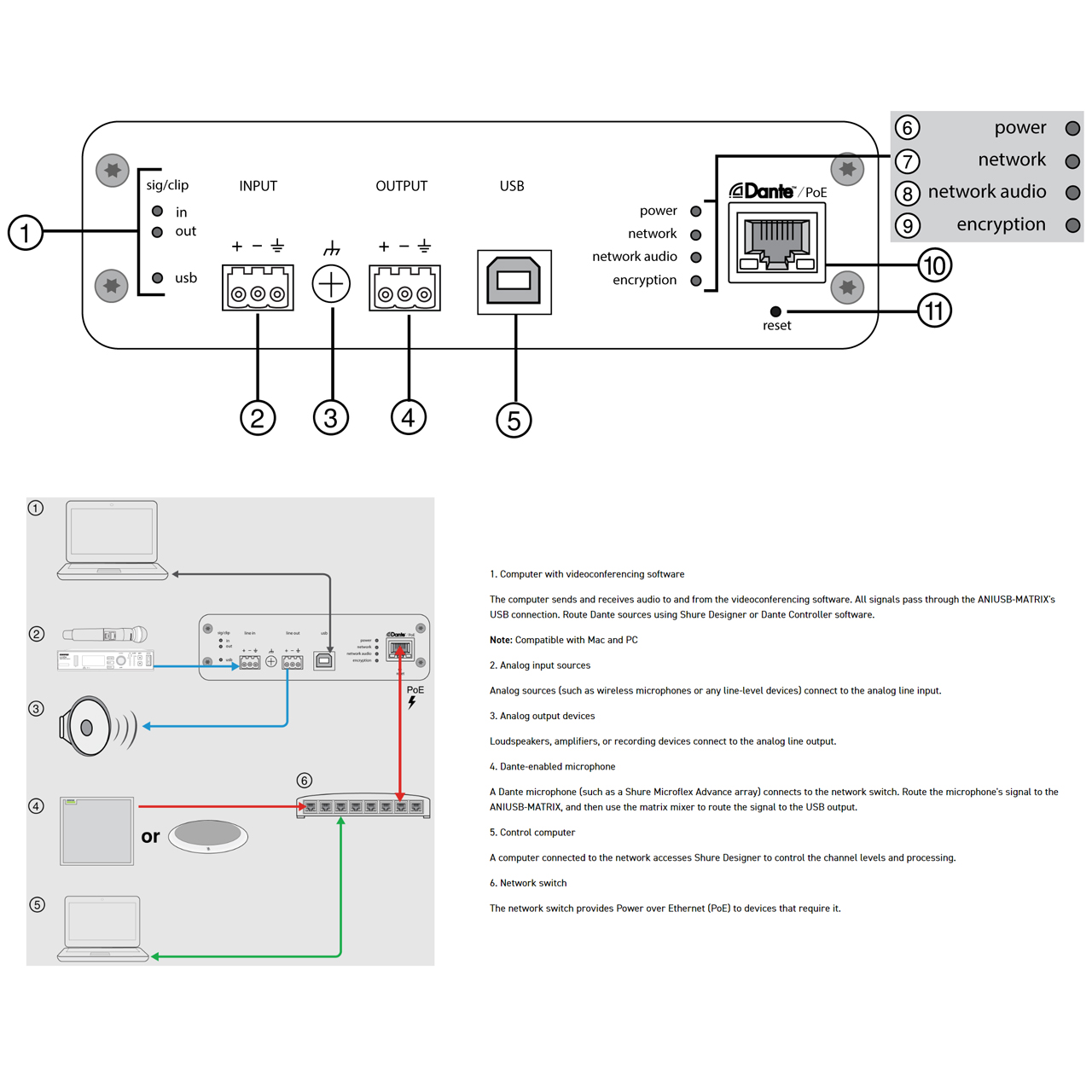

  • ANIUSB-MATRIX Specs

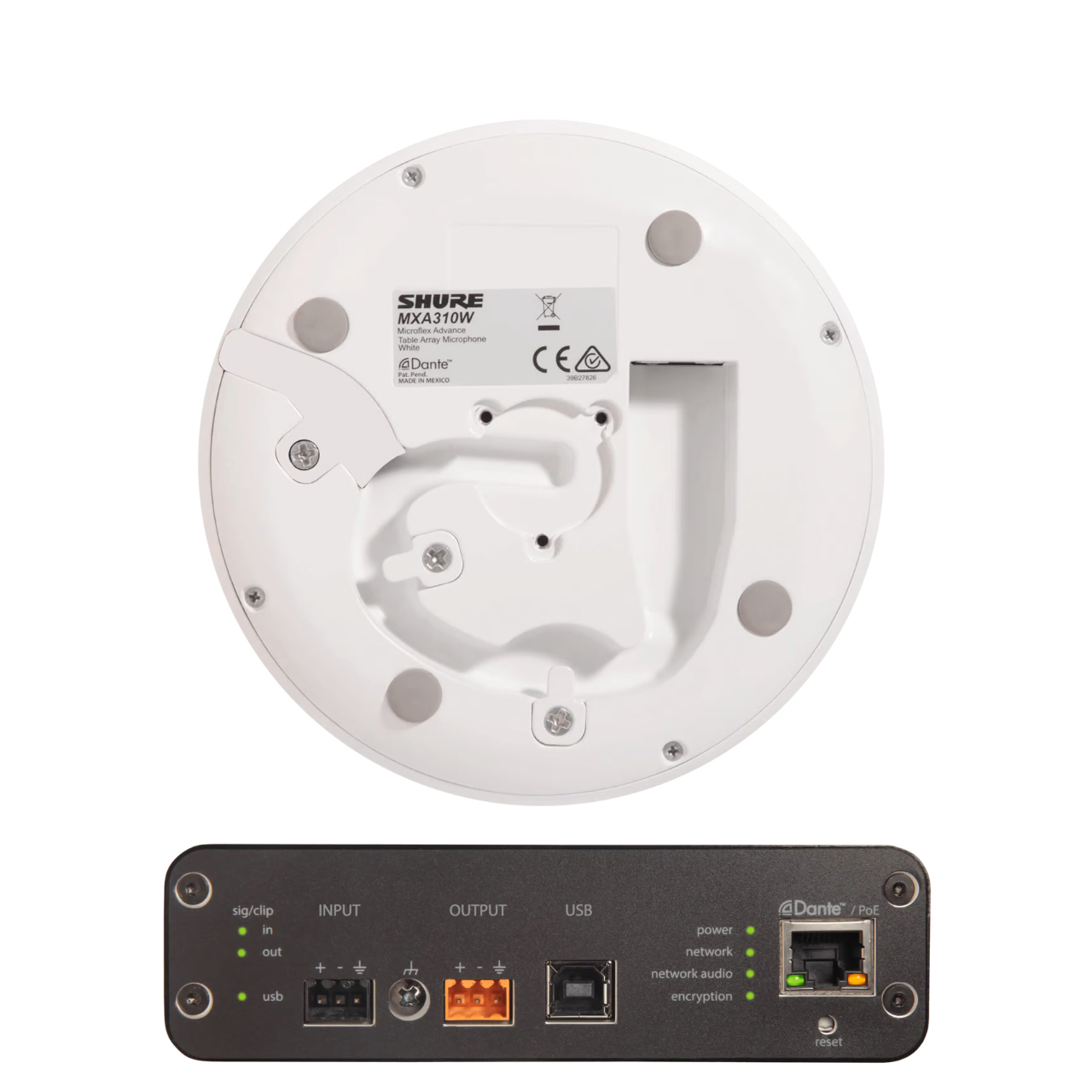

  • Analog Connections:
    -Input: (1) 3-Pin block connector (Active Balanced)
    -Output: (1) 3-Pin block connector (Impedance Balanced)
  • USB Connections: USB 2.0, Type B - Single port carries 1 input and 1 output channel (Summed Mono)
  • Network Connections (Dante Digital Audio): (1) RJ45 - 4 Input channels and 2 output channels
  • Polarity: Non-inverting, any input to any output
  • Power Requirements: Power over Ethernet, Class 0
  • Weight: 1.5 lbs
  • Dimensions: 1.6 x 5.5 x 5.0 in
  • Control Software: Shure Designer
  • Operating Temperature Range: 20 °F to 104 °F
  • Storage Temperature Range: -20 °F to 165 °F
  • Thermal Power Dissipation:
    -Max: 6.8W (23.0BTU/hr)
    -Typical: 6.0W (20.8BTU/hr)
    -Frequency Response: +1, -1.5 dB / 20 to 20,000Hz
  • Dante Digital Audio:
    -Sampling Rate: 48 kHz
    -Bit Depth: 24
  • USB Audio:
    -Sampling Rate: 48 kHz
    -Bit Depth: 16, 24
  • Latency (Does not include Dante latency):
    -Analog to Analog: 0.98 ms
    -Analog to Dante: 0.39 ms
    -Dante to Analog: 0.72 ms
    -Dante to Dante: 0.14 ms
  • Dynamic Range:
    -20 Hz to 20 kHz, A-Weighted, Typical
    -Analog to Dante: 113 dB
    -Dante to Analog: 117 dB
  • Equivalent Input Noise:
    -20 Hz to 20 kHz, A-weighted, input terminated with 150ω
    -Line: -86 dBV
    -Aux: -98 dBV
  • Total Harmonic Distortion: @ 1 kHz, 0 dBV Input, 0 dB analog gain / <.05%
  • Common Mode Rejection Ratio: 150ω balanced source @ 1 kHz / >70dB
  • Impedance: 10.6 kω
  • Input Clipping Level:
    -Line: +27 dBV
    -Aux: +15 dBV
  • Output Clipping Level:
    -Line: +20 dBV
    -Aux: +0 dBV
    -Mic: -26 dBV


• Item Includes:

  • 1x Kit, Hardware, ANIUSB-MATRIX
  • 1x Mounting Bracket (1/3 rack unit)
  • 1x Cable-exit plug
  • 1x Mounting tube wing nut
  • 1x Mounting tube
  • 1x Rubber Isolation Ring
  • 4x Nylon cable ties
