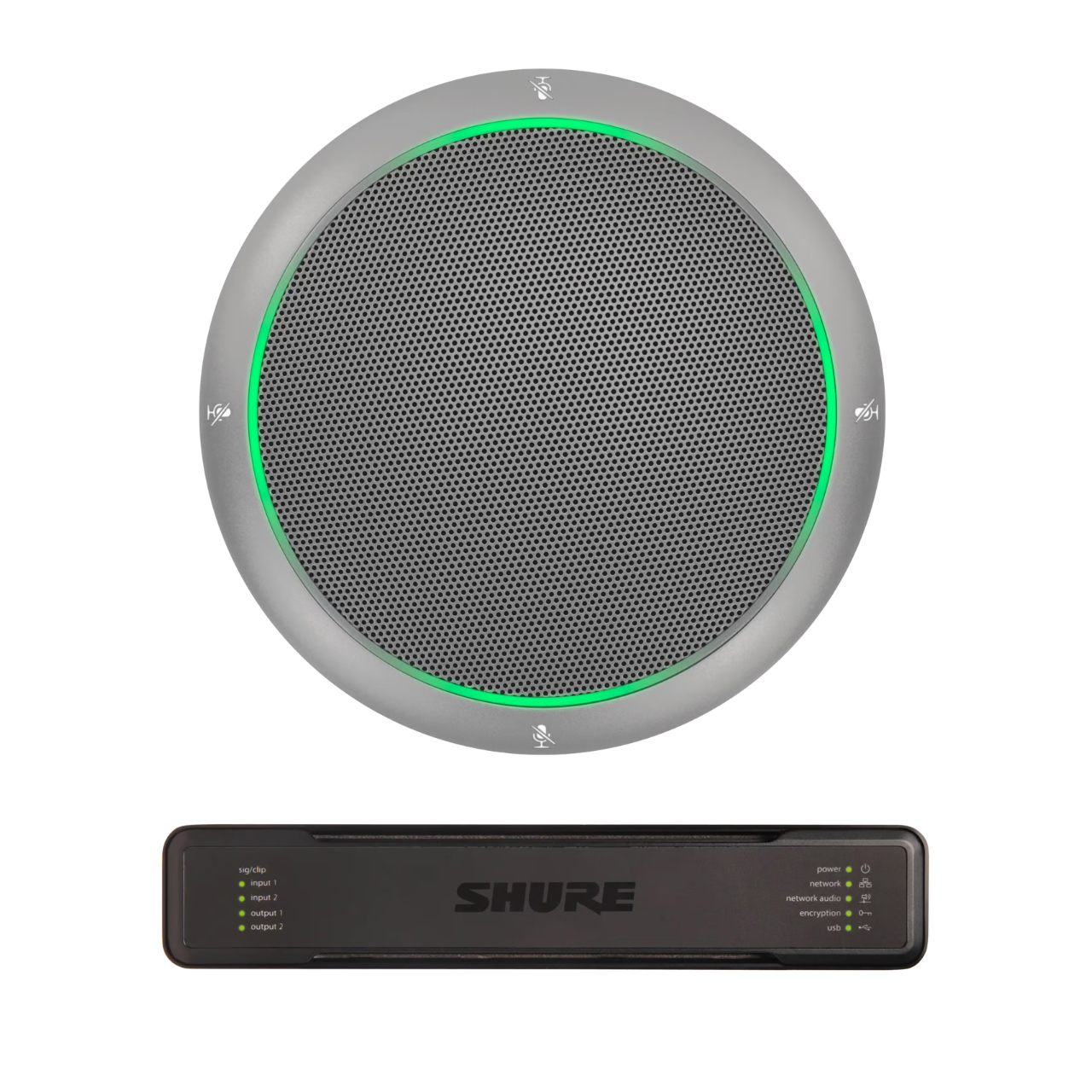

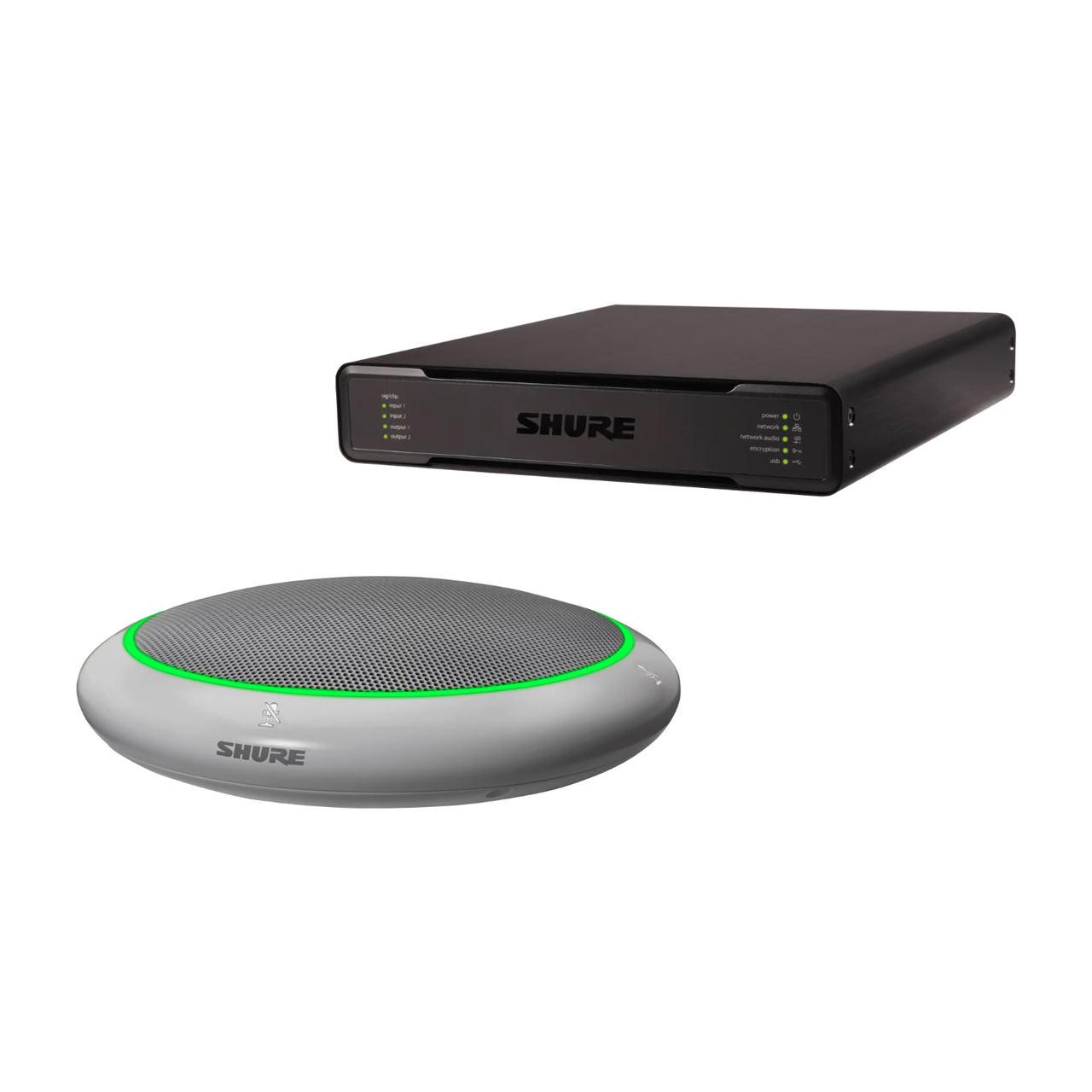

Shure MXA310 Microflex Advance Conferencing Bundle with Table Array Mic and IntelliMix P300 Audio Processor - Aluminum

MXA310AL-P300-P - Overview

• Features:

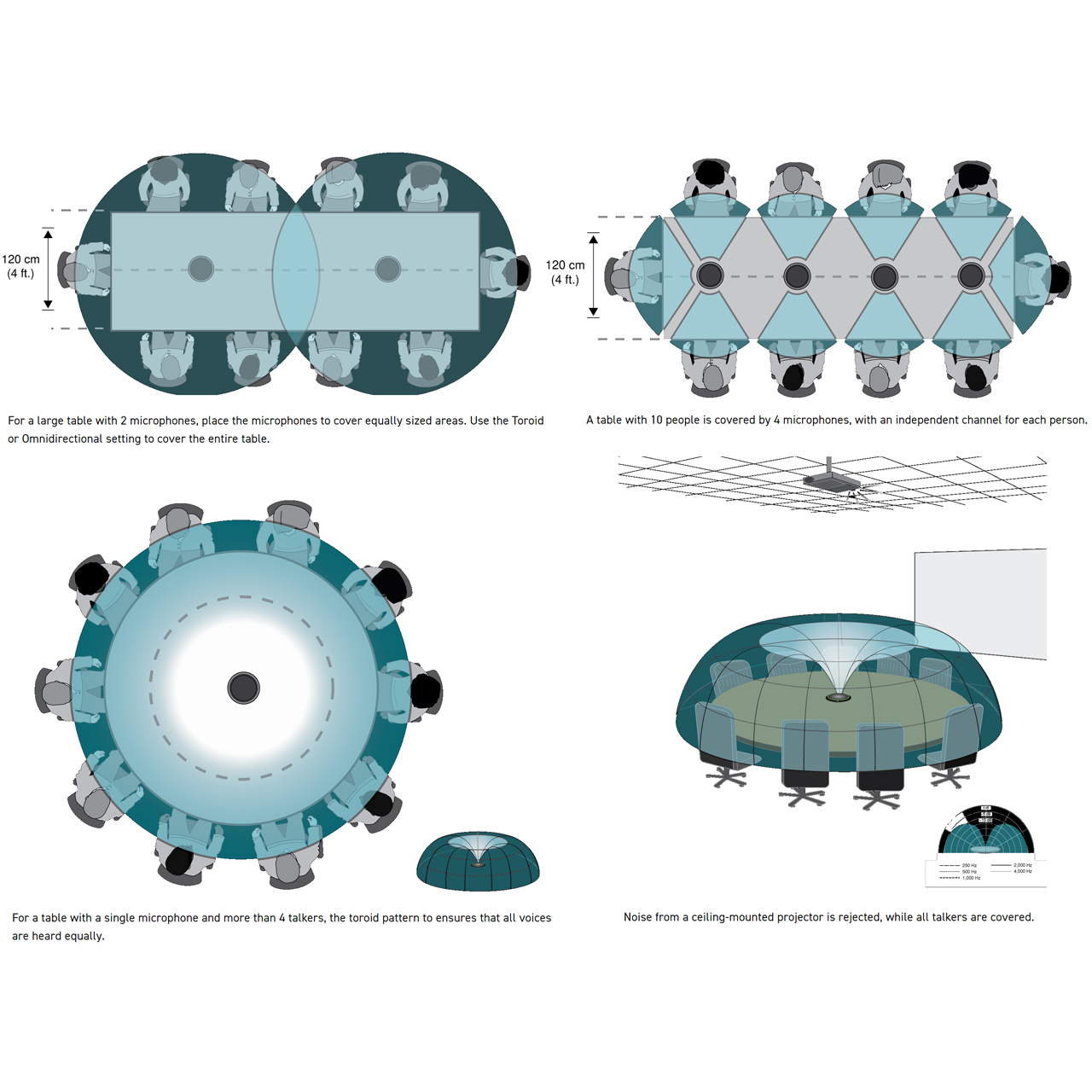

  • Steerable Coverage of 4 separate polar patterns
  • Toroid polar pattern that rejects overhead HVAC and fan noise
  • 8 channels of acoustic echo cancellation and noise reduction
  • Shure Network Audio Encryption
  • Dante (10 in / 2 out), analog (2 in / 2 out)
  • USB (1 in / out) and 3.5 mm connectivity options for connecting to room systems, laptops and mobile devices


• Specifications:

  • MXA310 Specs
  • Polar Pattern: All channels independently adjustable - Cardioid, hypercardioid, supercardioid, toroid, omnidirectional, bidirectional
  • Connector Type: RJ45
  • Power Requirements: Power over Ethernet (PoE), Class 0
  • Power Consumption: 4W, maximum
  • Weight: 0.8 lbs
  • Dimensions: 1.4 x 5.3 x 5.3 in
  • Control Software: Shure Designer or web application
  • Operating Temperature Range: 20°F to 104°F
  • Storage Temperature Range: -20°F to 165°F

    Audio
  • Microphone Elements: 4 EMC
  • Frequency Response: 100 to 20,000 Hz
  • AES67 or Dante Digital Output: 5 total channels (4 independent transmit channels, 1 automix output). Sampling Rate 48 kHz. Bit Depth: 24
  • Sensitivity: at 1 kHz -15 dB Gain Setting, -21 dBFS/Pa
  • Maximum SPL: 1 kHz at 1% THD, -15 dB Gain Setting, 115.2 dB SPL
  • Signal-to-Noise Ratio: Ref. 94 dBSPL at 1 kHz, -15 dB Gain Setting - Cardioid: 75 dB / Toroid: 67 dB
  • Latency: Does not include Dante latency <1 ms
  • Self Noise: -15 dB Gain Setting - Cardioid: 19.2 dB SPL-A / Toroid: 26.8 dB SPL-A
  • Dynamic Range: -15 dB Gain Setting - Cardioid: 96 dB / Toroid: 90 dB SPL
  • Built-in Digital Signal Processing: Per Channel: Equalizer (4-band parametric), mute, gain (140 dB range), System: Automatic mixing, low-cut filter (-12 dB/octave @ 150 Hz)

    Networking
  • Cable Requirements: Cat 5e or higher (shielded cable recommended)

    Frequency Response
  • Frequency response measured from a distance of 2 feet (61 cm).

    P300 Specs

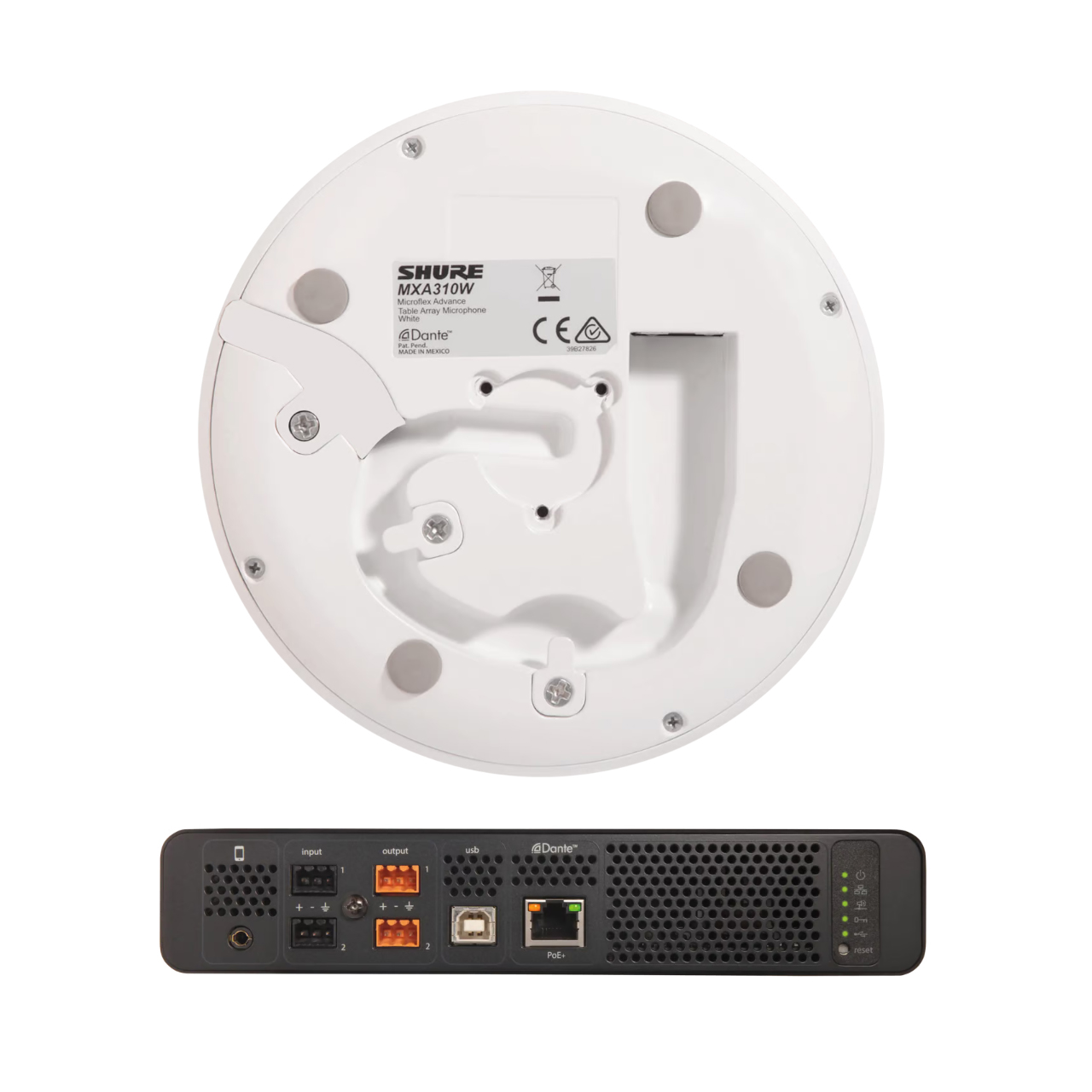

  • Input (2) 3-pin block connector (Active Balanced)
  • Output (2) 3-pin block connector (Impedance Balanced)
  • Mobile (1) TRRS 3.5 mm (1/8")
  • USB Connections: (1) USB 2.0, Type B. Single port carries 2 input and 2 output channels (Summed mono)
  • Network Connections (Dante Digital Audio): (1) RJ45. 10 Dante Inputs, 8 Dante Outputs
  • Polarity: Non-inverting, any input to any output
  • Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
  • Power Consumption: 17.5 W, maximum
  • Weight: 3.8 lbs
  • Dimensions: 1.6 x 8.3 x 8.9 in.
  • Control Software: Shure Designer
  • Operating Temperature Range: 20°F to 122°F
  • Storage Temperature Range: -20°F to 165°F
  • Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)

    Thermal Power Dissipation
  • Maximum 17.5 W (60 BTU/hr)
  • typical 14.6 W (50 BTU/hr)

    Audio
  • Frequency Response: +1, -1.5: dB 20 to 20,000 Hz
  • Dante Digital Audio: Sampling Rate 48 kHz - Bit Depth 24
  • USB Audio: Sampling Rate 48 kHz - Bit Depth 16, 24

    Analog Connections (Block Connectors)
  • Dynamic Range 20 Hz to 20 kHz, A-weighted, typical: Analog-to-Dante: 113 dB, Dante-to-Analog: 117 dB
  • Equivalent Input Noise 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω: Line -86 dBV / Aux -98 dBV
  • Total Harmonic Distortion @ 1 kHz, 0 dBV Input, 0 dB analog gain: <0.05%
  • Common Mode Rejection Ratio 150Ω balanced source @ 1 kHz: >50 dB
  • Input Impedance: 9.6 kΩ
  • Input Clipping Level: Line +27 dBV / Aux +15 dBV
  • Output Impedance: 80 Ω
  • Output Clipping Level: Line +20 dBV / Aux +0 dBV / Mic -26 dBV

    System Requirements
  • Important: Do not run IntelliMix Room and Designer on the same PC. Performance may vary on unsupported systems even if they meet all of these system requirements. Refer to Supported Hardware Systems for help choosing a device to run IntelliMix Room. Virtual machines are not supported.
  • Processor: Intel (64 bit), 8th generation Core i5 or better, 2.0 GHz or better, 4 physical cores or better, 6 threads (logical processors) or better, AVX2 instruction set, FMA instruction set
  • Memory: 8 GB RAM
  • Storage: Solid State Drive (SSD) required
  • Supported Windows Editions: 10 Pro, 10 Education, 10 Pro Education, 10 Enterprise, 10 IoT Enterprise, 11 Pro, 11 Education, 11 Pro Education, 11 Enterprise, 11 IoT Enterprise
  • Computers: ASUS Mini PC PB60-B, Dell OptiPlex 7080 X, Dell OptiPlex 7080 XE, Lenovo ThinkSmart Core


• Item Includes:

  • 1x Kit, Hardware, P300-IMX
  • 1x Bracket, Half Rack Unit
  • 1x USB cable
  • 1x Cable-exit plug
  • 1x Mounting tube wing nut
  • 1x Mounting tube
  • 1x Rubber Isolation Ring
  • 4x Nylon cable ties
