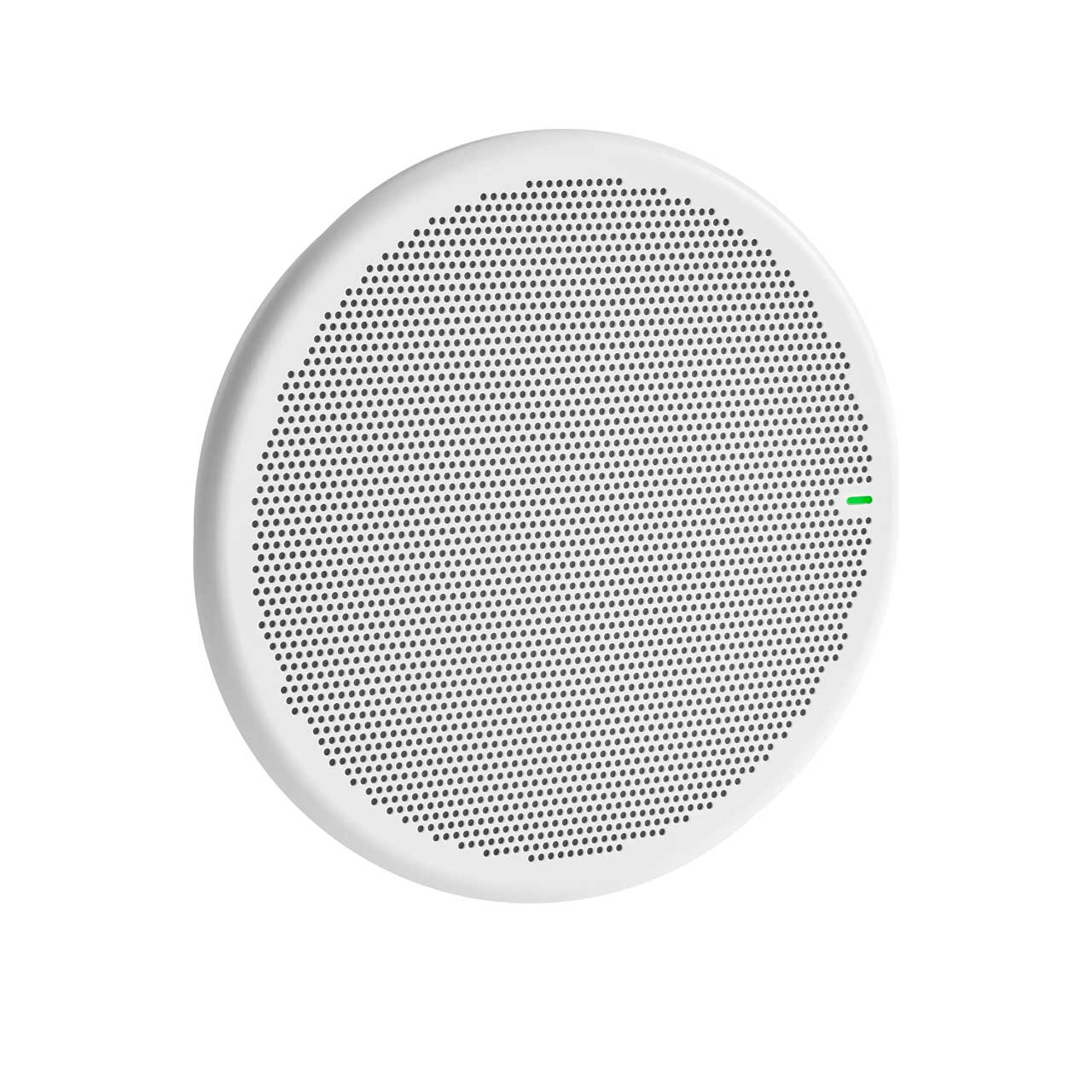

Shure MXA901W-R Microflex Advance Round Conferencing Ceiling Array Microphone - 13.5 Inch - Dante Compatible - White

ITEM #: SH-MXA901W-R MFG #: MXA901W-R

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order


We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MXA901W-R - Overview

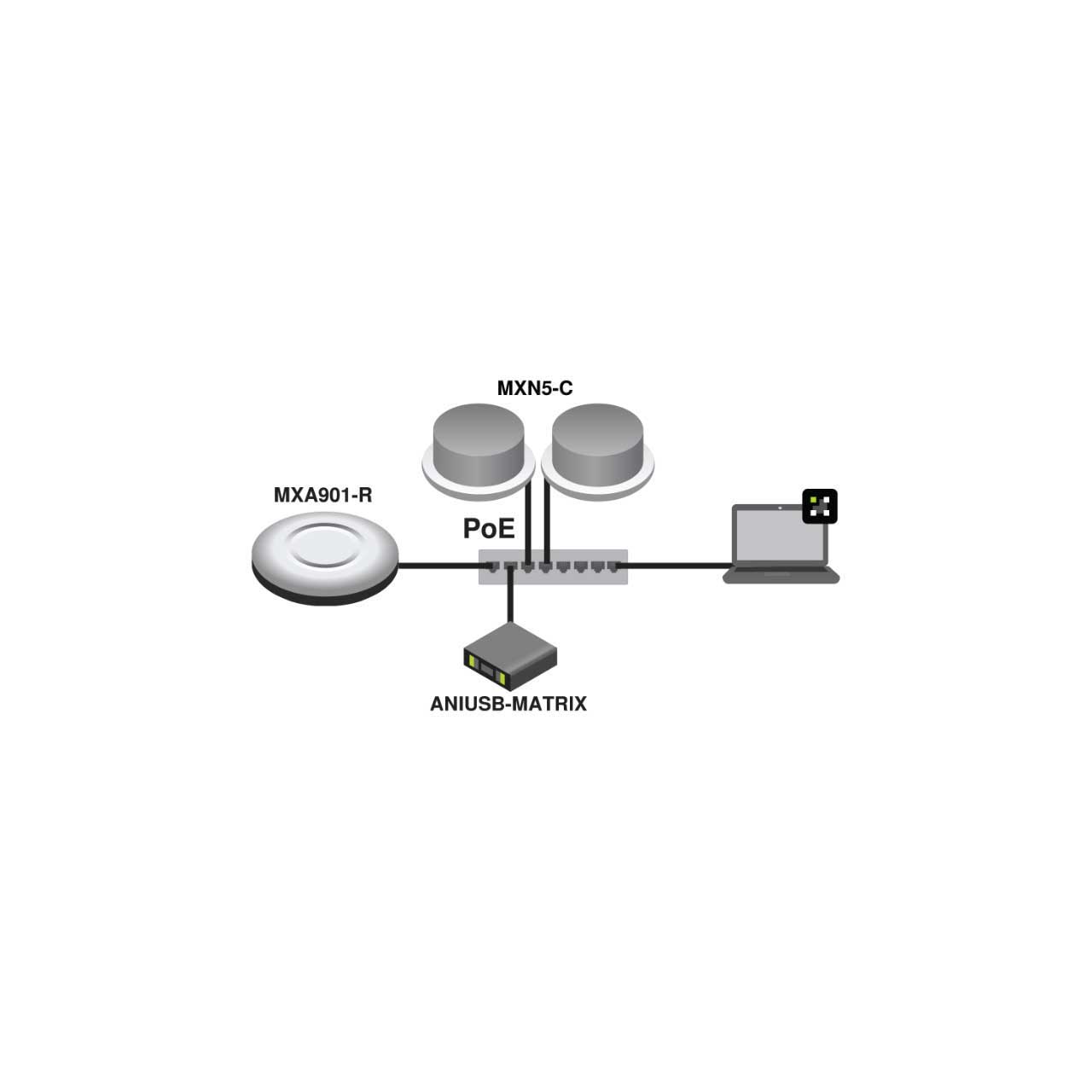

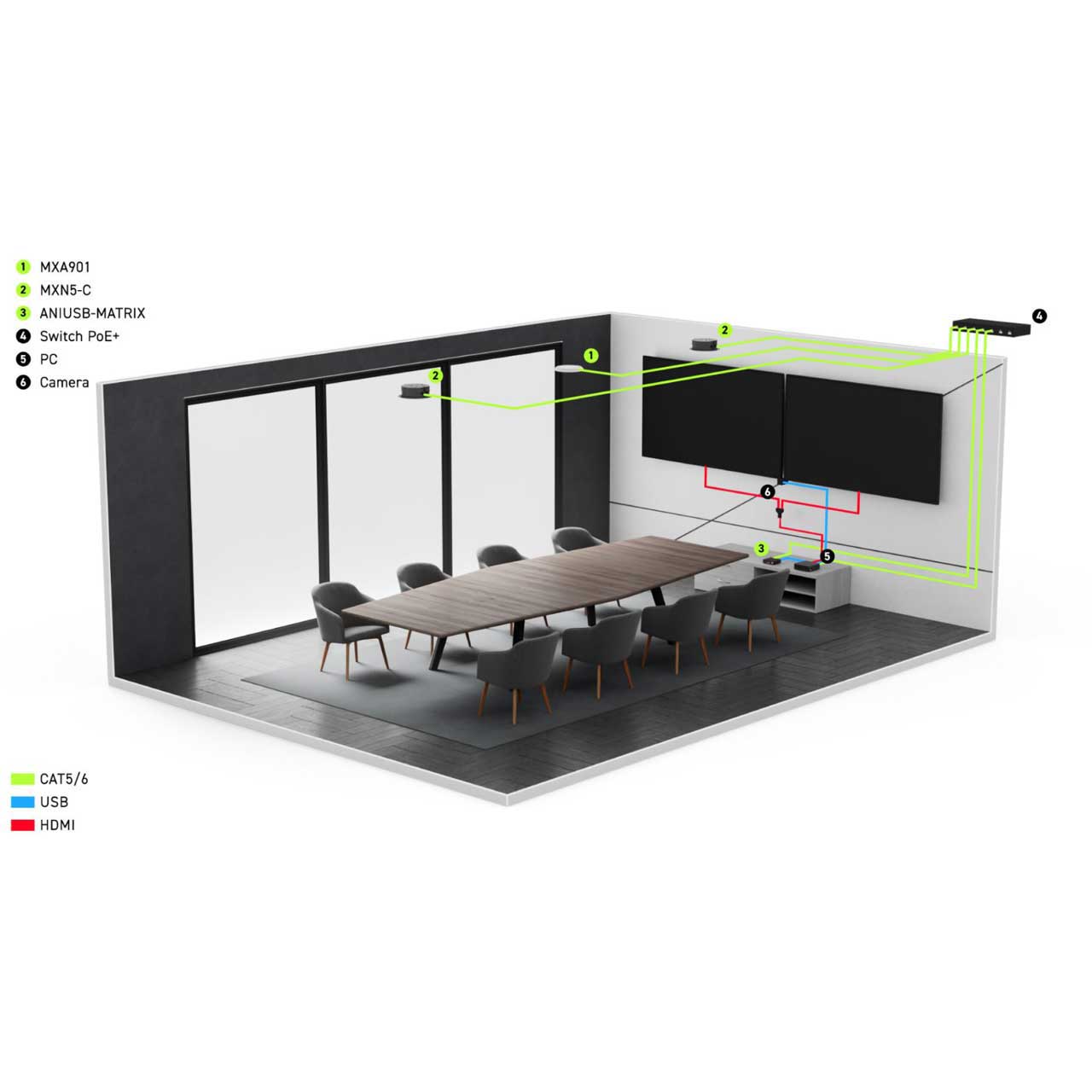

    Shure's sleekest ceiling array microphone yet, the Shure MXA901W-R provides superb AV conferencing audio in a discreet and stylish 13.5-inch round form factor that complements any interior design. Single Zone Automatic Coverage technology captures talkers clearly with no setup. Use one MXA901 in smaller rooms or multiple units in larger spaces. Onboard IntelliMix DSP delivers echo- and noise-free audio, while next-generation array architecture ensures natural speech and enhanced directional pickup. Add to all this Dante Compatibility and you have a complete networked ecosystem! Just add the MXN5W-C networked loudspeaker and the ANIUSB-MATRIX USB Audio Network Interface with Matrix Mixing and you are good to go!

    A Sleeker Take On Tech
    The Microflex Advance MXA901 Conferencing Ceiling Array Microphone is the most discreet approach to AV conferencing audio for meeting rooms. Its compact and stylish round form factor complements any interior design without drawing attention.

    Cover Everyone
    Single Zone Automatic Coverage technology requires no setup, and captures every talker in a 20 by 20 foot area out of the box. Use one MXA901 in small or medium-size rooms, or use multiple MXA901s to cover larger spaces. A variety of on-ceiling, in-ceiling, and suspended mounting options are available to suit different ceiling types.

    Cancel the Clutter
    Onboard IntelliMix DSP includes echo-cancellation and noise reduction to eliminate annoying distractions. Automatic gain control adjusts talker levels so that everyone is heard clearly no matter where they sit. The built-in automatic mixer delivers a pristine audio mix to your favorite videoconferencing software.

    • Features:

      • Single Zone Automatic Coverage, The maximum recommended mounting height is 12 feet (3.7 m).
      • Covers 20 x 20 Foot area out of the box
      • Onboard IntelliMix DSP provides automatic mixing, echo cancellation, noise reduction, and gain control
      • 13.5 Inch Round Form Factor
      • Certified for use with Teams and Zoom
      • Shure Audio Encryption keeps meeting content secure

    • Specifications:

      • Coverage Area Size: 20 x 20 feet (6.1 x 6.1 meters). The maximum recommended mounting height is 12 feet (3.7 m).
      • Coverage Type: Single-zone automatic
      • Power Requirements: Power over Ethernet (PoE), Class 0
      • Power Consumption: 10.1 W maximum
      • Control Software: Shure Designer or web application
      • Cable Requirements: Cat 5e or higher (shielded cable recommended)
      • Connector Type: RJ45
      • Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
      • Dust Protection: IEC 60529 IP5X Dust Protected
      • Operating Temperature Range: -6.7°C (20°F) to 40°C (104°F)
      • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
      • Microphone Elements: 85 MEMS
      • Frequency Response: 100 Hz to 20 kHz
      • Sensitivity at 1 kHz: -4.4 dBFS/Pa
      • Maximum SPL Relative to 0 dBFS overload: 98.4 dB SPL
      • Signal-To-Noise Ratio Ref. 94 dB SPL at 1 kHz: 67.1 dB A-weighted
      • Latency: Does not include Dante latency / 33.5 ms
      • Self Noise: 26.9 dB SPL-A
      • Dynamic Range: 71.5 dB
      • Built-in Digital Signal Processing: Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
      • Acoustic Echo Cancellation Tail Length: Up to 250 ms
      • Weight: 5lb
      • Dimensions:
        - Height: 1.64 Inches
        - Circumference: 13.5 Inches
        - Smaller top circumference: 11.61 Inches

    • Item Includes:

      • 1x Network Port Cover
      • 1x Surface Mount
      • 1x Round VESA Bracket
      • 4x M4 Screws
      • 1x MXA901

    • Warranty:

      • 1 Year Warranty

    • GTIN:

      0042406658539
