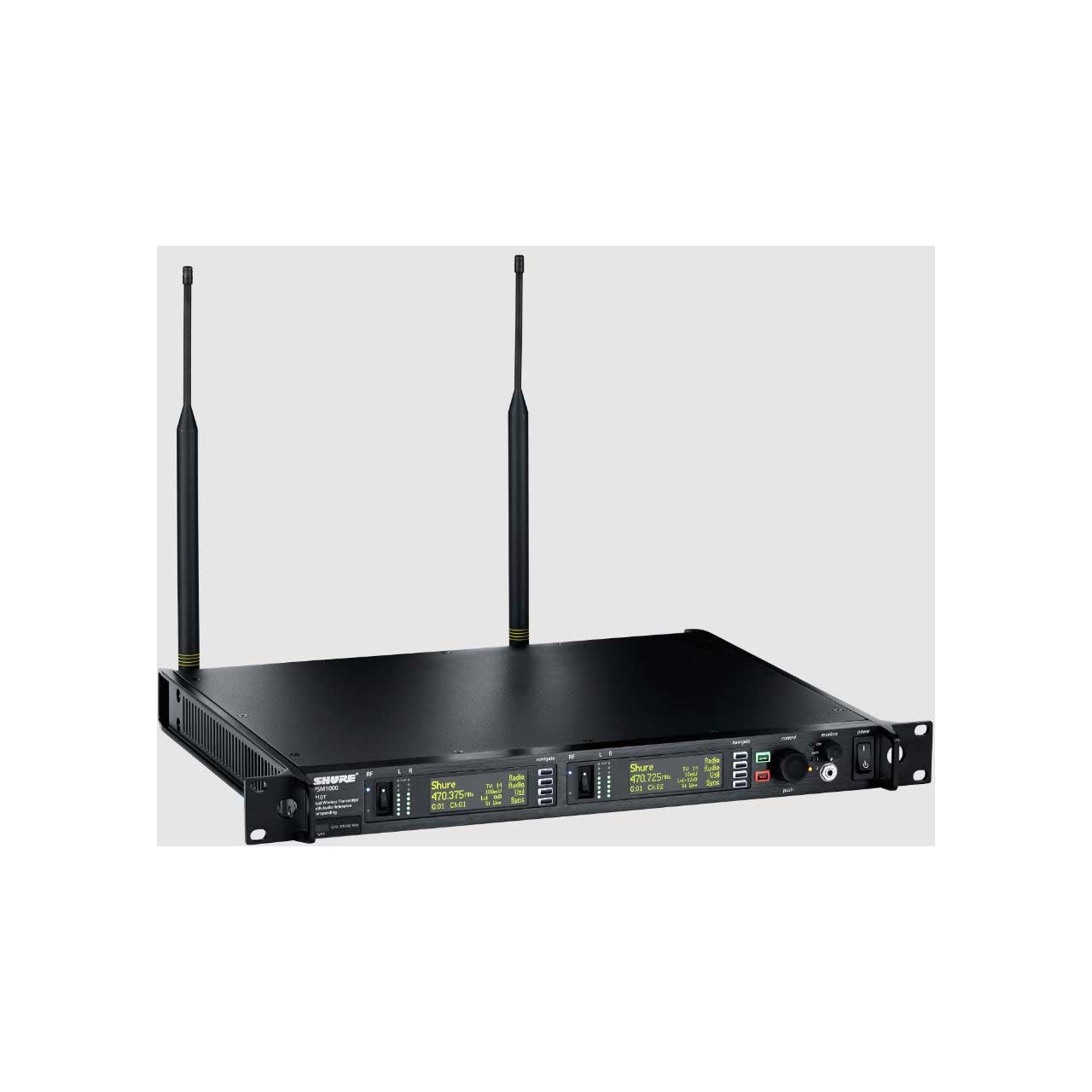

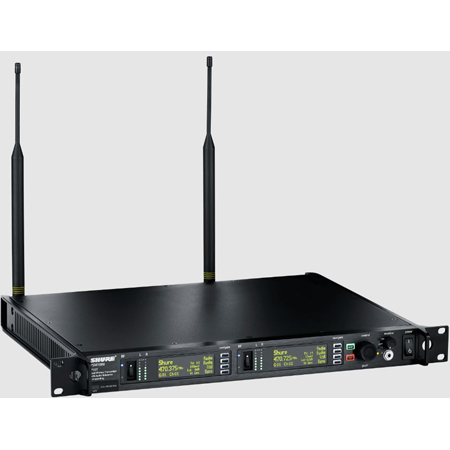

Shure P10T-G10 PSM1000 Advanced In-Ear Personal Monitoring System - Dual Rack Unit Transmitter - G10 (470 - 541 MHz)

P10T-G10 - Overview

• Features:

  • Full rack, dual-channel transmitter in a professional, touring grade chassis
  • 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
  • Networkable over Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbenchr software:
  • RF mute enable/disable
  • RF output power adjustments
  • Aux/line level
  • Audio input level
  • Channel/device name edit
  • Firmware updates
  • Backwards-compatible with PSM900 receivers
  • RF Mute Switch allows system setup without causing RF interference
  • Sync RF scan information from a P10R bodypack quickly and easily over IR link
  • Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
  • Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom

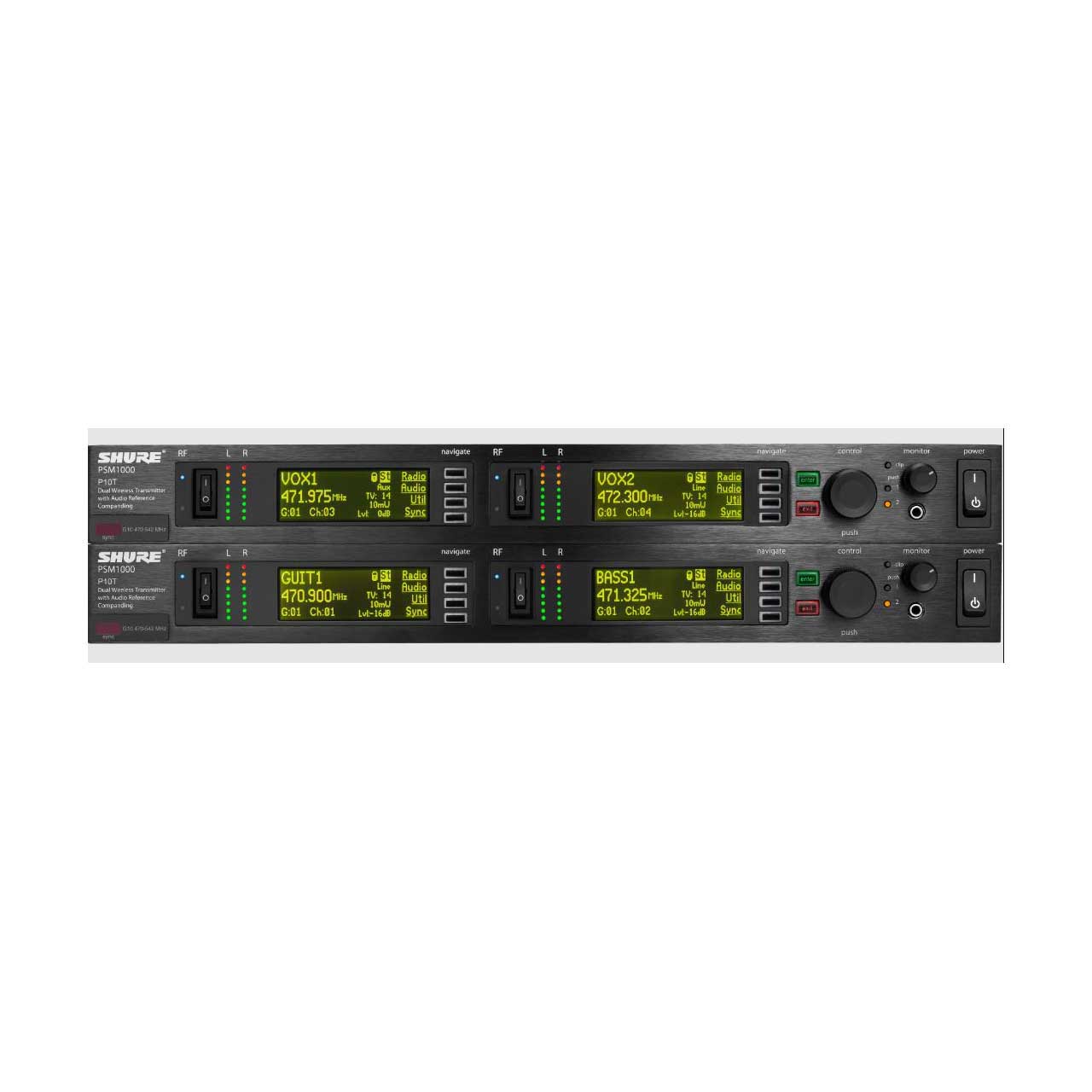

  • Front panel audio input gain adjustment and LED level meter with clipping indicator
  • Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
  • High-contrast LCD with grouped menu items provides an intuitive user interface
  • Front or back mountable antennas
  • Compatible with PA421A and PA821A antenna combiners

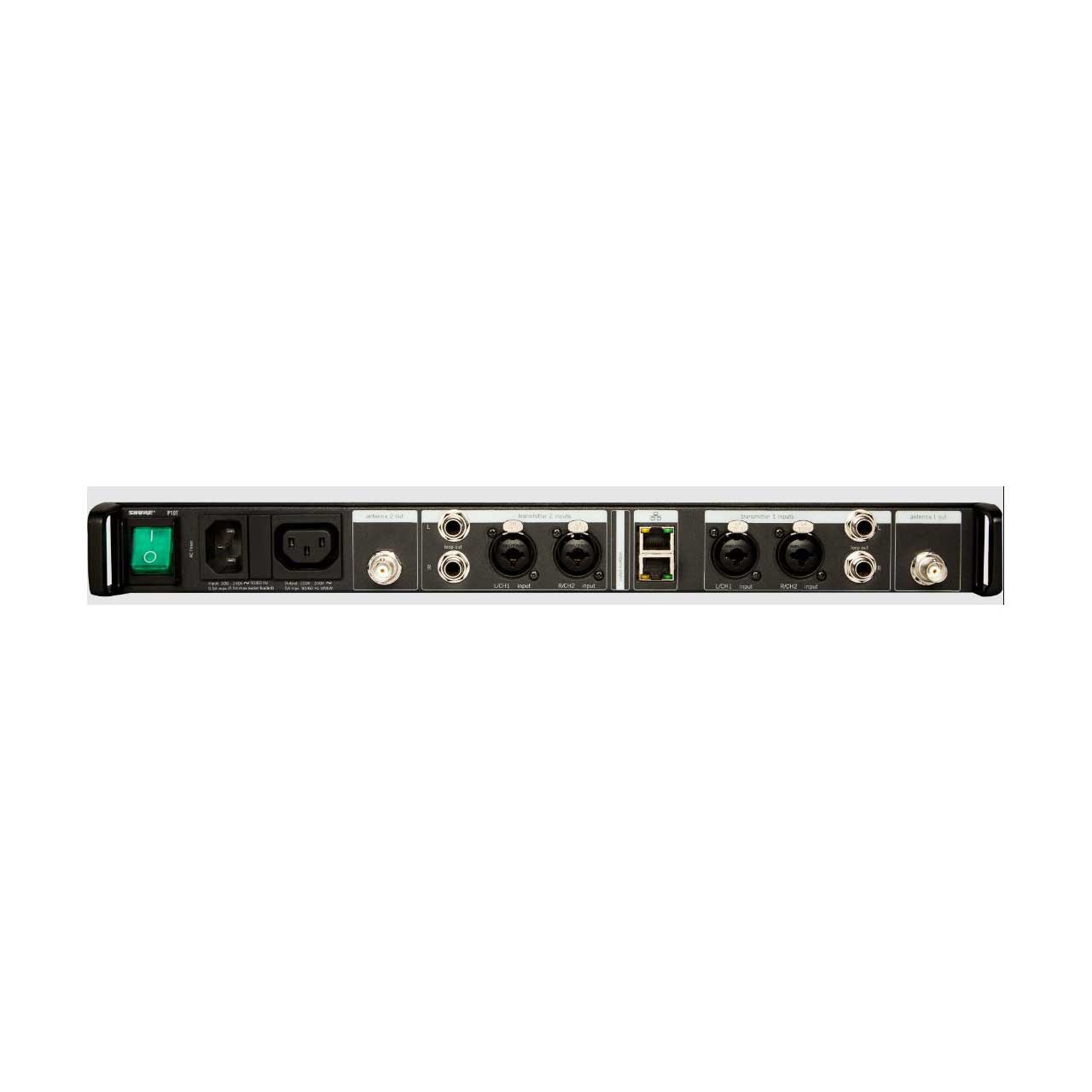

  • Loop out connectors for multiple mix setups and easy installation
  • Switchable +4dBu and -10 dBV input level
  • Balanced, 1/4" and XLR connectors
  • 1/8" headphone out on the front panel for easy monitoring


• Item Includes:

  • Power supply
  • (2) 1/2 Wave antennas
  • Hardware kit
  • (2) Ethernet cables
  • (2) BNC cable assemblies
  • User guide


• GTIN:

  0042406204866
