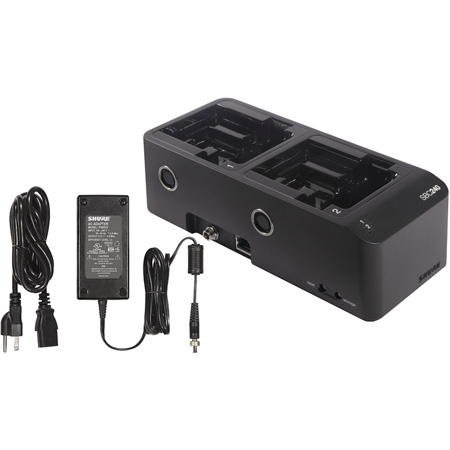

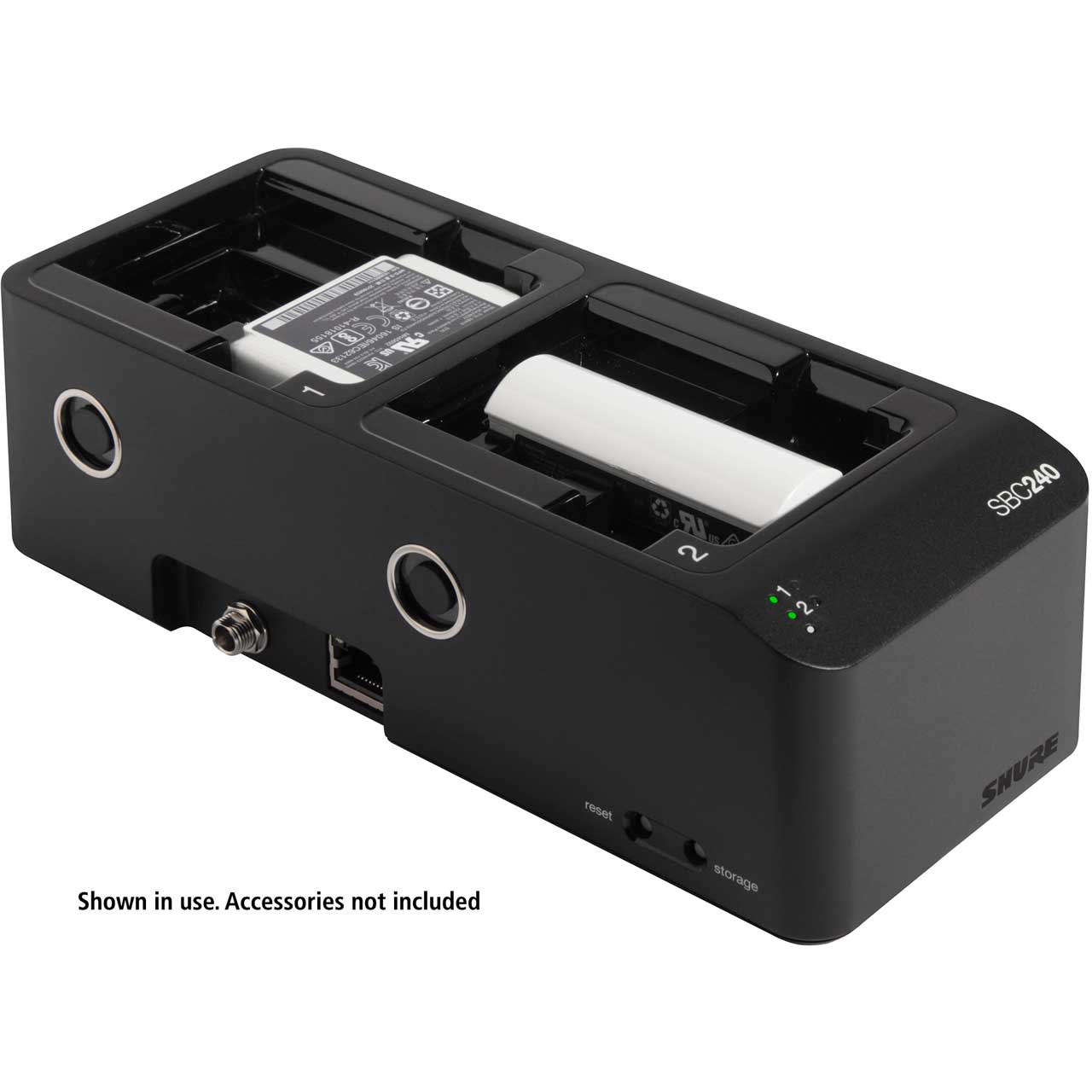

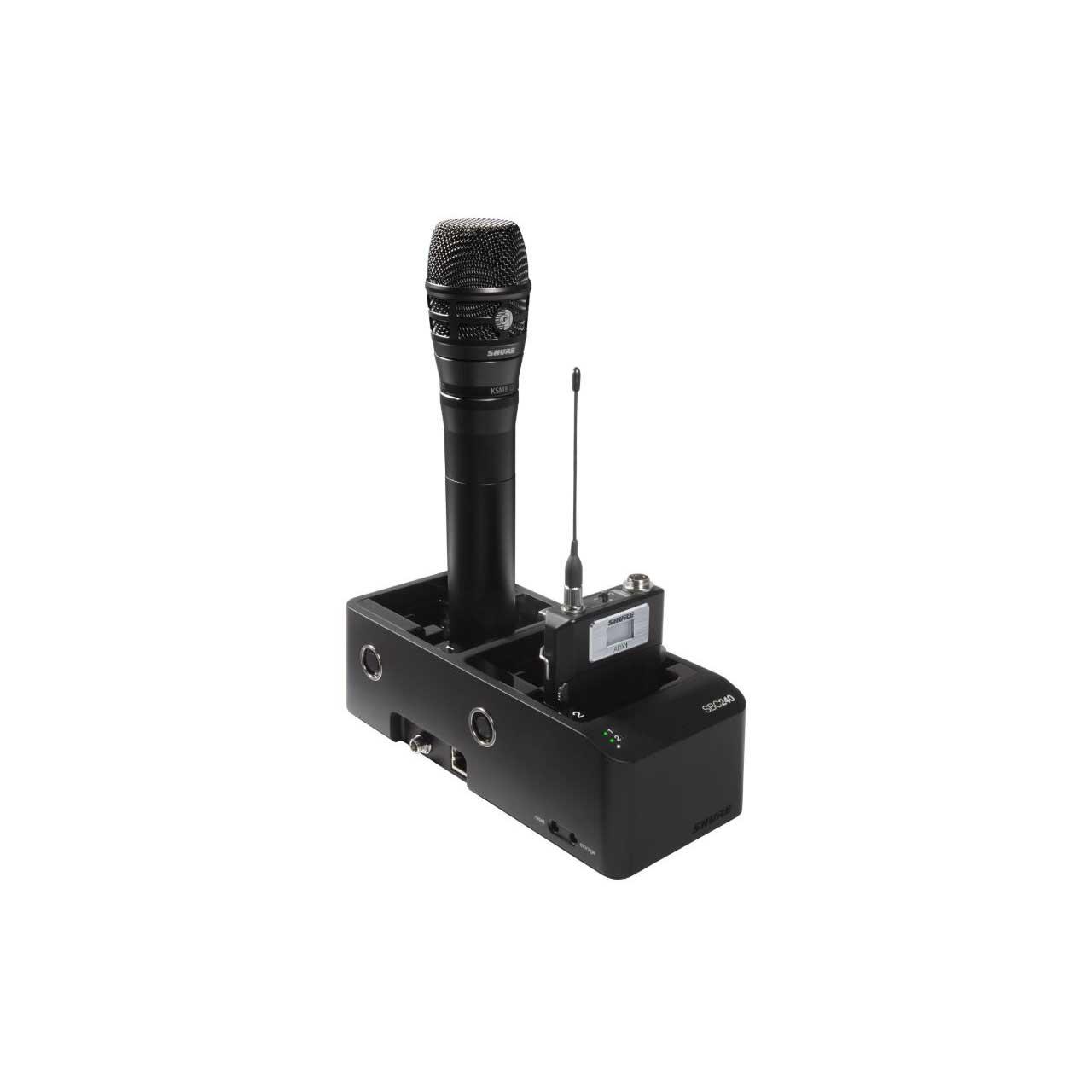

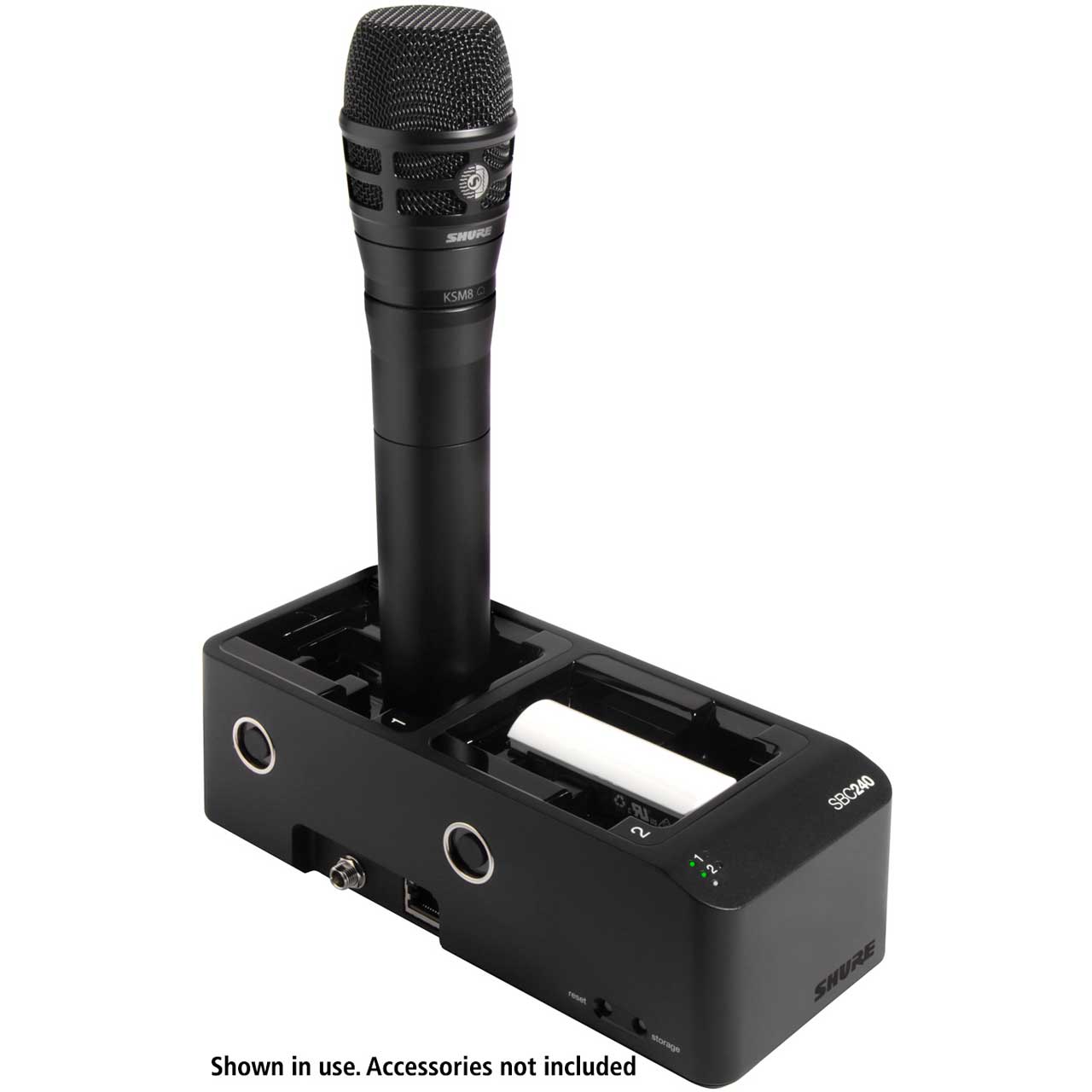

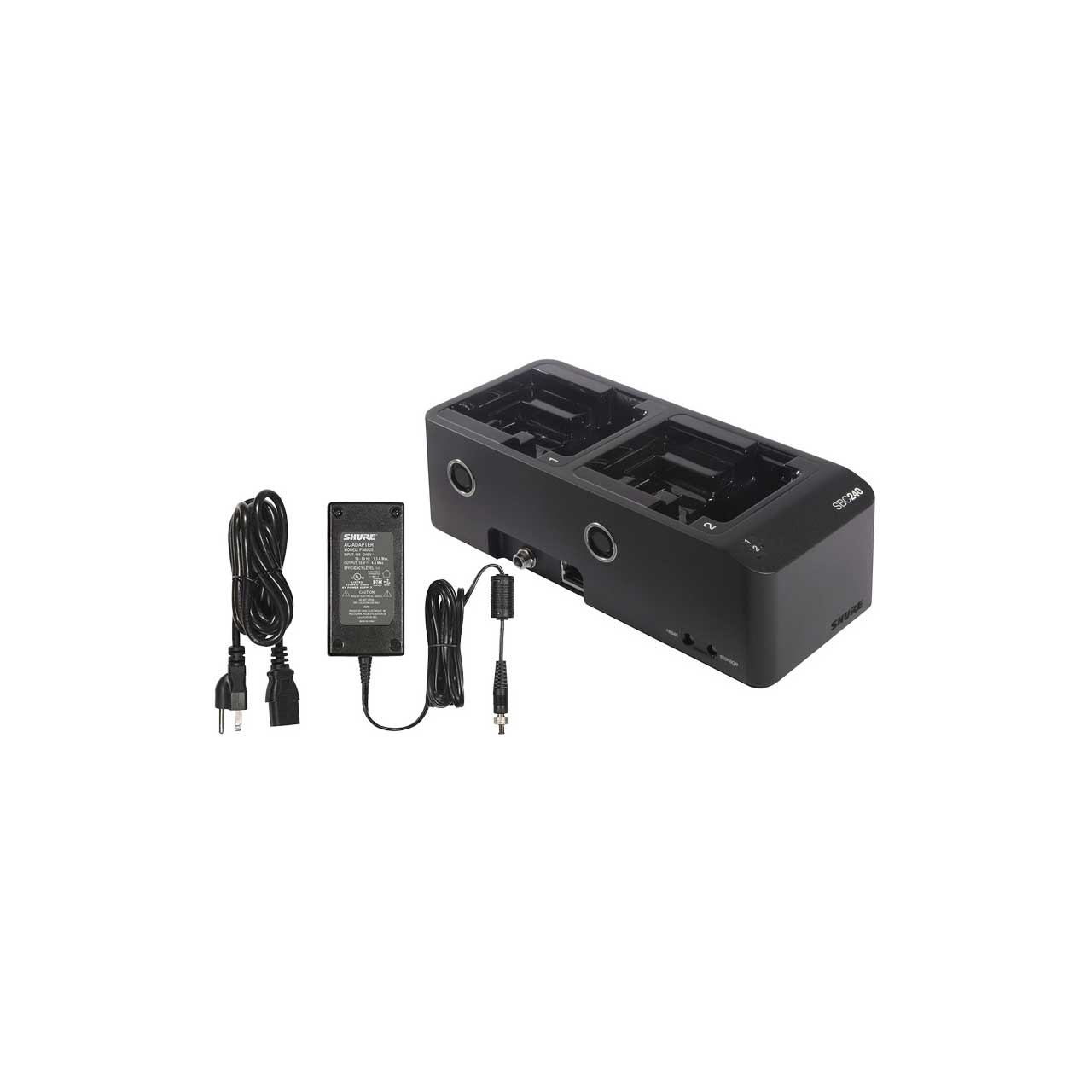

Shure SBC240-US 2-Bay Networked Docking Charger w/ Power Supply for ADX1/ADX2/ADX2FD TXs & SB910/SB920 Batteries

SBC240-US - Overview

• Features:

  • Charging for any combination of up to 2 SB910/SB920 batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries
  • Connect up to 4 chargers together to share power and network connections and save space
  • LEDs indicate charge status and battery errors
  • Storage mode to prepare batteries for long-term storage
  • Network-enabled for remote monitoring


• Specifications:

  • Compatible Batteries: Up to 2 SB910 or SB920
  • Compatible Transmitters: Up to 2 ADX1, ADX2, or ADX2FD
  • Charge Current: 1.25A maximum
  • Charge Time: 1 hour = 50% charged; 3 hours = 100% charged
  • External Power Supply: PS60
  • Power Requirement: 15V, 3.33A maximum
  • Housing: Molded Plastic
  • Network Interface: 10/100 Mbps Ethernet
  • Network Addressing Capability: DHCP or Manual IP address
  • Operating Temperature Range: 0°F - 122°F (-18°C - 50°C)
    *NOTE: Battery characteristics may limit this range
  • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)
    *NOTE: Battery characteristics may limit this range
  • Dimensions (HxWxD): 2.57" x 3.49" x 8.30" (65.25mm x 88.74mm x 210.82mm)
  • Weight: 1lb (0.45kg), without battery


• Item Includes:

  • SBC240 charger
  • PS60US power supply


• GTIN:

  0042406498845
