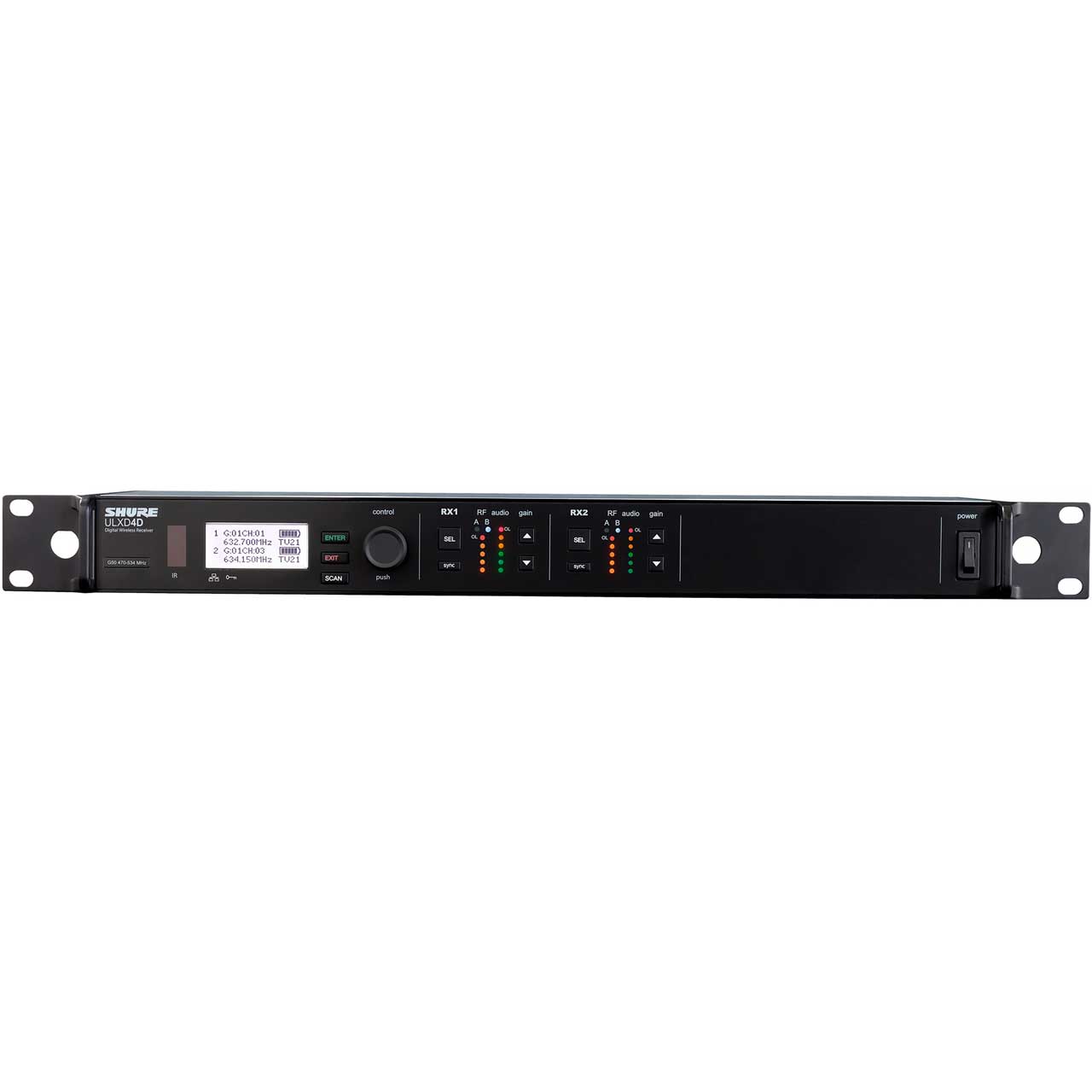

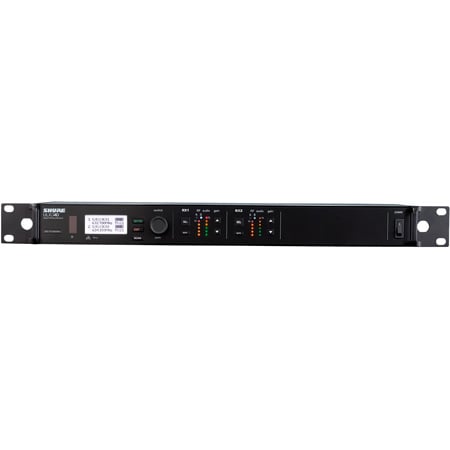

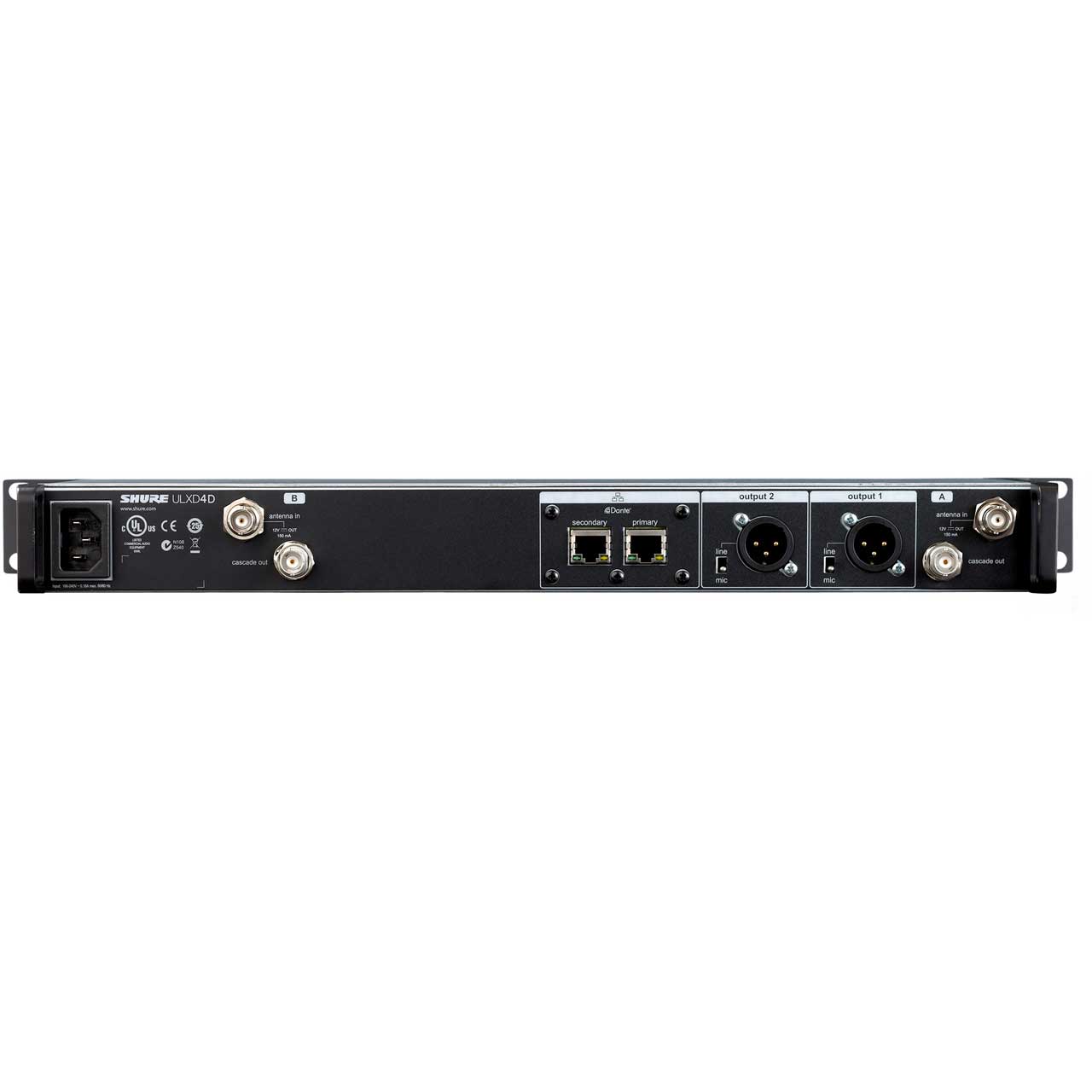

Shure ULXD4D-V50 Dual Digital Wireless Receiver - V50 - (174-216 MHz)

ITEM #: SH-ULXD4D-V50 MFG #: ULXD4D-V50

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,516.00

Our Price:

$3,226.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ULXD4D-V50 - Overview

Zoom Rooms Compatible!

The Shure ULXD4D-V50 Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability and efficiency, and advanced setup features in a single rack unit. Rugged, yet lightweight and compact, the all-metal chassis houses two independent receivers, each with its own audio and RF meters, gain control, and receiver outputs that can be either direct or summed for flexible signal routing.


With RF cascade and two Ethernet ports, units easily can share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, Dante™ digital networking allows multiple channels of audio to be transmitted and received over a single Ethernet cable. When more compatible frequencies over shorter distances, High Density mode can be enabled to dramatically increase the number of available open frequencies.

With the suite of features and benefits ULX-D® Digital Wireless Systems offer, the ULXD4D is truly generations ahead of any other dual digital receiver in its class, and brings a new level of performance to professional sound reinforcement.

Please Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

  • Features:

    • Two receivers in a rugged 1RU metal chassis with internal power supply
    • Individual gain controls, LED meters, and XLR outputs for each channel
    • Up to 64 MHz tuning range (region dependent)
    • Digital predictive switching diversity
    • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
    • RF cascade ports allow distribution of RF signal to another unit
    • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
    • Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
    • AES 256-bit encryption-enabled for secure transmission
    • Audio summing routes both audio channels to each XLR receiver output
    • DanteT digital networked audio over Ethernet
    • Up to 60 dB independently adjustable gain for each channel
    • Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
    • Wireless Workbench® 6 (WWB6) software integration for advanced coordination, monitoring, and control
    • AMX/Crestron® control
    • AXT600 Axient® Spectrum Manager compatible
    • Yamahar device ID allows simplified channel patching on CL consoles
    • Intuitive front panel LCD menu and controls with lockout feature
    • Audio and RF LED meters with peak indicator
    • XLR connectors with switchable mic/line output level
    • Remoteable ½ wave antennas

  • Specifications:

    • Dimensions: 1.7 x 18.9 x 10.7 in. H x W x D
    • Weight: 7.4 lbs, without antennas
    • Housing: steel
    • Power Requirements: 100 to 240 V AC, 50-60 Hz, 0.26 A max.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • Battery Type: Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V
    • Battery Runtime @ 10 mW: Shure SB900 >11 hours, alkaline 11 hours
    • Network Interface: Dual Port Ethernet 10/100 Mbps, 1Gbps, Dante Digital Audio
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 328 ft
    • Connector Type: BNC
    • Configuration: Unbalanced
    • Impedance: 50 Ω
    • Insertion Loss: 0 dB
    • Spurious Rejection: >80 dB, typical
    • Connector Type: BNC
    • Bias Voltage: 12 to 13 V DC, 150 mA maximum, per antenna

  • GTIN:

    0042406463072
