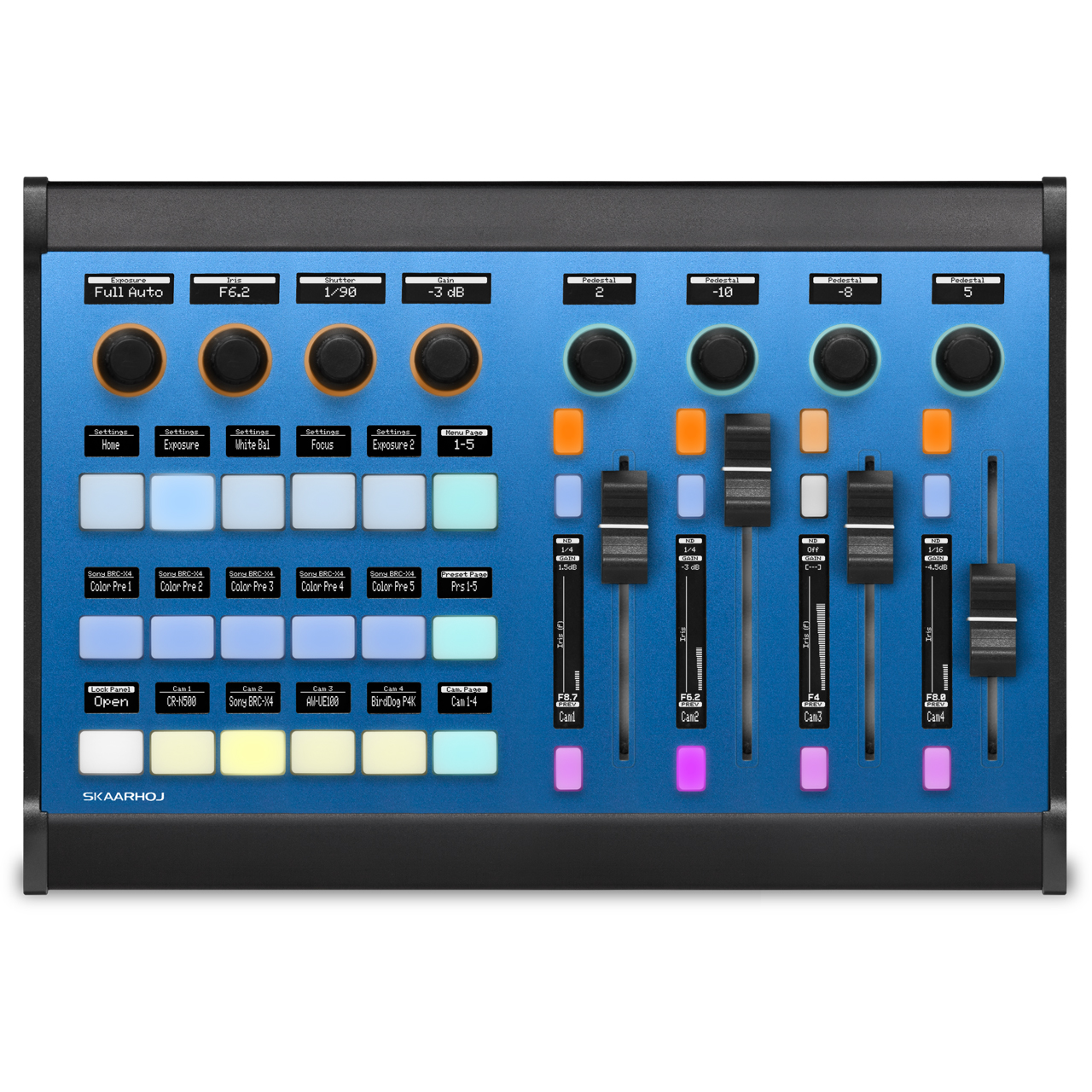

Skaarhoj COLOR-FLY-V3B Multi Camera RCP - Iris Control with Motorized Faders

COLOR-FLY-V3B - Overview

• Features:

  • Seamless multi-camera management
  • Intuitive interface with motorized faders for precise control
  • Compatible across various camera brands and models
  • Expandable to 8 channels for extensive control
  • Designed for easy navigation and adjustment of camera settings
  • Extensive list of supported devices
  • Versatile connectivity via IP
  • Durable build quality

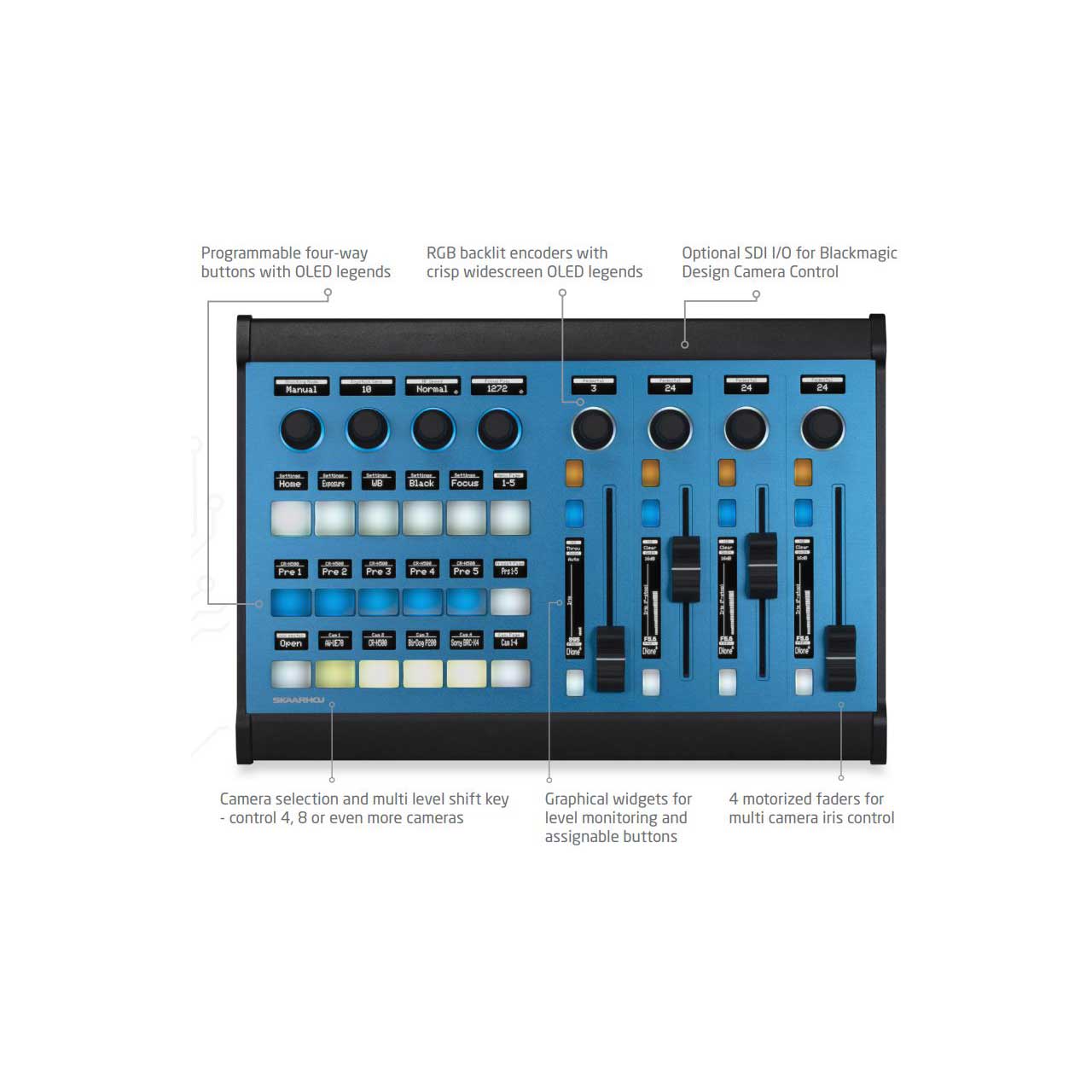

  • 4 motorized 60mm faders for iris, RGB, audio levels, or DMX lighting
  • 8 RGB backlit encoders for precise adjustments
  • 18 four-way buttons for camera selection, layers, and presets
  • Dynamic OLED displays for clear visual feedback
  • Fully customizable via Reactor Web UI
  • 1G Ethernet with Power over Ethernet (PoE) for easy setup
  • Durable, professional-grade build, designed and made in Denmark


• Specifications:

  Hardware Specifications
  • Component Highlights: 60mm motorized faders
  • Buttons:
    - Elastomer Four-Way Button w/Display x18
    - Elastomer Two-Way Button x12
  • Encoders: Encoder x8
  • Analog Components: Motorized Fader 60mm x4
  • Programmable OLED Tiles:
    - 32x32 pixels x4
    - 176x32 pixels x4
    - 32x24 pixels x8
    - 64x32 pixels x18
    - 112x32 pixels x4
    - 88x32 pixels x4
    - 256x32 pixels x4
  • Other: OLED Display Tile x20

    Connectivity
  • Networking: 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
  • Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
  • Service Port: Micro USB for setting manual IP
  • Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.

    Software
  • Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux)
  • Licenses: Full Reactor and Device Core licenses included


• Item Includes:

  • 1x 12V Power Supply
