Skaarhoj ETH-B4-LINK-V1 ETH-B4 Link UDP IP Camera Lens Control Extractor over Ethernet for BlackMagic

ITEM #: SKA-ETH-B4LINKV1 MFG #: ETH-B4-LINK-V1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$743.00

Our Price:

$724.43

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ETH-B4-LINK-V1 - Overview

Similar to SDI-B4 Link but the ETH-B4-LINK-V1 data input is via network instead of SDI. The protocol is also Blackmagic Camera Control, but over UDP ("UDP Camera Control") and typically served by a SKAARHOJ controller. It has an incredibly light and compact form factor.

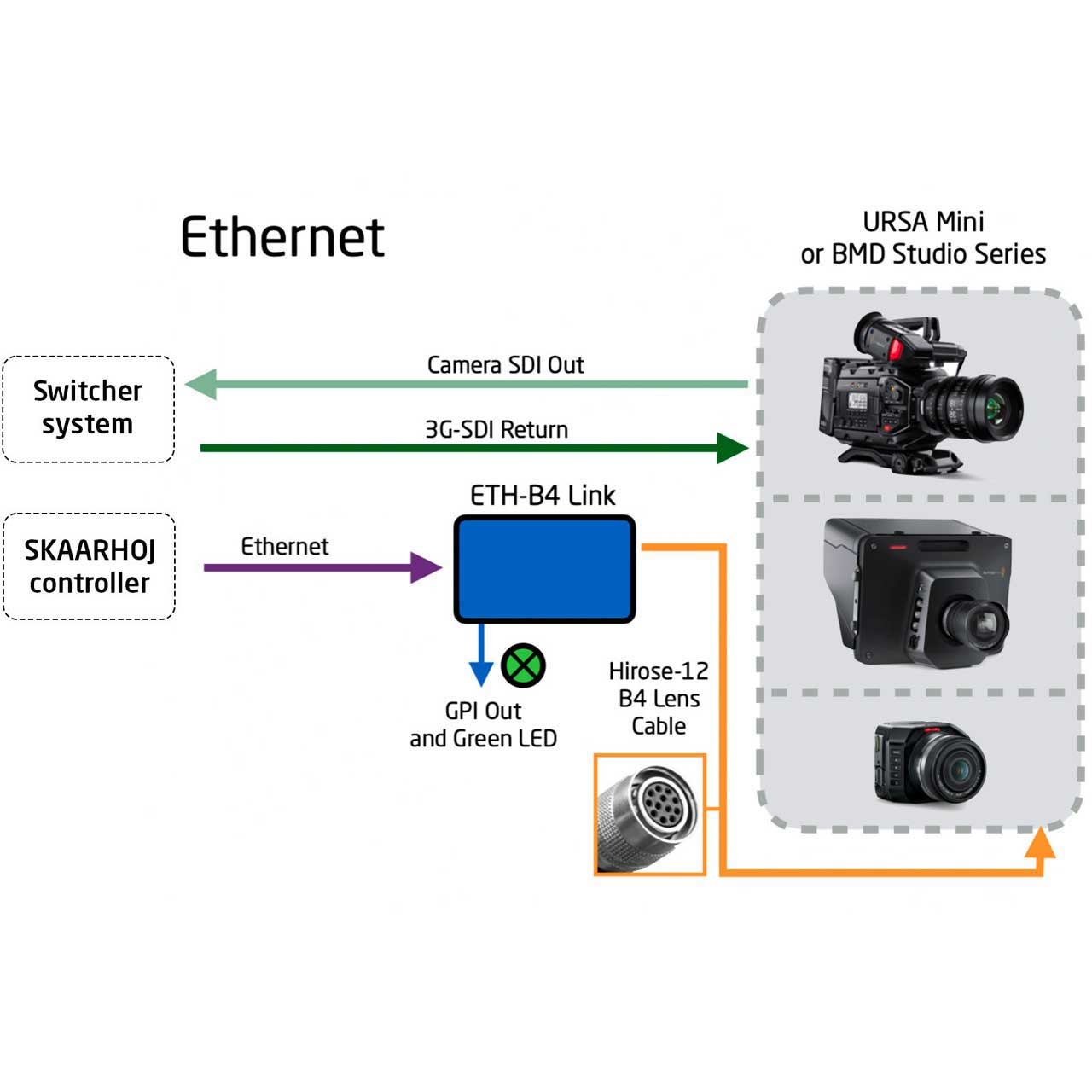

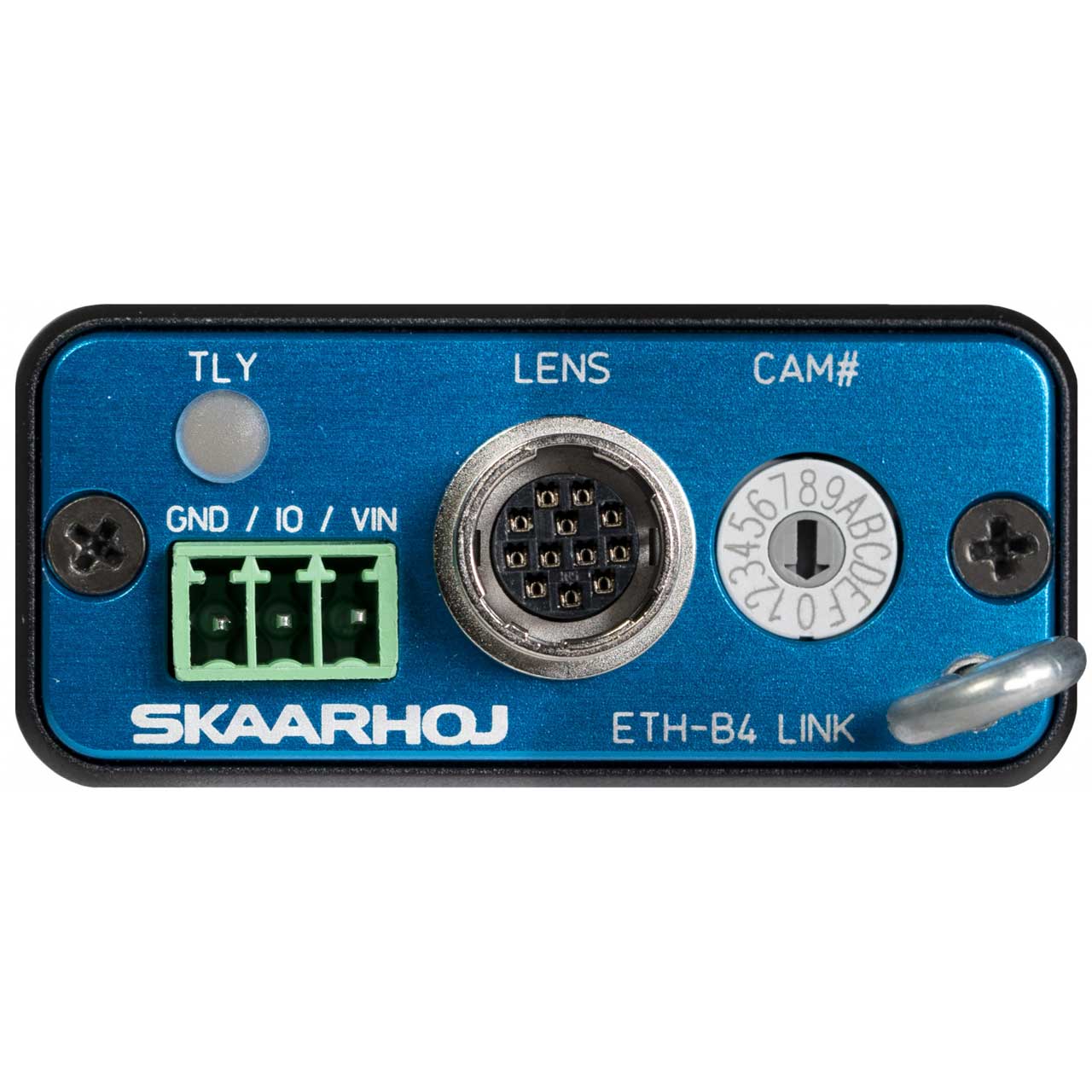

With the SKAARHOJ ETH-B4 Link the iris control data is sent separately from the camera control data over Ethernet instead of over SDI. The ETH-B4 Link has a camera selector switch that sets it's camera ID filter as well as its IP address and the iris data it receives is output on the Hirose-12 connector. It also features a tally lamp (red/green) and a relay output (PGM tally out).

  • Features:

    • Hirose 12-pin connector
    • Tally on small LED
    • Selector switch
    • 3-Pin phoenix connector

  • Specifications:

    • Dimensions (LxWxH): 4.13 x 13.97 x 4.52" (105 x 355 x 115mm)
    • Weight: 2.84Lbs (1.289kg)

  • Item Includes:

    • 1x ETH-B4-LINK-V1
    • 1x 12V Power Supply (1.5m)
    • 1x USB Programming Cable (1m)
    • 1x Networking Cable (2m)

  • GTIN:

    5714074002451
