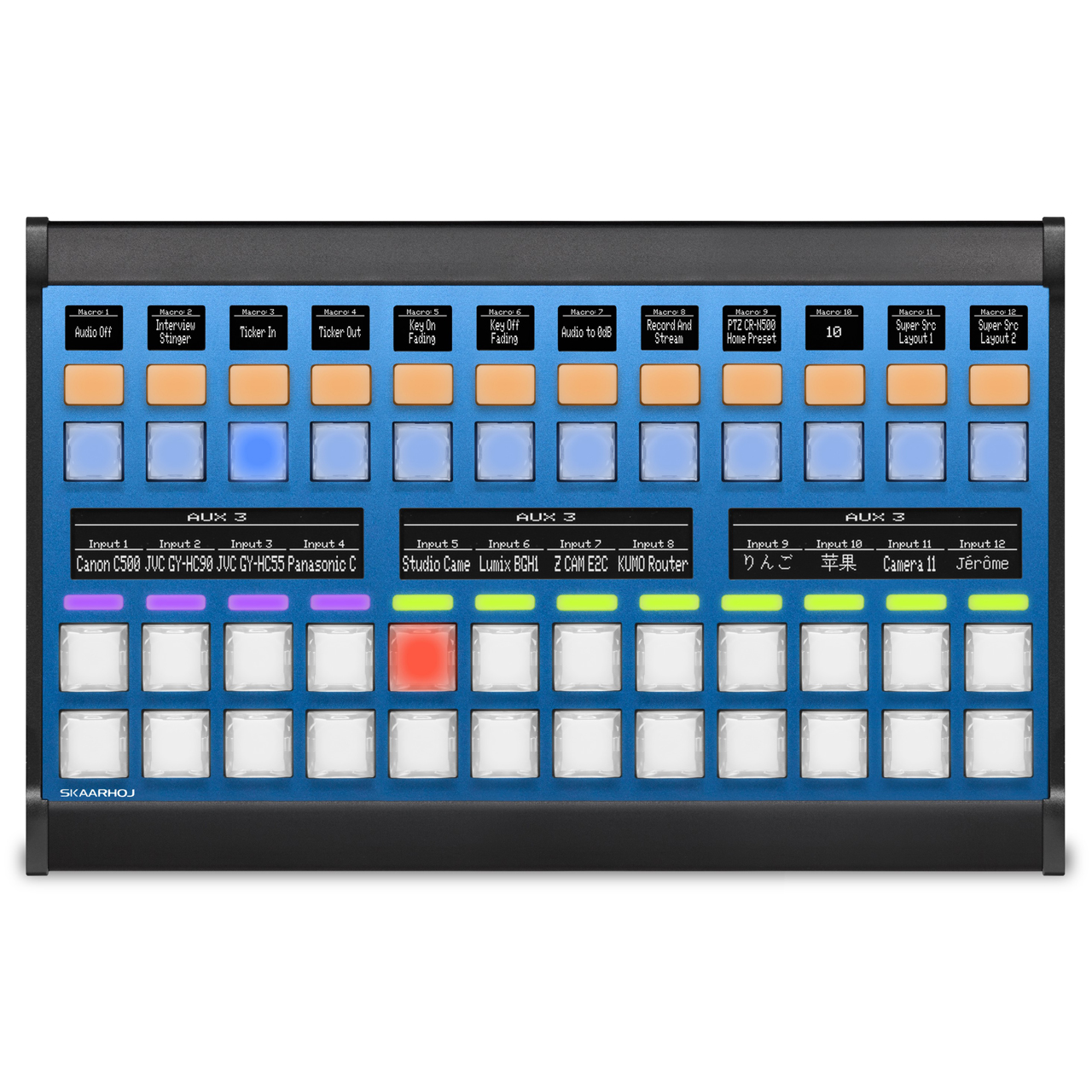

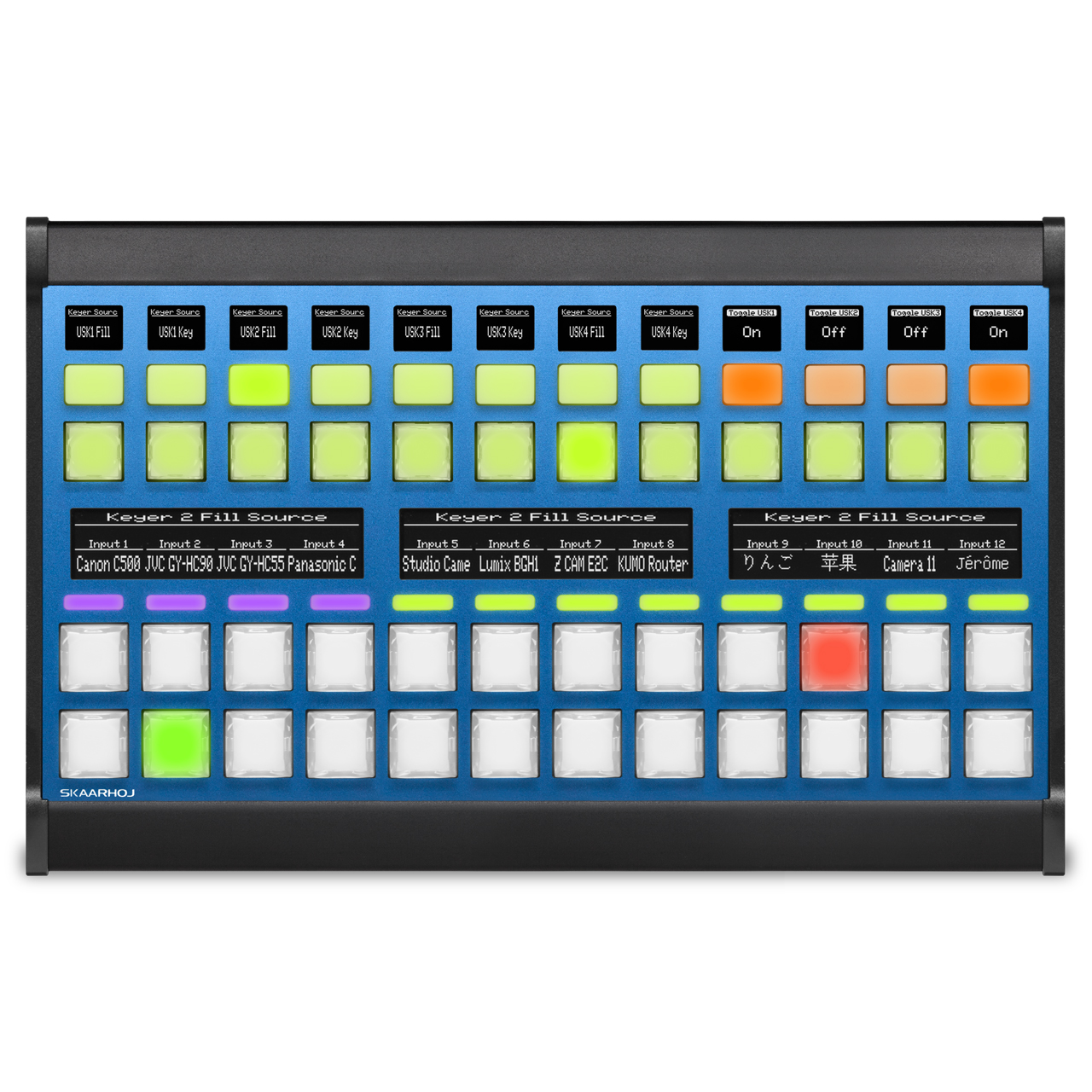

Skaarhoj MK48-V1B Master Key 48 Live Video Production Switcher

MK48-V1B - Overview

• Features:

  • Seamlessly integrates with T-Block and Master Key One panels
  • Extends input columns by an additional 12 inputs
  • Features crisp OLED displays for enhanced visibility
  • Equipped with high-quality NKK Sculptured Cap broadcast buttons
  • Facilitates efficient production workflows in professional environments
  • Extensive list of supported devices
  • Advanced ergonomics
  • Versatile connectivity via IP
  • Durable build quality
  • Designed with modularity in mind
  • Layout matching Master Key One
  • 12 program and 12 preview backlit buttons
  • 12 NKK functional buttons
  • 12 silicon functional 4-way buttons
  • Multiple OLED displays for labels and feedback
  • Universal control of multiple 3rd party devices
  • User customization with Reactor Web UI
  • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
  • Designed and made in Denmark


• Specifications:

  Hardware Specifications
  • Component Highlights: Sculptured cap NKK broadcast buttons
  • Buttons: Sculptured Hard Cap Button x36; Elastomer Four-Way Button x12
  • Programmable OLED Tiles: 64x58 pixels, gray x12; 64x32 pixels, gray x12; 64x26 pixels, gray x12; 64x48 pixels x12; 256x26 pixels, gray x3
  • Other: LED-Bar, 3 steps, Large x12; OLED Display Tile x39

    Connectivity
  • Networking: 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
  • Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
  • Service Port: Micro USB for setting manual IP
  • Peripherals: USB-A 2.0 (500 mA) for Stream Deck, X-keys, additional networking adapters, frame grabbers etc.

    Software
  • Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux)
  • Licenses: Full Reactor and Device Core licenses included


• Warranty:

  • 1 year


• GTIN:

  5714074002611
