Studiomaster DigiTrack18 20 Input Digital Mixing Console with USB MULTITRACK Recording - 16 XLR/4 Digital Inputs

ITEM #: SM-DIGITRACK18 MFG #: DIGITRACK18

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,727.90

Our Price:

$2,318.71

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DIGITRACK18 - Overview

The Studiomaster DIGITRACK18 is the newest flagship console to the DIGI series of compact digital mixing solutions. The 16 input channel digiTRACK18 brings all the simple operation brought to you with the digiLiVe16, but adds extra features and options normally reserved for higher end digital mixers. The digiTRACK18 has features like multitrack recording, LAN network connectivity, DCA sub groups, custom layers, and hot keys for instant access to the features you want. All channel and console settings are clear at a glance, and you can use the touch screen or encoder to adjust the settings.

  • Features:

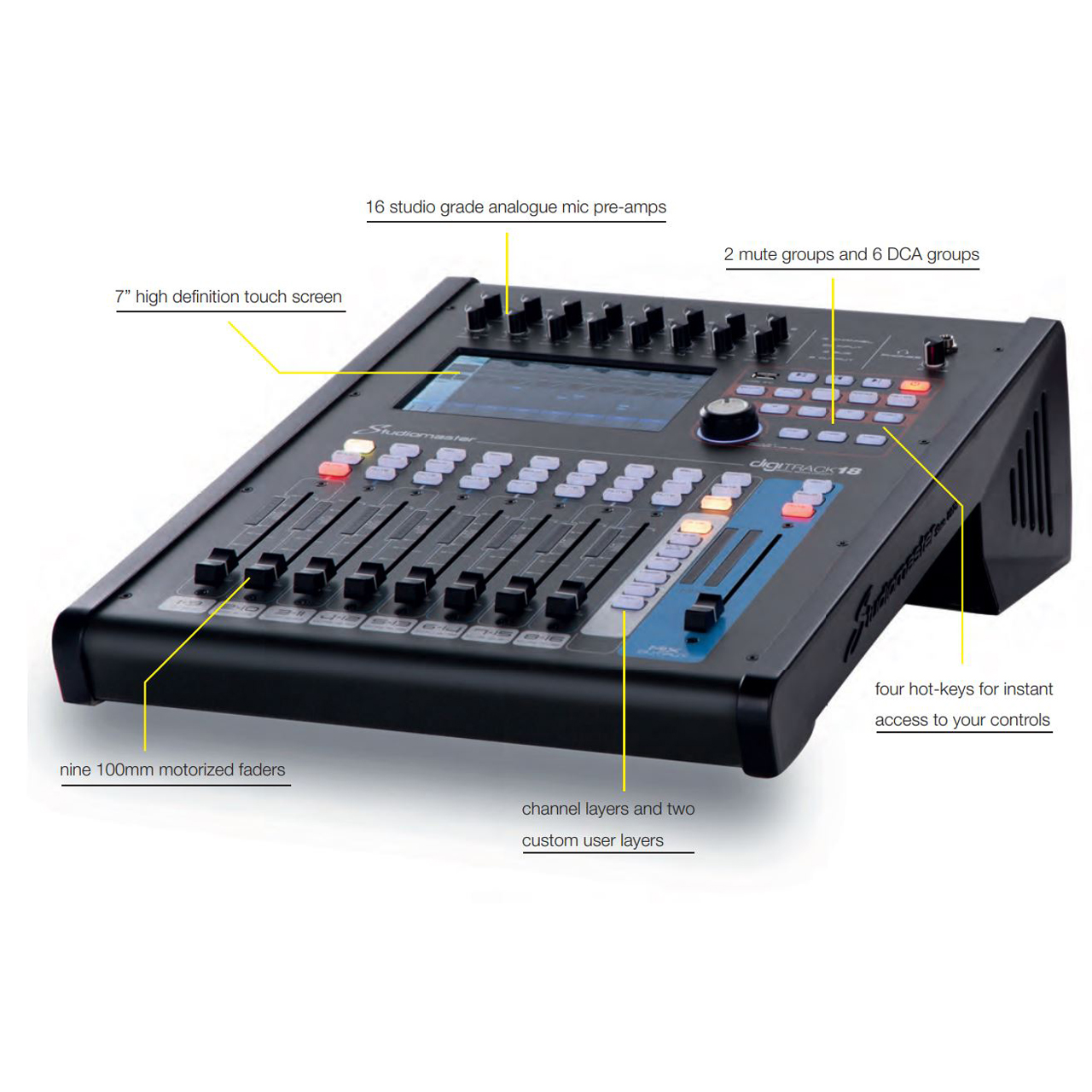

    • Simple to use 1024x600 7" touchsceen with clear and informative graphics
    • Clear visual representation of all channel and mixer settings
    • Use either the touchscreen or encoder to adjust any setting
    • 100mm motorized faders, with one touch layer selection
    • Solo, mute, and channel select buttons for each channel
    • RS485 connection to custom API or iPad control by APP
    • 16 internal busses with 8 balanced XLR outputs
    • 6 DCA internal groups and 2 mute groups
    • Comprehensive routing facilities to maximize mixer flexibility
    • Simple and clear selection and routing
    • Fully adjustable gate and compression
    • 4 stereo effects available with reverb, delay, modulation and 31 band graphic EQ
    • Simple to use and informative visual representation of effect or dynamic
    • Depth and gain reduction metering for accurate adjustment

  • Specifications:

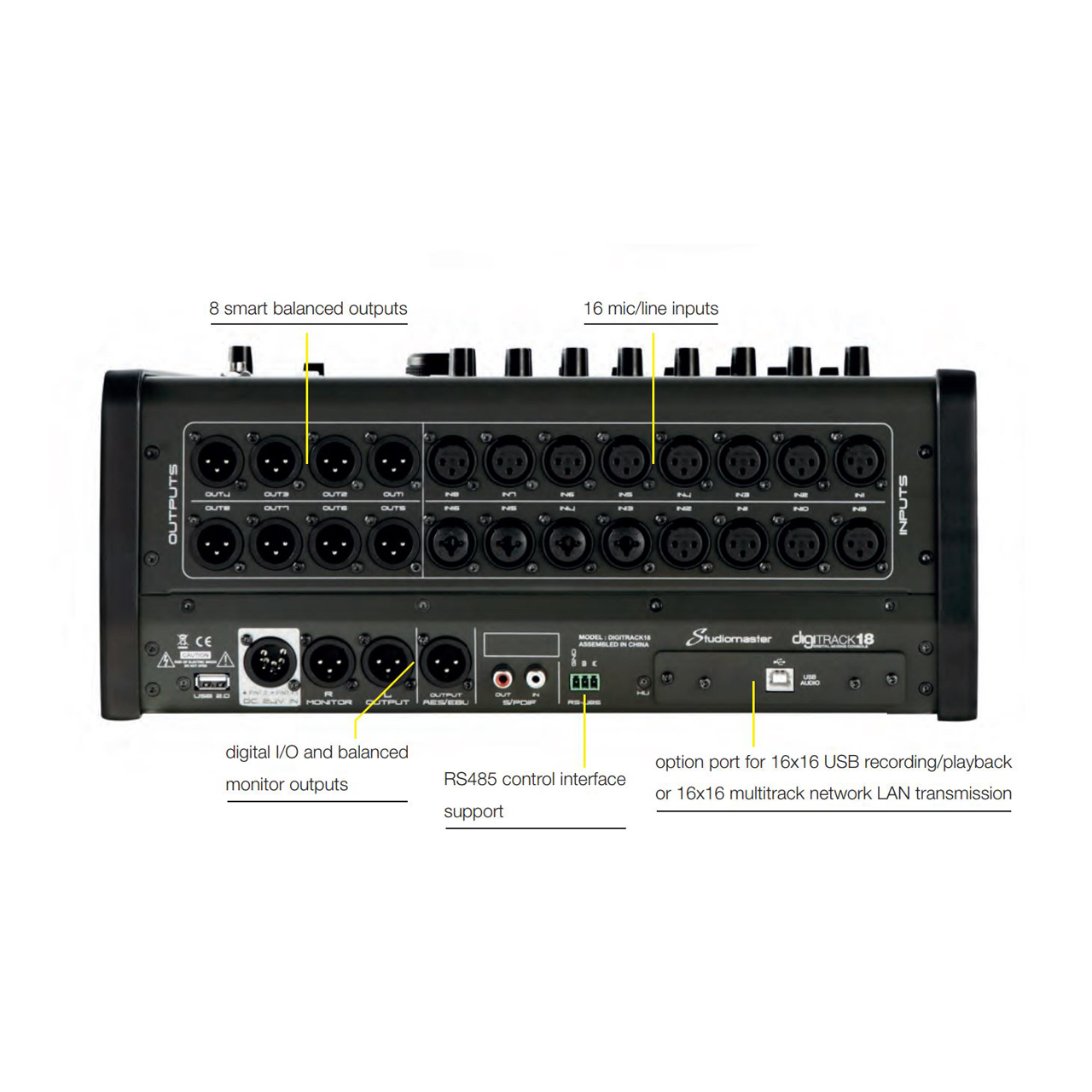

    • MIC/LINE Input: 16 channels, 12x XLR/4x COMBO XLR/JACK
    • Master Output: 2x Left/Right balanced XLR
    • Smart Outputs: 6x assignable balanced XLR
    • Internal Busses: 16
    • DCA Groups: 6x DCA groups
    • Stereo Monitor: 2x XLR output
    • Headphone: 1x TRS Jack output
    • Screen: 7" high definition touch screen
    • Faders: 8x motorized 100 mm faders + 1x motorized 100mm fader for L/R mix
    • Layers: Multiple channel/bus layers + 2x custom user layers
    • Operating System: Android system
    • Sample Frequency: 48kHz
    • AD/DA: 192kHz, 24-bit
    • DSP: 40-bit float point, SHARC processor
    • iPad Remote Control: Yes
    • Effects: Up to 8 assignable effect modules (reverb,modulation,delay, 31band GEQ with RTA)
    • AES/EBU: Output (XLR)
    • S/PDIF: Input/Output (RCA phono)
    • USB Interface: 2x USB type A for playback/recording, scene storage and system updates (option - 1 usb type B for 16 x 16 USB audio connection to PC/computer DAW)
    • Network: Yes via WIFI external module
    • Power: 90V - 240V ~ 50/60Hz power supply 24VDC output

  • Item Includes:

    • 1x Studiomaster DIGITRACK18

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    5060255345740
