HX2-500 - Overview

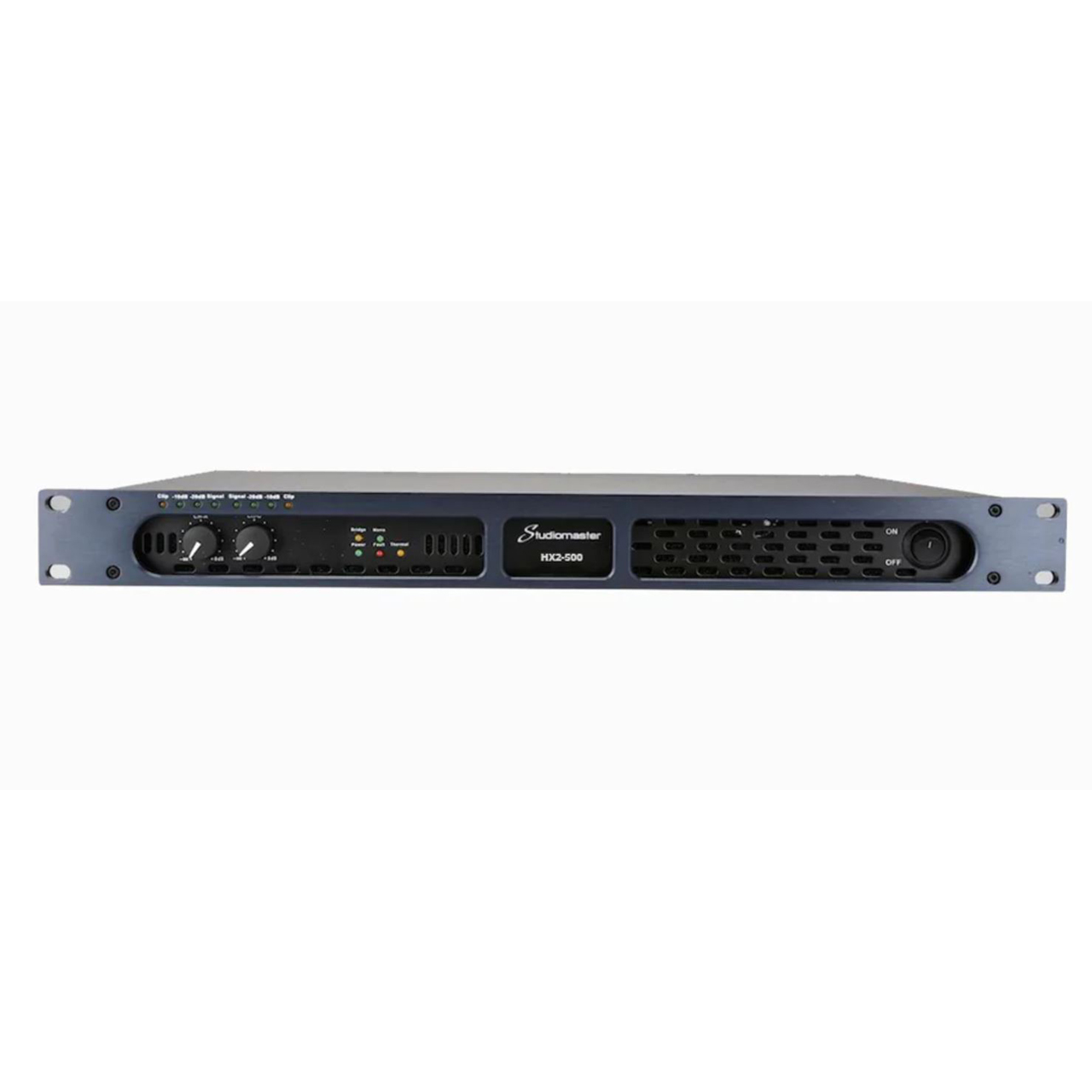

The Studiomaster HX2-500 is a part of the ultra lightweight, compact yet high performance digital power amplifier models. It features comprehensive protection and status indicators. The HX2-500 is 1U size, with power factor correction (PFC), universal power supplies which will operate between 90V - 250V AC, and will perform at loads down to 2Ω. For demanding installation, conference, entertainment and smaller touring and rental applications, the HX2-500 will supply the performance, power and reliability you need in a compact, affordable package.

Please Note: Images are for reference only. All HX2 enclosures are the same.

  • Features:

    • Energy Saving Design with High Efficiency
    • Power Factor Correction (PFC)
    • Universal 90V - 250V Power Supply
    • 2 Channel
    • Reliable Efficient Operation Down to 2ohm Loads
    • Variable Speed Fan Cooling
    • Status and Protection Indicators

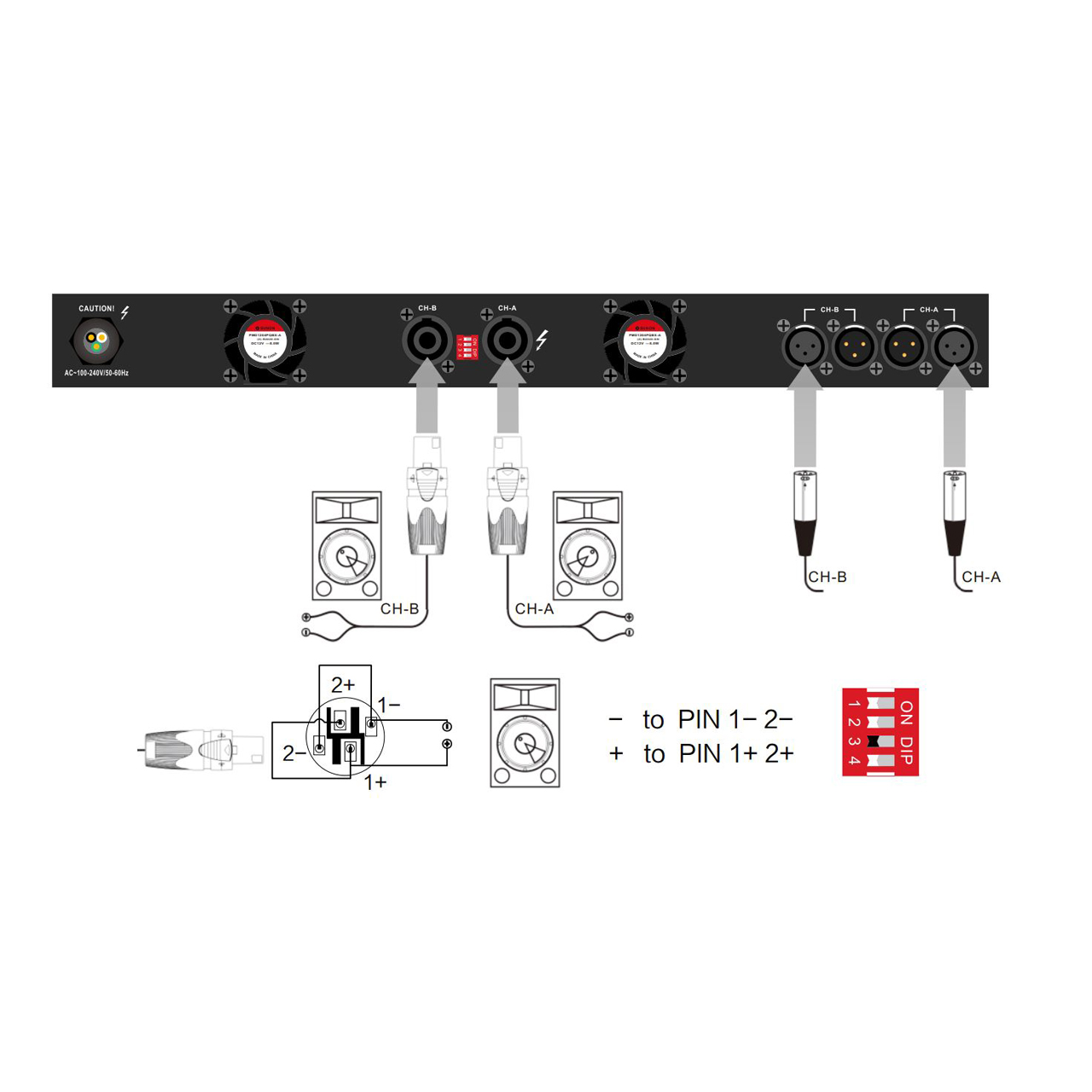

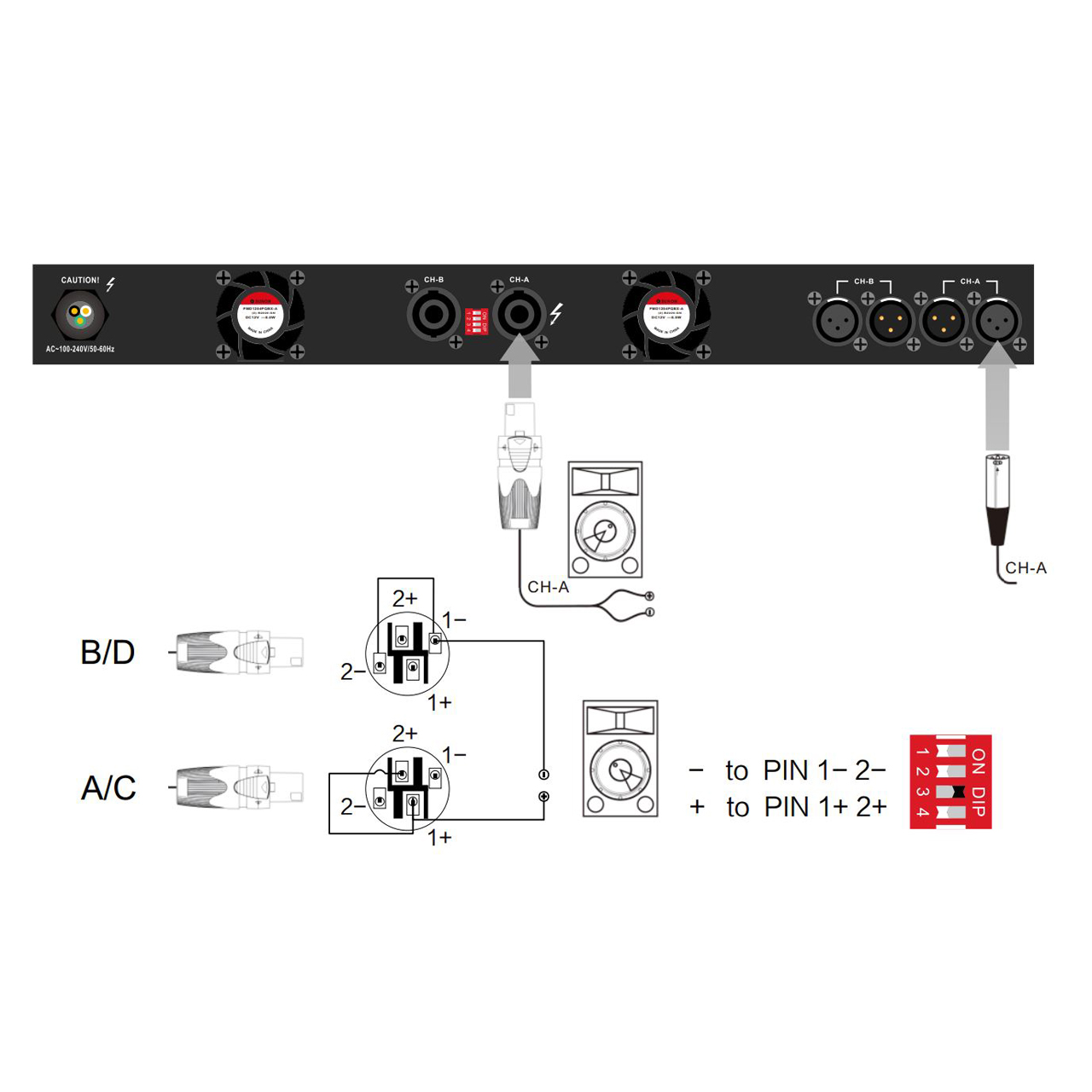

    • Stereo/Parallel/Bridge Modes
    • Multiple Gain Modes
    • Output Limiter
    • Balanced XLR Inputs
    • Professional Speaker Connectors
    • Thermal, Overload, DC Protection
    • Thermal, Fault, and Limiter Indicators

  • Specifications:

    • Slope (1kHz, Bypass LPF): 50V/us
    • Input Sensitivity 1kHz: 1Vrms
    • THD+N (10% rated output power): 0.02%
    • IMD-SMPTE (10% rated output power): 0.05%
    • DIM30 (10% rated output power): 0.05%
    • Crosstalk Rejection (less than rated power, 20Hz - 1kHz): >80dB
    • Frequency Response (10% rated output power, 8Ω, 20Hz - 20kHz): 0.2dB
    • Input Impedance: 20kΩ (bal), 10kΩ (unbal)
    • Damping Factor (8Ω, 20Hz - 100Hz): 300
    • S/N Ratio (A weighted, 20Hz - 20kHz): 105dB
    • Power Supply: 90V - 260V AC, 50/60Hz
    • Protection: Overoad/Thermal/DC Output Protection
    • Dimensions (WxHxD): 19" x 2" x 13" (483mm x 44mm x 323mm)
    • Net Weight: 11lbs (5.0kg)
    • 8Ω Stereo: 2 x 250watts
    • 4Ω Stereo: 2 x 425watts
    • 2Ω Stereo: 2 x 735watts
    • 16Ω Bridged: 500watts
    • 8Ω Bridged: 850watts
    • 4Ω Bridged: 1450watts

  • Item Includes:

    • 1x Studiomaster HX2-500

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    5060255344149
