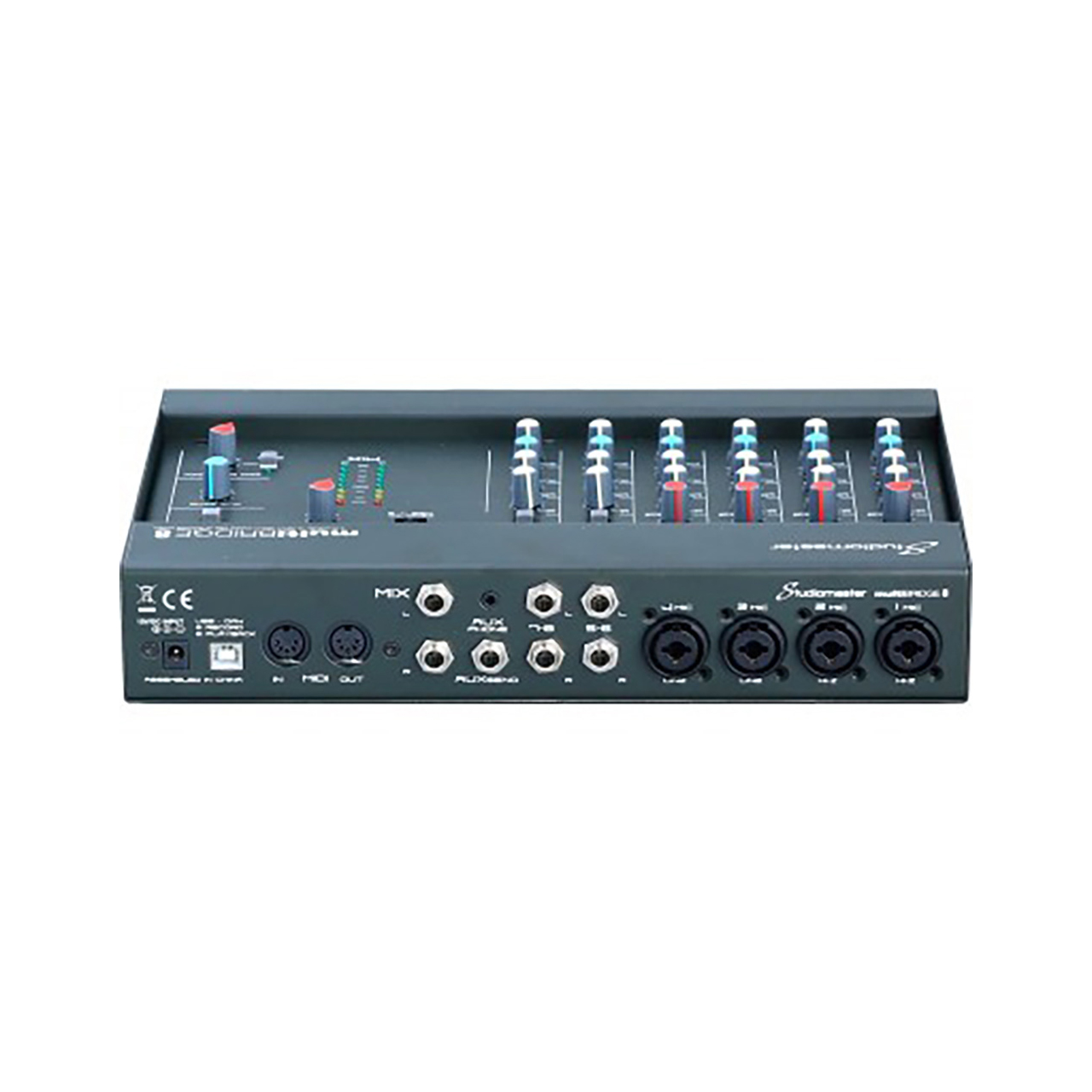

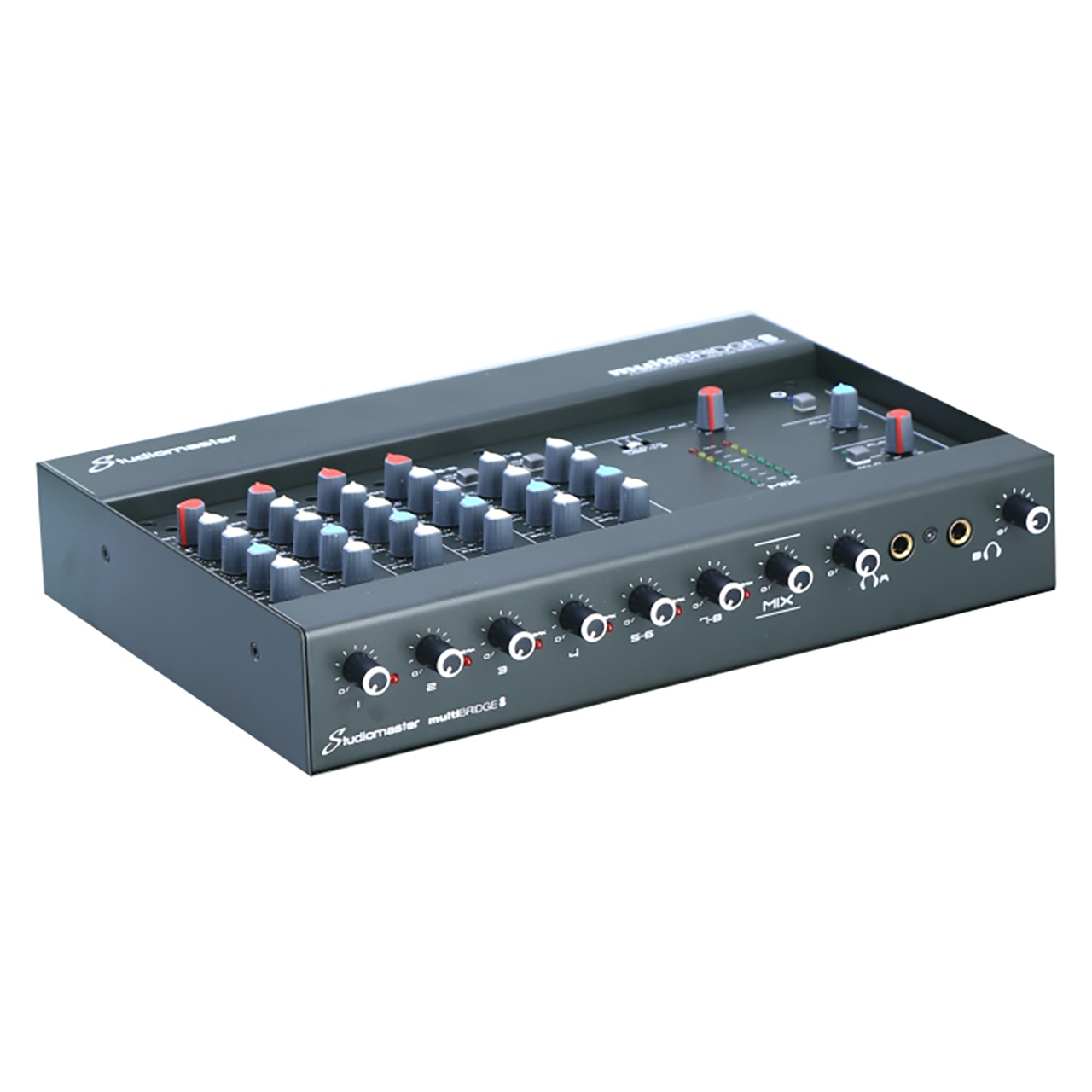

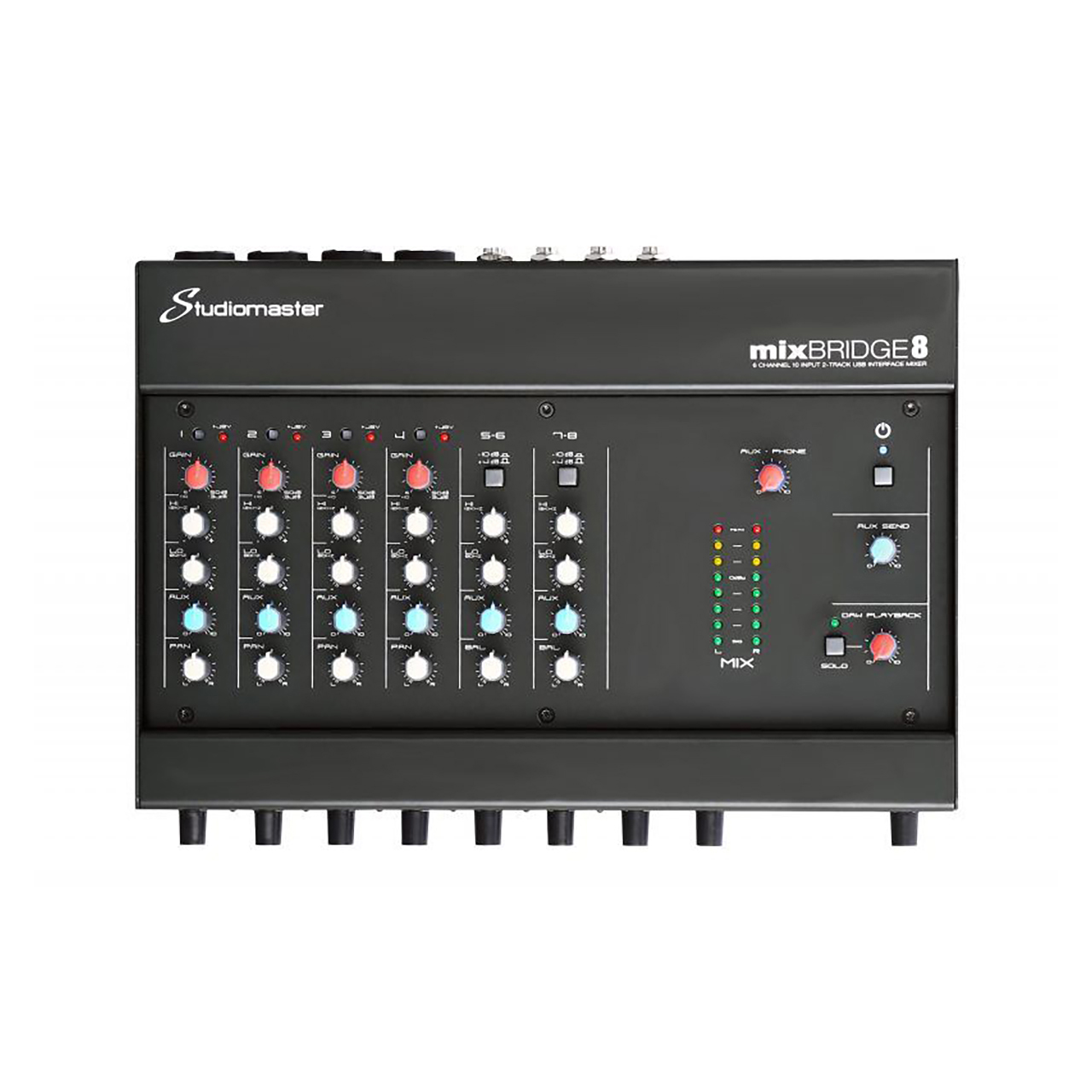

Studiomaster Mixbridge 8 8 Input Audio Interface and Mixing Console - 4 Mic/2 Track Stereo USB Recording

ITEM #: SM-MIXBRIDGE-8 MFG #: MIXBRIDGE-8

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$417.90

Our Price:

$355.21

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MIXBRIDGE-8 - Overview

The Studiomaster MIXBRIDGE-8 is a unique hybrid audio interface and mixing console that provides all the mixing capabilities you need for a professional quality sound. The console has 8 inputs (4 mic/2 stereo) with 2 track (stereo) USB recording, allowing you to connect to a variety of devices. Whether you're a musician, podcaster, or live performer, this mixing console is designed to meet all your needs with its compact size, sleek design, and its ease to transport and use. This console is ideal for those who want a high-quality mixer with a minimalist footprint.

  • Features:

    • 8 Inputs (4 Mic/2 Stereo)
    • 2 Track (Stereo) USB Recording
    • High Power Dual Headphone Output with Independent Levels
    • Line Level and Instrument Hi-Z Level Inputs
    • Space Saving Steel Construction
    • 2 Band EQ, Monitor Bus and Pan Control

  • Specifications:

    • USB Output: 2 track (L-R)
    • USB Input: 2 track
    • Mic/Line Inputs: 4x COMBO (4x Mic/2x LINE/2x HI-Z)
    • Phantom Power: +48V all mics individually switched
    • Stereo Inputs: 4x 1/4" (6.35 mm) jacks
    • Channel EQ: 2 band HI/LO
    • USB Sampling Rate: 24 bit/48kHz
    • Mic Gain: +6dB - +50dB
    • Line Gain: +10dB - -34dB
    • Mic EIN: <-100dB
    • Frequency Response: 10Hz - 20kHz +1/-3dB
    • THD: <=0.03%
    • S/N Ratio: 80dB
    • Output Level: MAX +20dB (unbal/balanced)
    • EQ HI Frequency: 12kHz (±15dB)
    • EQ LO Frequency: 80Hz (±15dB)
    • Power Supply: 12V DC external PSU
    • Weight: 7lbs
    • Dimensions: 17" x 5" x 11.25"

  • Item Includes:

    • 1x Studiomaster MIXBRIDGE-8
