Tripp Lite SMART1000RM2U SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS 2U Rack 6 Outlets

SMART1000RM2U - Overview

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Ideal solution for data centers, VoIP systems and network closets.

• Features:

  • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware.
  • Audible alarm signals loss of utility power, overload, low battery and fault conditions.

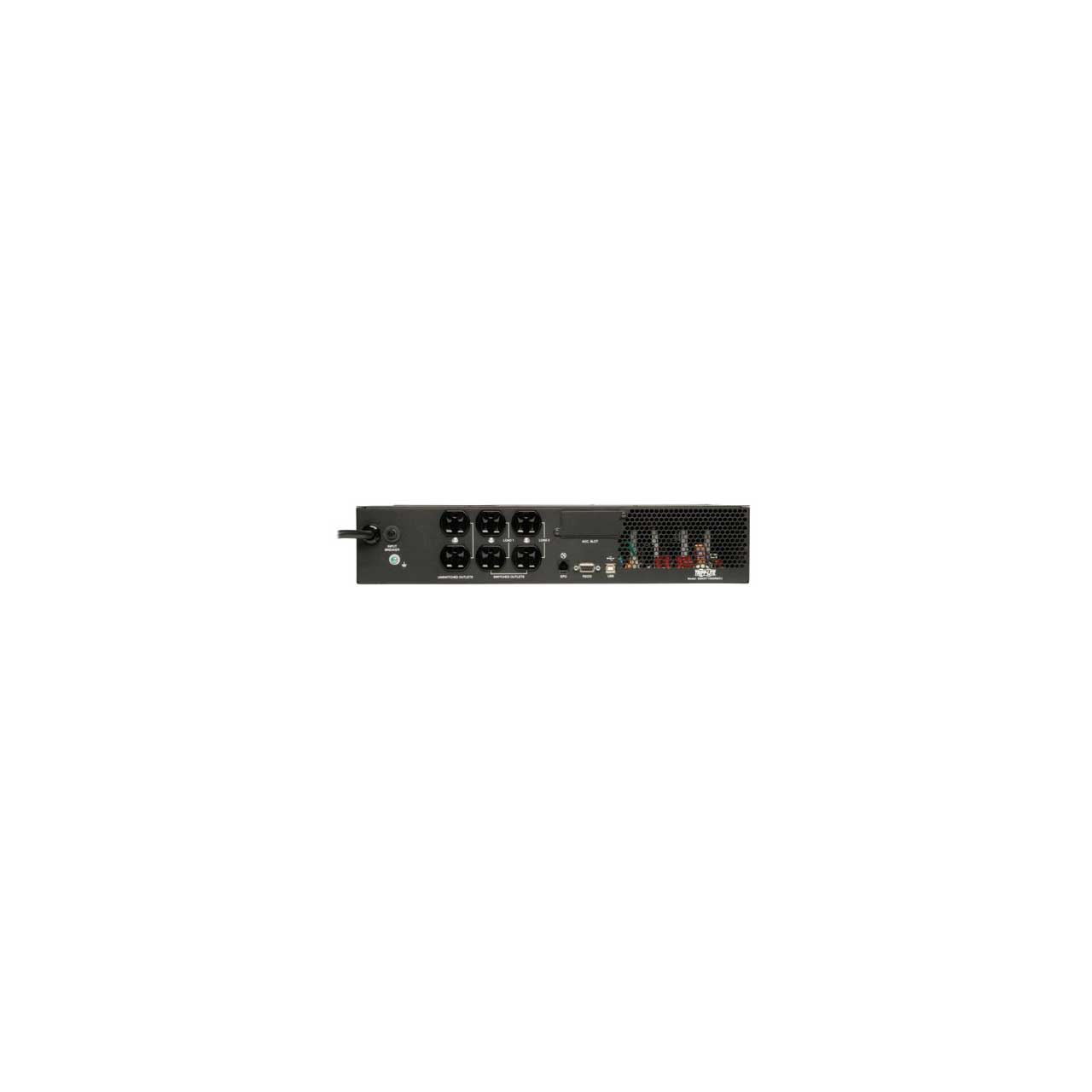

  • 6 NEMA 5-15R outlets.
  • 10 ft. power cord with 120V NEMA 5-15P input.
  • 570-joule surge suppression rating.
  • Supports half load up to 15 min. and full load up to 5.3 min.
  • Internal batteries designed for hot-swap field replacement.
  • 95% line-power efficiency rating saves money in energy costs.
  • 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads.
  • Maintains 120V nominal output over input range of 83V-147V without using battery power.
  • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance.

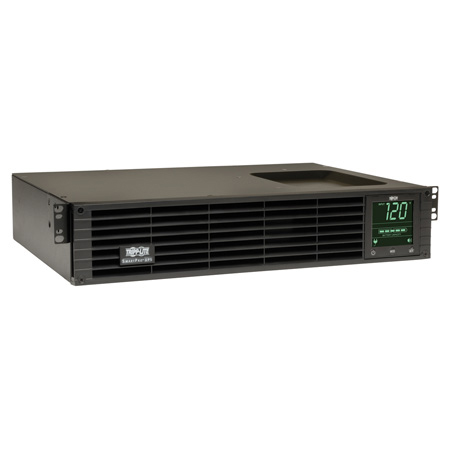

  • Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes.
  • Rotates for easy viewing in rack-mount or tower configurations.
  • Adding a Network Management Card option, such as Tripp Lite's SNMPWEBCARD, permits remote management of the UPS, including reboots and activity logs.
  • USB and DB9 ports combine with included PowerAlert software to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure.
  • EPO port supports emergency shutdown in large facilities.

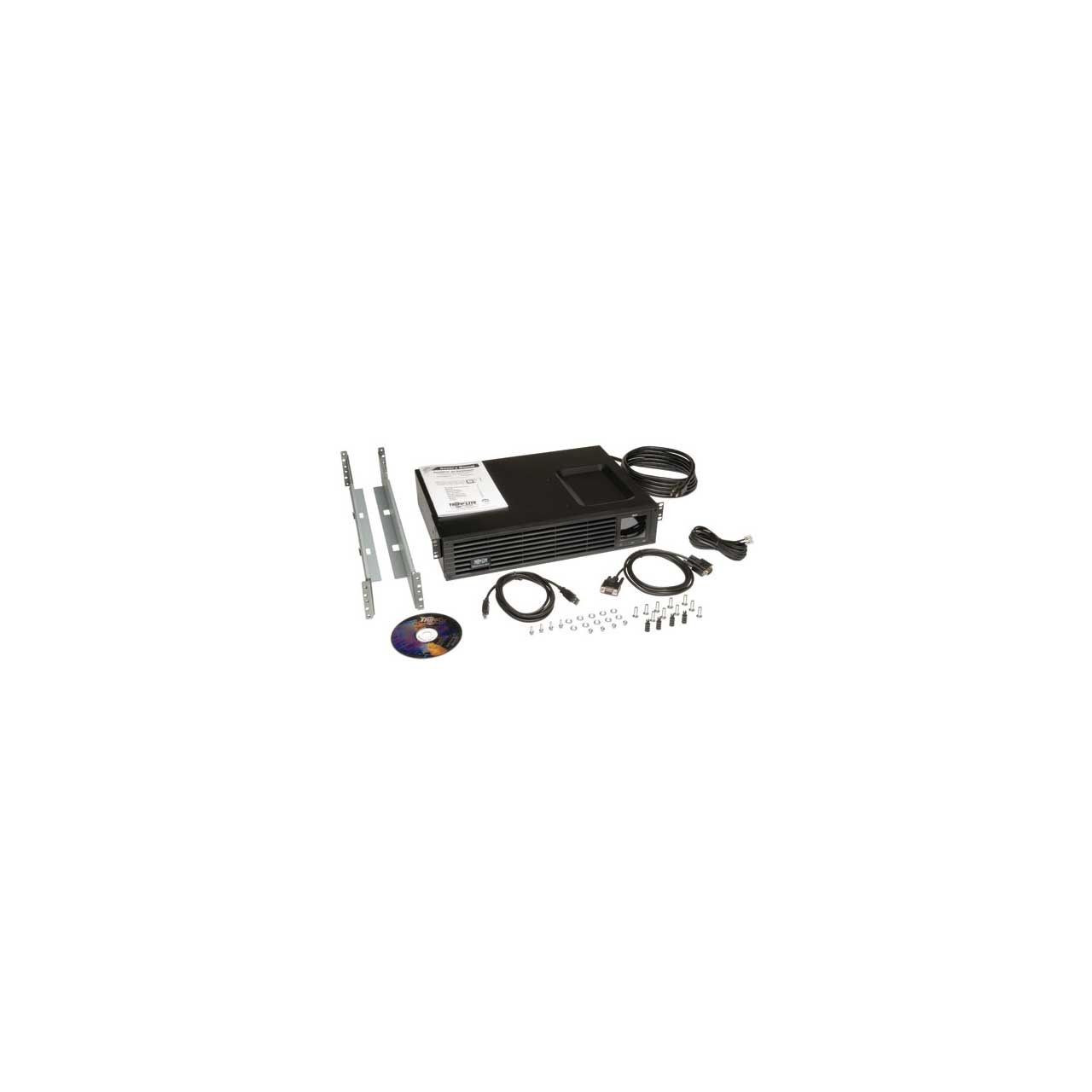

  • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack.
  • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory.
  • Mounts in upright tower position with optional 2-9USTAND accessory.


• Specifications:

  • OUTPUT:
  • Output Volt Amp Capacity (VA) 1000
  • Output kVA Capacity (kVA) 1.0
  • Output Watt Capacity (Watts) 800
  • Power Factor 0.8
  • Nominal Output Voltage(s) Supported 110V; 115V; 120V
  • Nominal Voltage Details 120v nominal output in battery mode
  • Frequency Compatibility 60 Hz
  • Output Voltage Regulation (Line Mode) -21%, +8%
  • Output Voltage Regulation (Battery Mode) +/- 5%
  • Output Receptacles (6) 5-15R
  • Load Management Receptacles Two switchable two-outlet 5-15R load banks
  • Output AC Waveform (AC Mode) Sine wave
  • Output AC Waveform (Battery Mode) Pure Sine wave


  • INPUT:
  • Rated input current (Maximum Load) 9.2A
  • Nominal Input Voltage(s) Supported 120V AC
  • UPS Input Connection Type 5-15P
  • Input Circuit Breakers 15A
  • UPS Input Cord Length (ft.) 10
  • Recommended Electrical Service 15A 120V
  • Input Phase Single-Phase
  • BATTERY;
  • Full Load Runtime (min.) 5.3 min. (800w)
  • Half Load Runtime (min.) 15 min. (400w)
  • DC System Voltage (VDC) 24
  • Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge)
  • Internal UPS Replacement Battery Cartridge See Tripp Lite UPS Replacement battery selector


  • PHYSICAL:
  • Included Mounting Accessory Description 4 post rackmount installation accessories included
  • Installation Form Factors Supported with Optional Accessories 2 post rackmount(2POSTRMKITWM); Wallmount(2POSTRMKITWM); Tower(2-9USTAND)
  • Primary Form Factor Rackmount
  • UPS Power Module Dimensions (hwd, in.) 3.45 x 17.35 x 12.5
  • Rack Height (U Spaces) 2
  • Minimum Required Rack Depth (inches) 15.5
  • UPS Power Module Weight (lbs.) 35.4
  • UPS Shipping Dimensions (hwd / in.) 9 x 24 x 20.2
  • Shipping Weight (lbs.) 46.4
  • Cooling Method Fan
  • UPS Housing Material Steel
    Battery Access Front panel battery access door
  • Battery Replacement Description Hot-swappable, user replaceable batteries
  • Expandable Runtime No


• GTIN:

  0037332118806
