SMART750RMXL2UN - Overview

750VA/600W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive Tripp Lite SMART750RMXL2UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The user-replaceable, hot-swappable internal battery provides 20.7 minutes of support at half load (300W) and 8.5 minutes at full load (600W), allowing you to work through short power failures and giving you enough time to safely save files and shut down your system in case of a prolonged blackout. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite’s BP24V36-2US (sold separately). The intelligent battery management system extends battery life.

WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The Java-free HTML5-based WEBCARDLX enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. WEBCARDLX allows you to use the Auto Probe feature, which can prevent costly service calls by automatically rebooting non-responsive network devices.

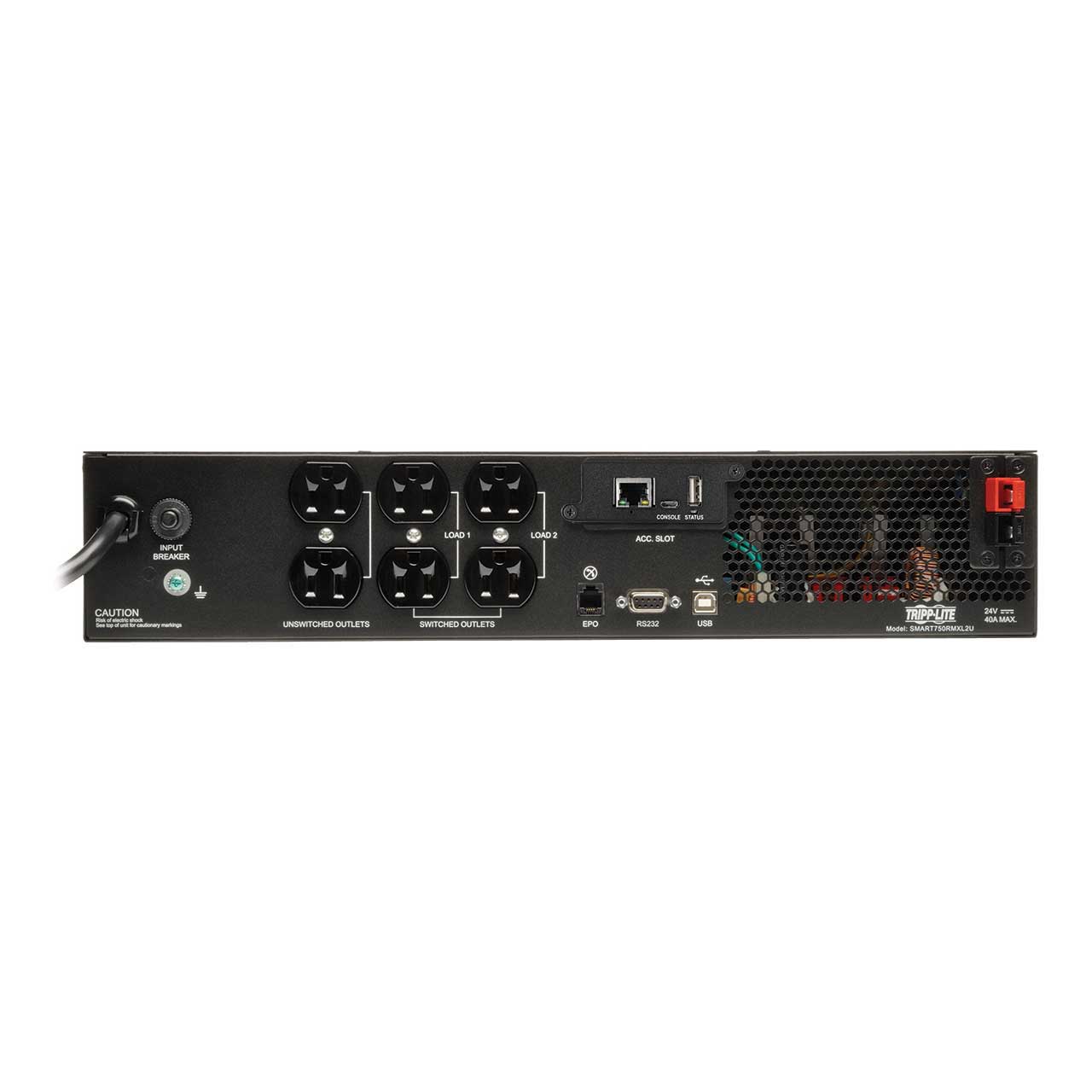

6 NEMA Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART750RMXL2UN can correct brownouts as low as 83V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

Typical Applications
Protect your small network server and other network components against power surges, line noise, brownouts, overvoltages and blackouts
Operate essential equipment during short-term power outages using battery backup power
Shut down desktop PCs and other equipment without data loss during long-term power outages
Connect high-end security systems, casino gaming machines or digital signage in a small network

  • Features:

    • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
    • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
    • Maintains continuous 120V nominal output during brownouts and overvoltages
    • Pre-installed WEBCARDLX network interface supports Auto Probe feature

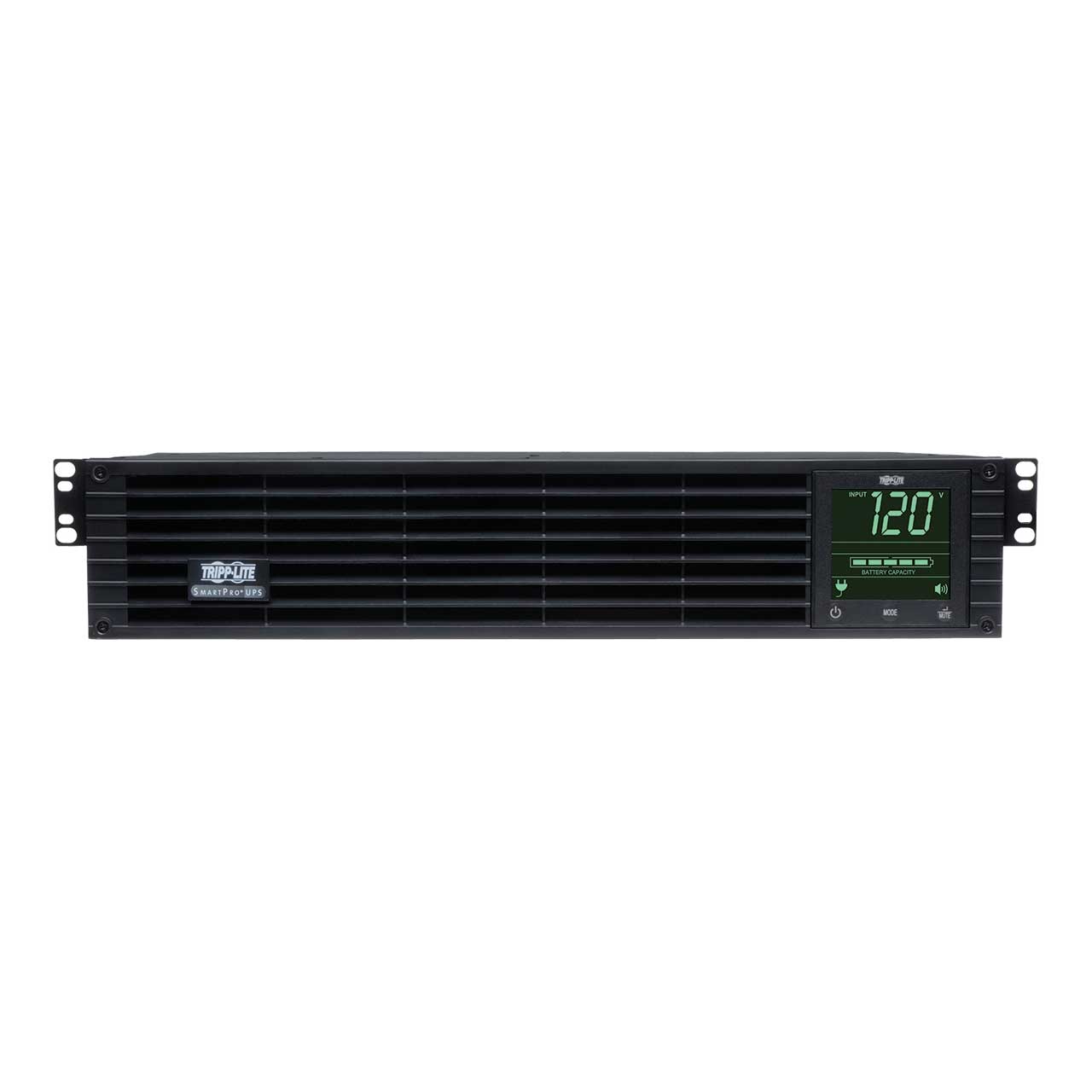

    • Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
    • 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
    • $250,000 Ultimate Lifetime Insurance

  • Specifications:

    • Input
    • Rated input current (Maximum Load): 7.5A
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS Input Connection Type: 5-15P
    • Input Circuit Breakers: 10A
    • UPS Input Cord Length (ft.): 10
    • Recommended Electrical Service: 15A 120V
    • Input Phase: Single-Phase

      Output
    • Output Volt Amp Capacity (VA): 750
    • Output Watt Capacity (Watts): 600
    • Output Capacity Details: Output is reduced to 450 watts maximum when used with external battery packs
    • Power Factor: 0.8
    • Nominal Voltage Details: 120v nominal output in battery mode
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): -21%, +8%
    • Output Voltage Regulation (Battery Mode): +/- 5%
    • Load Management Receptacles: Two switchable two-outlet 5-15R load banks
    • Output AC Waveform (AC Mode): Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave
    • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
    • Output Receptacles: (6) 5-15R
    • Individually Controllable Load Banks: Yes

      Battery
    • Full Load Runtime (min.): 8.5 min. (600w)
    • Half Load Runtime (min.): 20.7 min. (300w)
    • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
    • DC System Voltage (VDC): 24
    • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge: RBC24V-LCD
    • Battery Access: Front panel battery access door
    • Battery Replacement Description: Hot-swappable, user replaceable batteries
    • Expandable Runtime: Yes

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 570
    • EMI / RFI AC Noise Suppression: Yes

      Physical
    • Cooling Method: Fan
    • Minimum Required Rack Depth (inches): 16.2
    • Primary Form Factor: Rackmount
    • Rack Height: 2U
    • Shipping Dimensions (hwd / in.): 8.70 x 18.60 x 23.30

      Environmental
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity: 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 109
    • AC Mode Efficiency Rating (100% Load): 95%
    • Audible Noise: 45 dBA maximum, front side 1m

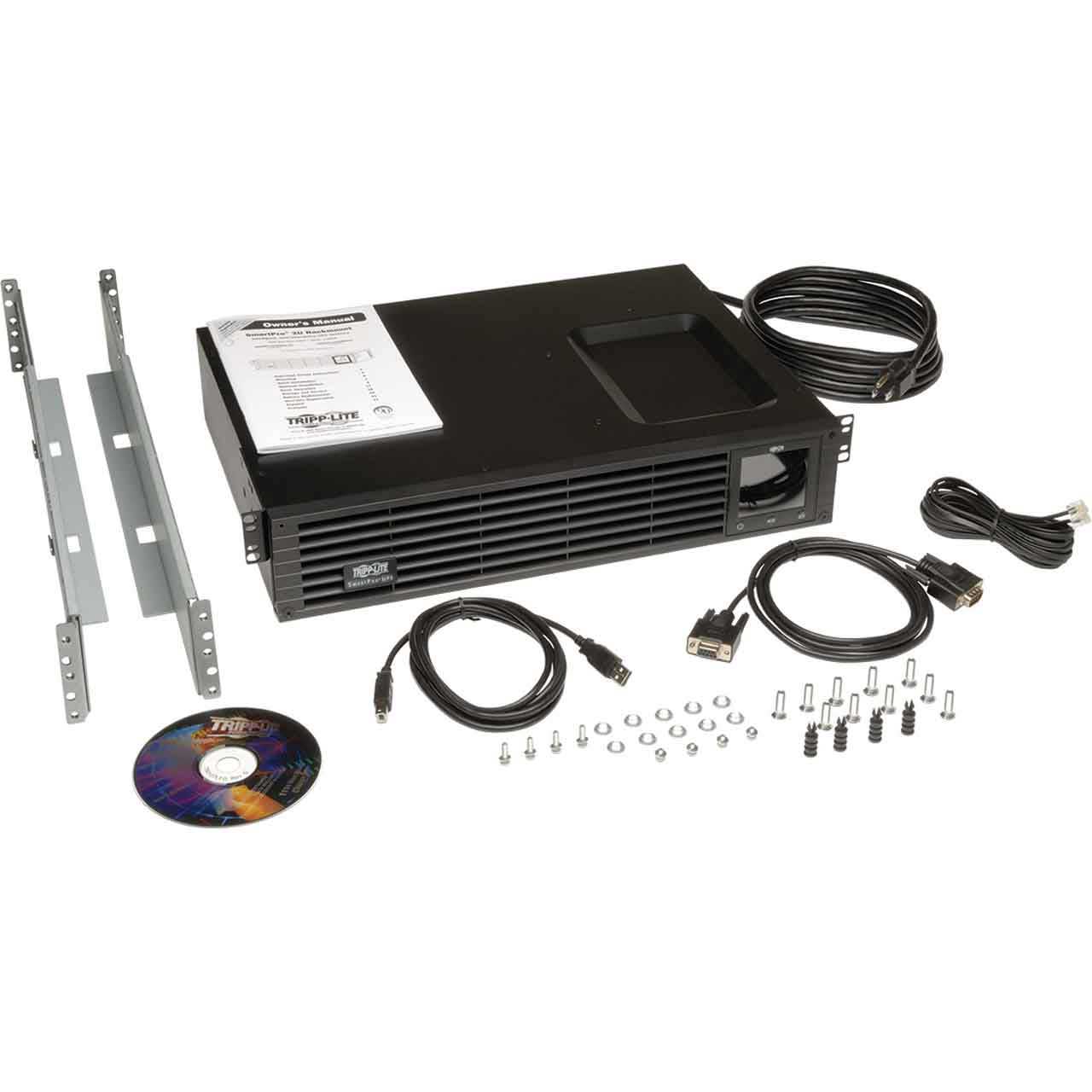

  • Item Includes:

    • 1x SMART750RMXL2UN 120V 750VA 600W Line-Interactive UPS with 6 Outlets
    • 1x WEBCARDLX network management card
    • 1x USB cable
    • 1x DB9 cable
    • 1x EPO cable
    • 1x Rack-mounting hardware
    • 1x Owner’s manual

  • GTIN:

    0037332256409
