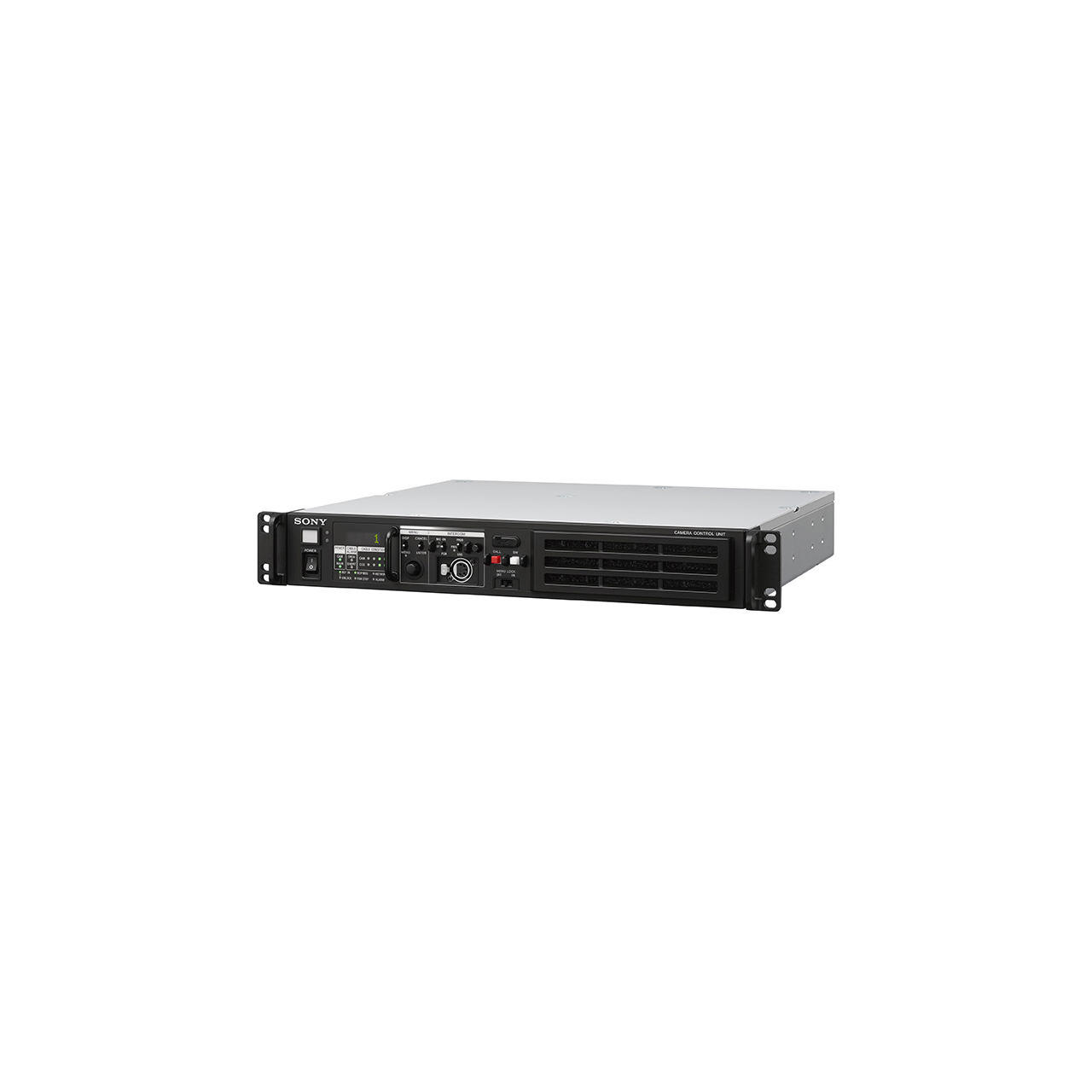

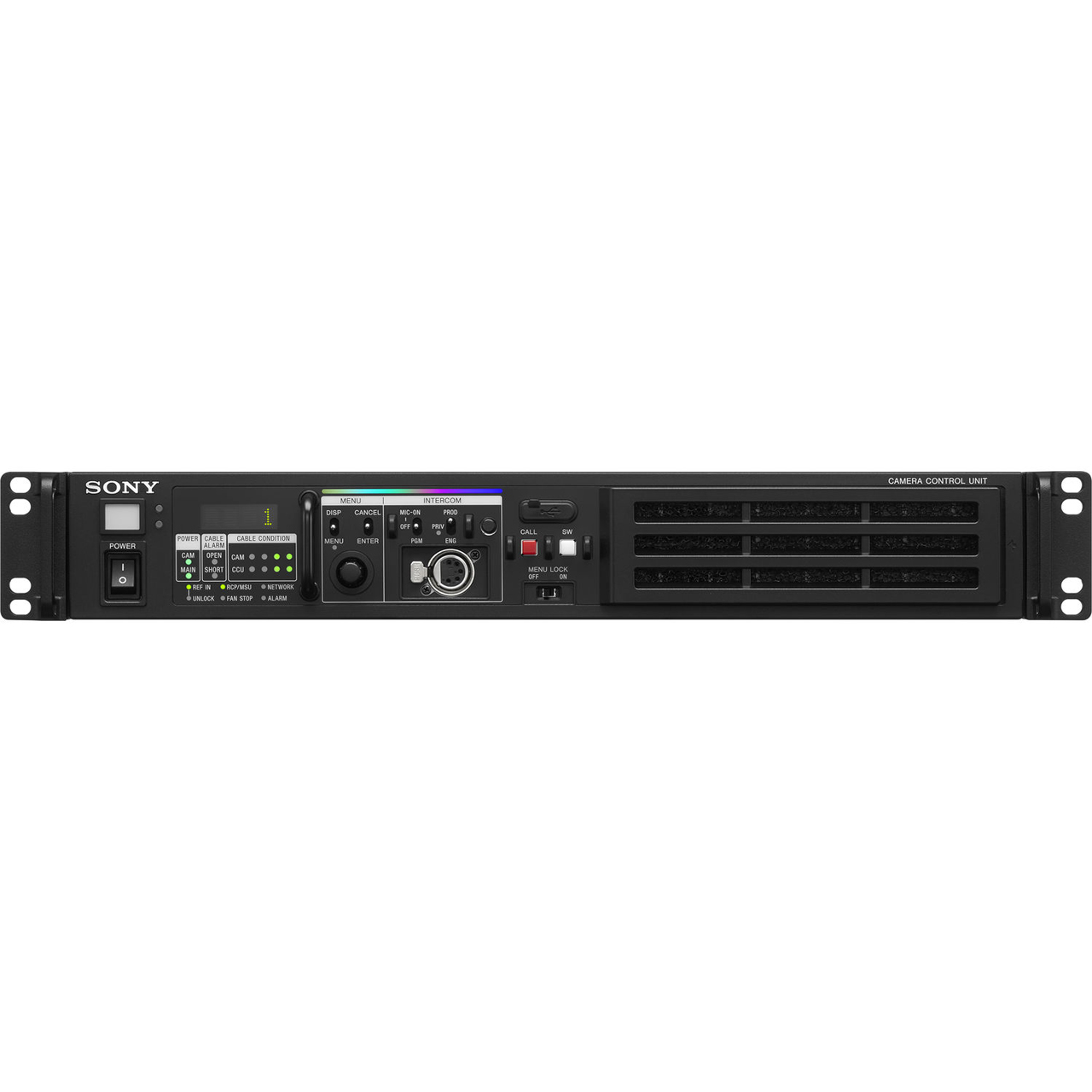

The Sony HDCU-3100 camera control unit adds IP capabilities to our full range of broadcast and studio system cameras, from the flagship 4K HDC-4300 to the HDC-2000/1700 series and HSC fiber system cameras.

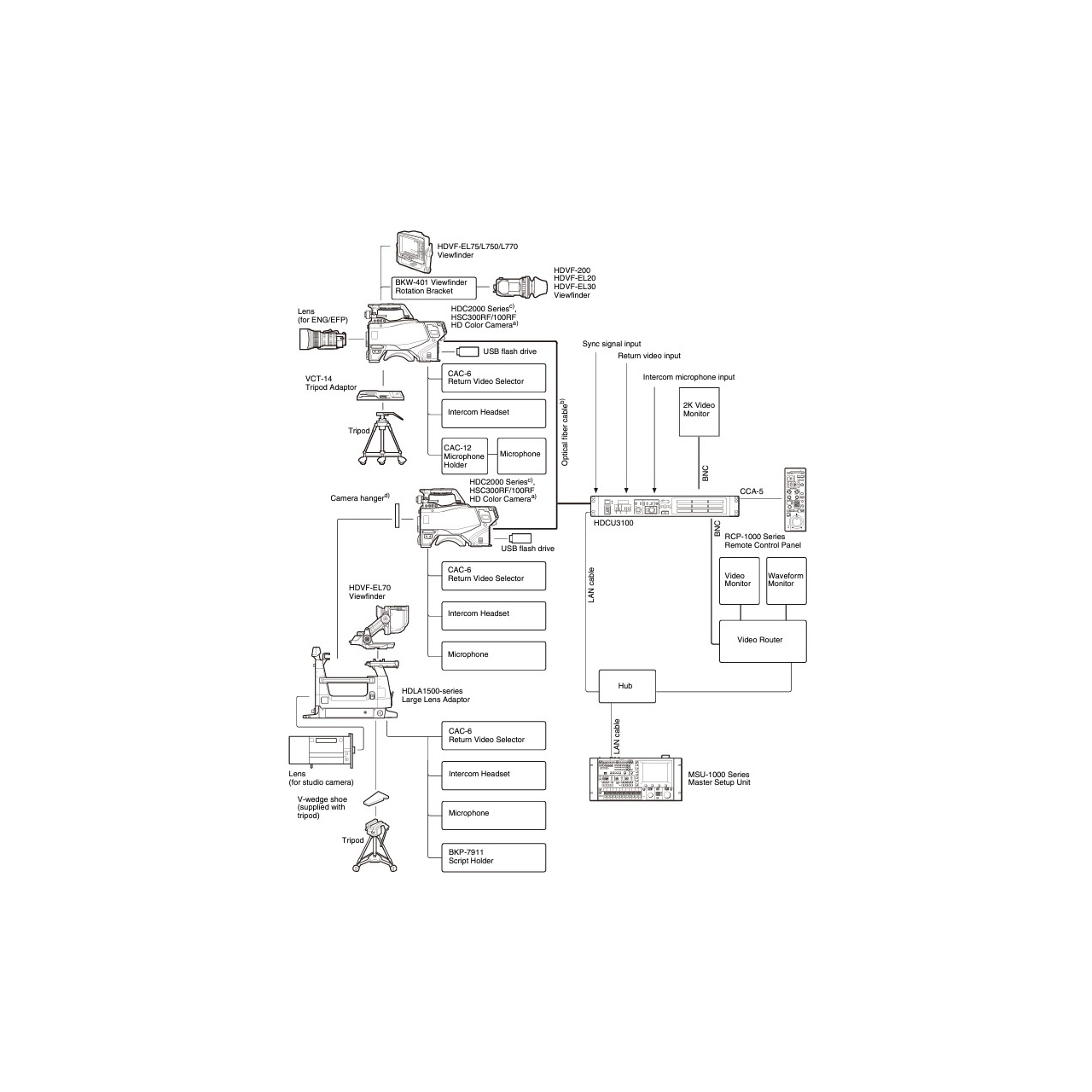

Connecting to compatible cameras via optical fiber cable, the compact HDCU-3100 supplies power to the camera, performs signal processing, and provides an interface with external equipment.
Combined with the HKCU-SFP30 option board, designed for the SMPTE ST 2110 Professional Media Over Managed IP Network suite of standards, the HDCU-3100 camera control unit supports essential functionalities required for live IP production including tally, intercom, and return.
By installing the optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected with an HDC-Series System Camera. In addition, adding the optional 12G-SDI Interface Kit HKCU-SDI30 allows transfer of 4K signals through a single BNC cable.
4K Output Option
By installing an optional 4K/HDR Processor Board HKCU-UHD30, the HDCU-3100 can output 4K signals when connected to an HDC-Series System Camera. In addition the HDCU-3100 with an optional 12G-SDI Interface Kit HKCU-SDI30 can transfer 4K signals through a single BNC cable.
High-Quality Long-Distance Signal Transmission
The optical fiber transmission system maintains high picture quality across cable runs of up to 1.24 mi. Combined with the HKCU-SM30 interface kit, the compact HDCU-3100 can be directly connected on Single Mode Fiber (SMF) for long distance transmission up to 6.21 mi, making it ideal for space-limited operations like OB Trucks.
Please Note: This product contains pre-installed software and requires the purchase of HZCU-CNFG50 and HZCU-SNMP50 license keys to activate ember+ protocol annd SNMP Agent.
