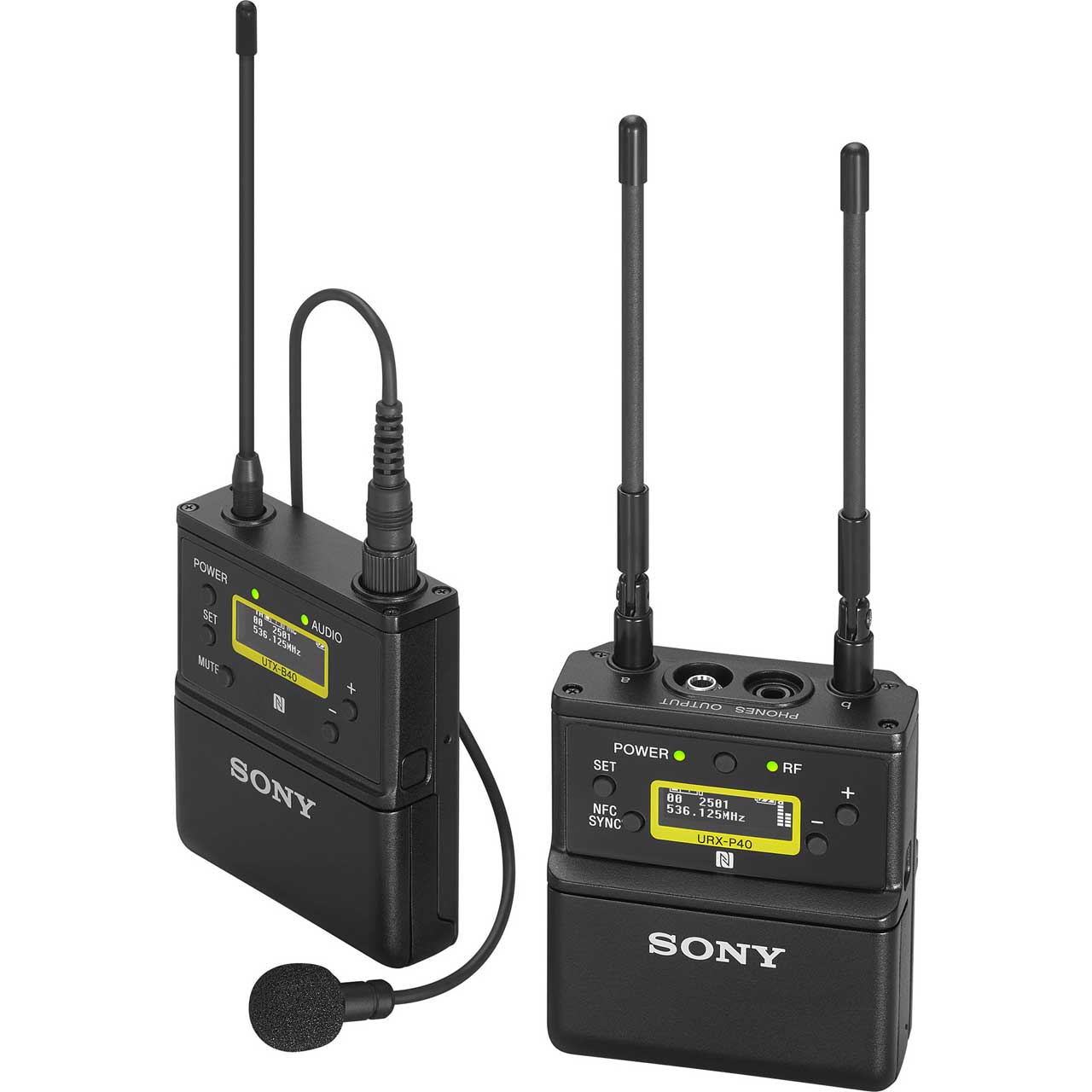

Sony UWPD21/25 UWP-D WLS Bodypack Receiver Package - 536.125 MHz to 607.875 MHz

UWPD21/25 - Overview

• Features:

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-B40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Line Input
  • Channel memory for fast switching between receiver frequencies for two transmitter operation
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • Receiver output level control
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adapter (option)*
    * For details on cameras that support this function, visit the Sony website.


• Specifications:

  • URX-P40 portable receiver
  • Oscillator type: Crystal-controlled PLL synthesizer
  • Reception Type: True diversity method
  • Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV Ch 25 to 36)
  • Frequency Response:
    23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
    40 Hz to 15 kHz (typical) (J model)
  • Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
  • Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)
  • Audio Delay: Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output)
  • Audio Output Connector: 3.5 mm diameter 3-pole locking mini jack, external connection
  • Audio Output Level:
    -60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
    -20 dBFS (external connection, digital output, 0 dB audio output level)
    -50 dBFS (external connection, analog output, 0 dB audio output level)
  • Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
  • Headphone Output Connector: 3.5 mm diameter mini jack
  • Headphone Output Level: Max. 10mW (16-ohm)
  • Tone Signal Frequency:
    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz
  • Display: OLED
  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
  • Battery Life*: Approx. six hours
  • Note: *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.
  • Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
  • Storage/Transport Temperature: -4°F to 140°F (-20°C to +60°C)
  • Dimensions: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)
  • Mass: Approx. 0.29Lbs (131g) (excluding batteries)

    UTX-B40 bodypack transmitter
  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Antenna Type: 1/4 λ wave length wire antenna
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV Ch 25 to 36)
  • RF Output Power:
    30 mW/5 mW selectable (UC, U, CE, LA, CN models)
    10 mW/2 mW selectable (J, E, KR models)
  • Capsule Type: Elect retcondenser
  • Directivity: Omni-directional
  • Input Connector: 3.5 mm diameter 3-pole locking mini jack
  • Reference Audio Input Level:
    -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
    +4 dBu (LINE input)
  • Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)
  • Frequency Response:
    23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
    40 Hz to 15 kHz (Typical) (J model)
  • Signal-to-Noise Ratio:
    60 dB (-60 dBV, 1 kHz input)
    102 dB (GAIN MODE set to AUTO GAIN, max.)
    96 dB (GAIN MODE set to NORMAL, max.)
  • Distortion: 0.9% or less (-60 dBV, 1 kHz input)
  • Audio Delay: Approx. 0.35 ms
  • Tone Signal Frequency:
    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz
  • Display: OLED
  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
  • Battery life*:
    Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
    Approx. 10 hours with output power of 10 mW (J, E, KR models)
    Note: *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
  • Operating Temperature: 0 ° to 50 °C (32 ° to 122 °F)
  • Storage/Transport Temperature: -20° to +55 °C (-4 ° to +131 °F)
  • Dimensions (WxHxD): 2.48 x 2.87 x 0.75" (63 x 73 x 19mm) (excluding antenna)
  • Mass: Approx. 0.18Lbs (83g) (excluding batteries)


• GTIN:

  0027242918542
