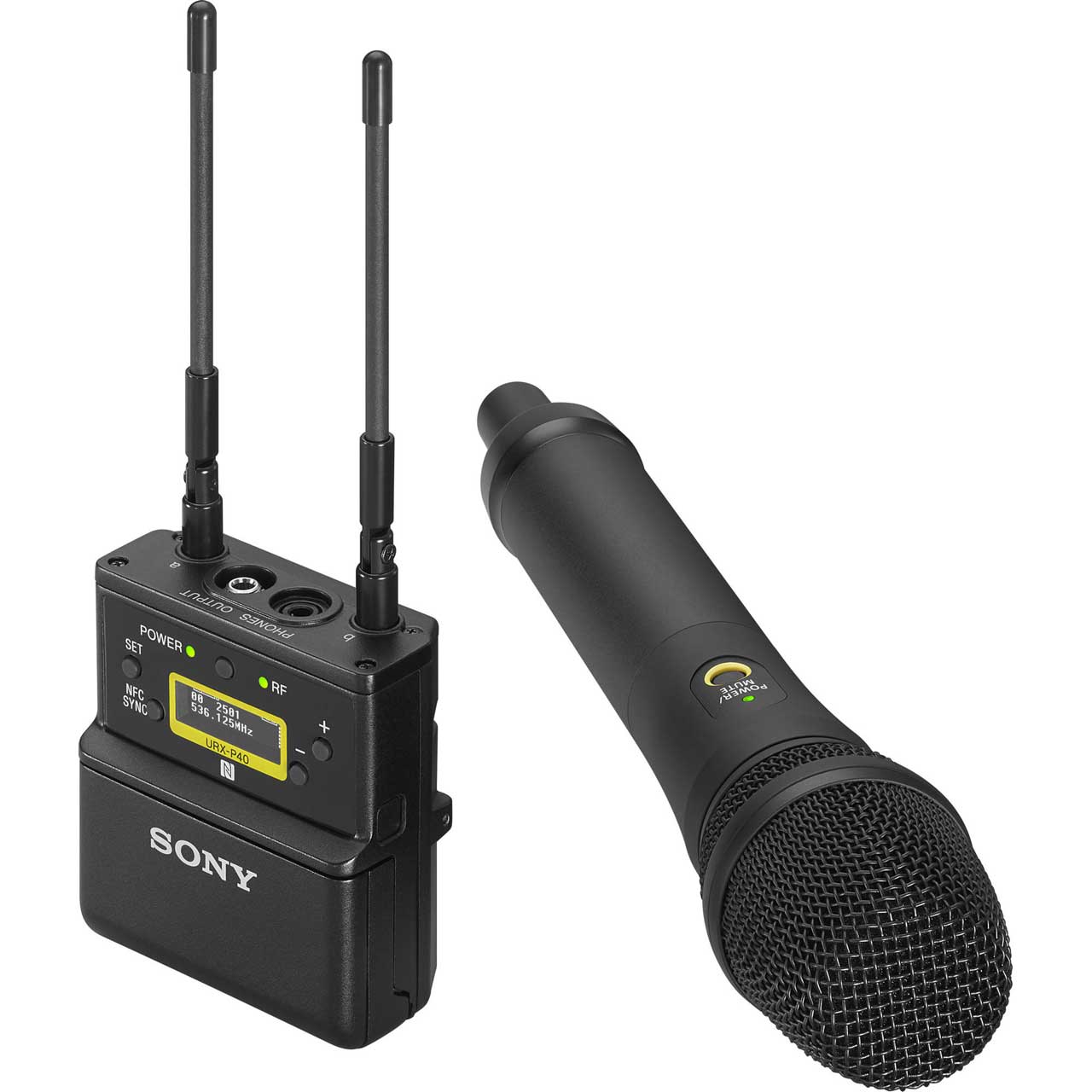

Sony UWPD22/25 UWP-D WLS Handheld Receiver Package - 536.125 MHz to 607.875

UWPD22/25 - Overview

• Features:

  • High-quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-M40 transmitter from URX-P03, URX-P03D and URX-S03D receivers)
  • True double tuner diversity for stable signal reception
  • Interchangeable head for wide choice of microphone capsules
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Channel memory for fast switching between receiver frequencies for two-transmitter operation
  • Transmitter frequency sent to receiver, for matching multiple receivers to one transmitter
  • Headphone output for monitoring
  • Monitor mode for using a receiver as an ear monitor
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • Receiver output level control
  • High visibility OLED display, ideal for indoor/outdoor use
  • USB connector for power supply (URX-P40 only)
  • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adapter (optional)*
  • Note: *For details on cameras that support this function, visit the Sony website.


• Specifications:

  • URX-P40 portable receiver
  • Oscillator type: Crystal-controlled PLL synthesizer
  • Reception Type: True diversity method
  • Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV Ch 25 to 36)
  • Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (typical) (J model)
  • Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)
  • Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)
  • Audio Delay: Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output)
  • Audio Output Connector: 3.5 mm diameter 3-pole locking mini jack, external connection
  • Audio Output Level:
    -60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
    -20 dBFS (external connection, digital output, 0 dB audio output level)
    -50 dBFS (external connection, analog output, 0 dB audio output level)
  • Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)
  • Headphone Output Connector: 3.5 mm diameter mini jack
  • Headphone Output Level: Max. 10mW (16-ohm)
  • Tone Signal Frequency:
    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz
  • Display: OLED
  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
  • Battery Life*: Approx. six hours
  • Note: *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.
  • Operating Temperature: 0° to 50°C (32° to 122°F)
  • Storage/Transport Temperature: -4° to 140°F (-20° to +60°C)
  • Dimensions (WxHxD): 2.48 x 2.76 x 1.22" (63 x 70 x 31mm) (excluding antenna)
  • Mass: Approx. 0.29Lbs (131g) (excluding batteries)

    UTX-M40 Handheld microphone with unidirectional capsule
  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Antenna Type: 1/4 λ wavelength wire antenna
  • Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV Ch 25 to 36)
  • RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models)
  • Capsule Type: Dynamic
  • Directivity: Uni-directional
  • Reference Audio Input level: -55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
  • Maximum Audio Input Level: 151 dB SPL (21 dB attenuation, using supplied microphone unit)
  • Audio Attenuator Adjustment Range: 0 dB to 21 dB (3 dB steps)
  • Frequency Response: 70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 70 Hz to 15 kHz (Typical) (J model)
  • Signal-to-Noise Ratio:
    60 dB (-60 dBV, 1 kHz sine wave input ) 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
    96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
  • Distortion: 0.9% or less (-60 dBV, 1 kHz input )
  • Audio Delay: Approx. 0.35 ms
  • Tone Signal Frequency:
    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz
  • Display: OLED
  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C™ connector)
  • Battery life*:
    Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
    Approx. 10 hours with output power of 10 mW (J, E, KR models)
  • Note: *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage/Transport Temperature: -4° to 140°F (-20° to +60°C)
  • Dimensions (DxL): 1.89 x 10.16" (ø48 + 258mm)
  • Mass: Approx. 0.56Lbs (255g) (excluding batteries)


• GTIN:

  0027242918597
