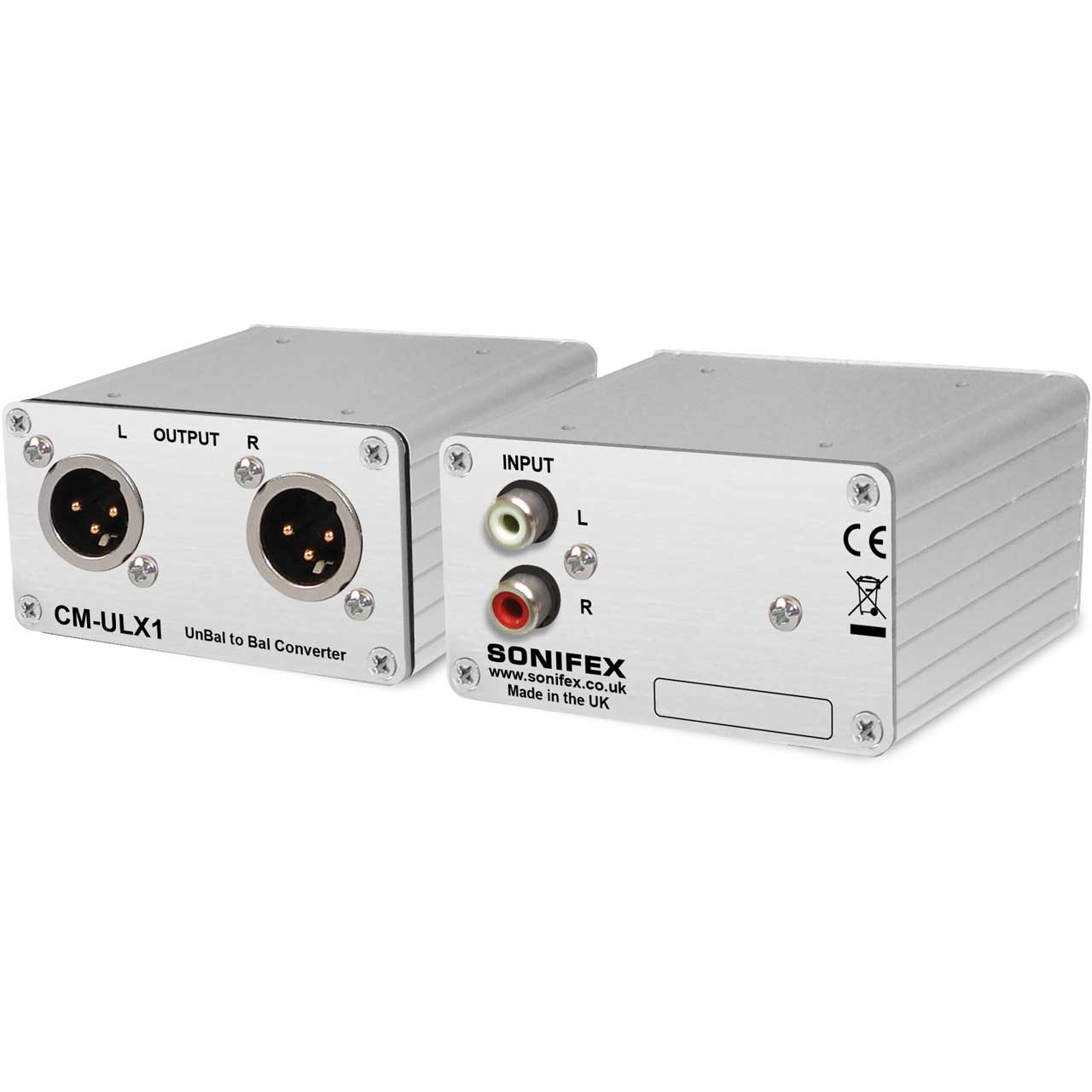

Sonifex CM-ULX1 Unbalanced to Balanced Converter Passive - Phono to XLR

ITEM #: SON-CM-ULX1 MFG #: CM-ULX1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$361.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CM-ULX1 - Overview

The Sonifex CM-ULX1 unbalanced to balanced audio convertor connects a balanced stereo line input on Phono Connectors using the StudioHub pinout to an XLR left and right output. Transformer balanced with a 2:1 ratio you get an additional 6DB of attenuation to help interfacing with pro and consumer devices. The CM-ULX1 provides an alternative to wiring an unbalanced output directly into a balanced input. Placing this box close to the unbalanced output, before the cable run to the balanced input, you reduce noise and interference.

  • Specifications:

    • Audio Specification
    • Input/Output Level Ratio: 1:2
    • Input/Output Impedance Ratio: 1:4
    • Max Input Level: +22dBu
    • Max Output Level: +28dBu
    • Frequency Response: 20Hz to 20kHz, +0/-0.5dB
    • Noise: <-100dBu A-wgtd
    • Distortion Ref +8dBu (Output): <0.02%

      Connections

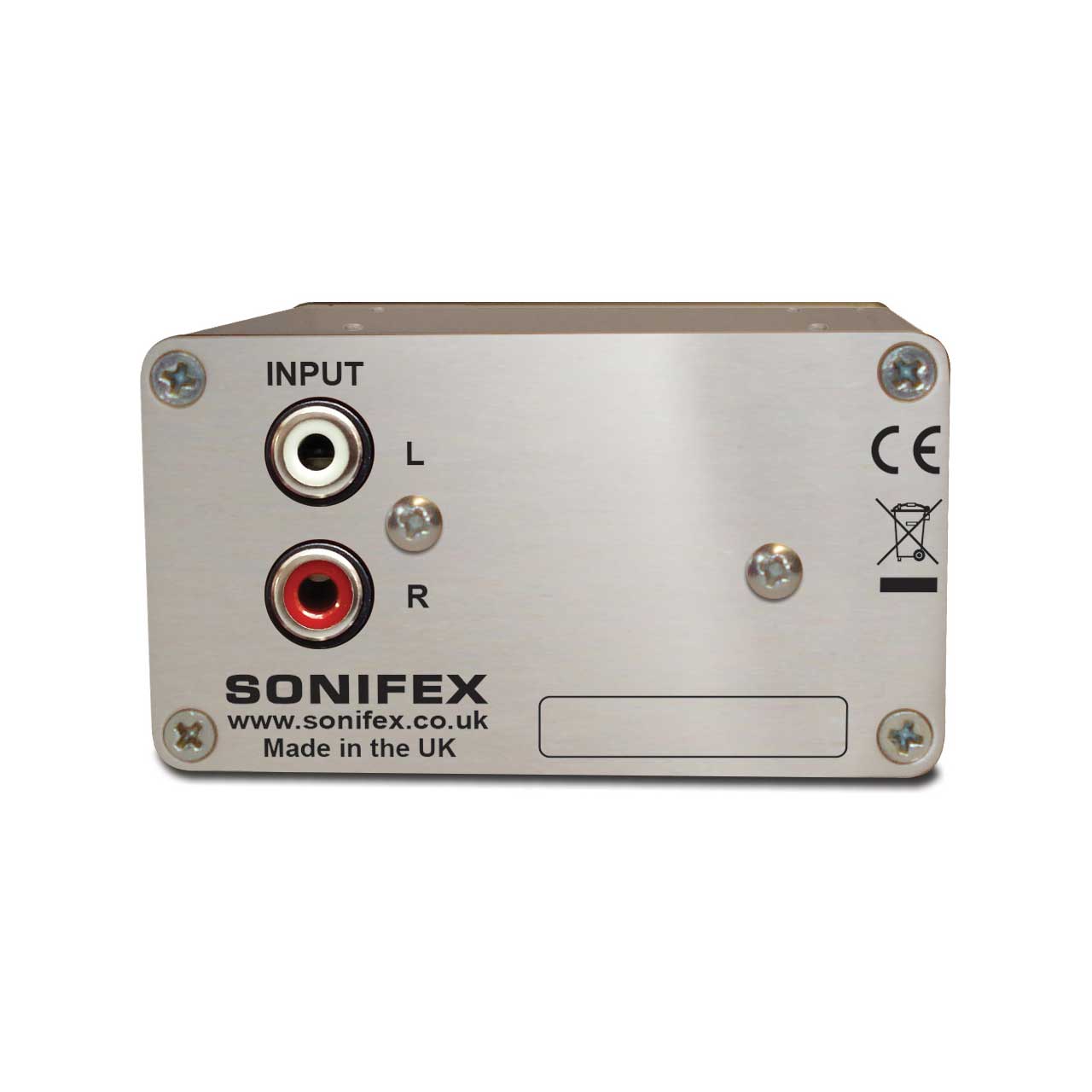

    • Stereo Unbalanced Line Input (CM-ULR1 & CM-ULX1): 2 x RCA phono connectors

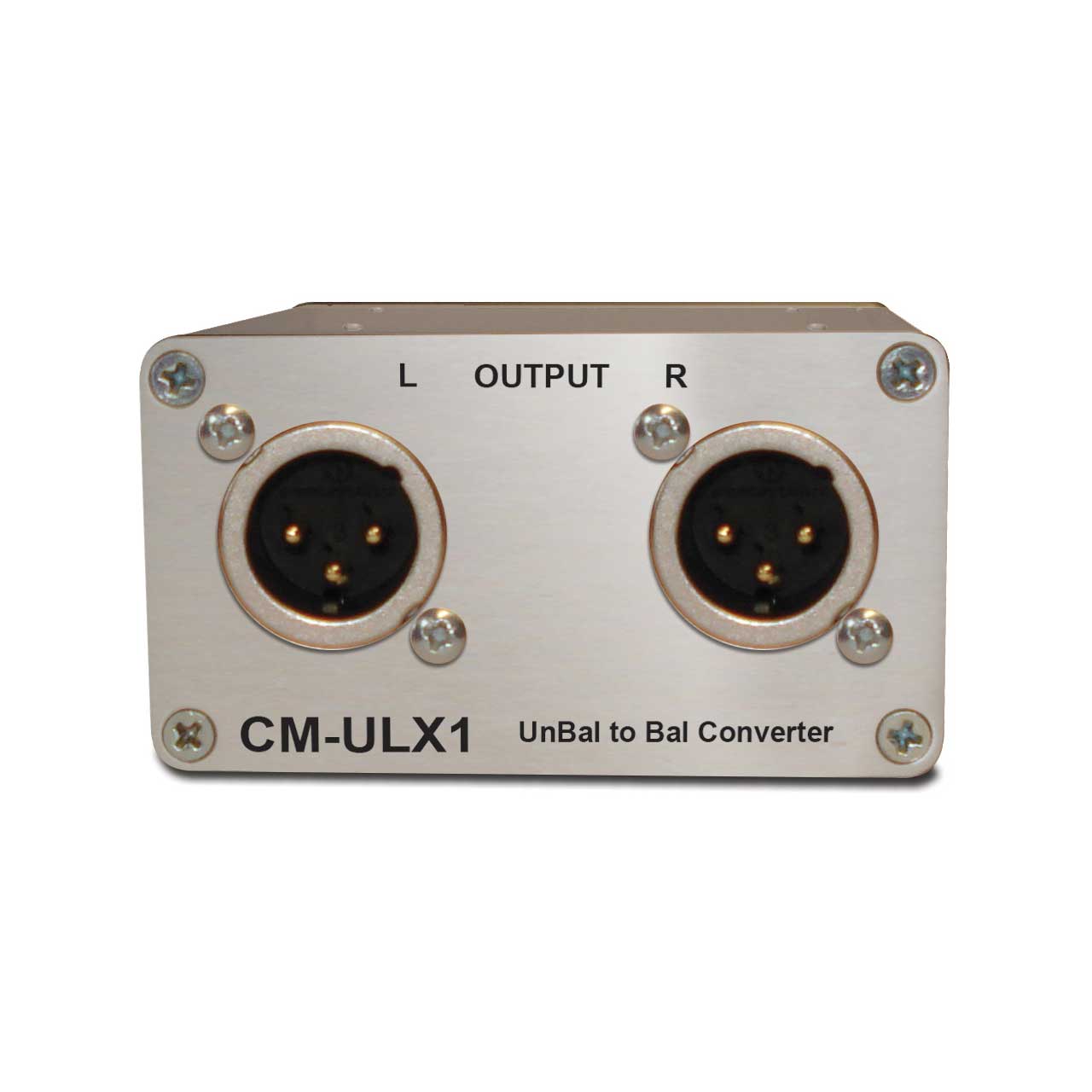

    • Balanced Line Output (CM-ULX1): 2 x male XLRs

      Physical Specification
    • Dimensions (W x D x H): 3.0 inch x 3.3 inch x 1.7 inch (7.7cm x 8.3cm x 4.2cm)
    • Weight Nett: 0.49lbs Gross: 0.73lbs
