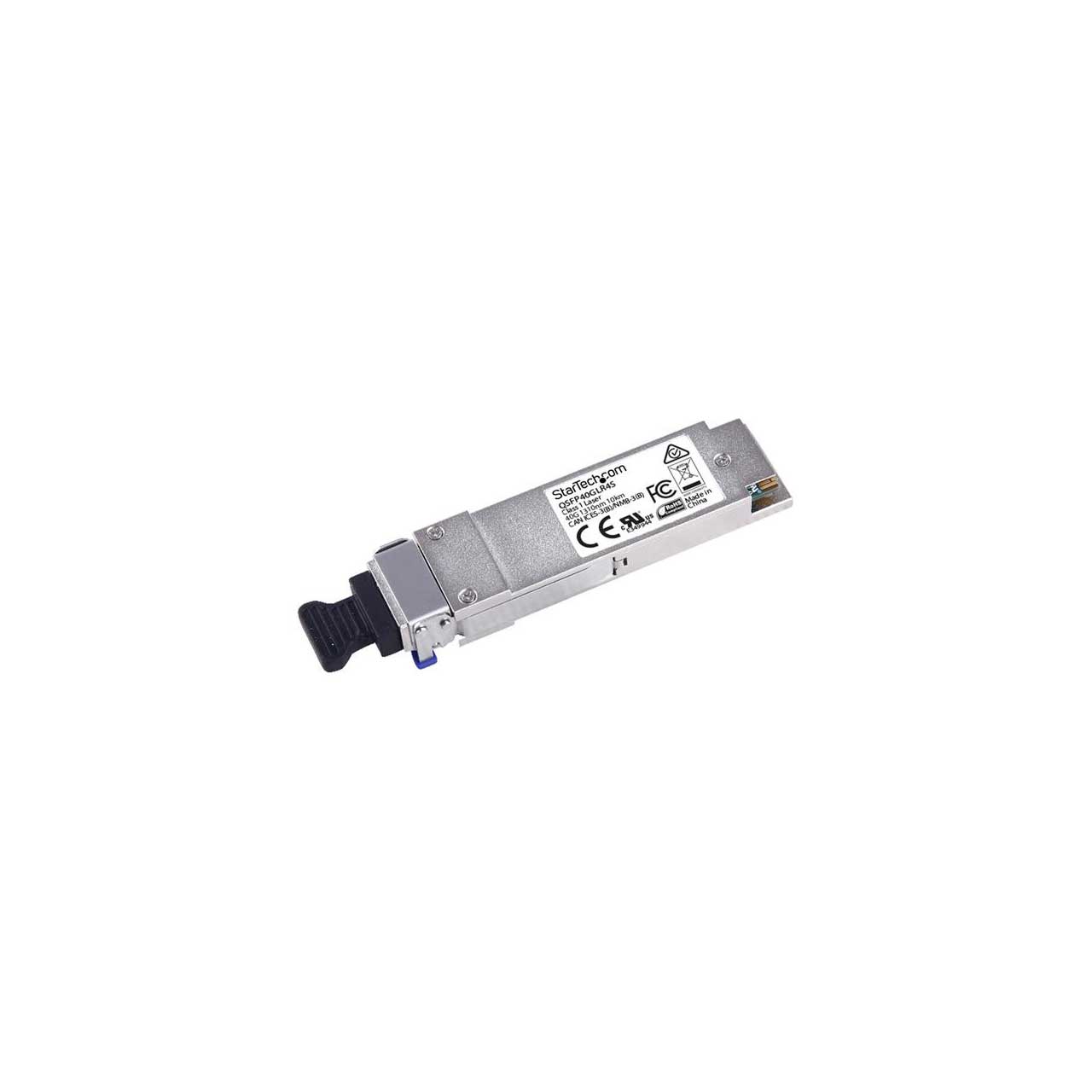

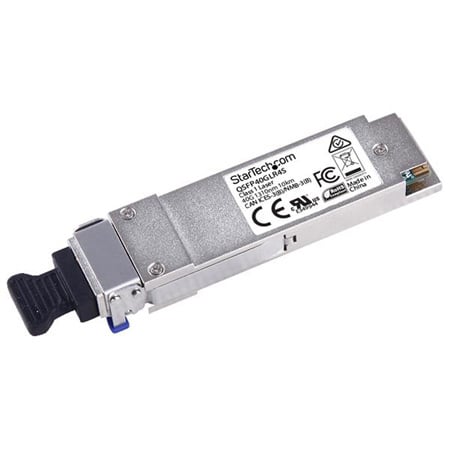

StarTech QSFP40GLR4S 40GBase-SR4 Cisco QSFP-40G-LR4-S Compatible QSFPplus

ITEM #: ST-QSFP40GLR4S MFG #: QSFP40GLR4S

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$931.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


QSFP40GLR4S - Overview

This Cisco compatible StarTech QSFP40GLR4S 40GBase QSFP (Quad Small Form-Factor Pluggable) is engineered to deliver what you want most in your network connections: reliable performance. Built to exacting specifications and fully tested to ensure maximum performance, you can install this high-quality fiber transceiver module into Cisco networking devices that support the Cisco QSFP-40G-LR4-S, as well as other major brands of networking equipment.

With powerful four-lane performance, this 40GBase-LR4 QSFP+ transceiver module delivers 40 Gigabit connectivity over single-mode fiber with a wavelength of 1270nm to 1330nm and a range of up to 10 km (6.2 mi.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.

Built for reliable network performance
This 40GBase-LR4 QSFP+ is manufactured by StarTech to meet or exceed OEM specifications and comply with the industry's MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Fully compatible with Cisco and other major brands
The 40 Gigabit single-mode QSFP+ is engineered to the highest quality standards and is 100% Cisco compatible, equivalent to the Cisco QSFP-40G-LR4-S optical transceiver. The StarTech QSFP+ transceiver module is configured and fully tested to ensure it works seamlessly with Cisco or other major brands of networking equipment.

You can be assured that the use of StarTech QSFP+ products should not affect the warranty protection of your networking equipment.

Convenient and scalable
Delivering both convenience and scalability, this fiber QSFP+ transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that's compatible with a range of 40 Gigabit networking devices.

Ideal for use in Cisco switches, routers and other networking equipment, the QSFP+ optical transceiver provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SM fiber transceiver module supports Digital Diagnostics Monitoring (DDM / DOM), a maximum distance of up to 10 km (6.2 mi.), and maximum data rates of up to 40Gbps.

  • Features:

    • Delivers reliable 40 Gigabit Ethernet connections for 40GBase-LR4 compliant networks
    • 100% Cisco compatible, equivalent to the Cisco QSFP-40G-LR4-S
    • Backed by lifetime warranty and free lifetime technical support
    • Meets or exceeds OEM specifications and MSA (Multi-Source Agreement) industry standards
    • Supports Digital Diagnostics Monitoring (DDM / DOM)
    • 1270 nm to 1330 nm optical wavelength
    • Single-mode with maximum distance of up to 10 km (6.2 mi.) and LC fiber connector
    • Maximum data rates up to 40Gbps
    • Hot-pluggable, compatible with a 40 Gigabit Ethernet QSFP+ port

  • Specifications:

    • Hardware: IEEE 802.3ba 40GBASE-LR4
    • DDM: Yes
    • Fiber Operating Mode: Full-Duplex
    • Fiber Type: Single Mode
    • Max Transfer Distance: 6.2 Miles
    • Maximum Data Transfer Rate: 40 Gbps

      Connector(s)
    • Local Unit Connectors: 1 - Fiber Optic LC Duplex Female

      Special Notes/Requirements
    • Note: For use in 40 Gigabit fiber networking equipment and media converters
    • System and Cable Requirements: MSA or Cisco compliant QSFP+ port

      Environmental
    • Humidity: 5~95% RH
    • Operating Temperature: 32°F to 158°F
    • Storage Temperature: -40°F to 185°F

      Physical Characteristics
    • Color: Silver
    • Enclosure Type: Aluminum
    • Product Height: 0.5 in
    • Product Length: 2.8 in
    • Product Weight: 1.4 oz
    • Product Width: 0.7 in
    • Shipping Weight: .1 lb

  • Item Includes:

    • QSFP+ transceiver

  • GTIN:

    0065030872058
