Studio Technologies Model 5330 Flex-Use Dante Audio Interface with 4 Analog Line Inputs to Dante Outputs

ITEM #: STCH-M5330 MFG #: M5330

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,350.00

Special Price:

$472.50

Availability: In Stock
iAvailability Description Popup


M5330 - Overview

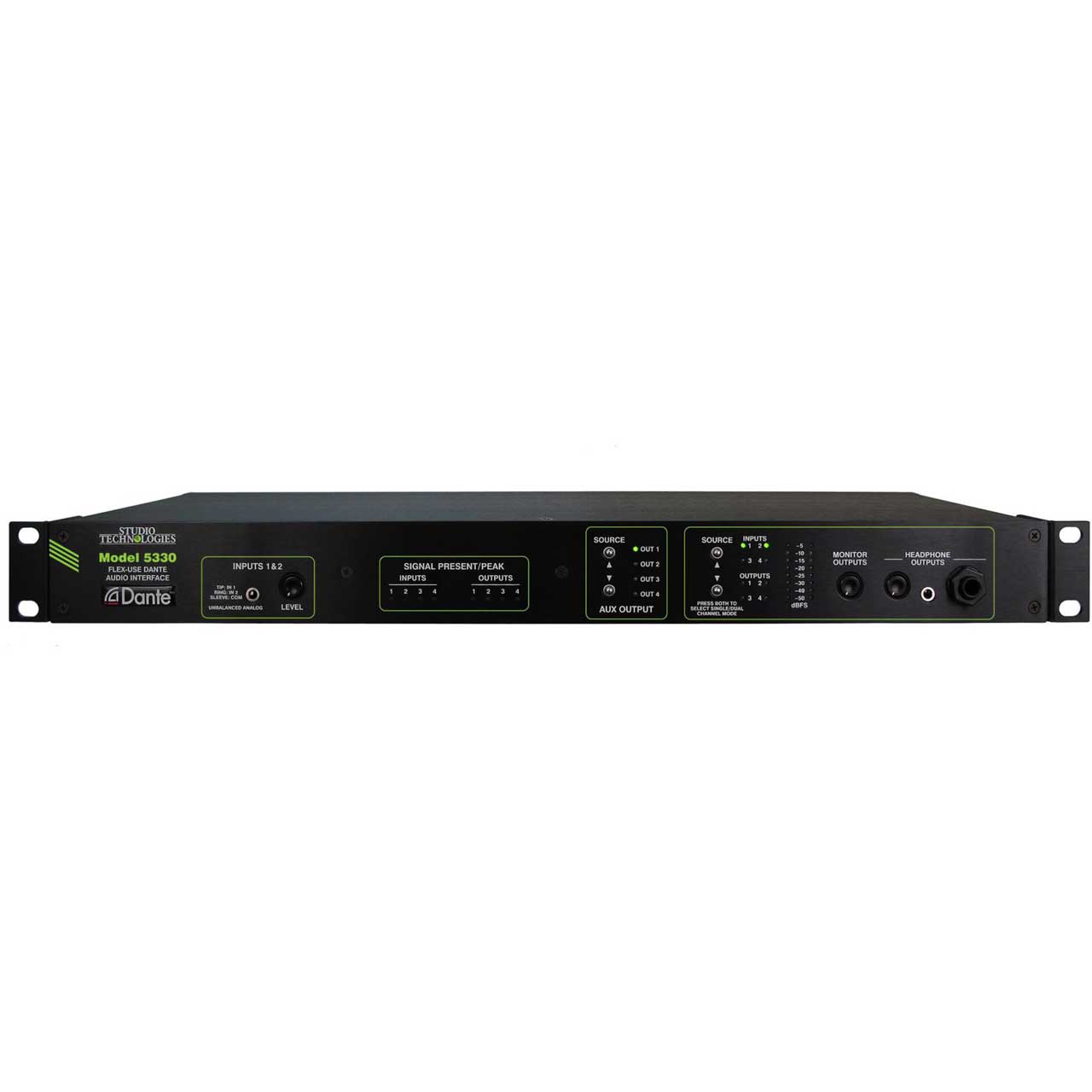

Studio Technologies Model 5330 is a fully professional product that offers the audio quality, features, and reliability required by 24-hour commercial applications. Four inputs, two on the front panel and two on the back, allow simple interfacing with a variety of unbalanced and balanced line-level analog sources. The 2-channel (stereo) input on the front panel is optimized for use with portable electronics that provide "-10" unbalanced audio sources. Using a rotary control, users can adjust the sensitivity of the input circuitry to match the level of the source. Two additional inputs are provided on the back panel and meet the requirements of professional audio equipment

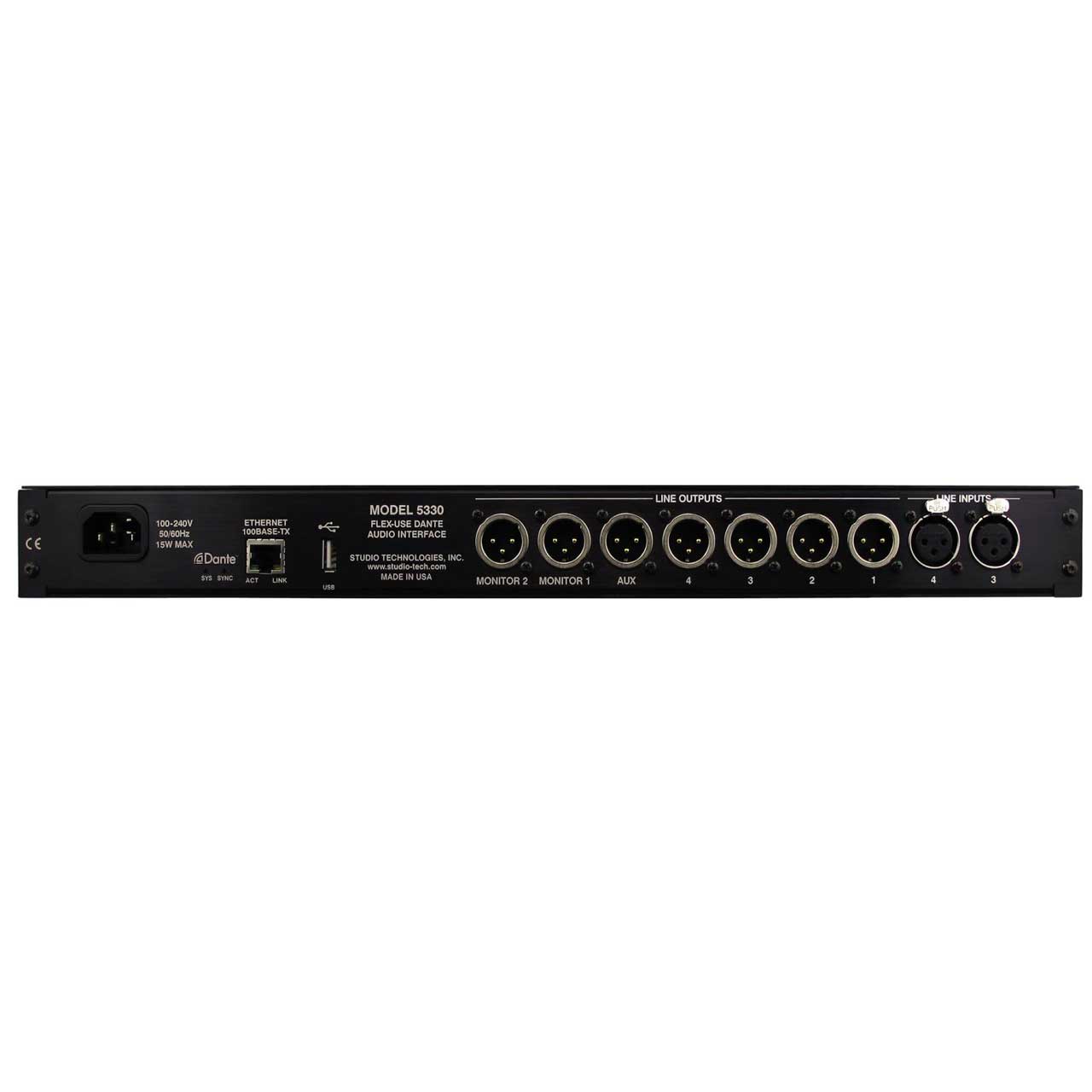

Four digital audio channels enter the Model 5330 via its Dante interface. These general-purpose audio channels are then converted from the digital domain to the analog domain. Four 3-pin male XLR connectors, located on the unit's back panel, provide balanced +4 dBu-nominal line-level analog outputs. An auxiliary output, also located on the back panel, provides a fifth "professional-quality" output.

The monitor section allows the user to select any audio input or output signal for visual and aural observation. Two 8-segment LEDs meters, calibrated in dBFS, allow precise monitoring of signal levels as they exist in the digital domain. A 2-channel (stereo) headphone output allows connection of headphones or ear buds that use either 3.5 mm or 1/4-inch jacks. A separate line-level analog monitor output allows connection to inputs on amplified speakers or power amplifiers.

An Ethernet connection is all that's required to make the Model 5330 part of a sophisticated networked audio system.

  • Features:

    • Dante audio-over-Ethernet technology
    • Four analog line inputs to Dante outputs
    • Four Dante inputs to balanced line-level outputs
    • Monitoring with meters, headphone and line outputs
    • Excellent audio quality
    • DDM and AES67 support
    • 100-240 V, 50/60 Hz mains powered
    • Standard connectors, lightweight, 1U rack mounting

  • Specifications:

    • Network Audio Technology
    • Type: Dante audio-over-Ethernet
    • AES67-2013 Support: yes
    • Dante Domain Manager (DDM) Support: yes
    • Bit Depth: up to 24
    • Sample Rates: 44.1 and 48 kHz
    • Number of Transmitter (Output) Channels: 4
    • Number of Receiver (Input) Channels: 4
    • Dante Audio Flows: 4; 2 transmitter, 2 receiver

      Network Interface
    • Type: twisted-pair Ethernet
    • Data Rate: 100 Mb/s (10 Mb/s not supported; 1000 Mb/s "GigE"
    • Ethernet not supported unless falls back to 100 Mb/s)

      Inputs 1 and 2
    • Compatibility: unbalanced line-level sources
    • Type: analog, unbalanced, capacitor coupled
    • Impedance: 10 k ohms, nominal
    • Nominal Level: -10 dBu, adjustable with input level control
    • Maximum Level: depends on setting of the input level control
    • Dynamic Range: >116 dB, 0 dB gain, A-weighted
    • Distortion (THD+N): <0.001% (-101 dB) at -1 dBFS, 40 dB gain, 22 kHz bandwidth
    • Frequency Response: +0.0/-0.5 dB, 22 Hz to 22 kHz
    • Status LEDs: 2, displays signal present/peak

      Inputs 3 and 4
    • Compatibility: balanced or unbalanced line-level sources
    • Type: analog, electronically balanced, capacitor coupled
    • Impedance: 20 k ohms, nominal
    • Nominal Level: +4 dBu (results in Dante output level of -20 dBFS)
    • Maximum Level: +24 dBu (results in Dante output level of 0 dBFS)
    • Dynamic Range: >116 dB, 0 dB gain, A-weighted
    • Distortion (THD+N): <0.001% (-101 dB) at -1 dBFS, 40 dB gain, 22 kHz bandwidth
    • Frequency Response: +0.0/-0.5 dB, 22 Hz to 22 kHz
    • Status LEDs: 2, displays signal present/peak

      Main, Auxiliary, and Monitor Outputs
    • Type: analog, electronically balanced, capacitor coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
    • Source Impedance: 200 ohms
    • Nominal Level - Main and Auxiliary: +4 dBu, reference -20 dBFS on Dante input
    • Nominal Level - Monitor: 0 dBu, reference -20 dBFS on Dante input
    • Maximum Level: +24 dBu with 0 dBFS on Dante input
    • Dynamic Range: >119 dB, A-weighted
    • Distortion (THD+N): 0.0012% (-99 dB), measured at -1 dBFS, 22 kHz bandwidth
    • Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
    • Status LEDs: 4, displays signal present/peak

      Audio Monitor
    • Source: inputs 1-4 or main outputs 1-4, selectable as monaural or stereo
    • Level Meters: 2, 8-segment LED

      Headphone Output
    • Type: stereo (dual-channel)
    • Compatibility: intended for connection to stereo headphones with nominal impedance of 100 ohms or greater
    • Maximum Output Voltage: 4.9 volts RMS, 1 kHz, 150 ohm load
    • Frequency Response: +0/-1.4 dB, 20 Hz to 20 kHz
    • Distortion (THD+N): 0.005%
    • Dynamic Range: >100 dB

      Connectors
    • Inputs 1 and 2: 3-conductor 3.5 mm jack
    • Inputs 3 and 4: 3-pin female XLR
    • Main, Auxiliary, and Monitor Outputs: 3-pin male XLR
    • Headphone Output: 3-conductor 3.5 mm jack and 3-conductor 1/4-inch jack
    • Ethernet: RJ45 receptacle
    • USB: type A receptacle (used only for application firmware updates)
    • AC Mains: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

      Power Source
    • AC Mains: 100 to 240 volts, +10/-15%, 50/60 Hz, 15 watt maximum

      Dimensions - Overall
    • 19.0 inches wide - 1.72 x 7.8 x 8.2" overall
    • Mounting: one space (1U) in a standard 19-inch rack
